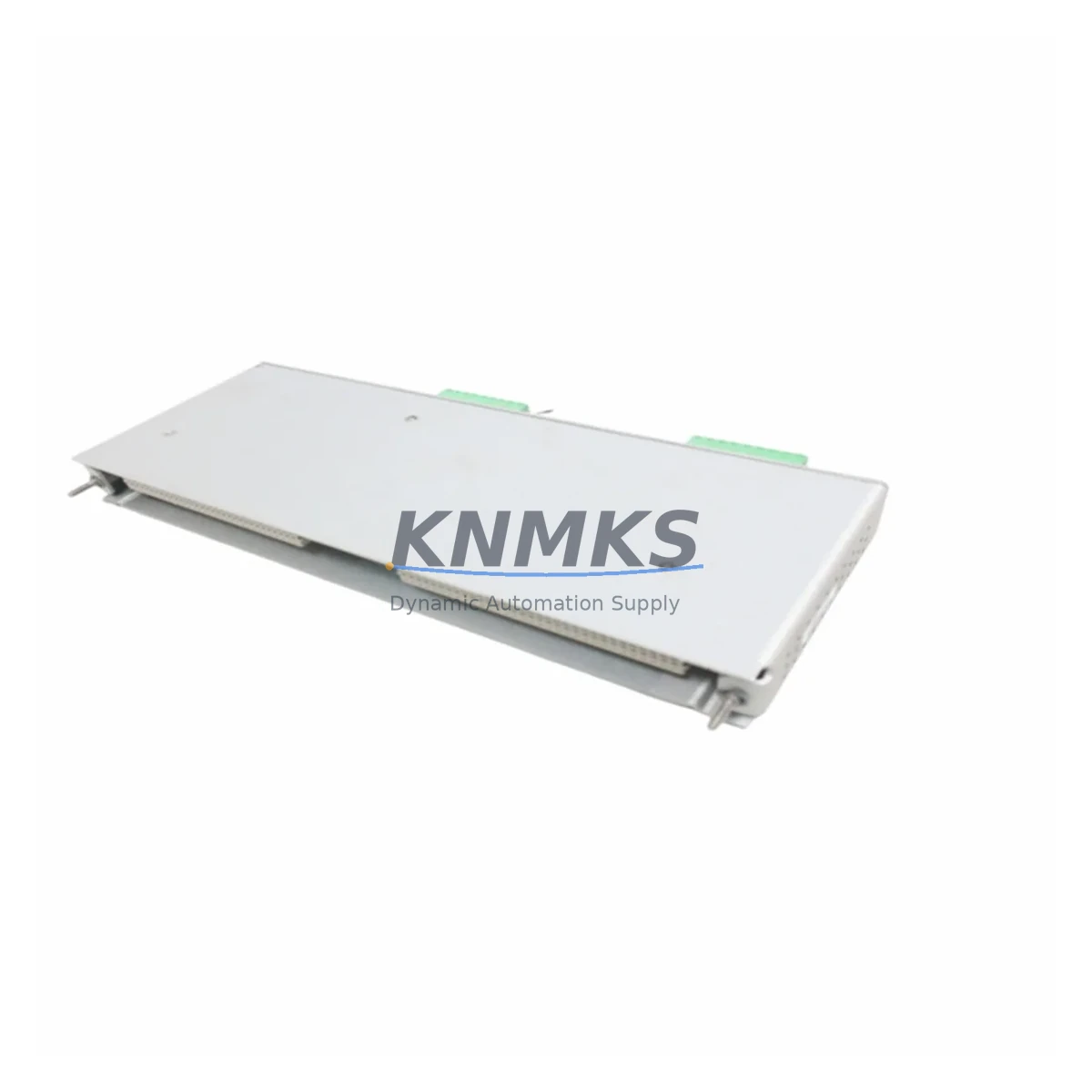

Bently Nevada 136294-01 Spare I/O Module 3500 Series: Maintenance-Proven Spare Part for Factory Uptime

The Bently Nevada 136294-01 is a 4-20mA isolated I/O module designed for the Bently Nevada 3500 Series machinery protection system — one of the most widely deployed continuous vibration monitoring platforms in rotating equipment applications worldwide. For maintenance engineers managing aging turbines, compressors, pumps, and generators, keeping a verified spare of the 136294-01 on the shelf is a fundamental element of any uptime-focused MRO strategy.

This module provides isolated analog I/O signal conditioning within the 3500 rack architecture, interfacing directly with transducer inputs and transmitting processed signals to the host DCS or safety system. Its role in the signal chain makes it a critical component: a failed or degraded 136294-01 can result in loss of vibration monitoring coverage, nuisance trips, or — more critically — undetected machinery faults. Sourcing a tested, ready-to-install spare eliminates the risk of extended downtime caused by long lead times on obsolete or slow-moving parts.

Our stock of the Bently Nevada 136294-01 is sourced from verified industrial channels, individually inspected, and function-tested prior to shipment. Each unit ships with a support terms confirmed by quotation covering defects in materials and workmanship under normal operating conditions.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

Effective maintenance planning for a 3500 Series system goes well beyond replacing a single module. When a 136294-01 I/O module is flagged for replacement — whether due to a fault code, signal drift, or scheduled overhaul — maintenance engineers should treat the event as an opportunity to audit the surrounding components in the same rack slot and signal loop.

Begin with the 3500/15 Power Supply Module, which feeds the rack backplane. A power supply operating near end-of-life can cause intermittent I/O faults that mimic module failure; verifying output voltage stability before installing a new 136294-01 prevents repeat failures. Similarly, inspect the 3500/20 Rack Interface Module (RIM) for communication integrity — this module manages the Modbus or Ethernet/IP link between the 3500 rack and the plant DCS or historian, and a degraded RIM can corrupt the analog signals the 136294-01 is transmitting.

On the field wiring side, check the terminal blocks and shielded cable runs connecting the 136294-01 to the transducer junction boxes. Corroded terminals or damaged cable shields introduce ground loops that degrade 4-20mA signal accuracy. If the installation uses a signal isolator or signal conditioner between the 3500 rack and the DCS analog input card, verify that the isolator’s output range and loop impedance remain within specification.

For plants running Bently Nevada 3500/40M or 3500/42M proximity monitor modules in the same rack, confirm that the rack’s total current draw remains within the power supply’s rated capacity after the I/O module swap. Adding or replacing modules without rechecking power budget is a common oversight that leads to intermittent rack resets.

If the 3500 system interfaces with a GE Mark VIe or similar turbine control platform via hardwired analog outputs, validate the receiving end’s input scaling after the 136294-01 replacement — particularly if the previous module had been in service for many years and its output had drifted from nominal. HMI trend screens should be checked to confirm that the new module’s output aligns with expected process values before returning the machine to service.

Finally, review the site’s spare parts inventory list. A well-maintained 3500 Series installation typically holds spares for the power supply, the RIM, at least one monitor module per type installed, and one or two I/O modules including the 136294-01. Gaps in this inventory represent uncontrolled downtime risk, particularly for older installations where OEM lead times may extend to weeks or months.

Site Replacement Workflow

Replacing the Bently Nevada 136294-01 on a live 3500 system requires a structured approach to minimize downtime and avoid introducing new faults during the swap.

Step 1 — Pre-replacement verification: Confirm the fault is isolated to the 136294-01 by reviewing the 3500 rack’s front-panel LED status and the System 1 or Orbit software fault log. Document the current module configuration, including channel assignments, full-scale ranges, and alert/danger setpoints, before removing the module.

Step 2 — Configuration backup: If the 3500 system is connected to a configuration PC, export the rack configuration file using Bently Nevada’s configuration software. This file will be used to restore settings to the replacement module and serves as a recovery point if the new module requires re-programming.

Step 3 — Physical replacement: With appropriate work permits in place, remove the faulty 136294-01 from the rack slot. Inspect the backplane connector for bent pins or contamination. Install the replacement module and verify seating. Restore power to the slot if the rack supports per-slot isolation.

Step 4 — Configuration restore and verification: Load the saved configuration to the replacement module. Verify channel outputs against known reference signals using a calibrated loop calibrator or the plant’s instrument maintenance tools. Confirm that DCS analog inputs are receiving expected values and that HMI displays are updating correctly.

Step 5 — Return to service: Clear any latched alarms in the 3500 rack and the DCS. Monitor the first 30–60 minutes of operation for any anomalous readings. Update the maintenance record with the replacement date, new module serial number, and post-replacement calibration results.

Our team can provide technical support during the replacement process and, where required, can arrange pre-configuration of the 136294-01 to your site’s specification prior to shipment — reducing on-site commissioning time and minimizing exposure to unplanned downtime.

Spare Parts Support FAQ

Q1: Is the 136294-01 still in production, and how long can I expect supply availability?
The Bently Nevada 136294-01 is a mature product within the 3500 Series platform. While OEM production status may vary, we maintain independent stock sourced from verified industrial channels and can support ongoing procurement needs. We recommend customers with critical installations maintain at least one on-site spare and establish a replenishment agreement to avoid supply gaps as the platform ages.

Q2: How do I verify that a replacement 136294-01 is compatible with my existing 3500 rack configuration?
Compatibility is determined by the rack model, firmware revision, and system configuration. The 136294-01 is designed for standard 3500 Series rack installations. Before ordering, confirm your rack model number and the firmware version running on your Rack Interface Module. If you are unsure, share your rack configuration details with our technical team and we will confirm compatibility before shipment.

Q3: What testing is performed on the 136294-01 before shipment?
Each unit undergoes visual inspection for physical damage, connector integrity check, and functional verification of analog I/O signal output within the 4-20mA specification range. Units that do not meet our acceptance criteria are quarantined and not offered for sale. A test report is available upon request for critical applications.

Q4: What does the support terms confirmed by quotation cover, and what is the claims process?
The support terms confirmed by quotation cover defects in materials and workmanship under normal operating conditions. It does not cover damage resulting from incorrect installation, overvoltage, physical impact, or unauthorized modification. To initiate a support terms claim, contact our sales team with the order number, a description of the fault, and any available diagnostic data from the 3500 system. We will arrange return, inspection, and replacement or repair within an agreed timeframe to minimize your downtime exposure.
