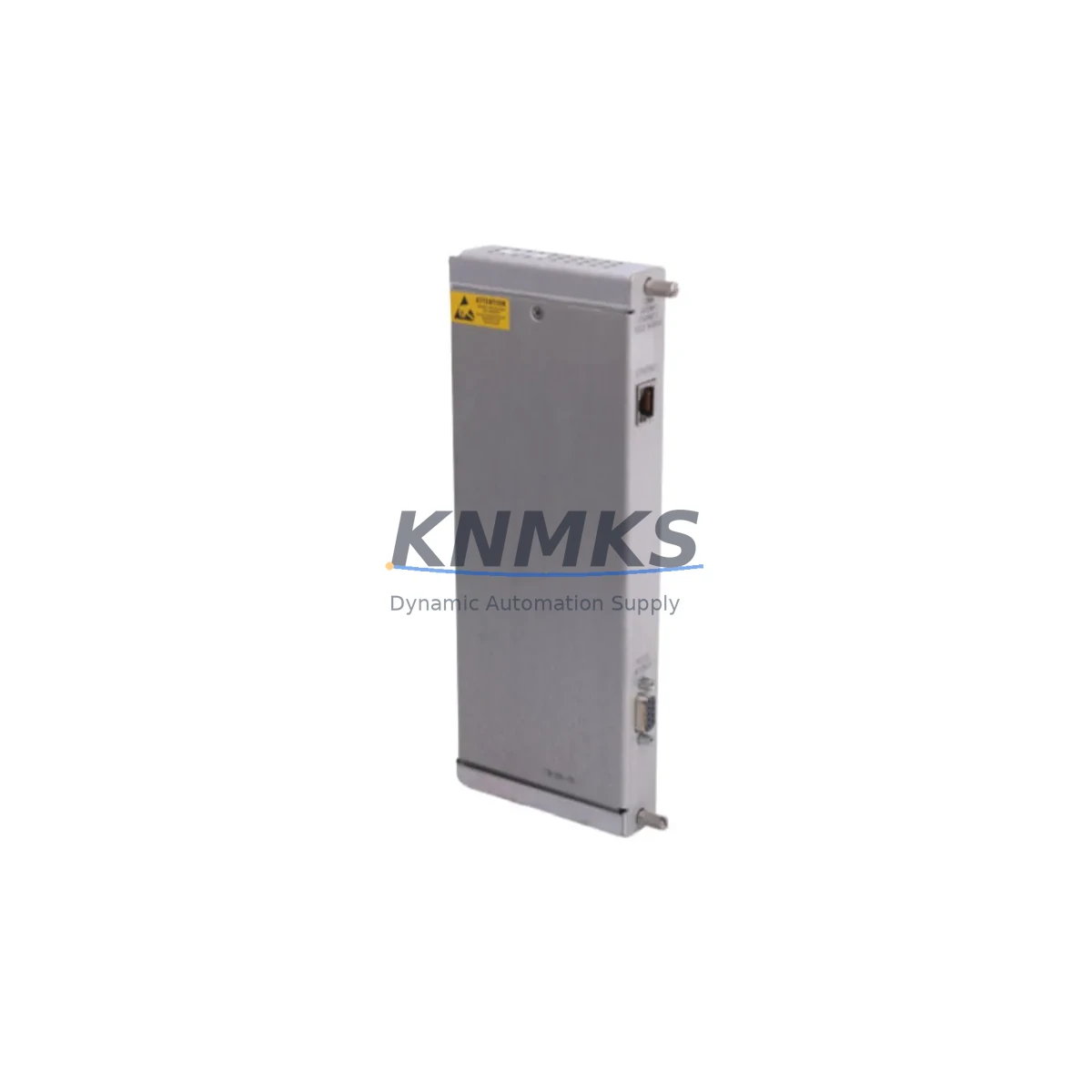

Bently Nevada 136188-01 Fail-Safe I/O Interface Module

Overview

Bently Nevada 136188-01 Fail-Safe I/O Interface Module: Fault Protection and Critical Industrial Field Reliability

The Bently Nevada 136188-01 is a Rack I/O Interface Module engineered for the Bently Nevada 3500 Series machinery protection system — one of the most widely deployed continuous monitoring platforms in rotating equipment protection across global heavy industry. Designed to operate reliably in demanding industrial environments, the 136188-01 serves as the critical communication bridge between field-mounted transducers and the 3500 rack’s monitoring and relay logic, ensuring that vibration, position, and process data are transmitted with precision and without interruption.

In continuous production environments — including petrochemical plants, power generation facilities, offshore platforms, and large-scale rotating machinery installations — any degradation in I/O interface integrity can cascade into missed alarm events, false trips, or undetected machinery faults. The 136188-01 is built to prevent exactly these failure modes. Its robust signal conditioning architecture maintains stable data throughput even under conditions of high electromagnetic interference (EMI), ground loop noise, and transient voltage surges common in heavy industrial control cabinets.

Fail-Safe Reliability Table

Control Cabinet Protection Strategy

The 136188-01 does not operate in isolation — its reliability is part of a broader control cabinet protection architecture. In a properly configured 3500 Series rack, the I/O Interface Module works in close coordination with the Bently Nevada 3500/22M Transient Data Interface, which captures high-resolution transient waveform data during machinery startup and coast-down events. Together, these modules ensure that both steady-state and dynamic machinery behavior is continuously monitored without data gaps.

Power integrity is equally critical. The Bently Nevada 3500/15 Power Supply Module provides the regulated DC power required by the rack’s monitoring modules, including the 136188-01. In installations where power quality is compromised by load switching, motor starts, or utility fluctuations, a stable and redundant power supply is the first line of defense against I/O module brownout or reset events. Pairing the 136188-01 with a verified 3500/15 power supply eliminates one of the most common root causes of spurious trips in machinery protection systems.

For facilities managing multiple rotating assets — compressors, turbines, pumps, and fans — the Bently Nevada 3500/20 Rack Interface Module provides the system-level communication gateway that connects the 3500 rack to plant DCS or SCADA platforms via Modbus or other industrial protocols. Ensuring this communication path remains stable is essential for alarm annunciation and historian data integrity. Any degradation in the rack interface can mask real machinery faults from the control room.

In high-vibration or thermally stressed environments, the Bently Nevada 330130 Proximity Transducer and its associated extension cables are frequently replaced alongside the I/O interface module during planned maintenance windows. Signal drift originating at the transducer level — caused by cable insulation breakdown, connector corrosion, or probe tip wear — can be misdiagnosed as an I/O module fault. Replacing both components together during a scheduled outage eliminates ambiguity and restores full system confidence. Similarly, the Bently Nevada 3500/40M Proximitor I/O Module is a common companion replacement in racks where multiple proximity channels are monitored, ensuring that all field signal paths are refreshed simultaneously.

Critical Industrial Safety Applications

The Bently Nevada 136188-01 is deployed across a wide range of critical industrial sectors where rotating machinery protection is non-negotiable:

Petrochemical and Refining: In hydrocarbon processing plants, the 136188-01 supports continuous vibration monitoring of centrifugal compressors, reactor feed pumps, and cooling tower fans. Unplanned shutdowns in these environments carry significant safety and financial consequences. The module’s stable I/O interface ensures that protection relay logic receives accurate, uninterrupted signals — enabling timely automatic shutdown before catastrophic bearing or seal failure occurs.

Power Generation: Steam turbines and gas turbines in power plants operate under extreme thermal and mechanical stress. The 136188-01 provides the reliable field signal interface required to monitor shaft displacement, differential expansion, and eccentricity — parameters that are directly linked to turbine trip logic. Any I/O interface failure in this context risks either a missed protective trip or a nuisance shutdown, both of which carry serious operational consequences.

Mining and Mineral Processing: Ball mills, SAG mills, and large slurry pumps in mining operations generate intense vibration and electrical noise. The 136188-01’s EMI-hardened design maintains signal integrity in these environments, supporting continuous health monitoring of critical drive-train components and reducing the risk of unplanned downtime during production campaigns.

Water and Wastewater Treatment: High-duty-cycle pumping stations and blower systems in water treatment facilities require reliable machinery protection to maintain regulatory compliance and service continuity. The 136188-01 supports long-term, maintenance-free operation in humid, chemically aggressive environments typical of water infrastructure installations.

Metallurgy and Steel Production: Rolling mills, continuous casters, and large induction furnace drives operate in environments with extreme thermal gradients and electromagnetic interference. The 136188-01’s robust construction and surge-protected inputs make it well-suited for these demanding conditions, where I/O module failures can halt entire production lines.

Safety and Quality FAQ

Q1: Does the Bently Nevada 136188-01 come with a support terms?
Yes. Every 136188-01 unit supplied by KNMKS is covered by a support terms confirmed by quotation against manufacturing defects and functional failure from the date of shipment. Support requests are supported with direct technical assistance and replacement dispatch.

Q2: Is the module tested before shipment?
Yes. All units undergo a comprehensive pre-shipment functional test that verifies signal interface integrity, backplane communication, and power consumption within specification. Test records are available upon request for quality-critical procurement processes.

Q3: Is the 136188-01 compatible with all 3500 Series rack configurations?
The 136188-01 is designed for use within the Bently Nevada 3500 Series rack architecture. Compatibility depends on the specific rack configuration, firmware revision, and channel assignment. KNMKS technical support can assist with compatibility verification based on your existing rack documentation and system revision level prior to order confirmation.

Q4: Can KNMKS support long-term or repeat supply of the 136188-01?
Yes. KNMKS maintains multi-region stock of the Bently Nevada 136188-01 to support both emergency replacement and planned maintenance programs. Long-term supply agreements and scheduled delivery programs are available for facilities managing large 3500 Series installations or multi-site machinery protection deployments.
