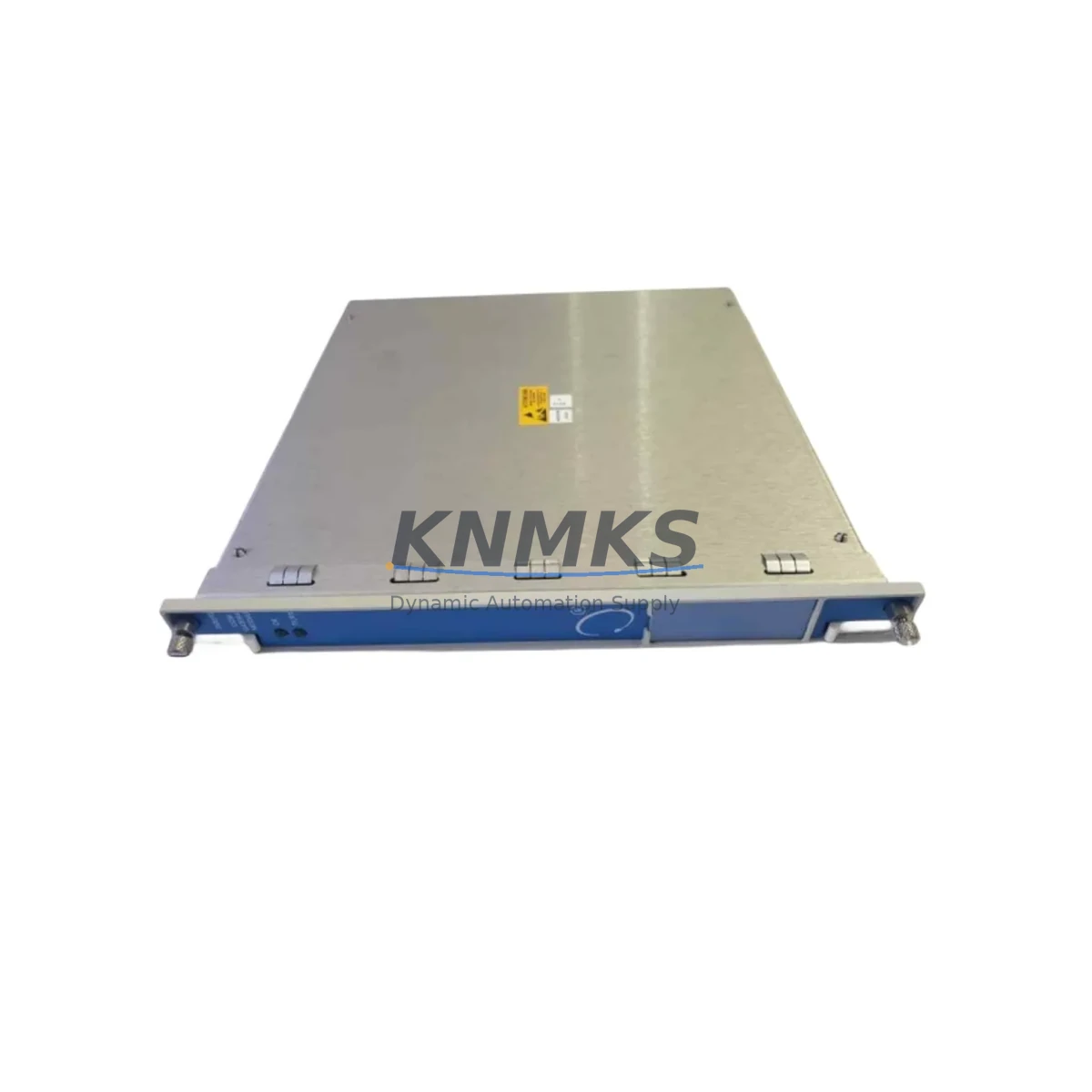

Bently Nevada 136180-01T Fail-Safe Communication Gateway

Overview

Bently Nevada 136180-01T Fail-Safe Communication Gateway: Fault Protection and Critical Industrial Field Reliability

The Bently Nevada 3500/92 136180-01T is a high-integrity communication gateway module engineered for the Bently Nevada 3500 Series machinery protection system. Designed to operate in the most demanding continuous-process environments, this module provides reliable, fail-safe data communication between the 3500 rack and plant-level control systems — including DCS, SCADA, and safety instrumented systems (SIS). With SKU 136180-01T, this gateway supports Modbus and other industrial protocols, ensuring uninterrupted signal integrity even under high electromagnetic interference, voltage fluctuations, and harsh ambient conditions common in petrochemical, power generation, and heavy industrial facilities.

In critical machinery protection applications, communication failure between the monitoring rack and the control room is not merely an inconvenience — it is a safety event. The 3500/92 136180-01T eliminates this risk by maintaining deterministic, low-latency data transfer across the protection loop. Whether integrated into a turbine protection panel, compressor control cabinet, or pump monitoring station, this module ensures that vibration, temperature, and process data reach the control system without dropout, drift, or delay. Its robust design resists signal corruption from surge events, ground loops, and cabinet-level thermal cycling, making it a trusted component in long-cycle spare parts strategies for facilities with 12–36 month maintenance horizons.

Fail-Safe Reliability Table

Control Cabinet Protection Strategy

In a fully integrated Bently Nevada 3500 Series protection cabinet, the 3500/92 136180-01T communication gateway operates as the critical data bridge between field-level monitoring hardware and the plant control network. It works in close coordination with the Bently Nevada 3500/15 Power Supply Module, which provides stable, conditioned DC power to the rack — eliminating the risk of communication dropout caused by power rail fluctuations or upstream grid disturbances. In high-availability installations, a redundant power supply configuration using dual 3500/15 units ensures that the gateway remains online even during single-point power failures.

Signal integrity at the rack level is further protected by the Bently Nevada 3500/20 Rack Interface Module, which manages internal rack communication and provides the gateway with clean, validated data from connected I/O modules. For vibration-critical assets such as gas turbines and centrifugal compressors, the Bently Nevada 3500/42M Proximitor / Seismic Monitor feeds real-time shaft displacement and seismic data through the rack bus — data that the 3500/92 gateway then transmits to the DCS or SIS without latency or packet loss.

In facilities where the protection system interfaces with a safety PLC or emergency shutdown system (ESD), the gateway’s Modbus output is typically connected to a Triconex Tricon Safety Controller or equivalent SIL-rated logic solver, ensuring that machinery trip signals are communicated with the determinism required by IEC 61511 functional safety standards. For installations requiring hardwired interlock backup, the Bently Nevada 3500/32 4-Channel Relay Module provides direct relay output capability alongside the gateway’s digital communication path — a dual-channel protection architecture that eliminates single-point communication failure as a trip inhibitor.

Cabinet thermal management is equally critical in continuous-process environments. When the 3500/92 module is installed in enclosed control cabinets alongside high-density I/O and relay modules, thermal monitoring via a dedicated cabinet temperature sensor or thermal protection relay prevents heat-induced communication errors and premature module degradation — a common failure mode in unventilated field enclosures operating in tropical or desert climates.

Critical Industrial Safety Applications

Petrochemical and Refinery Plants: In continuous hydrocarbon processing, the 3500/92 136180-01T serves as the communication backbone between rotating equipment protection systems and the plant DCS. Compressor trains, pumps, and turbines operating 24/7 depend on uninterrupted vibration and process data transmission to prevent unplanned shutdowns. The gateway’s EMI resistance is essential in environments where high-voltage switchgear, variable frequency drives, and large motor starters generate significant electrical noise.

Power Generation — Gas and Steam Turbines: Turbine protection systems require millisecond-level response to shaft vibration anomalies. The 3500/92 gateway ensures that trip-critical data from proximity probes and accelerometers reaches the turbine control system without communication latency. In combined-cycle power plants, where multiple protection racks are networked to a central SCADA, this module’s reliable Modbus communication prevents false trips and missed alarms caused by data dropout.

Mining and Mineral Processing: Ball mills, crushers, and conveyor drive systems in mining operations are subject to extreme vibration, dust ingress, and temperature cycling. The 3500/92 module’s robust construction and self-diagnostic capability make it suitable for long-interval maintenance cycles common in remote mining sites, where spare parts logistics require 12–36 month inventory planning.

Water Treatment and Pumping Stations: Large centrifugal pumps in water infrastructure require continuous bearing and shaft monitoring. The 3500/92 gateway enables remote monitoring integration with SCADA systems, allowing operators to detect early-stage mechanical degradation before it escalates to catastrophic failure — reducing both maintenance costs and service interruption risk.

Metallurgy and Steel Production: In electric arc furnace and rolling mill environments, extreme electromagnetic interference from high-current equipment challenges communication reliability. The 3500/92’s shielded signal architecture maintains data integrity in these high-EMI conditions, supporting continuous production without protection system communication faults.

Port and Marine Applications: Crane drives, ship propulsion systems, and offshore platform rotating equipment increasingly rely on Bently Nevada 3500 Series protection. The 3500/92 gateway enables integration with vessel management systems and port automation networks, supporting predictive maintenance strategies in salt-air, high-humidity environments.

Safety and Quality FAQ

Q1: Does the Bently Nevada 3500/92 136180-01T come with a support terms?
Yes. Every unit is covered by a support terms confirmed by quotation from the date of shipment. All modules undergo pre-shipment functional testing to verify communication integrity, rack compatibility, and self-diagnostic operation before dispatch. Test records are available upon request.

Q2: Is this module compatible with existing Bently Nevada 3500 Series racks?
Yes. The 3500/92 136180-01T is designed for direct installation into standard Bently Nevada 3500 Series racks. It is compatible with both standard and Triple Modular Redundancy (TMR) rack configurations. No firmware modification is required for most installations — the module is plug-compatible with existing 3500 system architectures.

Q3: Can this gateway be used in SIL-rated safety instrumented systems?
The 3500/92 communication gateway is used in conjunction with SIL-rated protection systems as a data communication interface. For SIS integration, the module’s Modbus output connects to certified safety logic solvers. Customers requiring SIL documentation or functional safety assessment support should contact our technical team prior to order placement.

Q4: What is the long-term supply availability for SKU 136180-01T?
We maintain ready stock of the Bently Nevada 3500/92 136180-01T to support both immediate replacement needs and long-cycle spare parts programs. For facilities planning 12–36 month maintenance inventories, we offer quantity reservation and scheduled delivery arrangements. Contact our sales team to discuss your site’s spare parts strategy.
