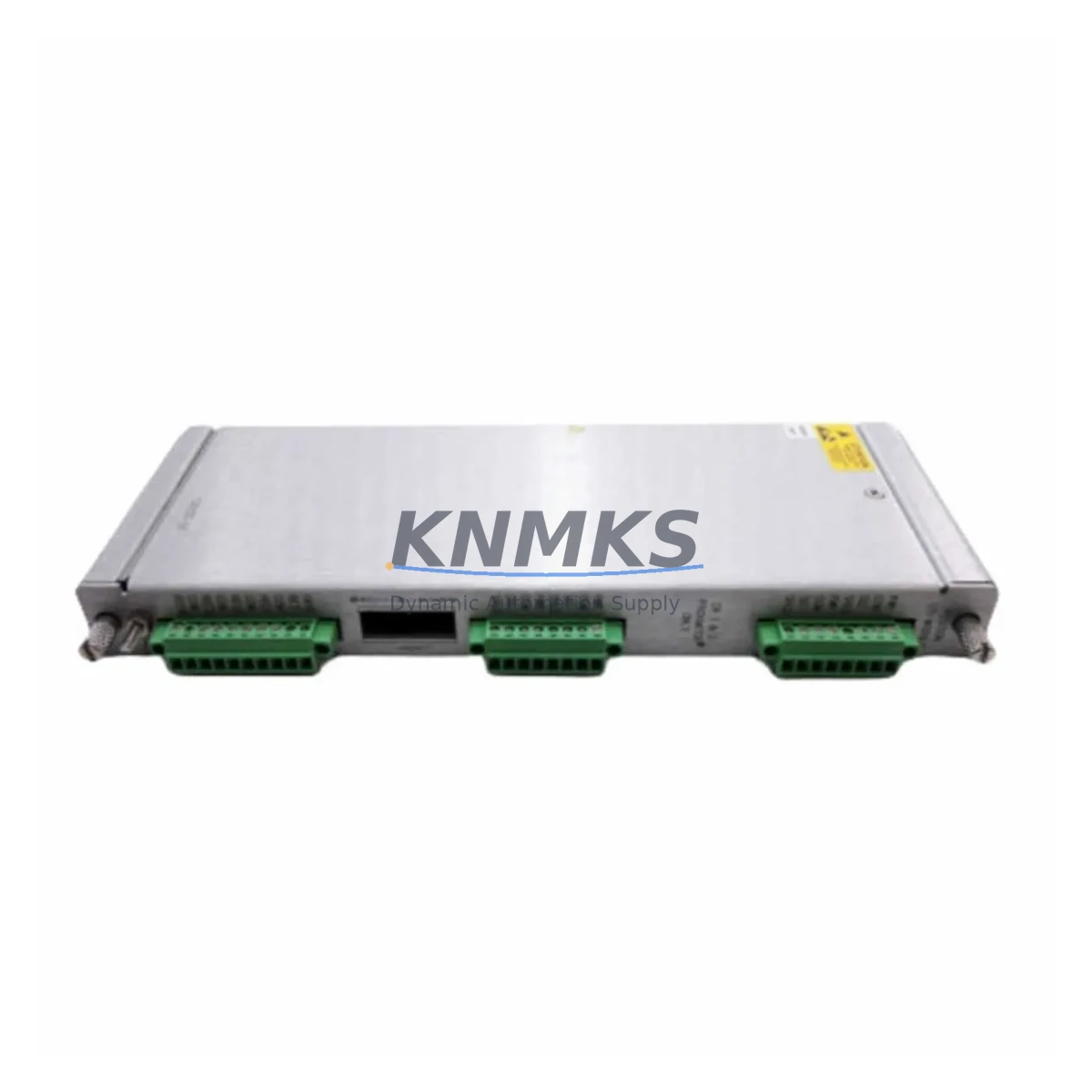

Bently Nevada 135137-01 Migration-Ready Position I/O Module

Overview

Bently Nevada 135137-01 Migration-Ready Position I/O Module: Legacy System Retrofit & Compatibility Upgrade

The Bently Nevada 135137-01 is a Position I/O Module designed for the Bently Nevada 3500 Series machinery protection and condition monitoring platform. As legacy 3500 Series installations age and original spare parts become increasingly difficult to source, the 135137-01 serves as a verified, migration-ready replacement that allows maintenance engineers and system integrators to extend the operational life of existing control cabinets without requiring a full platform overhaul.

This module is engineered to slot directly into the 3500 Series rack backplane, preserving existing terminal wiring, I/O channel assignments, and communication links to the host monitoring system. For facilities running legacy vibration monitoring infrastructure — particularly those managing rotating machinery such as turbines, compressors, pumps, and gearboxes — the 135137-01 provides a cost-effective path to system continuity while avoiding the capital expenditure and downtime associated with full platform migration.

Before installing the 135137-01 as a replacement for a discontinued or failed Position I/O module, engineers should verify several critical parameters. Power supply capacity within the 3500 rack must be confirmed to support the module’s draw alongside co-installed cards such as the Bently Nevada 3500/15 Power Supply or its equivalent. Terminal block wiring should be mapped against the original I/O channel configuration to ensure transducer signal integrity is maintained across all position measurement channels. The backplane interface must be inspected for pin condition and rack slot compatibility, particularly in older installations where connector wear may affect signal continuity.

Module address configuration is a common source of commissioning errors during retrofit. The 135137-01 must be addressed correctly within the 3500 rack to ensure the host system — whether a DCS, SCADA platform, or standalone condition monitoring workstation — correctly maps the module’s channel outputs to the corresponding machinery tags. Where the original system used Bently Nevada 3500/42M Proximitor/Seismic Monitor modules in adjacent slots, address conflicts must be resolved before powering the rack.

Program compatibility is another key consideration. Facilities using System 1 or legacy Bently Nevada monitoring software should confirm that the replacement module’s firmware version is compatible with the installed software revision. Firmware mismatches between the 135137-01 and the rack’s 3500/20 Rack Interface Module can result in communication faults or incorrect alarm setpoint behavior. Where possible, firmware should be verified against the original module’s label before decommissioning the failed unit.

For control cabinets integrating Bently Nevada monitoring with broader plant automation — such as DCS platforms from Emerson, Honeywell, or ABB — the communication link between the 3500 rack and the plant network must be validated post-installation. The 135137-01 does not alter the rack’s communication architecture, but any changes to slot configuration or module addressing may require a corresponding update to the DCS I/O mapping or OPC server tag list. HMI screen updates may also be necessary if the original display configuration referenced the failed module’s slot address directly.

Installation space within the control cabinet should be confirmed prior to ordering. The 135137-01 occupies a standard 3500 Series rack slot and does not require additional mounting hardware, but cabinets with high module density may require thermal assessment to ensure adequate airflow around the replacement unit. In high-ambient-temperature environments, derating of adjacent modules — including Bently Nevada 3500/40M Proximitor Monitor cards — should be evaluated.

All units supplied by KNMKS undergo pre-shipment functional testing, including power-on verification, channel output validation, and backplane interface inspection. Each 135137-01 is shipped with a support terms confirmed by quotation covering manufacturing defects and functional failures under normal operating conditions. Global stock is maintained to support urgent replacement requirements, with expedited shipping available for critical plant shutdowns.

Migration Compatibility Table

Retrofit Planning for Existing Automation Systems

Successful retrofit of the Bently Nevada 135137-01 into an existing 3500 Series installation requires a structured approach that accounts for the interdependencies between modules within the rack. A typical 3500 Series cabinet supporting rotating machinery monitoring will include a combination of the 3500/15 Power Supply, the 3500/20 Rack Interface Module, one or more 3500/40M Proximitor Monitor cards, and potentially a 3500/42M Proximitor/Seismic Monitor for combined vibration and position measurement. The 135137-01 Position I/O Module interfaces with these components through the rack backplane and must be addressed and configured consistently with the existing module population.

Where the retrofit scope extends beyond a single module replacement — for example, when upgrading an entire monitoring cabinet as part of a broader plant modernization program — engineers should also assess the condition of the 3500/22M Transient Data Interface and any installed Keyphasor modules, as these components share the rack communication bus and may exhibit age-related degradation that could mask the benefits of the new Position I/O module. In some cases, a phased replacement strategy — starting with the most critical I/O modules and progressively upgrading supporting components — offers the best balance between risk management and capital expenditure.

For facilities integrating the 3500 Series rack with a plant DCS or SCADA system via a Bently Nevada 3500/92 Communication Gateway, the retrofit plan should include a communication link validation step to confirm that the gateway correctly maps the replacement module’s channel outputs to the plant network. This is particularly important where the original module failure resulted in loss of position data to the DCS historian, as tag mapping errors may persist after module replacement if the gateway configuration is not refreshed.

Signal isolation requirements should also be reviewed during retrofit planning. In installations where position transducer signals share cable runs with high-voltage power conductors, the addition of signal isolators between the transducer field wiring and the 135137-01 terminal block may be advisable to protect the new module from induced noise and ground loop interference. This is a common finding in older control cabinets where cable segregation standards were less stringent than current practice.

Downtime Control During System Migration

Minimizing unplanned downtime during Position I/O module replacement is a primary concern for facilities operating continuous processes. The 135137-01 is designed to support hot-swap replacement within the 3500 Series rack, subject to confirmation of the rack’s power supply capacity and the host system’s ability to tolerate a brief interruption in position data from the affected channels. Before initiating the swap, the original module’s channel configuration — including alarm setpoints, transducer type assignments, and OK relay logic — should be documented from the System 1 or legacy monitoring software interface.

Where the host DCS or SCADA system is configured to generate alarms on loss of position data, the relevant alarm suppression or bypass function should be activated prior to module removal to prevent spurious trip signals from propagating to the plant control system. This is particularly important in installations where the 3500 rack’s OK relay output is wired into a safety instrumented system or emergency shutdown circuit.

After installing the 135137-01, the commissioning sequence should include: power-on verification of the module’s status LEDs, confirmation of channel OK status in the monitoring software, validation of position measurement values against a known reference (such as a dial indicator reading on the monitored shaft), and restoration of alarm setpoints to the pre-replacement values. Where firmware updates are required, these should be applied before the module is placed in service to avoid a second maintenance intervention.

KNMKS maintains ready stock of the 135137-01 to support urgent replacement requirements. Pre-shipment functional testing ensures that each unit is verified operational before dispatch, reducing the risk of receiving a non-functional replacement during a critical maintenance window. Expedited shipping options are available for plant shutdown scenarios where delivery time is a constraint.

Retrofit Support FAQ

Q: Is the Bently Nevada 135137-01 a direct replacement for the original module in a 3500 Series rack?
A: Yes. The 135137-01 is designed as a direct slot-for-slot replacement within the 3500 Series rack. No mechanical modifications to the rack or cabinet are required. Terminal block wiring is compatible with the original installation under standard replacement conditions, though wiring should be verified against the original I/O channel map before powering the rack.

Q: What commissioning steps are required after installing the replacement module?
A: After installation, confirm module address configuration, verify channel OK status in the monitoring software, validate position measurement values against a known reference, and restore alarm setpoints. If the host system uses a communication gateway, refresh the gateway configuration to ensure correct tag mapping. Firmware version compatibility with the rack interface module and monitoring software should be confirmed before placing the module in service.

Q: Does KNMKS provide pre-shipment testing for the 135137-01?
A: Yes. All units undergo power-on verification, channel output validation, and backplane interface inspection before shipment. A support terms confirmed by quotation is provided from the date of shipment, covering manufacturing defects and functional failures under normal operating conditions.

Q: What is the typical lead time and stock availability for the 135137-01?
A: KNMKS maintains ready stock of the 135137-01 to support urgent and planned replacement requirements. Lead times vary by destination and shipping method. Expedited shipping is available for critical plant shutdown scenarios. Contact our sales team for current stock status and delivery options.

© 2026 KNMKS. All rights reserved.
Original Source: https://knmks.com
Contact: [email protected] | +86 18359268345

Product Identification

Brand / Ecosystem

Bently Nevada
Bently Nevada

Model / Series

135137-01
3500 Series

Product Family

PLCs & Controllers

Availability Status

Available on request after model and quantity confirmation

Inquiry Type

B2B RFQ, replacement inquiry and project spare-part request

Pre-Quote Check

Exact SKU, brand, series, quantity, nameplate photos and destination country are checked before quotation

Specification & Inquiry Focus

Control platform

PLC, PAC and modular controllers

Common needs

CPU, rack, power and I/O expansion

Project support

Replacement, cabinet build and maintenance

Inquiry Support

• Model cross-checking before quotation
• CPU, power, rack and expansion module matching
• Support for replacement and project inquiry

What to Send Us

• Brand and exact model number: Bently Nevada 135137-01
• Quantity and required delivery time
• Application, replacement requirement or nameplate photo
• Destination country and shipping preference
