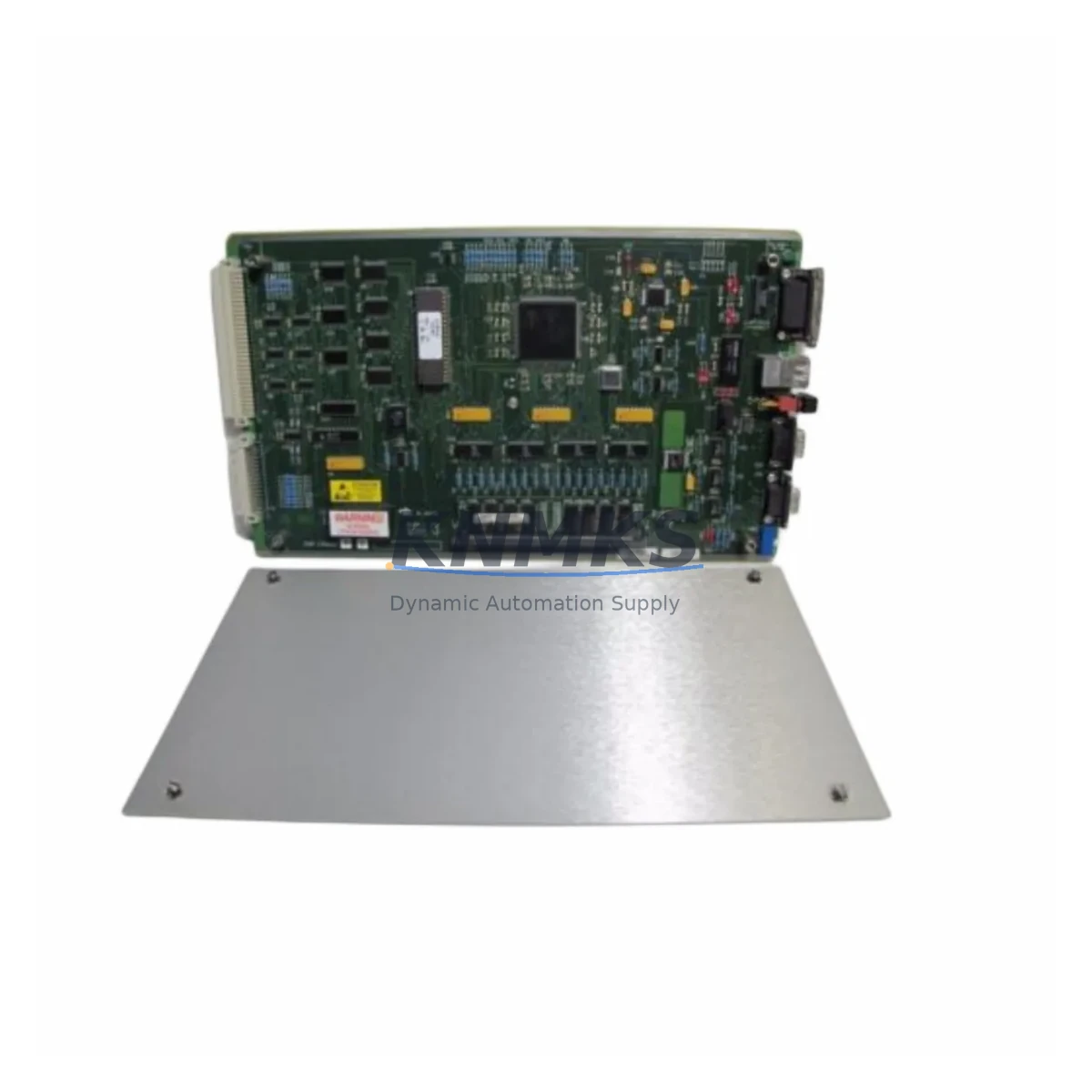

Bently Nevada 134652-01 Migration-Ready TDI for 3500

Overview

Bently Nevada 134652-01 Migration-Ready TDI for Legacy 3500 Systems

The Bently Nevada 134652-01 is a Transient Data Interface (TDI) module designed for the 3500 Series machinery protection and condition monitoring platform. As legacy vibration monitoring infrastructure ages and OEM support windows close, the 134652-01 has become a critical retrofit component for facilities managing rotating machinery — including turbines, compressors, pumps, and gearboxes — where continuous protection cannot be interrupted during system transitions.

This module captures high-speed transient waveform data from proximity probes and velocity sensors connected to the 3500 rack, enabling engineers to perform detailed diagnostic analysis during startup, shutdown, and trip events. For plants migrating from older Bently Nevada 3300 or 7200 Series architectures, the 134652-01 provides a structured upgrade path that preserves existing sensor wiring, probe configurations, and alarm setpoints without requiring a full system replacement.

KNMKS maintains verified stock of the 134652-01 with full functional testing prior to shipment. Each unit is covered by a support terms confirmed by quotation and ships with documentation supporting integration into both active 3500 racks and retrofit control cabinet builds.

Migration Compatibility Table

Retrofit Planning for Existing Automation Systems

Successful integration of the 134652-01 into a legacy or transitional control environment requires systematic pre-installation planning. The following considerations apply to most retrofit scenarios encountered in the field.

Power Budget Verification: Before installing the 134652-01, confirm that the existing 3500/15 Power Supply Module or 3500/15E Enhanced Power Supply has sufficient headroom to support the additional TDI load. Overloaded rack power supplies are a common cause of intermittent module faults during post-retrofit commissioning. If the rack is near capacity, a second power supply or a rack expansion may be required.

Backplane Slot and Address Assignment: The 134652-01 must be installed in a slot that is correctly mapped in the rack configuration software. Slot addressing errors will prevent the module from being recognized by the 3500/92 Communication Gateway Module, which handles Ethernet and serial data export to historian and DCS systems. Verify slot assignments against the existing rack layout before physical installation.

Sensor and Terminal Wiring: Proximity probe signals routed to the TDI must be checked for correct polarity, shielding continuity, and gap voltage at the 3500/25 or 3500/40M Monitor Modules before the TDI is activated. In older installations, terminal blocks may have corroded or loosened connections that cause signal noise in transient captures. Re-termination at the I/O terminal strip is recommended as part of any retrofit scope.

Communication Link Validation: If the plant historian or condition monitoring workstation connects to the 3500 rack via the 3500/92 Communication Gateway, confirm that the gateway firmware version supports the TDI data format. Some earlier gateway firmware revisions require an update before transient waveform data from the 134652-01 is correctly parsed by System 1 Evolution software. This step is frequently overlooked and can result in missing data channels after installation.

HMI and Alarm Screen Updates: If the plant uses an HMI or SCADA system with pre-configured alarm displays tied to the 3500 rack, adding or replacing a TDI module may require updates to the HMI tag database and alarm summary screens. Coordinate with the control system engineer to ensure that new TDI channels are mapped correctly and that existing alarm setpoints are preserved during the transition.

Programming Cable and Configuration Backup: Before making any changes to the rack configuration, use the 3500 Rack Configuration Software and a compatible programming cable to export a full backup of the existing rack configuration file. This backup is essential for rapid recovery if the retrofit introduces unexpected faults. Store the backup file off-rack on a dedicated engineering workstation.

Downtime Control During System Migration

Minimizing unplanned downtime is the primary operational constraint in any retrofit involving the Bently Nevada 3500 platform. The 134652-01 supports a structured hot-swap and staged commissioning approach that reduces exposure to production loss.

Where the process permits a brief controlled shutdown, the recommended sequence is: export the full rack configuration, remove the legacy TDI module, install the 134652-01 in the same slot, restore power, and verify module recognition in the rack configuration software before re-enabling monitoring channels. This sequence typically takes under 30 minutes for a prepared technician with the correct tools and a pre-tested replacement unit.

For critical machinery where even a brief shutdown is unacceptable, the 134652-01 can be staged in a parallel rack or test bench environment to validate firmware compatibility, channel mapping, and communication link behavior before the live cutover. This approach allows the engineering team to identify and resolve configuration issues offline, compressing the live installation window to the minimum possible duration.

Preserving the original program logic and alarm setpoints is non-negotiable in most regulated or safety-critical environments. The 3500 rack configuration file contains all channel scaling, alarm thresholds, and OK relay logic. Restoring this file to the replacement rack or module ensures that the protection system returns to its validated state immediately after the retrofit, without requiring a full re-commissioning cycle.

KNMKS pre-tests each 134652-01 unit prior to shipment to confirm that the module powers up correctly, communicates on the backplane, and passes internal diagnostics. A test report is available on request. This pre-shipment verification step eliminates the risk of receiving a non-functional unit and discovering the fault only after the machine has been taken offline.

Retrofit Support FAQ

Q: Is the 134652-01 a direct drop-in replacement for the original TDI module in my 3500 rack?
A: Yes, the 134652-01 is designed to occupy the same rack slot and use the same backplane interface as the original TDI. However, you should verify the rack configuration file to confirm that the slot address and channel assignments match your existing setup before powering the rack back on.

Q: What firmware version does the 134652-01 require, and how do I check compatibility with my System 1 software?
A: Firmware compatibility depends on the version of System 1 or System 1 Evolution installed on your condition monitoring workstation. Check the Bently Nevada firmware release notes for the 134652-01 against your System 1 version. If you are unsure, contact KNMKS with your System 1 version number and we will confirm compatibility before shipment.

Q: Can KNMKS provide a pre-shipment test report for the 134652-01?
A: Yes. All units are functionally tested before shipment. A test report documenting power-up, backplane communication, and diagnostic pass/fail results is available on request at the time of order.

Q: What is the support terms coverage and what does it include?
A: The 134652-01 supplied by KNMKS carries a support terms confirmed by quotation from the date of shipment. The support terms covers manufacturing defects and functional failures under normal operating conditions. It does not cover damage resulting from incorrect installation, overvoltage, or physical mishandling. Support requests are processed with priority turnaround to minimize impact on your production schedule.
