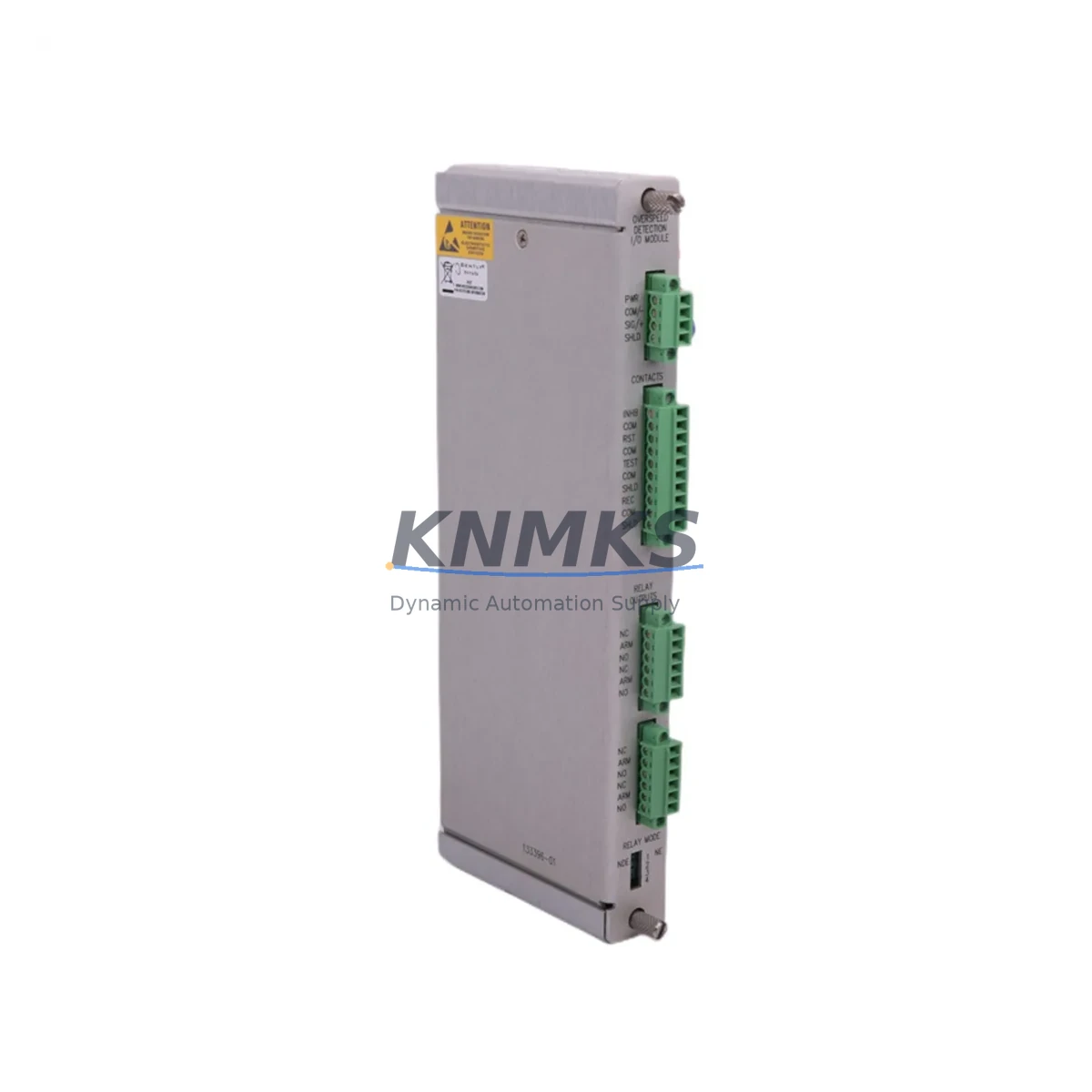

The Bently Nevada 133396-01 is a critical I/O module within the 3500 Series Machinery Protection System, engineered for continuous vibration monitoring, proximity probe signal conditioning, and real-time machinery health data acquisition in heavy industrial environments. Designed to OEM specification, this module serves as the primary interface between field-mounted transducers and the 3500 rack-based monitoring system, making it an essential spare for any facility operating rotating equipment such as turbines, compressors, pumps, and gearboxes.

For maintenance engineers managing plant uptime, the 133396-01 represents a non-negotiable line item in the spare parts inventory. Unplanned failure of this module can result in loss of vibration visibility across multiple measurement channels, triggering protective shutdowns or — more critically — blind operation without trip protection. Stocking a verified replacement ensures that fault isolation, module swap, and system restoration can be completed within a single maintenance window, minimizing mean time to repair (MTTR) and protecting production continuity.

Procurement engineers sourcing this module should prioritize SKU-exact, OEM-grade units with documented pre-shipment testing. Counterfeit or refurbished modules without calibration records introduce unacceptable risk in safety-critical monitoring loops. Every 133396-01 unit dispatched from our inventory undergoes functional verification against 3500 Series rack compatibility standards before shipment, and is backed by a support terms confirmed by quotation covering manufacturing defects and operational failure under normal service conditions.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When scheduling replacement of the 133396-01, maintenance teams should treat the module swap as part of a broader control cabinet inspection rather than an isolated task. The 3500 Series rack architecture means that a single I/O module failure can affect multiple monitoring channels simultaneously, so a structured inspection protocol is essential.

Begin by verifying the 3500/15 Power Supply Module output rails — the 133396-01 draws regulated DC from the rack backplane, and a degraded power supply can cause intermittent module faults that mimic I/O hardware failure. Confirm that backplane voltage is within specification before condemning the I/O module itself.

Next, inspect the 3500/20 Rack Interface Module (RIM), which manages communication between the 3500 rack and the plant DCS or historian. A faulty RIM can cause data dropout symptoms that are incorrectly attributed to the I/O module. Verify Modbus or Ethernet/IP communication continuity through the RIM before and after the 133396-01 replacement.

Field wiring to proximity probes should be inspected at the terminal block and junction box level. Check for shield continuity, correct grounding at a single point, and cable insulation integrity. Damaged coaxial cable between the probe and the proximitor extension cable is a common root cause of signal anomalies that accelerate I/O module wear.

The 3500/42M Proximitor / Seismic Monitor Module and 3500/45 Position Monitor Module, if installed in adjacent rack slots, should be inspected for alarm setpoint integrity and channel configuration after any I/O module replacement, as rack-level resets can occasionally affect adjacent module parameters.

For facilities running legacy 3300 Series systems alongside 3500 racks, verify that signal isolators and 3300/16 Proximitor Monitors in parallel monitoring loops are not introducing ground loops that could affect the replacement module’s calibration baseline. A signal isolation audit at commissioning of the new 133396-01 is strongly recommended.

Finally, confirm that the 3500 System Configuration Software (rack configuration file) reflects the correct module type and channel assignments before returning the system to service. An incorrect configuration file loaded after module replacement is a documented cause of false trips and missed alarms in 3500 Series installations.

Site Replacement Workflow

Step 1 — Isolation: Notify the control room and obtain a permit to work. Inhibit the affected monitoring channels in the 3500 rack configuration software to prevent spurious trips during the swap procedure.

Step 2 — Module Removal: Power down the rack slot if hot-swap is not supported for this module variant. Disconnect field wiring at the I/O terminal block, label all connections, and extract the 133396-01 from the rack slot using the module ejector handles.

Step 3 — Replacement Verification: Confirm the replacement 133396-01 SKU matches the removed module exactly — including revision suffix if applicable. Do not substitute with adjacent part numbers (e.g., 133396-02 or 133396-03) without consulting the 3500 Series compatibility matrix, as channel count and signal type may differ.

Step 4 — Installation and Configuration: Insert the replacement module, reconnect field wiring per the original labeling, and reload the rack configuration file. Verify that the System Configuration Software recognizes the new module and that all channel assignments are correct.

Step 5 — Commissioning: Re-enable monitoring channels, confirm live signal readings against known machine baseline values, and verify alarm and trip setpoints are active. Document the replacement in the maintenance management system (CMMS) with the new module serial number and installation date.

This workflow supports a target replacement time of under 90 minutes for a trained technician, minimizing production downtime and ensuring full monitoring coverage is restored before the machine is returned to service.

Spare Parts Support FAQ

Q1: Is the 133396-01 compatible with all 3500 Series rack configurations?
The 133396-01 is designed for use within the Bently Nevada 3500 Series rack system. Compatibility depends on the specific rack slot assignment, firmware revision of the Rack Interface Module, and the system configuration file. Always verify the rack configuration file and slot assignment before installation. Contact our technical team with your rack serial number for confirmation if required.

Q2: What pre-shipment testing is performed on each unit?
Every 133396-01 unit undergoes functional verification including channel signal integrity checks, backplane communication confirmation, and visual inspection for physical damage. Units that do not pass all test criteria are not dispatched. A test record is available upon request for quality-critical applications.

Q3: What does the support terms confirmed by quotation cover?
The support terms confirmed by quotation cover manufacturing defects and operational failure under normal service conditions from the date of shipment. It does not cover damage resulting from incorrect installation, overvoltage events, physical impact, or use outside the specified operating environment. Support requests are processed with return authorization; replacement units are dispatched within 3 business days of claim approval.

Q4: Can you support long-term or blanket purchase orders for this part?
Yes. For facilities with annual maintenance schedules or multi-site operations, we support long-term supply agreements and forward stock arrangements for the 133396-01 and related 3500 Series components. Contact [email protected] or +86 18359268345 to discuss volume pricing, lead-time guarantees, and consignment stock options.
