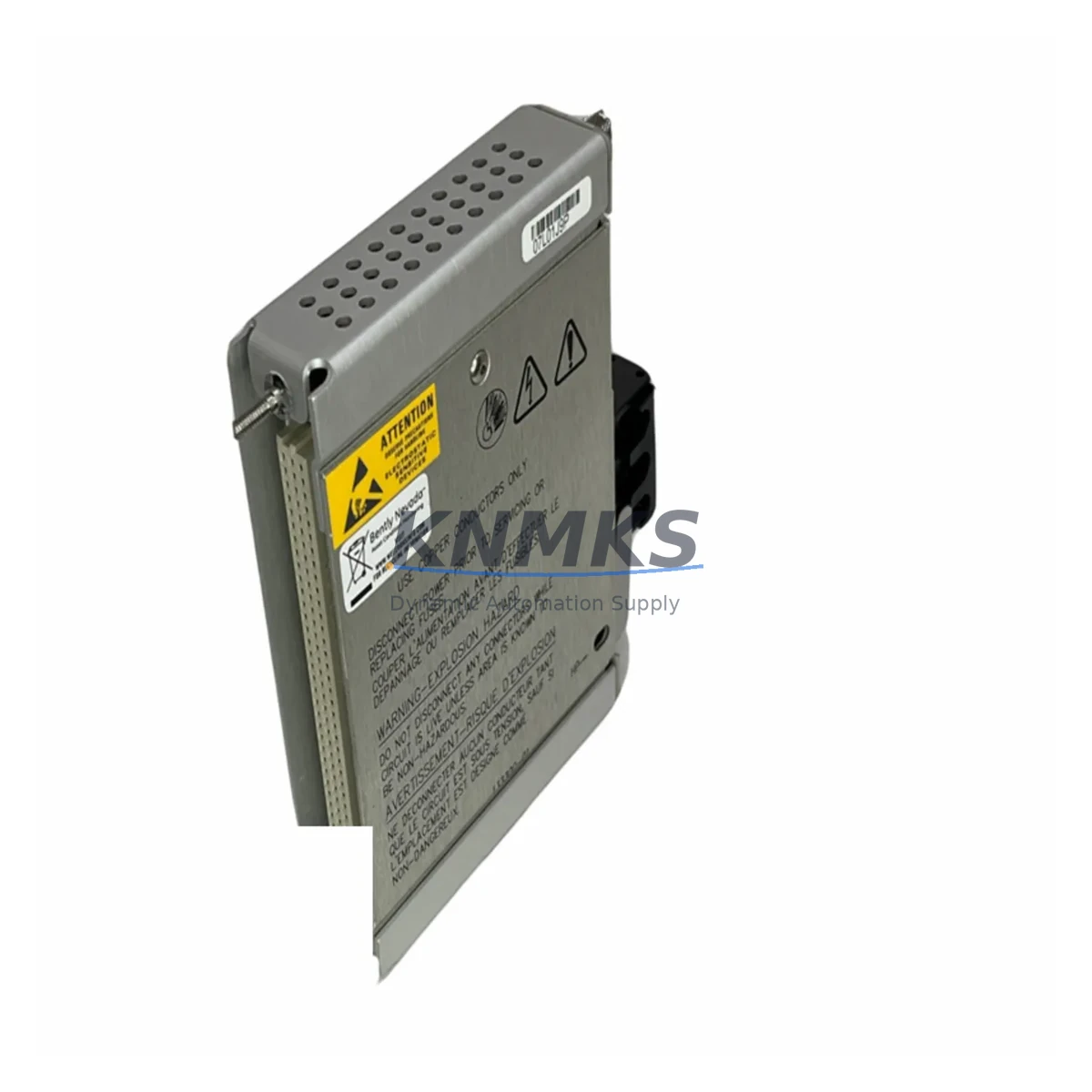

Bently Nevada 133300-01 Maintenance-Proven Spare Part

Overview

Bently Nevada 133300-01 Maintenance-Proven Spare Part for Factory Uptime

The Bently Nevada 133300-01 is an original Proximitor/Seismic I/O Module engineered for the 3500 Series machinery protection system — one of the most widely deployed continuous vibration monitoring platforms in rotating equipment facilities worldwide. For maintenance engineers managing turbines, compressors, pumps, and gearboxes, this module is a critical node in the signal chain between field-mounted proximity probes and the 3500 rack’s processing infrastructure. Sourced as a genuine spare, the 133300-01 supports direct drop-in replacement without firmware reconfiguration in compatible 3500 rack assemblies, minimizing unplanned downtime and preserving existing system architecture.

Procurement engineers sourcing this module for long-cycle spare parts programs will find the 133300-01 well-suited to multi-year inventory strategies. Its standardized form factor, stable supply chain availability, and support terms confirmed by quotation coverage make it a reliable line item for annual MRO budgets and critical asset protection plans. Each unit is functionally tested prior to shipment, with inspection documentation available upon request.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When replacing the 133300-01 in a live 3500 rack, a disciplined maintenance workflow extends well beyond the module swap itself. Maintenance engineers should treat the replacement as an opportunity for a broader cabinet inspection. Begin by verifying the integrity of the 3500/15 Power Supply Module — voltage sag or ripple on the rack backplane is a common root cause of I/O module degradation and can cause premature failure of a newly installed spare if left unaddressed.

Next, inspect the 3500/20 Rack Interface Module (RIM), which governs communication between the 3500 rack and the host DCS or historian. A degraded RIM can mask valid vibration alarms or generate spurious trips even after a clean I/O module replacement. Confirm that Modbus or Ethernet/IP communication is stable before returning the asset to service.

Field wiring to the proximity probes should be checked for continuity, shielding integrity, and correct termination at the 3500 I/O terminal block. Damaged cable shields or loose terminations introduce noise into the Proximitor signal chain, which can produce false high-vibration readings and unnecessary shutdowns. Where probe cables pass through conduit near high-voltage motor leads, consider installing signal isolation barriers to suppress common-mode interference.

For seismic channel applications, verify that the velocity transducer mounting and cable routing comply with the original engineering design. Seismic inputs are particularly sensitive to ground loops; a galvanic isolation module at the cabinet entry point is recommended for installations where the transducer ground reference differs from the rack ground. Additionally, inspect the 3500/40M Proximitor/Seismic Monitor card associated with this I/O module — if the monitor card shows any alarm history or calibration drift, it should be recalibrated or replaced concurrently to ensure the restored channel meets trip accuracy specifications.

Finally, confirm that the rack’s 3500/92 Communication Gateway Module is correctly configured to report the restored channel to the plant historian and alarm management system. Incomplete channel mapping after a module swap is a frequent oversight that leaves the asset unmonitored in the SCADA layer even when the physical hardware is fully operational.

Site Replacement Workflow

Step 1 — Pre-replacement verification: Confirm the 133300-01 is the correct module for the target slot by cross-referencing the rack configuration drawing and the 3500 System Configuration software. Verify that the replacement unit’s hardware revision is compatible with the installed firmware version on the associated monitor card.

Step 2 — Safe isolation: Follow site LOTO procedures. For TMR (Triple Modular Redundant) rack configurations, the 133300-01 can typically be replaced online without a full rack shutdown — confirm with the site safety plan before proceeding. For simplex racks, coordinate a planned outage window with operations to minimize production impact.

Step 3 — Module extraction and installation: Remove the existing module using the standard ejector lever. Inspect the backplane connector for bent pins or contamination before inserting the replacement 133300-01. Seat firmly and verify the module status LED indicates normal operation within 30 seconds of power-up.

Step 4 — Channel verification: Use the 3500 System Configuration software to confirm that the restored channel is reading within expected vibration baseline parameters. Compare against the most recent machinery health baseline recorded in the historian. Document the replacement in the site CMMS with the new module serial number and support terms start date.

Step 5 — Return to service: Notify the control room that the channel is restored. Confirm that all associated alarms and trips are re-enabled in the DCS and that the historian is logging the channel correctly. Archive the replaced module for failure analysis if required by the site reliability program.

Spare Parts Support FAQ

Q1: What is the support terms coverage for the Bently Nevada 133300-01?
All units are covered by a support terms confirmed by quotation from the date of shipment. The support terms covers functional defects identified under normal operating conditions. Each unit undergoes functional testing prior to dispatch, and an inspection report is available upon request.

Q2: Is the 133300-01 compatible with all 3500 Series rack configurations?
The 133300-01 is designed for the Bently Nevada 3500 Series backplane and is compatible with standard simplex and TMR rack assemblies. Compatibility with specific monitor card firmware versions should be verified against the Bently Nevada 3500 System Configuration documentation before installation. Contact our technical team with your rack configuration drawing for pre-purchase compatibility confirmation.

Q3: How do you ensure the module is functional before shipment?
Each 133300-01 unit is subjected to a functional test protocol that verifies signal input response, backplane communication, and LED status indication. Units that do not pass the full test sequence are not dispatched. Test records are retained and available upon request for quality audit purposes.

Q4: Can you support long-term spare parts inventory programs for the 3500 Series?
Yes. We maintain ongoing stock of 133300-01 and related 3500 Series components to support multi-year MRO programs and critical asset protection strategies. For procurement engineers managing annual spare parts budgets, we offer volume pricing, reserved stock agreements, and lead-time commitments. Contact our team to discuss a tailored supply arrangement for your facility.
