Bently Nevada 130944-01 Migration-Ready Rack Filler for Legacy Control Systems

Overview

Bently Nevada 130944-01 Migration-Ready Rack Filler for Legacy Control Systems

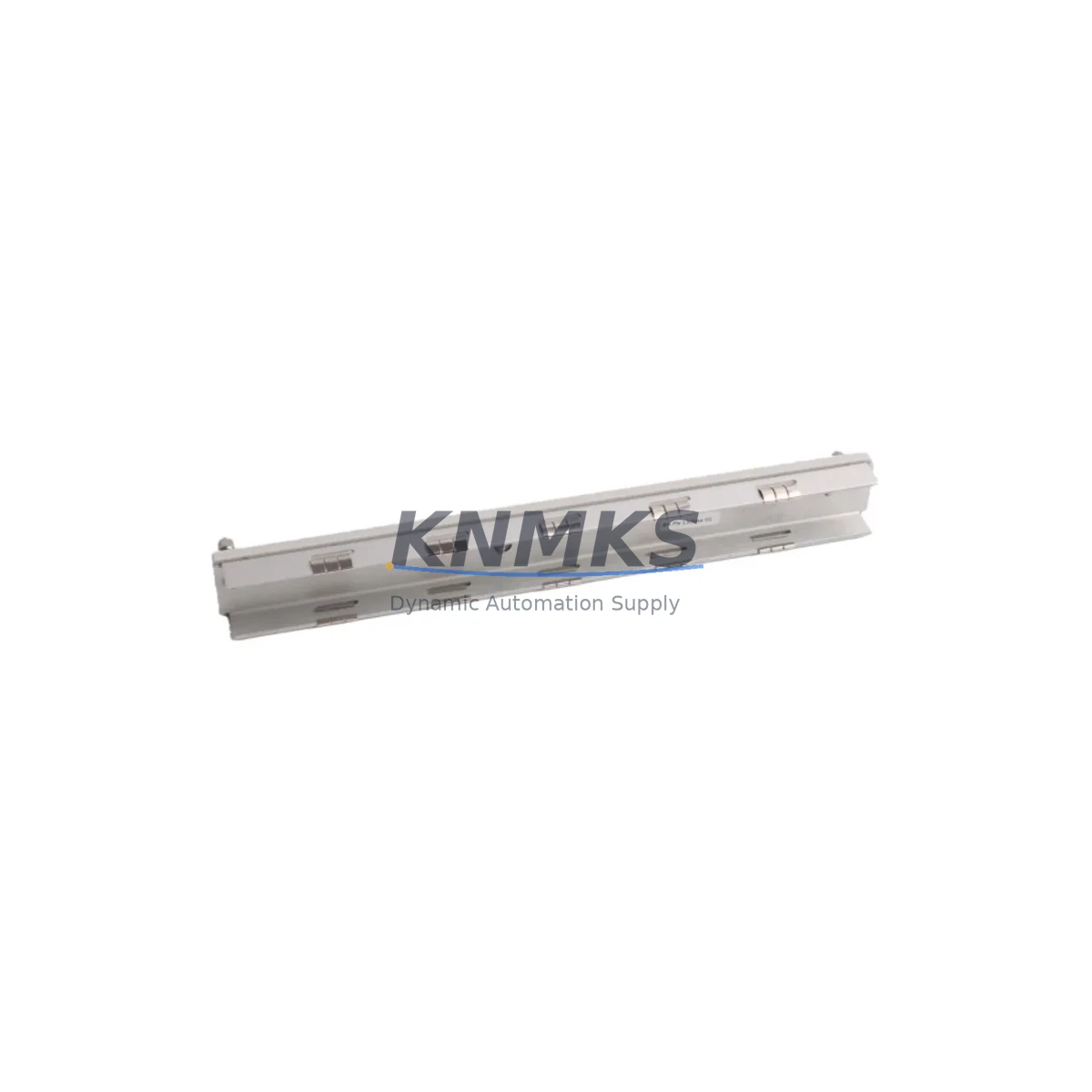

The Bently Nevada 130944-01 (cross-reference: 128075-01F) is a migration-ready rack filler module engineered for the 3500 Series machinery protection system. As legacy control cabinets age and OEM support windows close, plant engineers face mounting pressure to maintain rack integrity, preserve EMI shielding, and sustain system uptime without triggering a full platform replacement. The 130944-01 addresses this challenge directly: it occupies unused rack slots in the 3500 rack chassis, maintains the mechanical and electrical continuity of the backplane, and ensures that adjacent I/O modules, power supplies, and communication cards continue to operate within specification.

When planning a retrofit or spare parts replenishment for an existing 3500 Series installation, engineers must verify several critical parameters before swapping any rack-mounted component. Confirm that the 3500 rack chassis — whether a 3500/05 or 3500/15 frame — has the correct slot count and that the filler module dimensions match the available bay width. The 130944-01 is a single-slot filler; installations using double-width modules such as the 3500/42M position monitor or the 3500/22M transient data interface should account for slot adjacency to avoid mechanical interference. Backplane connector alignment must also be verified: the filler does not carry active signal lines, but improper seating can stress the backplane edge connector and introduce intermittent faults in neighboring cards.

Power budget review is equally important during any 3500 Series rack consolidation. While the 130944-01 itself draws no active power, removing a filler from a slot that was previously occupied by a live module — such as a 3500/32 relay output module or a 3500/20 rack interface module — requires a recalculation of the 3500/15 power supply loading. Ensure the remaining active modules do not exceed the rated output of the installed power supply before finalizing the retrofit plan.

Migration Compatibility Table

Retrofit Planning for Existing Automation Systems

A structured retrofit plan for a 3500 Series rack typically begins with a full slot audit. Document every occupied and empty slot, noting the module type, firmware revision, and wiring terminal assignments for each active card. For installations that include a 3500/22M transient data interface or a 3500/42M position monitor, confirm that the communication link to the plant DCS or historian — whether via Modbus RTU, Modbus TCP, or a dedicated 3500 gateway card — remains uninterrupted during the physical swap. The 130944-01 filler does not carry any I/O or communication lines, so its installation does not require changes to the rack’s communication configuration.

Terminal wiring on adjacent modules should be inspected and re-torqued during any rack access event. Loose field wiring on a 3500/32 relay output module or a 3500/40M proximitor monitor can introduce signal noise that is difficult to diagnose after the rack is closed. Use this retrofit opportunity to verify that all cable shields are properly grounded at the rack entry point and that the 3500/15 power supply input voltage is within the rated 18–30 VDC or 85–264 VAC range, depending on the installed power supply variant.

For sites migrating from an older 3300 Series or 7200 Series platform to the 3500 architecture, the rack filler plays a supporting role in maintaining the physical integrity of the new rack during a phased migration. As legacy 3300 monitors are decommissioned slot by slot and replaced with 3500 Series equivalents, fillers such as the 130944-01 occupy transitional empty slots, preventing dust ingress and maintaining the rack’s thermal management profile until all active modules are installed.

Downtime Control During System Migration

Minimizing unplanned downtime during a 3500 Series rack retrofit requires a disciplined pre-outage preparation process. Before the maintenance window opens, stage all replacement components — including the 130944-01 filler, any active modules being swapped, and spare terminal blocks — at the work site. Export and archive the current rack configuration using System 1 software or the 3500 Rack Configuration Utility, ensuring that all monitor setpoints, alarm thresholds, and I/O assignments are saved and can be restored if a module replacement triggers an unexpected configuration reset.

During the outage, follow a defined sequence: power down the rack using the 3500/15 power supply’s front-panel switch, insert or remove modules in the planned order, re-seat all terminal blocks, and restore power before running a full channel verification sweep. For critical machinery protection applications — compressors, turbines, pumps — coordinate with the operations team to confirm that the machine is in a safe, locked-out state before any rack access. After power restoration, verify that all active monitors return to their pre-outage alarm states and that the communication link to the DCS or historian is re-established within the expected reconnection window. A pre-tested spare 130944-01 filler on the shelf eliminates the risk of an extended outage caused by a missing or damaged rack component.

Retrofit Support FAQ

Q: Is the 130944-01 a direct replacement for the 128075-01F?
A: Yes. The 130944-01 and 128075-01F are mechanically and functionally interchangeable as rack fillers in the 3500 Series chassis. Both occupy a single slot and serve the same purpose of maintaining rack integrity in unused bays.

Q: Does installing the 130944-01 require any programming or firmware update?
A: No. The 130944-01 is a passive filler module with no active electronics. It requires no firmware, no configuration, and no programming. Simply power down the rack, insert the filler into the target slot, and restore power.

Q: How do I verify compatibility with my existing 3500 rack chassis?
A: Confirm that your rack is a 3500/05 or 3500/15 chassis with at least one unoccupied single-width slot. The 130944-01 is a standard single-slot filler and will fit any standard bay in these chassis variants. If your rack uses a non-standard slot configuration, contact our technical team with your rack serial number for confirmation.

Q: What support terms and shipping terms apply?
A: All units ship with a support terms confirmed by quotation covering defects in materials and workmanship. Pre-shipment functional testing is performed on every unit. Stock is available for immediate dispatch, with global shipping options to support urgent retrofit and maintenance schedules.
