Bently Nevada 130539-99 Maintenance-Proven Spare Part for Factory Uptime

Overview

Bently Nevada 130539-99 Maintenance-Proven Spare Part for Factory Uptime

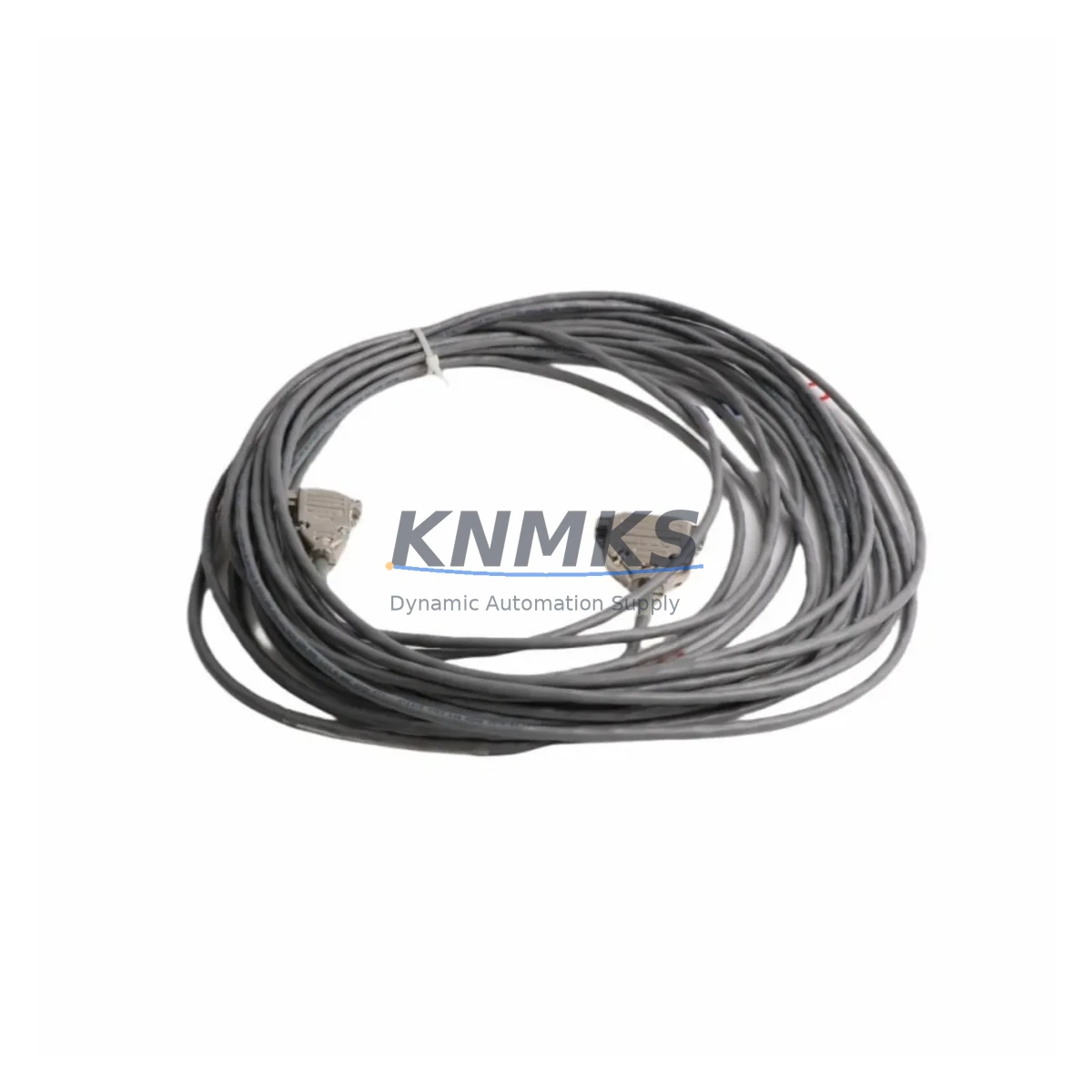

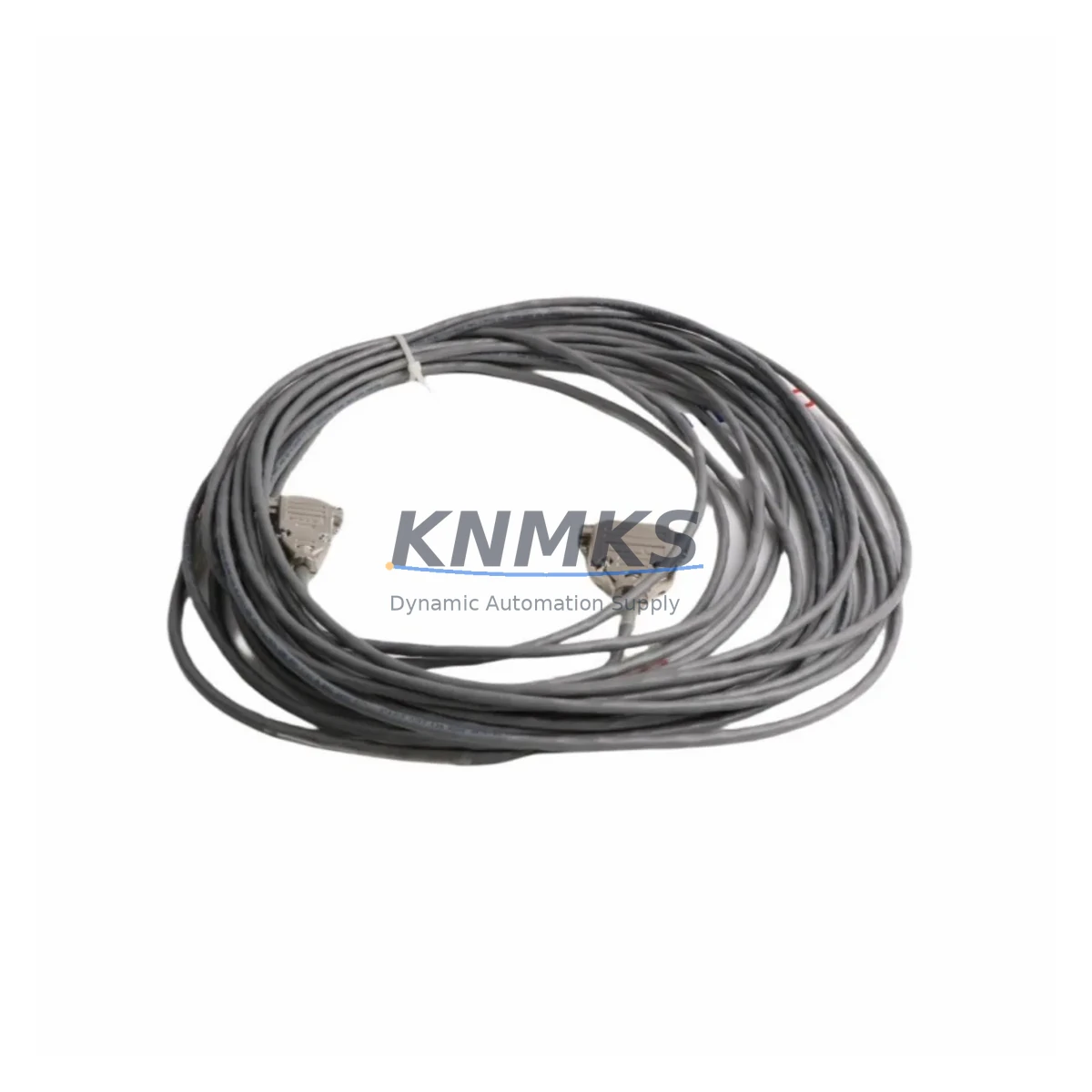

The Bently Nevada 130539-99 is an original OEM interconnect cable engineered for the 3500 Series Machinery Protection System — one of the most widely deployed continuous vibration monitoring platforms in rotating machinery applications worldwide. Whether you are managing a gas turbine train, a centrifugal compressor, a steam turbine, or a large pump set, the 130539-99 plays a critical role in maintaining signal integrity between field-mounted transducers and the 3500 rack-based monitoring modules. Sourced directly from verified supply channels, each unit shipped by KNMKS undergoes functional inspection and is backed by a support terms confirmed by quotation, giving maintenance engineers and procurement teams the confidence to stock this cable as a ready-to-deploy spare.

In high-availability plant environments, the interconnect cable is often overlooked during routine inspections — yet it is the first component to degrade under repeated thermal cycling, vibration fatigue, and chemical exposure in turbine enclosures and compressor skids. A failed or intermittent 130539-99 can trigger nuisance trips, mask real machinery faults, or cause the 3500 Series rack to report a transducer fault that halts production. Keeping a verified spare on the shelf eliminates the diagnostic ambiguity and dramatically reduces mean time to repair (MTTR) when a cable fault is confirmed.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

Effective maintenance planning for a 3500 Series installation goes well beyond replacing a single interconnect cable. When a 130539-99 fault is identified — whether through a rack-reported cable fault alarm, a sudden change in vibration baseline, or a physical inspection finding — the maintenance window should be used to audit the entire signal chain and associated power infrastructure.

Begin at the transducer end: verify that the proximity probe and its extension cable (such as the Bently Nevada 330130 series extension cable) are free of damage, that the probe tip gap is within specification, and that the driver/oscillator module seated in the 3500/25 or 3500/40M monitor card is functioning correctly. A degraded interconnect cable often masks a simultaneously failing proximitor, so both should be evaluated together rather than in isolation.

At the rack level, inspect the 3500/15 Power Supply module for stable DC output voltages. An under-voltage condition on the rack power supply can cause marginal signal readings that are incorrectly attributed to cable faults. If the rack houses a 3500/92 Communication Gateway or a 3500/22M Transient Data Interface, confirm that firmware is current and that the communication link to the plant DCS or historian is healthy — a cable replacement is an ideal time to perform this check without additional process risk.

For installations where the 3500 rack feeds alarm outputs to a safety relay panel or a PLC-based emergency shutdown system, verify that the relay output modules (such as the 3500/32 Relay Module) are responding correctly to test signals after the cable is replaced and the system is re-commissioned. Terminal blocks and field wiring terminations in the junction box should also be inspected for corrosion, loose screws, and moisture ingress — conditions that are common in outdoor or coastal installations and that can introduce ground loops affecting signal quality.

Finally, if the plant operates multiple 3500 racks across different machinery trains, consider a coordinated spare parts review: stocking the 130539-99 alongside the 3500/15 Power Supply, the 3500/25 proximity monitor card, and the appropriate extension cable ensures that any single-point failure in the monitoring chain can be resolved within one shift, keeping the machinery protection system fully operational and avoiding forced derates or unplanned shutdowns.

Site Replacement Workflow

Step 1 — Permit and Isolation: Obtain a work permit and notify the control room. The 3500 Series rack can typically remain powered during cable replacement, but confirm with your site safety procedure whether the associated machinery channel should be bypassed in the DCS to prevent nuisance trips during the swap.

Step 2 — Document Existing Configuration: Photograph the existing cable routing, connector orientation, and any cable tie or conduit entry points. Note the rack slot number and channel assignment for the monitor card connected to this cable. This documentation accelerates re-commissioning and is essential for multi-rack installations where cable labeling may have degraded over time.

Step 3 — Remove the Faulty Cable: Disconnect the 130539-99 from both the field junction box and the front-panel connector of the 3500 monitor module. Inspect the module connector pins for bent contacts or contamination before installing the replacement unit.

Step 4 — Install the Replacement 130539-99: Route the new cable following the original path, avoiding sharp bends and proximity to high-voltage power cables. Secure with appropriate cable ties and confirm that the connector locking mechanism is fully engaged at both ends.

Step 5 — Signal Verification: After installation, observe the 3500 rack front-panel indicators and the DCS trend display. Confirm that the vibration reading returns to the pre-fault baseline, that the OK relay is energized, and that no cable fault or not-OK alarms are active. Document the as-found and as-left readings in the maintenance management system.

Step 6 — Update Spare Parts Inventory: Log the replacement in your CMMS, order a replenishment 130539-99 to restore your critical spare buffer, and schedule the next cable inspection interval based on the operating environment severity.

Spare Parts Support FAQ

Q1: Is the 130539-99 compatible with all 3500 Series monitor modules?
The 130539-99 is designed for use within the Bently Nevada 3500 Series platform. Compatibility depends on the specific monitor card and transducer type in your installation. KNMKS recommends providing your rack configuration and monitor card part numbers when ordering to confirm the correct cable variant for your application. Our technical team can cross-reference your existing installation against available stock.

Q2: How is each unit tested before shipment?
Every 130539-99 shipped by KNMKS undergoes a pre-shipment functional inspection covering connector integrity, continuity, and insulation condition. Units are packaged to prevent transit damage and are accompanied by a shipment inspection record. The support terms confirmed by quotation cover defects in materials and workmanship from the date of shipment.

Q3: Can the 130539-99 replace older or discontinued cable variants used in legacy 3500 installations?
In many cases, yes. The 3500 Series has been in service for decades, and KNMKS maintains stock of both current and legacy-compatible interconnect cables to support long-term plant asset management strategies. If your installation uses an older cable variant, contact our team with the existing part number and we will advise on direct replacement options or compatible alternatives that maintain system integrity without requiring rack reconfiguration.

Q4: What is your lead time and long-term supply commitment for the 130539-99?
KNMKS maintains standing inventory of high-demand 3500 Series spare parts including the 130539-99 to support urgent maintenance requirements. Standard orders are processed and shipped within 1–3 business days. For customers managing multi-site or multi-rack installations, we offer blanket order arrangements and reserved stock programs to guarantee supply continuity over 12–36 month planning horizons, eliminating procurement risk for critical machinery protection components.

© 2026 KNMKS. All rights reserved.
Original Source: https://knmks.com
Contact: admin@knmks.com | +86 18359268345

Product Identification

Brand / Ecosystem

Bently Nevada
Bently Nevada

Model / Series

130539-99
3500 Series

Product Family

Cables & Connectors

Availability Status

Available on request after model and quantity confirmation

Inquiry Type

B2B RFQ, replacement inquiry and project spare-part request

Pre-Quote Check

Exact SKU, brand, series, quantity, nameplate photos and destination country are checked before quotation

Specification & Inquiry Focus

Cable range

Sensor, servo, network and circular connectors

Common needs

Length, pin count, shielding and plug type

Project support

Machine wiring and installation kits

Inquiry Support

• Cable length and connector type confirmation
• Servo, sensor and network cable inquiry
• Accessory kits for installation teams

What to Send Us

• Brand and exact model number: Bently Nevada 130539-99
• Quantity and required delivery time
• Application, replacement requirement or nameplate photo
• Destination country and shipping preference
