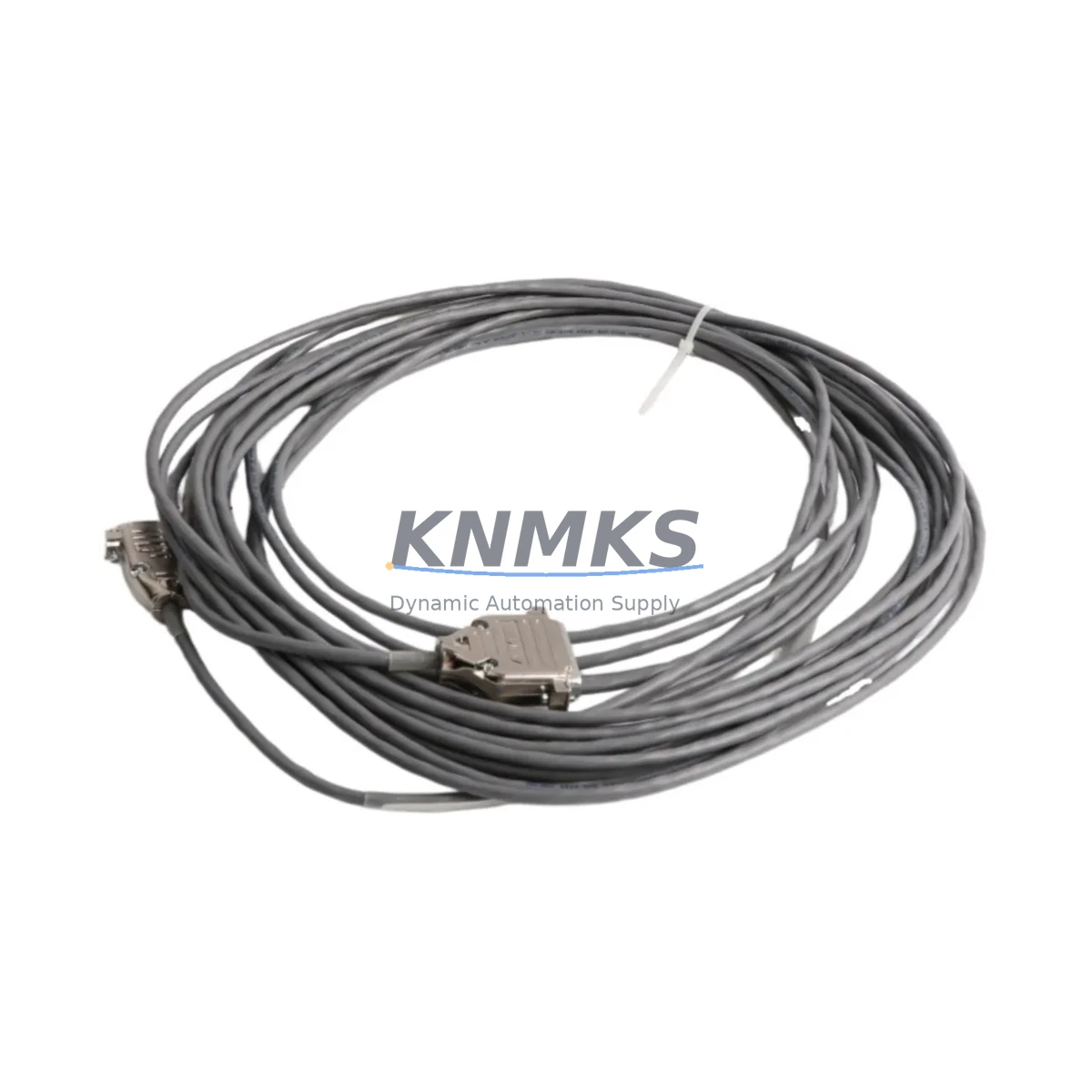

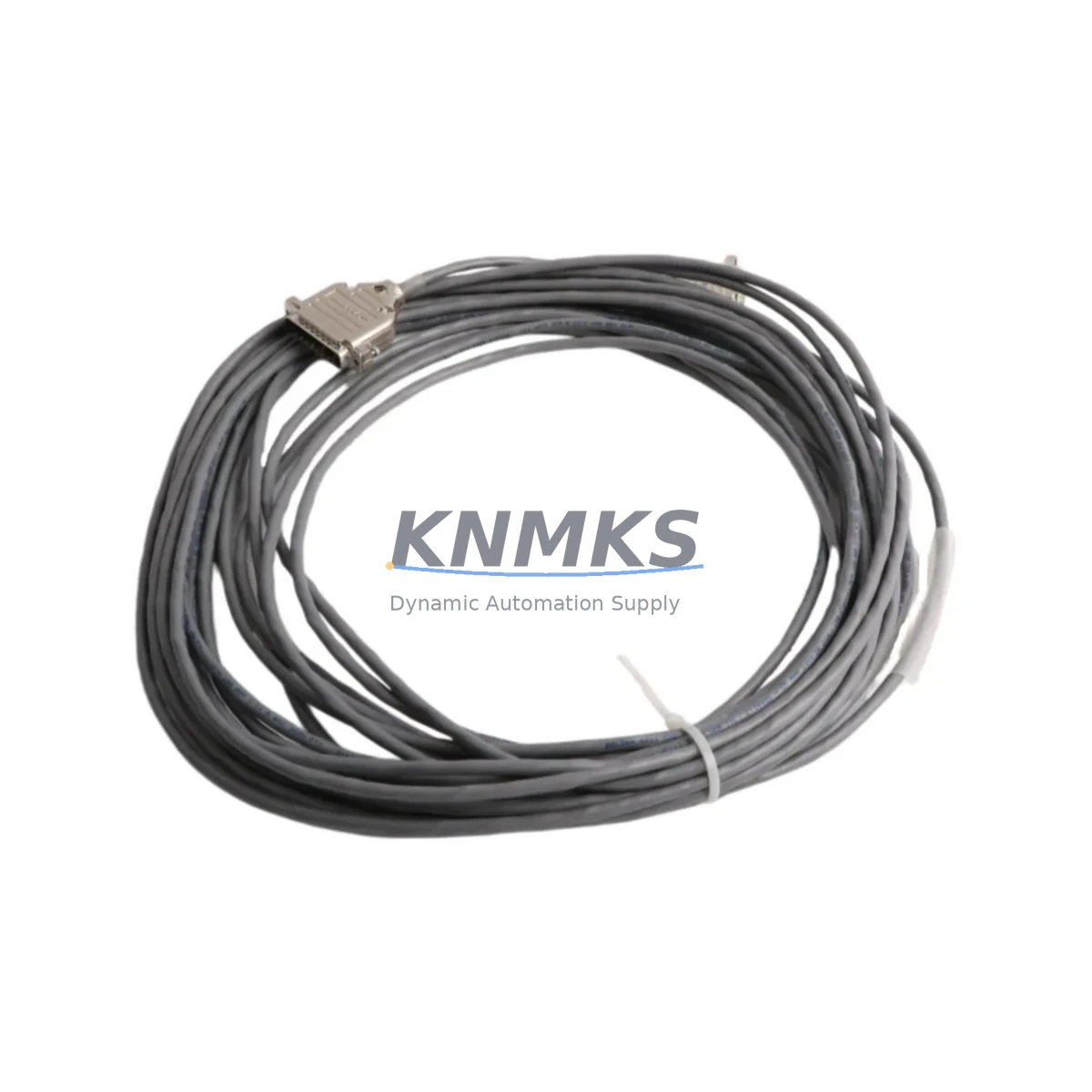

Bently Nevada 130539-50 Migration-Ready Coaxial Cable

Overview

Bently Nevada 130539-50 Migration-Ready Coaxial Cable for Legacy Control Systems

The Bently Nevada 130539-50 is a 50-foot coaxial extension cable engineered for use within the Bently Nevada 3500 Series machinery protection and condition monitoring platform. As legacy vibration monitoring systems approach end-of-life or require panel-level upgrades, the 130539-50 serves as a direct, migration-ready replacement that preserves signal integrity across proximity transducer loops without requiring rewiring of existing field instrumentation. For facilities managing rotating machinery in petrochemical, power generation, or heavy manufacturing environments, this cable is a critical component in sustaining continuous vibration monitoring during control system modernization projects.

When replacing aging coaxial runs in an existing 3500 rack, engineers must verify several parameters before installation. The cable must be matched to the correct proximitor or extension driver — typically the Bently Nevada 3300 XL 8mm or 11mm proximity transducer system — and the total cable length from transducer to proximitor must remain within the system’s calibrated range. The 130539-50 is rated for 50 feet and is designed to interface directly with the standard BNC-to-TNC termination scheme used across the 3500 Series I/O modules. Confirm that the existing conduit path accommodates the cable’s outer diameter and that all junction boxes are rated for the signal environment.

During a rack-level retrofit, the 130539-50 is commonly installed alongside the Bently Nevada 3500/42M Proximitor I/O Module, which handles the signal conditioning for eddy-current proximity probes. If the existing I/O module is being replaced as part of the same upgrade cycle, the coaxial cable should be routed and terminated before the new module is seated in the 3500 rack backplane. This sequencing reduces the risk of connector damage and allows continuity testing to be completed prior to system power-up. The 3500 rack’s backplane architecture supports hot-swap of certain modules, but coaxial cable replacement requires a planned outage window for the affected measurement channel.

Migration Compatibility Table

Retrofit Planning for Existing Automation Systems

A successful retrofit involving the 130539-50 typically begins with a full audit of the existing proximity measurement loop. The field transducer — most commonly a Bently Nevada 3300 XL proximity probe — is mounted at the machine bearing housing and connected via the extension cable to a proximitor mounted in a local junction box or directly on the 3500 rack. The 130539-50 occupies the extension segment of this loop. Before ordering a replacement, confirm the installed cable length, the connector types at both ends, and whether the existing conduit supports the cable’s bend radius.

In panel upgrade projects where the 3500 rack itself is being modernized, the coaxial cable replacement is often coordinated with the installation of a new 3500/20 Rack Interface Module or a replacement 3500/15 Power Supply Module. If the power supply is being swapped, verify that the new unit’s output voltage and current capacity are sufficient to support all installed I/O modules simultaneously — this is a common oversight that causes delayed commissioning. The 3500 rack’s internal power bus must be de-energized before any backplane-connected module is removed or installed.

For facilities migrating from older Bently Nevada 7200 Series or 9000 Series systems to the 3500 platform, the 130539-50 is compatible with the new rack architecture but may require adapter terminations depending on the legacy connector standard in use. In these cross-generation migrations, it is advisable to replace all coaxial cables in the affected measurement loops rather than reusing legacy runs, as cable aging and connector oxidation can introduce measurement errors that are difficult to diagnose after system power-up. A Bently Nevada 3500/22M Transient Data Interface or a 3500/60 Temperature Monitor may also be added to the rack during the same outage window, making cable routing and labeling discipline especially important.

Where communication protocol migration is also in scope — for example, transitioning from a legacy serial Modbus link to a Bently Nevada System 1 Ethernet-based condition monitoring architecture — the coaxial cable replacement should be completed and verified before the communication module changeover begins. This sequencing ensures that vibration data is available and validated on the new platform before the old communication path is decommissioned.

Downtime Control During System Migration

Minimizing unplanned downtime during a coaxial cable replacement requires careful pre-staging and a clearly defined outage window. Before the machine is taken offline, all replacement materials — including the 130539-50 cable, spare BNC/TNC connectors, and any required conduit fittings — should be on-site and inspected. The existing cable should be photographed and labeled at both ends before removal to preserve wiring documentation for the as-built record.

The original proximity measurement loop configuration — including gap voltage setpoints, alert and danger thresholds, and OK relay logic — should be exported from the 3500 rack’s configuration software (System 1 or Rack Configuration Software) before the outage begins. This configuration backup protects the existing program logic and allows rapid restoration if the new cable installation reveals an unexpected fault. After the 130539-50 is installed and terminated, gap voltage should be measured at the proximitor output and compared against the pre-outage baseline before the rack is returned to service.

For critical machinery where continuous monitoring is required, a temporary portable vibration monitoring system can be deployed on the affected bearing during the cable replacement window. This approach maintains protection coverage and satisfies safety system requirements without extending the planned outage. Once the new cable is verified and the 3500 rack channel is confirmed healthy — OK relay energized, gap voltage within specification, and no active alerts — the portable system can be removed and the machine returned to normal operation.

Retrofit Support FAQ

Q: Is the 130539-50 a direct replacement for the original Bently Nevada cable of the same part number?
A: Yes. The 130539-50 is a direct drop-in replacement. No modifications to the existing termination scheme, conduit path, or proximitor configuration are required, provided the installation conditions match the original specification.

Q: What commissioning steps are required after installing the 130539-50?
A: After installation, perform a continuity check on the coaxial shield and center conductor, then measure the gap voltage at the proximitor output with the machine stationary. Confirm the OK relay is energized and that the gap voltage falls within the calibrated range for the installed probe and target material. Record the as-found and as-left values in the maintenance log.

Q: Can the 130539-50 be used with non-Bently Nevada proximitors or third-party eddy-current systems?
A: The cable’s electrical characteristics are compatible with standard eddy-current proximity systems, but calibration and signal integrity must be verified against the specific proximitor’s requirements. For guaranteed performance within the 3500 Series platform, use with Bently Nevada-approved proximitors only.

Q: What are the inventory availability and support terms terms?
A: The 130539-50 is maintained availability confirmed by RFQ for immediate shipment. Each unit is tested prior to dispatch. A support terms confirmed by quotation cover manufacturing defects from the date of shipment. Contact admin@knmks.com or +86 18359268345 for lead time confirmation and volume pricing.

© 2026 KNMKS. All rights reserved.
Original Source: https://knmks.com
Contact: admin@knmks.com | +86 18359268345

Product Identification

Brand / Ecosystem

Bently Nevada
Bently Nevada

Model / Series

130539-50
3500 Series

Product Family

Cables & Connectors

Availability Status

Available on request after model and quantity confirmation

Inquiry Type

B2B RFQ, replacement inquiry and project spare-part request

Pre-Quote Check

Exact SKU, brand, series, quantity, nameplate photos and destination country are checked before quotation

Specification & Inquiry Focus

Cable range

Sensor, servo, network and circular connectors

Common needs

Length, pin count, shielding and plug type

Project support

Machine wiring and installation kits

Inquiry Support

• Cable length and connector type confirmation
• Servo, sensor and network cable inquiry
• Accessory kits for installation teams

What to Send Us

• Brand and exact model number: Bently Nevada 130539-50
• Quantity and required delivery time
• Application, replacement requirement or nameplate photo
• Destination country and shipping preference
