Bently Nevada 130539-08 Fail-Safe Interconnect Cable 3500

Overview

Bently Nevada 130539-08 Fail-Safe Interconnect Cable 3500: Fault-Protection and Critical Industrial Field Reliability

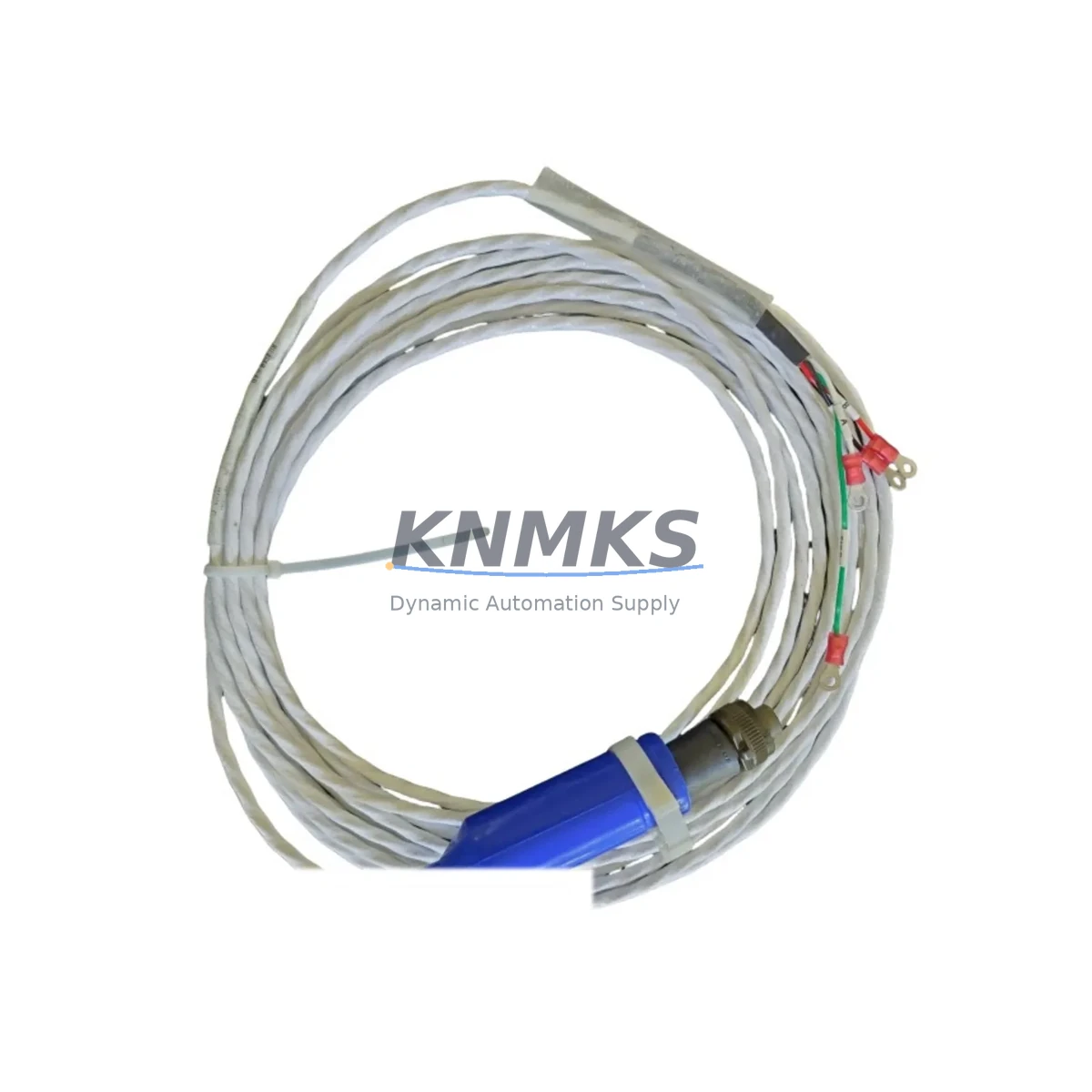

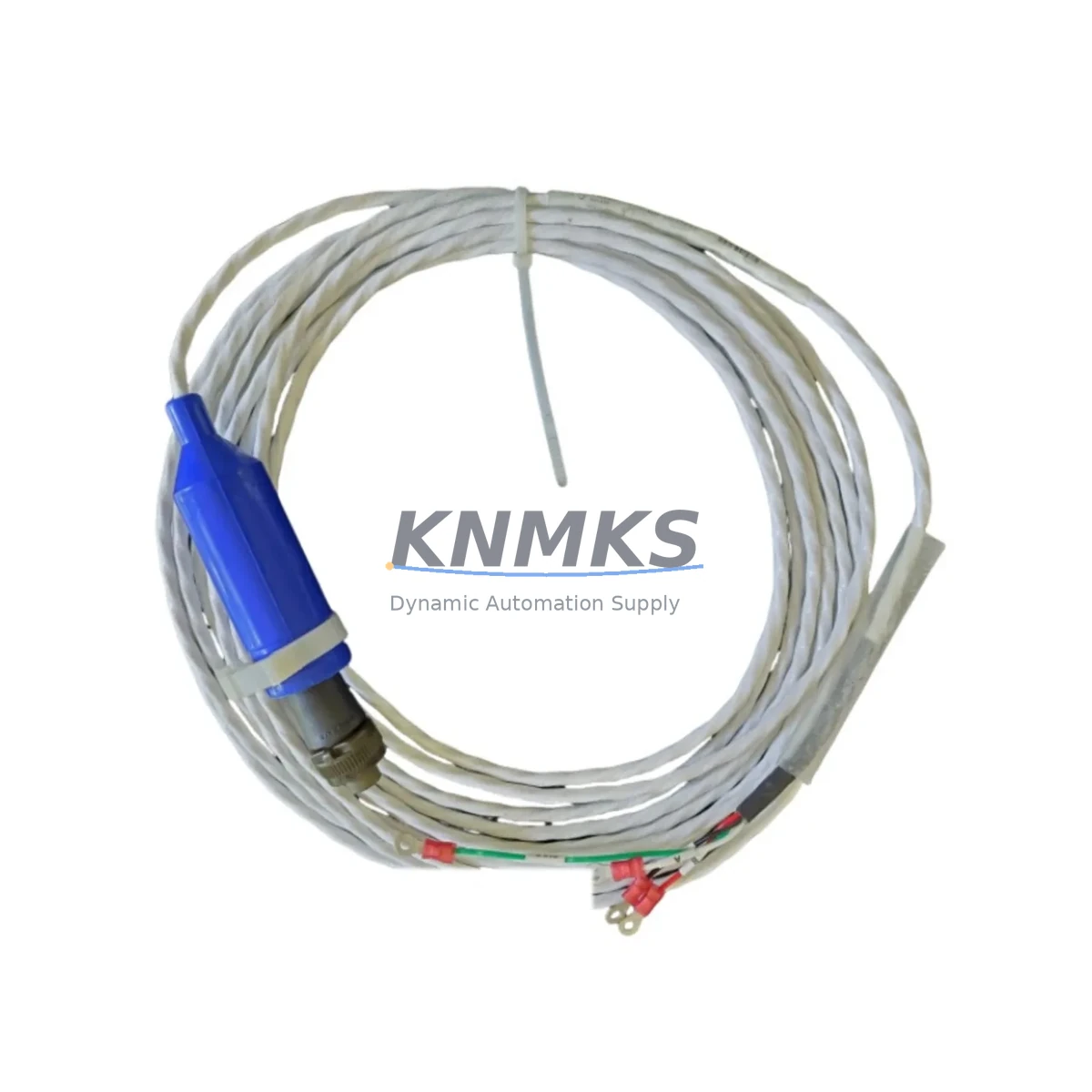

The Bently Nevada 130539-08 is a ruggedized interconnect cable engineered specifically for the Bently Nevada 3500 Series machinery protection system — one of the most widely deployed continuous monitoring platforms in rotating equipment protection across global heavy industry. Designed to maintain signal integrity under the harshest field conditions, the 130539-08 serves as a critical link between transducer assemblies and the 3500 rack-mounted monitoring modules, ensuring that vibration, position, and speed data are transmitted without interruption, distortion, or loss.

In continuous production environments — petrochemical plants, power generation facilities, offshore platforms, and metallurgical processing lines — any degradation in the interconnect path between a proximity probe and its monitoring module can trigger false alarms, missed trips, or undetected machinery faults. The 130539-08 eliminates this risk through its precision-matched impedance construction, shielded conductor geometry, and robust connector terminations that resist loosening under vibration and thermal cycling. Its design directly supports the fail-safe architecture of the 3500 system, where signal loss or cable open-circuit conditions are interpreted as fault states, prompting protective action rather than silent failure.

Fail-Safe Reliability Table

Control Cabinet Protection Strategy

The 130539-08 interconnect cable does not operate in isolation — its reliability is inseparable from the integrity of the broader 3500 Series control and protection architecture. In a properly configured machinery protection cabinet, the cable connects a field-mounted Bently Nevada 3300 XL 8mm proximity probe or a 3300 NSv proximity transducer to the corresponding input channel of a 3500/40M Proximitor / Seismic Monitor or a 3500/42M Proximitor / Seismic Monitor module. Signal quality at this cable interface directly determines the accuracy of gap voltage readings, vibration amplitude measurements, and shaft position data used by the 3500 rack to make trip decisions.

Within the control cabinet, the 3500 rack itself is powered by a 3500/15 Power Supply module, which provides regulated, isolated DC power to all monitor cards. Any instability in the power rail — caused by surge events, ground loops, or aging capacitors — can manifest as baseline noise on the interconnect signal path. Pairing the 130539-08 with a verified, in-specification 3500/15 power supply eliminates one of the most common sources of spurious alarms in long-running installations.

For plants operating in high electromagnetic interference environments — near large variable frequency drives, arc furnaces, or high-current bus bars — the shielded construction of the 130539-08 provides a first line of defense. However, cabinet-level protection is further enhanced by ensuring that the 3500/20 Rack Interface Module (RIM) is correctly configured for the communication architecture, and that all cable shield terminations within the cabinet follow Bently Nevada’s grounding guidelines. Improper shield grounding is a leading cause of signal drift and false vibration readings in field installations.

In safety-instrumented system (SIS) architectures where the 3500 rack interfaces with a Triconex Safety Controller or a Honeywell Safety Manager via hardwired relay outputs, the integrity of the 130539-08 cable path is part of the overall safety loop proof-test boundary. Replacement of this cable during scheduled maintenance intervals — rather than waiting for measurable signal degradation — is consistent with IEC 61511 proof-test best practices for SIL-rated machinery protection loops.

Critical Industrial Safety Applications

The Bently Nevada 130539-08 interconnect cable is deployed across a wide spectrum of critical industrial applications where unplanned machinery downtime carries severe safety, environmental, and financial consequences.

In petrochemical and refinery operations, the cable supports continuous shaft vibration monitoring on high-speed centrifugal compressors, reactor feed pumps, and crude distillation column overhead compressors. These machines operate 24/7 under elevated temperatures and process pressures; a missed vibration trip caused by a degraded interconnect cable can result in catastrophic bearing failure, seal loss, and hydrocarbon release. The 130539-08’s robust construction ensures that the protection system remains fully armed throughout the operating cycle.

In thermal and combined-cycle power generation, the cable is used on steam turbine shaft monitoring systems, where differential expansion, eccentricity, and axial position measurements are safety-critical. Grid operators require continuous availability of these measurements to comply with turbine protection standards; any gap in monitoring coverage must be reported and rectified immediately. Stocking the 130539-08 as a certified spare eliminates the risk of extended monitoring outages during cable replacement.

In mining and mineral processing, large ball mills, SAG mills, and slurry pumps operate in environments with extreme dust loading, moisture ingress, and structural vibration. The 130539-08’s sealed connector design and oil-resistant jacket maintain signal integrity even when the cable routing passes through areas exposed to process water and fine particulate contamination.

In water and wastewater treatment, the cable supports vibration monitoring on large vertical turbine pumps and blower trains, where early detection of bearing wear or impeller imbalance prevents unplanned outages that could compromise treatment capacity and regulatory compliance.

In port and marine applications, including shipboard machinery protection systems and port crane drive monitoring, the cable’s vibration-resistant connectors and wide operating temperature range make it suitable for mobile and offshore installations where standard industrial cables may fail prematurely due to mechanical fatigue.

Safety and Quality FAQ

Q1: What support terms coverage is provided with the Bently Nevada 130539-08?
Every 130539-08 interconnect cable supplied by KNMKS carries a support terms confirmed by quotation from the date of shipment. This covers manufacturing defects, connector integrity, and shielding continuity. If a cable fails within the confirmed support period under normal operating conditions, we provide a replacement at no charge, including return shipping coordination.

Q2: What outgoing inspection and testing is performed before shipment?
Each cable undergoes a full pre-shipment inspection that includes end-to-end continuity verification, shield integrity testing, and connector seating confirmation. Cables are visually inspected for jacket damage, connector corrosion, and labeling accuracy. A test record is maintained for each unit dispatched. This process ensures that the cable arrives ready for immediate installation without requiring field testing before use.

Q3: Is the 130539-08 compatible with all 3500 Series monitor modules?
The 130539-08 is designed for use with Bently Nevada 3500 Series proximity monitor inputs, including the 3500/40M and 3500/42M Proximitor / Seismic Monitor modules. It is compatible with standard Bently Nevada eddy-current transducer systems operating on the –24 VDC bias voltage architecture. For installations using extended-range or high-temperature transducer variants, please confirm the connector type and cable length requirement with our technical team before ordering.

Q4: Can long-term supply and replacement support be guaranteed for this part?
KNMKS maintains dedicated inventory of the 130539-08 and other 3500 Series spare components to support planned maintenance programs, emergency replacements, and capital project builds. We understand that machinery protection spare parts must be available on demand — not subject to long lead times. Our sourcing network and stock management practices are designed to ensure that critical interconnect cables like the 130539-08 remain available for the operational life of your 3500 system installation, regardless of OEM production status.

© 2026 KNMKS. All rights reserved.
Original Source: https://knmks.com
Contact: admin@knmks.com | +86 18359268345

Product Identification

Brand / Ecosystem

Bently Nevada
Bently Nevada

Model / Series

130539-08
3500 Series

Product Family

Cables & Connectors

Availability Status

Available on request after model and quantity confirmation

Inquiry Type

B2B RFQ, replacement inquiry and project spare-part request

Pre-Quote Check

Exact SKU, brand, series, quantity, nameplate photos and destination country are checked before quotation

Specification & Inquiry Focus

Cable range

Sensor, servo, network and circular connectors

Common needs

Length, pin count, shielding and plug type

Project support

Machine wiring and installation kits

Inquiry Support

• Cable length and connector type confirmation
• Servo, sensor and network cable inquiry
• Accessory kits for installation teams

What to Send Us

• Brand and exact model number: Bently Nevada 130539-08
• Quantity and required delivery time
• Application, replacement requirement or nameplate photo
• Destination country and shipping preference
