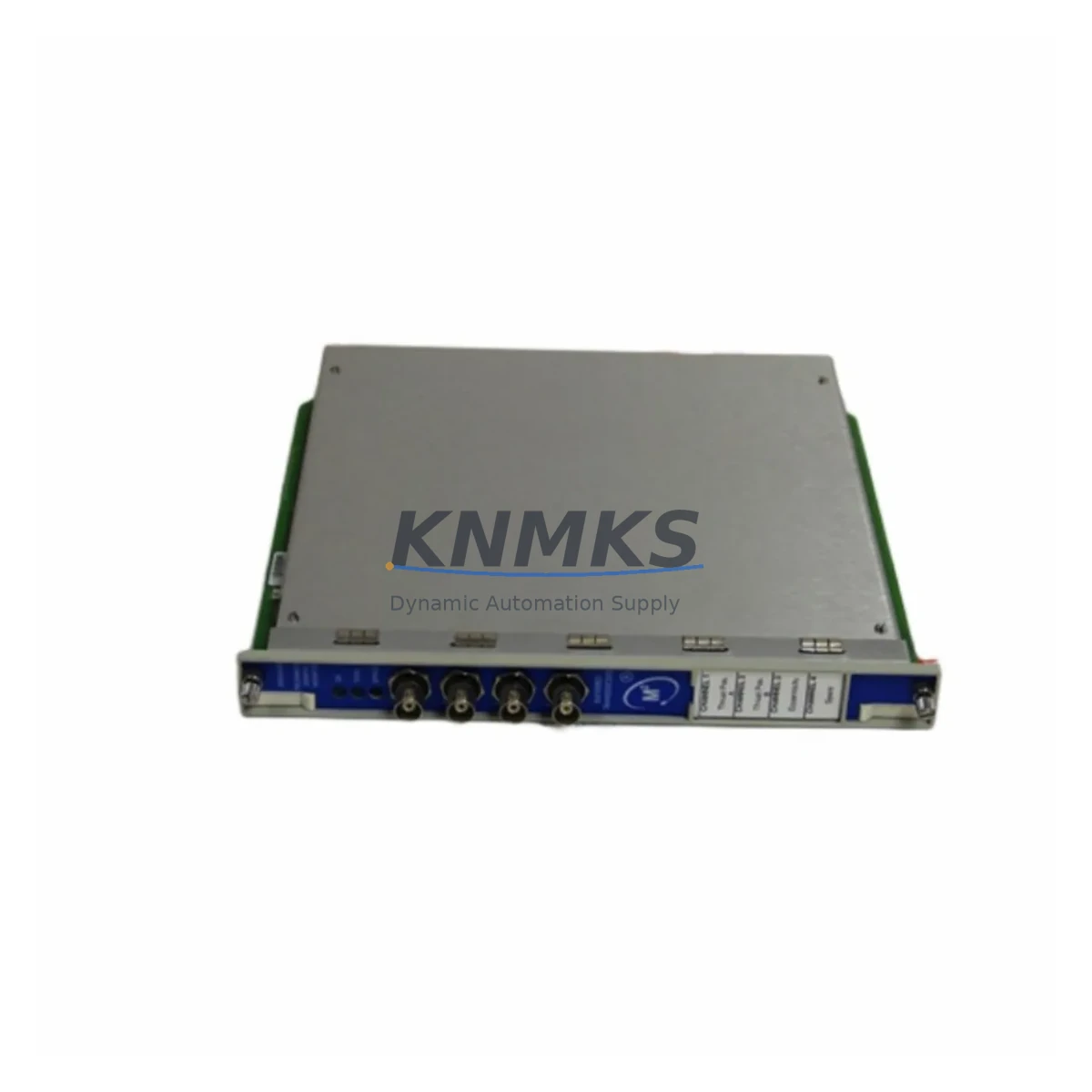

Bently Nevada 130118-0050-02 Migration-Ready Frame Interface Module

Overview

Bently Nevada 130118-0050-02 Migration-Ready Frame Interface Module for Legacy Control Systems

The Bently Nevada 130118-0050-02 is a Frame Interface Module (FIM) designed for the 3500 Series Machinery Protection System (MPS). As industrial facilities accelerate the retirement of aging vibration monitoring and machinery protection infrastructure, this module serves as a critical bridge component — enabling engineers to execute controlled, low-risk migrations from end-of-life 3500 rack configurations to modernized monitoring architectures without full system replacement.

The 130118-0050-02 interfaces directly with the 3500/20 Rack Interface Module and coordinates communication between the rack backplane and external data acquisition systems. In retrofit scenarios, it is commonly deployed alongside the 3500/22M Transient Data Interface and the 3500/32 4-Channel Relay Module to preserve existing alarm logic and relay output wiring during the transition period. Engineers replacing the FIM in an operational rack must verify backplane slot addressing, confirm that the rack’s power supply — typically a 3500/15 Power Supply Module — can sustain the additional current draw introduced by any newly installed I/O modules, and ensure that the System 1 Evolution software version is compatible with the firmware revision embedded in the replacement FIM.

For facilities migrating from older 3300 Series or 7200 Series Bently Nevada platforms, the 130118-0050-02 is frequently specified as part of a phased upgrade plan. In these projects, the FIM is installed first to establish a stable communication backbone, after which individual monitor modules — such as the 3500/40M Proximitor/Seismic Monitor or the 3500/42M Proximitor/Seismic Monitor — are swapped one channel group at a time. This approach allows the plant to maintain continuous vibration monitoring on critical rotating equipment — compressors, turbines, pumps — while the migration proceeds in stages, dramatically reducing unplanned downtime exposure.

When integrating the 130118-0050-02 into a control cabinet that also hosts a DCS or safety instrumented system, engineers should confirm that the rack’s Ethernet or RS-232/RS-485 communication links to the 3500/92 Communication Gateway Module remain intact and that IP addressing or node assignments do not conflict with the plant’s existing historian or DCS network. HMI screens configured in System 1 or third-party SCADA platforms will require tag remapping if the FIM slot position changes during the retrofit. Firmware version alignment between the FIM and the Communication Gateway is mandatory to avoid silent data loss on the Modbus or OPC-DA interface.

Migration Compatibility Table

Retrofit Planning for Existing Automation Systems

A successful retrofit begins with a thorough audit of the existing rack population. Before removing the legacy FIM, document all module slot assignments, terminal wiring labels, and current alarm setpoints stored in the rack configuration. The 130118-0050-02 must be installed in the designated FIM slot — typically Slot 1 of the 3500/05 rack — and the rack must be powered down before insertion to prevent backplane damage. Once installed, the 3500/20 Rack Interface Module must be reconfigured via Rack Configuration software to recognize the new FIM revision.

In projects where the control cabinet also houses a 3500/15 Power Supply Module and multiple I/O monitor cards, the total rack power budget must be recalculated. Adding or replacing modules can shift the current draw beyond the supply’s rated capacity, particularly in fully populated 19-slot racks. If the power margin is insufficient, a second power supply or a rack expansion chassis may be required before the FIM swap can proceed safely.

For facilities that rely on proximity probes wired to 3500/40M or 3500/42M Proximitor/Seismic Monitors, the probe wiring and barrier terminal assignments should be verified against the new module’s terminal map before powering up. Signal isolation requirements — particularly for long cable runs in electrically noisy environments — may necessitate the addition of signal isolators or Zener barriers in the field junction box. The 3500/92 Communication Gateway Module should also be checked for firmware compatibility to ensure that Modbus polling and OPC tag updates resume correctly after the FIM replacement.

Downtime Control During System Migration

Minimizing production interruption during a 3500 Series FIM replacement requires careful pre-staging. All replacement modules — including the 130118-0050-02 and any associated monitor cards — should be bench-tested and pre-configured before the scheduled maintenance window. Rack configuration files should be backed up from the existing system using Bently Nevada’s Rack Configuration software, and a verified copy should be stored offline so that the configuration can be restored rapidly if the new FIM requires a full rack re-initialization.

During the cutover, the sequence should follow a defined procedure: power down the rack, extract the legacy FIM, insert the 130118-0050-02, restore power, confirm backplane communication, reload the rack configuration, verify all monitor channel statuses, and re-establish the communication link to the System 1 server or DCS historian. If the plant operates a redundant monitoring path — for example, a parallel 3500 rack or a temporary portable data collector — that path should remain active throughout the FIM swap to ensure that critical machinery alarms are not suppressed during the transition. The entire hot-swap sequence, when pre-staged correctly, can typically be completed within a two-to-four-hour planned outage window.

Retrofit Support FAQ

Q1: Is the 130118-0050-02 a direct drop-in replacement for earlier 130118-0050-xx revisions?
In most cases, yes. The -02 revision is backward-compatible with the standard 3500/05 rack backplane and the 3500/20 Rack Interface Module. However, engineers should confirm the System 1 software version and rack firmware level before installation, as certain early rack revisions may require a firmware update to fully support the -02 hardware revision.

Q2: What commissioning steps are required after installing the 130118-0050-02?
After physical installation, the rack must be powered up and the Rack Configuration software used to verify that the FIM is recognized in its assigned slot. Communication links to the 3500/92 Gateway or external DCS must be re-established and tested. All monitor channel alarm setpoints should be confirmed against the pre-migration backup, and a full channel function test — including OK relay, alert, and danger relay outputs — should be performed before returning the system to service.

Q3: Can this module be used in a migration from a 3300 Series or 7200 Series Bently Nevada system?
The 130118-0050-02 is a 3500 Series component and is not directly interchangeable with 3300 or 7200 Series hardware. However, it is commonly specified as the target platform module when migrating from those legacy systems to the 3500 architecture. In such projects, the 3500 rack and FIM are installed as the new monitoring backbone, and field wiring from the legacy system is re-terminated to the new 3500 monitor modules.

Q4: What support terms and pre-shipment testing does KNMKS provide?
All units are covered by a support terms confirmed by quotation from the date of shipment. Each 130118-0050-02 undergoes a functional test prior to dispatch, and a test report is available upon request. Stock is maintained in our warehouse to support urgent replacement requirements, with expedited shipping options available for critical plant situations.

© 2026 KNMKS. All rights reserved. Original Source: https://knmks.com | Contact: [email protected] | +86 18359268345

Product Identification

Brand / Ecosystem

Bently Nevada
Bently Nevada

Model / Series

130118-0050-02
3500 Series

Product Family

PLCs & Controllers

Availability Status

Available on request after model and quantity confirmation

Inquiry Type

B2B RFQ, replacement inquiry and project spare-part request

Pre-Quote Check

Exact SKU, brand, series, quantity, nameplate photos and destination country are checked before quotation

Specification & Inquiry Focus

Control platform

PLC, PAC and modular controllers

Common needs

CPU, rack, power and I/O expansion

Project support

Replacement, cabinet build and maintenance

Inquiry Support

• Model cross-checking before quotation
• CPU, power, rack and expansion module matching
• Support for replacement and project inquiry

What to Send Us

• Brand and exact model number: Bently Nevada 130118-0050-02
• Quantity and required delivery time
• Application, replacement requirement or nameplate photo
• Destination country and shipping preference
