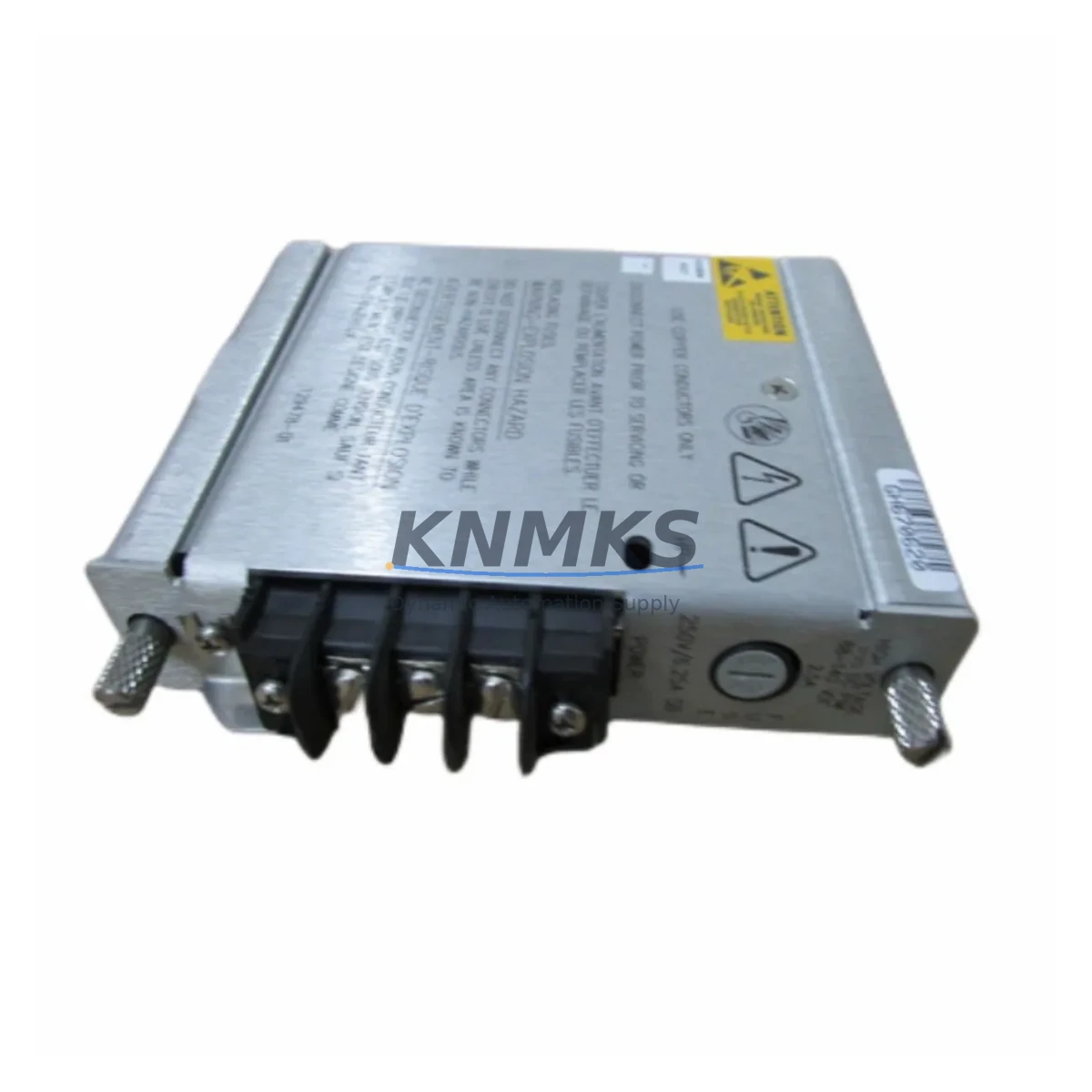

Bently Nevada 129478-01 Migration-Ready DC Input for Legacy Systems

Overview

Bently Nevada 129478-01 Migration-Ready DC Input for Legacy Control Systems

The Bently Nevada 129478-01 is a DC Input Module designed for the Bently Nevada 3500 Series machinery protection and condition monitoring platform. As industrial facilities continue to operate aging distributed control systems and vibration monitoring networks, the 129478-01 serves as a verified, drop-in replacement for discontinued input modules that are no longer available through OEM channels. Whether you are restoring a failed card in an existing 3500 rack or executing a planned retrofit of legacy monitoring infrastructure, this module provides the electrical and mechanical compatibility required to minimize engineering rework and reduce total downtime.

Before installing the 129478-01 into an existing 3500 chassis, engineers should confirm the rack’s available DC power budget. The 3500 backplane distributes power across all installed modules, and adding or replacing a DC input card requires verifying that the 3500/15 Power Supply Module or its equivalent can sustain the additional load without triggering an undervoltage fault. Terminal wiring should be mapped against the original I/O drawing set: the 129478-01 uses a standard 3500-series terminal block pinout, but field wiring polarity, shielding practice, and cable routing must be confirmed against the as-built documentation before energizing the replacement module.

Backplane slot addressing is a critical step that is frequently overlooked during emergency replacements. The 3500 rack assigns a logical channel address to each slot position, and the replacement module must occupy the same physical slot as the original to preserve the channel-to-tag mapping in the host DCS or SCADA historian. If the slot position has changed due to a rack reconfiguration, the channel address table in the Bently Nevada System 1 software must be updated before the module is placed in service. Failure to realign the address mapping will result in incorrect alarm setpoints being applied to the wrong transducer input, which is a safety-critical error in rotating machinery protection applications.

Program compatibility is generally maintained when replacing a like-for-like DC input module within the same 3500 rack generation, but firmware version alignment should be verified. The 129478-01 should be running a firmware revision that is compatible with the rack’s main processor card — typically the 3500/20 Rack Interface Module — to ensure that the Modbus RTU or Ethernet/IP communication link between the 3500 rack and the plant DCS remains stable after the swap. If the existing rack is running an older firmware baseline, a firmware update may be required on the replacement module prior to installation, which should be performed on the bench using a Bently Nevada programming cable and the System 1 configuration utility.

HMI screen updates are often required when a DC input channel is replaced or reconfigured. Operators relying on a Wonderware InTouch or FactoryTalk View HMI to monitor vibration, axial position, or process input values from the 3500 rack should verify that the tag names, engineering unit scaling, and alarm limits displayed on the HMI faceplate match the reconfigured channel parameters after the 129478-01 is commissioned. This is particularly important in facilities where the HMI was originally configured against a different input range or transducer sensitivity.

For facilities undertaking a broader control cabinet upgrade — for example, migrating from a legacy 3300 Series rack to the 3500 platform — the 129478-01 can serve as the DC input layer in the new rack while retaining existing field wiring and transducer installations. In this scenario, the 3500/32 4-Channel Relay Module and 3500/42M Proximitor/Seismic Monitor are commonly installed alongside the DC input module to reconstruct the full protection logic of the legacy system within the new chassis. Signal isolators may be required at the terminal strip if the field cable runs exceed recommended lengths or if ground loop interference is detected during commissioning.

Installation space confirmation is essential before committing to a rack-level retrofit. The 3500 chassis occupies a defined panel cutout and DIN rail or rack-mount footprint, and the 129478-01 module must be inserted into a slot that provides adequate clearance for the terminal block and cable bundle. In congested control cabinets, a physical mock-up or cardboard template is recommended before the live installation window begins.

All units supplied by KNMKS are subject to outgoing functional test, visual inspection, and packaging verification before shipment. Stock is maintained for immediate dispatch, and each module is covered by a support terms confirmed by quotation against manufacturing defects and functional failure under normal operating conditions.

Migration Compatibility Table

Retrofit Planning for Existing Automation Systems

A successful retrofit of the 129478-01 into an existing 3500 rack begins with a thorough review of the panel’s power distribution. The 3500/15 Power Supply Module must have sufficient headroom to support the DC input module alongside all other installed cards, including the 3500/20 Rack Interface Module, any 3500/42M Proximitor/Seismic Monitor cards, and relay output modules such as the 3500/32 4-Channel Relay Module. A power audit performed before the maintenance window prevents unexpected shutdowns caused by supply overload during the hot-swap or cold-start sequence.

Terminal wiring adaptation is the most labor-intensive element of a DC input retrofit. Field cables connected to proximity probes, velocity transducers, or process transmitters must be re-terminated to the 129478-01’s terminal block using the correct wire gauge and ferrule specification. Where the original installation used a signal isolator or barrier strip between the field device and the rack, the isolator’s output range must be confirmed to fall within the 129478-01’s input acceptance window. In multi-drop wiring configurations, each channel’s shield drain wire must be grounded at one end only to prevent circulating ground currents that can corrupt vibration amplitude readings.

For facilities migrating from older Bently Nevada platforms, a Bently Nevada programming cable and a licensed copy of the System 1 configuration software are required to load the correct module configuration file onto the 129478-01 before it is inserted into the rack. The configuration file defines the transducer type, full-scale range, alert and danger setpoints, and time-delay parameters for each channel. Importing the configuration from the legacy module’s backup file — if available — is the fastest path to restoring the original protection logic without manual re-entry.

Where the 3500 rack communicates with a plant DCS via the 3500/20 Rack Interface Module, the Modbus register map or Ethernet/IP tag table should be exported before the retrofit begins and re-validated after the 129478-01 is commissioned. Any change in channel count, slot position, or module type can shift the register offset for downstream channels, causing the DCS to read incorrect values from adjacent modules if the map is not updated.

Downtime Control During System Migration

Minimizing unplanned downtime during a DC input module replacement requires a structured pre-outage preparation sequence. Before the maintenance window opens, the replacement 129478-01 should be bench-tested, firmware-verified, and pre-configured with the correct channel parameters. A printed copy of the original terminal wiring diagram, the rack slot assignment table, and the DCS tag list should be available at the panel before any field wiring is disturbed.

Where the 3500 rack supports hot-swap insertion — and the plant safety plan permits it — the 129478-01 can be inserted into a powered rack without shutting down adjacent monitoring channels. However, the affected channel’s alarm outputs should be inhibited in the DCS before the swap to prevent spurious trip signals from reaching the machinery protection logic. The 3500/32 Relay Module bypass function can be used to hold relay outputs in a safe state during the insertion and commissioning sequence.

Original program logic stored in the System 1 configuration database is not affected by a module swap, provided the replacement module is loaded with the correct configuration file and inserted into the original slot position. Field control continuity is maintained on all unaffected channels throughout the swap, and the total outage exposure for the replaced channel is limited to the insertion, wiring verification, and alarm reinstatement sequence — typically achievable within a single shift when all preparatory steps have been completed in advance.

Post-installation verification should include a live signal check on each replaced channel, confirmation that alarm setpoints are active and correctly scaled, and a review of the DCS historian to confirm that the tag is logging valid engineering-unit values. A signed commissioning record should be retained for the asset maintenance file.

Retrofit Support FAQ

Q1: Is the 129478-01 a direct drop-in replacement for the original DC input module in my 3500 rack?
Yes, provided the replacement module is installed in the same physical slot as the original. The 3500 backplane assigns channel addresses by slot position, so occupying the same slot preserves the existing tag mapping in the DCS and System 1 configuration database without requiring address reassignment.

Q2: What commissioning steps are required after installing the 129478-01?
At minimum: verify firmware compatibility with the 3500/20 Rack Interface Module, confirm the channel configuration file is correctly loaded, perform a live signal check on each channel, validate alarm setpoints against the original protection settings, and confirm that the DCS tag is receiving valid engineering-unit values. A bench firmware check before installation is strongly recommended.

Q3: Can the 129478-01 be used to replace a DC input module from a legacy 3300 Series rack?
The 129478-01 is designed for the 3500 Series platform and is not a direct plug-in replacement for 3300 Series modules. A migration from 3300 to 3500 requires a rack replacement, re-termination of field wiring to the 3500 terminal block format, and reconfiguration of the System 1 database. KNMKS can advise on the full bill of materials for a 3300-to-3500 migration project.

Q4: What support terms and stock availability does KNMKS provide for the 129478-01?
All 129478-01 units supplied by KNMKS carry a support terms confirmed by quotation covering manufacturing defects and functional failure under normal operating conditions. Units are held availability confirmed by RFQ and are available for immediate dispatch following order confirmation. Each unit undergoes outgoing functional testing and visual inspection before shipment.

© 2026 KNMKS. All rights reserved.
Original Source: https://knmks.com
Contact: [email protected] | +86 18359268345

Product Identification

Brand / Ecosystem

Bently Nevada
Bently Nevada

Model / Series

129478-01
3500 Series

Product Family

PLCs & Controllers

Availability Status

Available on request after model and quantity confirmation

Inquiry Type

B2B RFQ, replacement inquiry and project spare-part request

Pre-Quote Check

Exact SKU, brand, series, quantity, nameplate photos and destination country are checked before quotation

Specification & Inquiry Focus

Control platform

PLC, PAC and modular controllers

Common needs

CPU, rack, power and I/O expansion

Project support

Replacement, cabinet build and maintenance

Inquiry Support

• Model cross-checking before quotation
• CPU, power, rack and expansion module matching
• Support for replacement and project inquiry

What to Send Us

• Brand and exact model number: Bently Nevada 129478-01
• Quantity and required delivery time
• Application, replacement requirement or nameplate photo
• Destination country and shipping preference
