Bently Nevada 128276-01E Maintenance Spare Part for Factory Uptime

Overview

Bently Nevada 128276-01E Maintenance-Proven Spare Part for Factory Uptime

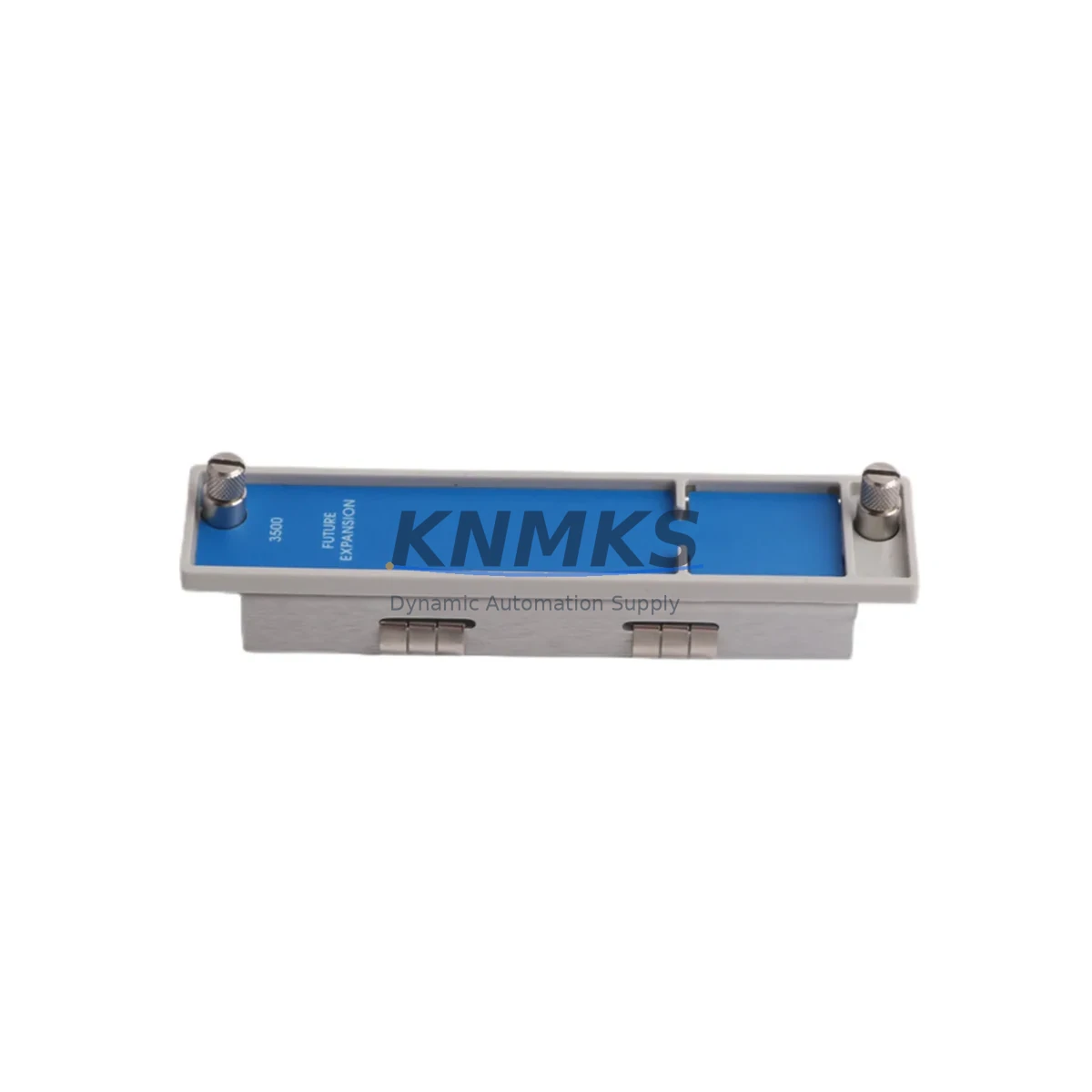

The Bently Nevada 128276-01E is a Half Expansion Panel designed for the 3500 Series Machinery Protection System — one of the most widely deployed vibration monitoring and machinery protection platforms in rotating equipment facilities worldwide. Whether you are managing a gas turbine train, a centrifugal compressor skid, or a critical pump station, the 128276-01E provides the structural and electrical backbone that allows additional I/O and monitoring modules to be integrated into an existing 3500 rack without replacing the primary chassis.

For maintenance engineers and reliability teams, having a verified original spare of the 128276-01E on the shelf is a fundamental risk-reduction strategy. Rack expansion failures — whether caused by backplane connector wear, vibration fatigue, or age-related insulation degradation — can take an entire protection system offline, triggering unplanned shutdowns that cost far more than the spare itself. Stocking this panel as part of your annual maintenance budget is standard practice in facilities that operate under API 670 machinery protection requirements.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When a 128276-01E is flagged for replacement during a scheduled outage or emergency callout, experienced maintenance engineers know that the expansion panel is rarely the only component that needs attention. The 3500 rack ecosystem is tightly integrated, and a thorough inspection should extend to adjacent modules and supporting infrastructure.

Begin with the 3500/20 Power Supply module — the primary power source for the entire rack. A failing or marginal power supply can cause intermittent resets and false trips that are often misdiagnosed as panel or backplane faults. Verify output voltage rails and check for capacitor bulge or discoloration. Similarly, inspect the 3500/22M Transient Data Interface if your system is configured for event-triggered waveform capture; connector integrity on this module directly affects data quality during machinery upset events.

For facilities running vibration monitoring on rotating equipment, the 3500/40M Proximitor/Seismic Monitor and 3500/42M Proximitor/Seismic Monitor modules should be included in the same inspection cycle. These I/O monitors interface directly through the backplane that the 128276-01E supports, and any mechanical disturbance during panel replacement creates an opportunity to verify that all module edge connectors are fully seated and free of corrosion.

Do not overlook the 3500/25 Keyphasor Module — particularly in systems where phase-referenced vibration analysis is critical. A loose or degraded Keyphasor connection can corrupt speed and phase data across multiple channels simultaneously. While the rack is open, also inspect terminal blocks, field wiring connectors, and any signal isolators or barriers installed between the 3500 system and field sensors. These passive components are often overlooked in spare parts planning but are a common source of signal degradation in aging installations.

Finally, confirm that the rack’s communication gateway or System 1 interface card is functioning correctly after any panel swap. Rack-level disturbances can occasionally cause communication timeouts that require a module reset or configuration re-push from the engineering workstation.

Site Replacement Workflow

Replacing the 128276-01E in a live plant environment requires coordination between the maintenance team, the control room, and — where applicable — the safety instrumented system (SIS) team. The following workflow reflects best practice for minimizing downtime and ensuring system integrity after the swap.

Step 1 — Pre-work verification: Confirm the replacement 128276-01E SKU matches the installed revision. Check the rack configuration drawing and compare the panel slot assignment against the current rack layout. Photograph the existing wiring and module positions before any disassembly.

Step 2 — Bypass and inhibit: Where plant procedures permit, place the affected monitoring channels in bypass or inhibit mode to prevent spurious trips during the replacement. Coordinate with the control room to confirm bypass status is acknowledged.

Step 3 — Module extraction: Power down the rack section if required by site procedures. Remove I/O modules in sequence, labeling each by slot position. Extract the 128276-01E panel carefully, avoiding stress on backplane connectors.

Step 4 — Panel installation: Install the replacement 128276-01E, ensuring full backplane engagement. Re-install I/O modules in their original slot positions. Verify all field wiring connections are secure.

Step 5 — Functional verification: Restore power and confirm that all channels return to normal status. Perform a channel-by-channel OK check from the System 1 or rack display interface. Remove bypass/inhibit only after all channels are confirmed healthy.

This workflow is compatible with both planned annual shutdowns and emergency replacement scenarios, and it supports the goal of returning the protection system to full operational status with minimal exposure time.

Spare Parts Support FAQ

Q1: Is the 128276-01E compatible with all 3500 Series rack configurations?
The 128276-01E is a Half Expansion Panel designed for the standard 3500 rack form factor. It is compatible with the full range of 3500 Series I/O monitor modules and power supply configurations. If your rack uses a non-standard chassis or a legacy pre-3500 backplane, please confirm the rack model number before ordering to ensure dimensional and connector compatibility.

Q2: How is the 128276-01E tested before shipment?
Each unit undergoes functional verification prior to dispatch, including backplane connector inspection, mechanical integrity check, and visual examination for component damage or corrosion. A support terms confirmed by quotation is provided from the date of shipment, covering defects in materials and workmanship under normal operating conditions.

Q3: What is the recommended inventory strategy for this panel?
For facilities operating multiple 3500 racks, maintaining at least one 128276-01E as a cold standby spare is standard practice. Plants with critical rotating equipment — gas turbines, large compressors, or boiler feed pumps — should consider holding two units to cover simultaneous failure scenarios during extended outages. Coordinate spare panel procurement with your annual maintenance budget cycle to avoid emergency sourcing at premium cost.

Q4: Can you support long-term supply for this part number?
Yes. We maintain ongoing sourcing relationships for 3500 Series components, including the 128276-01E, and can support blanket order arrangements for facilities that require guaranteed availability over a 12–36 month horizon. Contact our team to discuss volume pricing, lead time commitments, and documentation requirements for your procurement process.

© 2026 KNMKS. All rights reserved.
Original Source: https://knmks.com
Contact: [email protected] | +86 18359268345

Product Identification

Brand / Ecosystem

Bently Nevada
Bently Nevada

Model / Series

128276-01E
3500 Series

Product Family

Relays & Interface

Availability Status

Available on request after model and quantity confirmation

Inquiry Type

B2B RFQ, replacement inquiry and project spare-part request

Pre-Quote Check

Exact SKU, brand, series, quantity, nameplate photos and destination country are checked before quotation

Specification & Inquiry Focus

Interface range

Relays, isolation and signal modules

Common needs

Coil voltage and contact rating

Project support

Panel wiring and signal protection

Inquiry Support

• Relay base and module matching
• Signal isolation and protection options
• Panel accessory inquiry support

What to Send Us

• Brand and exact model number: Bently Nevada 128276-01E
• Quantity and required delivery time
• Application, replacement requirement or nameplate photo
• Destination country and shipping preference
