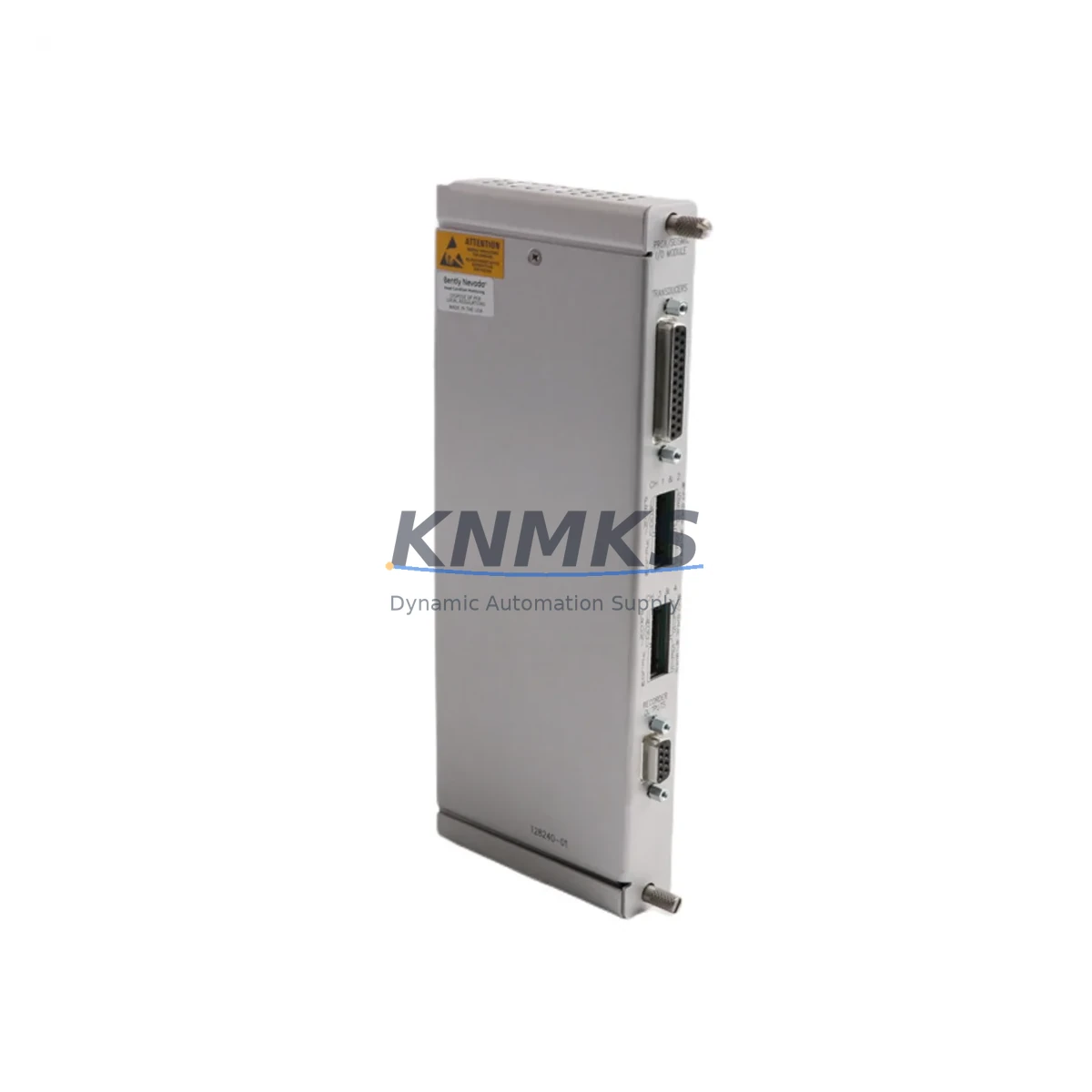

Bently Nevada 128240-01 Migration-Ready I/O Module for Legacy Control Systems

The Bently Nevada 128240-01 is a Proximity/Seismic I/O Module designed for the 3500 Series machinery protection platform. As legacy vibration monitoring systems approach end-of-life or face discontinued spare part availability, the 128240-01 serves as a verified migration-ready replacement that preserves existing wiring infrastructure, backplane slot assignments, and signal conditioning logic without requiring a full system overhaul.

Industrial facilities operating aging 3500 Series racks frequently encounter challenges when sourcing discontinued I/O modules. The 128240-01 addresses this directly by maintaining full electrical and mechanical compatibility with the 3500 rack backplane, allowing engineers to swap the module without redesigning terminal wiring or reconfiguring the host controller’s channel address map. Before installation, engineers should confirm the power supply capacity of the existing 3500 rack — particularly when the rack is shared with other active modules such as the 3500/22M Transient Data Interface or the 3500/42M Proximitor/Seismic Monitor — to ensure the total draw remains within the rack’s rated output.

Terminal wiring compatibility is a critical checkpoint during any I/O module replacement. The 128240-01 uses the standard 3500 Series terminal block pinout, which means existing field cables connected to proximity probes or seismic accelerometers can typically be re-terminated without modification. However, engineers should verify cable shielding continuity and confirm that the Bently Nevada 3300 XL 8mm Proximitor probe system or equivalent transducer is within the calibrated gap range before powering the replacement module. Incorrect gap settings will produce erroneous vibration readings and may trigger false alarms in the machinery protection logic.

Backplane interface alignment is another area requiring attention. The 128240-01 occupies a defined slot position within the 3500 rack, and its module address must match the channel configuration stored in the 3500 System Monitor or the rack’s configuration software. If the original module address has been modified from factory default, the replacement module must be configured to match before the rack is brought back online. This is typically accomplished using System 1 software or the rack’s front-panel keypad, depending on the firmware version installed on the 3500/20 Rack Interface Module.

Communication link integrity should be validated after module installation. The 3500 Series communicates over a proprietary backplane bus, and the 128240-01 must be recognized by the rack’s communication architecture before alarm setpoints and OK relay logic become active. Engineers should confirm that the 3500/20 Rack Interface Module firmware is compatible with the replacement I/O module revision. In facilities where the 3500 rack feeds data to a DCS or SCADA platform via Modbus or OPC, the data mapping should be verified to ensure that channel tags and engineering unit scaling remain consistent after the swap.

HMI screen updates may be required if the original module’s channel labels or alarm group assignments differ from the replacement configuration. Operators should coordinate with the control room team to confirm that vibration trend displays, alarm banners, and historical data logging continue to reference the correct channel identifiers after the 128240-01 is commissioned.

Installation space confirmation is straightforward for in-rack replacements, as the 128240-01 conforms to the standard 3500 Series module form factor. However, in retrofit scenarios where the existing rack is being relocated or consolidated into a new control cabinet, engineers should verify that the cabinet provides adequate clearance for the rack’s front-panel connectors and that the 3500/15 Power Supply Module is accessible for maintenance without disturbing adjacent modules.

All 128240-01 units supplied by KNMKS are pre-tested prior to shipment. Each module undergoes functional verification covering channel signal conditioning, OK relay output, and backplane communication handshake. Units are shipped with a support terms confirmed by quotation covering manufacturing defects and functional failures under normal operating conditions.

Migration Compatibility Table

Retrofit Planning for Existing Automation Systems

A successful 128240-01 retrofit begins with a complete audit of the existing 3500 rack population. Engineers should document every module currently installed — including the 3500/42M Proximitor/Seismic Monitor, the 3500/22M Transient Data Interface, and any 3500/32 4-Channel Relay Module units — to understand the full scope of the rack’s protection logic before any module is removed. This audit also identifies whether the 3500/15 Power Supply Module has sufficient headroom to support the replacement I/O module alongside existing loads.

Field wiring from proximity probes and seismic sensors connects to the 128240-01 through the 3500 Series terminal block assembly. In older installations, these terminal blocks may show signs of corrosion or loose terminations that should be addressed during the retrofit window. Signal isolators may be required in environments with high common-mode noise or where cable runs exceed recommended lengths for the Bently Nevada 3300 XL probe system.

For facilities migrating from older 3300 Series racks to the 3500 platform, the 128240-01 represents a key component in the upgrade path. The migration typically also involves replacing the rack’s communication interface with a 3500/20 Rack Interface Module to support modern DCS integration, and updating HMI tag databases to reflect the new channel structure. Programming cables and configuration laptops with System 1 software should be staged on-site before the cutover window begins to minimize commissioning time.

Downtime Control During System Migration

Minimizing downtime during a 3500 Series I/O module replacement requires careful pre-staging and a clearly defined cutover sequence. Before the maintenance window opens, the replacement 128240-01 should be bench-tested and configured to match the original module’s channel address and alarm setpoints. Configuration files should be exported from System 1 software and backed up to a secure location so that the original program logic can be restored immediately if the replacement module does not initialize correctly.

During the cutover, the rack should be taken offline in a controlled sequence that preserves the integrity of the machinery protection system. If the facility operates a redundant protection channel, the secondary channel should remain active while the primary I/O module is replaced. Once the 128240-01 is seated and the rack is powered, engineers should confirm OK relay status and verify that all channel readings are within expected ranges before returning the rack to active protection duty.

Field control continuity is maintained by coordinating the module swap with the DCS operator to suppress nuisance alarms during the commissioning period. After the 128240-01 is confirmed operational, alarm suppression should be lifted and the system returned to normal protection mode. The entire cutover sequence, from rack shutdown to confirmed operation, typically requires less than two hours when the replacement module has been pre-configured and all field wiring has been verified in advance.

Retrofit Support FAQ

Q: Is the 128240-01 a direct drop-in replacement for the original Bently Nevada 3500 Series Proximity/Seismic I/O Module?
A: Yes. The 128240-01 is mechanically and electrically compatible with the standard 3500 rack backplane and terminal block pinout. Channel address configuration should be verified against the original module settings before installation.

Q: What commissioning steps are required after installing the 128240-01?
A: After seating the module, confirm backplane communication with the 3500/20 Rack Interface Module, verify OK relay output, check proximity probe gap settings, and validate channel readings against known reference values using System 1 software or the rack’s front-panel display.

Q: How do I confirm wiring compatibility before removing the original module?
A: Document the existing terminal block wiring diagram and compare it against the 128240-01 pinout specification. In most 3500 Series installations, the terminal block wiring is directly compatible. Signal cable shielding and grounding should also be inspected during this step.

Q: What support terms and pre-shipment testing does KNMKS provide for the 128240-01?
A: Every 128240-01 unit is functionally tested prior to shipment, covering signal conditioning, OK relay operation, and backplane communication. A support terms confirmed by quotation is included from the date of shipment, covering manufacturing defects and functional failures under normal operating conditions. In-stock units are available for immediate dispatch.
