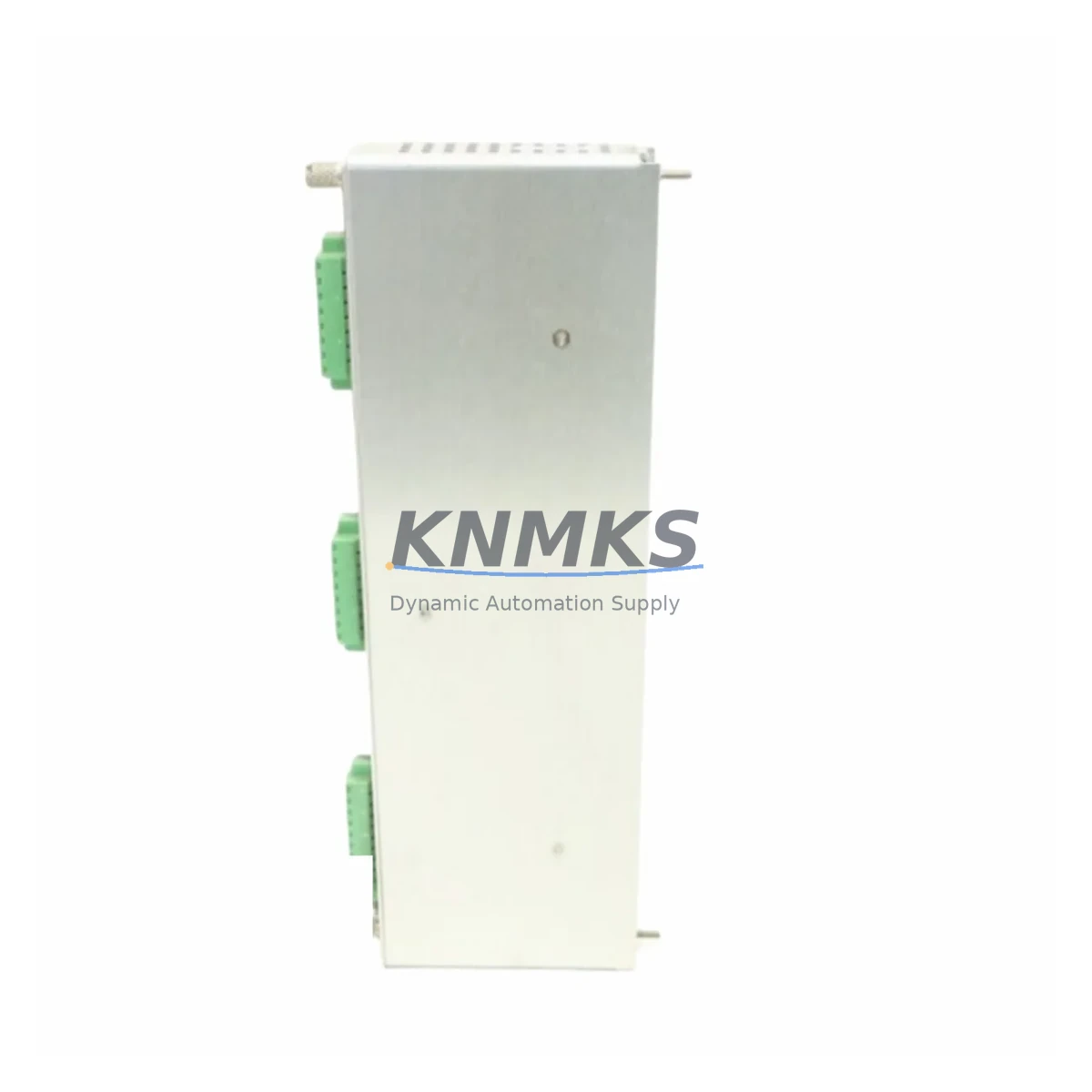

Bently Nevada 128229-01 Migration-Ready Seismic I/O Module

Overview

Bently Nevada 128229-01 Migration-Ready Seismic I/O Module for Legacy Control Systems

The Bently Nevada 128229-01 is a Proximitor/Seismic I/O Module designed for the 3500 Series Machinery Protection System. As legacy vibration monitoring infrastructure ages and OEM support windows close, the 128229-01 has become a critical retrofit component for facilities managing rotating machinery — including turbines, compressors, pumps, and gearboxes — across oil & gas, power generation, petrochemical, and heavy industrial environments.

This module interfaces directly with Bently Nevada Proximitor sensors and seismic transducers, processing radial vibration, axial position, and seismic velocity signals within the 3500 rack architecture. For plants operating legacy 3500/20 or 3500/22M rack configurations, the 128229-01 provides a verified drop-in replacement path without requiring rack replacement, backplane rewiring, or firmware re-flashing at the system level. Each unit is pre-shipment tested against OEM functional benchmarks and backed by a support terms confirmed by quotation.

Migration planning for the 128229-01 requires careful attention to several system-level parameters. Engineers should confirm available rack slot positions within the 3500 chassis, verify that the existing I/O terminal block wiring matches the module’s channel configuration, and validate that the host controller — typically a 3500/15 Power Supply Module or equivalent — can sustain the additional current draw. Backplane communication between the 128229-01 and the 3500 rack’s internal bus must be confirmed against the installed firmware version of the 3500/05 Rack Interface Module, as older firmware revisions may require an update before the new I/O module is recognized correctly.

For facilities transitioning from earlier Bently Nevada 3300 Series or 7200 Series monitoring platforms, the 128229-01 represents a structured upgrade path. The 3500 Series architecture supports a broader range of transducer types and offers enhanced diagnostic resolution, but the migration requires remapping channel addresses in the System 1 software configuration, updating HMI alarm setpoints, and verifying that existing Proximitor sensor cable lengths remain within the module’s input impedance tolerance. Where cable runs exceed recommended limits, signal conditioning via an inline 3500/42M Proximitor/Seismic Monitor Module may be required to maintain measurement accuracy.

Communication protocol continuity is a key concern during 3500 Series retrofits. The 128229-01 operates within a rack that may be networked via Modbus RTU, Modbus TCP/IP, or Bently Nevada’s proprietary TDI (Transient Data Interface) protocol. Before installation, the site’s DCS or SCADA integration layer — often a 3500/92 Communication Gateway Module — must be verified for compatibility with the updated rack configuration. Any changes to module slot assignments will require corresponding updates to the gateway’s register map and the DCS tag database.

Physical installation space within the control cabinet should be confirmed prior to procurement. The 128229-01 occupies a standard 3500 Series single-slot position and is compatible with both 19-inch rack-mount and panel-mount enclosure configurations. Where cabinet space is constrained, engineers should audit adjacent modules — such as the 3500/40M Proximitor/Seismic Monitor or 3500/50 Tachometer Module — to ensure adequate airflow clearance and that no slot conflicts exist with existing I/O assignments.

Downtime exposure during 128229-01 replacement is typically limited to the duration of the module swap and system re-verification sequence. With pre-tested units and a prepared channel configuration backup, most field teams complete the replacement within a planned maintenance window of two to four hours. Retaining the original program logic in the System 1 configuration file and performing a pre-swap export of all alarm setpoints and transducer calibration data significantly reduces commissioning time and eliminates the risk of configuration loss during the transition.

Migration Compatibility Table

Retrofit Planning for Existing Automation Systems

A successful 128229-01 retrofit begins with a structured audit of the existing 3500 rack population. Engineers should document all occupied slot positions, confirm the installed revision of the 3500/05 Rack Interface Module, and verify that the 3500/15 Power Supply Module has sufficient headroom to support the replacement I/O module’s power draw. In racks where multiple I/O modules are being refreshed simultaneously, total rack power budget must be recalculated to prevent supply saturation.

Terminal block wiring for the 128229-01 follows the standard 3500 Series I/O terminal assignment convention. Field wiring from Proximitor sensors and seismic transducers should be verified for correct polarity, shield grounding, and cable continuity before the module is seated. Where existing cable labels are degraded or absent, re-labeling prior to the swap reduces the risk of miswiring during reinstallation. Signal isolation requirements should also be reviewed — in mixed-signal environments, a dedicated signal isolator or barrier may be needed to prevent ground loop interference from affecting measurement accuracy.

For facilities also upgrading their HMI layer, the 128229-01 retrofit is an appropriate trigger point to review the System 1 software version and confirm compatibility with the updated rack configuration. HMI screen templates referencing legacy channel addresses will require remapping, and any custom alarm logic tied to the replaced module’s I/O tags should be validated in a staging environment before go-live. Where the control system includes a 3500/92 Communication Gateway Module linking the 3500 rack to a DCS or SCADA platform, the gateway’s Modbus register map must be updated to reflect the new module’s slot assignment and channel numbering.

In multi-rack installations, the 128229-01 may be deployed alongside complementary modules such as the 3500/42M Proximitor/Seismic Monitor Module for enhanced channel processing, the 3500/50 Tachometer Module for speed reference integration, and the 3500/40M Proximitor/Seismic Monitor for parallel redundancy configurations. Coordinating the replacement schedule across these interdependent modules minimizes the number of separate maintenance windows required and reduces cumulative downtime exposure.

Downtime Control During System Migration

Minimizing unplanned downtime during a 128229-01 replacement requires preparation at three levels: configuration backup, physical staging, and commissioning sequencing. Before any module is removed from the rack, a full export of the System 1 configuration — including all channel parameters, alarm setpoints, transducer calibration offsets, and communication settings — should be saved to a secure backup location. This ensures that if the commissioning sequence encounters an unexpected issue, the system can be restored to its pre-swap state without data loss.

Physical staging involves pre-configuring the replacement 128229-01 to match the outgoing module’s channel assignments wherever possible. For sites with access to a spare rack or bench test environment, pre-loading the module configuration and verifying signal response before the planned maintenance window eliminates the most common source of commissioning delays. Where bench testing is not feasible, the pre-shipment test documentation supplied with each unit provides a baseline for expected signal behavior during field commissioning.

During the live swap, the recommended sequence is: isolate the affected rack slots, remove the outgoing module, seat the replacement 128229-01, restore terminal block connections, and perform a controlled power cycle of the affected rack section. Following power restoration, verify that the 3500/05 Rack Interface Module recognizes the new I/O module, confirm that all channel inputs are reading within expected ranges, and validate alarm trip levels against the pre-swap configuration export. Communication link continuity to the DCS or SCADA system should be confirmed as the final step before returning the system to operational status.

For facilities where continuous process operation prevents a full rack power cycle, hot-swap procedures may be applicable depending on the installed rack firmware version and site safety protocols. Consult the 3500 Series installation manual and confirm with your site safety officer before attempting a live module replacement in a running rack.

Retrofit Support FAQ

Q1: Is the 128229-01 a direct drop-in replacement for the existing module in my 3500 rack?
In most 3500/20 and 3500/22M rack configurations, yes. The 128229-01 occupies a standard single slot and uses the same backplane interface as other 3500 Series I/O modules. However, you should verify the installed firmware version of the 3500/05 Rack Interface Module before installation, as older firmware revisions may not recognize the replacement module without an update. Our technical team can assist with firmware compatibility verification prior to dispatch.

Q2: What wiring changes are required when installing the 128229-01?
In most cases, existing field wiring from Proximitor sensors and seismic transducers can be reconnected directly to the replacement module’s terminal block without modification, provided the original wiring follows the standard 3500 Series terminal assignment. We recommend verifying cable polarity, shield grounding, and continuity before seating the module. If your installation uses non-standard wiring or extended cable runs, contact us for application-specific guidance.

Q3: Has the unit been tested before shipment, and what support terms is provided?
Yes. Every 128229-01 unit is functionally tested and signal-integrity verified before dispatch. Each unit ships with pre-shipment test documentation. A support terms confirmed by quotation is included, covering manufacturing defects and functional failures under normal operating conditions. Expedited replacement is available for support requests to minimize site downtime.

Q4: Do you maintain stock for immediate dispatch, and can you support emergency orders?
Yes. The 128229-01 is maintained in multi-region stock for fast global dispatch. Emergency and priority orders are supported — contact our sales team directly for lead time confirmation and expedited shipping options. We supply both original and migration-ready units to support planned maintenance schedules and unplanned outage recovery.
