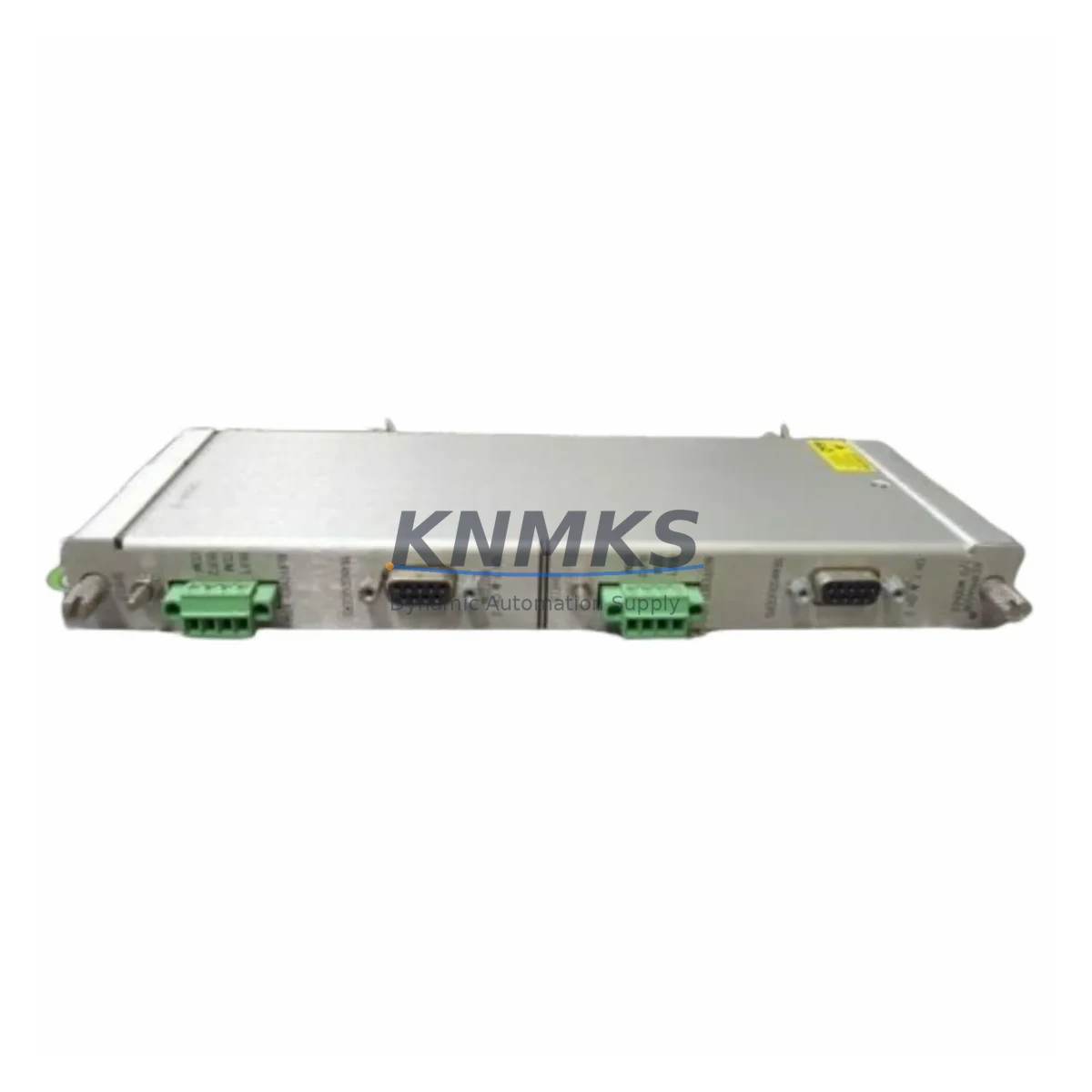

Bently Nevada 126648-01 Fail-Safe Keyphasor I/O Module

Overview

Bently Nevada 126648-01 Fail-Safe Keyphasor I/O Module: Critical Industrial Control Reliability

The Bently Nevada 126648-01 is a precision-engineered Keyphasor I/O Module designed for the 3500 Series machinery protection system. In continuous production environments where unplanned downtime carries catastrophic operational and safety consequences, this module delivers the fail-safe signal integrity and fault-tolerant performance that critical rotating machinery monitoring demands. Whether deployed in petrochemical compressor trains, power generation turbines, or heavy-duty mining conveyors, the 126648-01 provides the reliable phase reference signal acquisition that underpins every vibration, speed, and position measurement in the 3500 rack.

Industrial control cabinets in high-EMI environments — such as those adjacent to variable frequency drives, large motor starters, or high-current bus bars — impose severe demands on I/O signal quality. The 126648-01 is engineered to maintain stable Keyphasor signal conditioning under these conditions, preventing the signal drift and false triggering that can cause nuisance trips or, more critically, missed machinery fault detection. Its robust input circuitry suppresses transient surges and electromagnetic interference, ensuring that the phase reference data fed to the Bently Nevada 3500/25 Enhanced Keyphasor Module and associated monitor cards remains accurate and uninterrupted.

In safety-critical interlock architectures, the integrity of the Keyphasor signal directly affects the reliability of overspeed protection, phase-referenced vibration analysis, and differential expansion monitoring. A degraded or intermittent Keyphasor input can compromise the entire machinery protection chain. The 126648-01 eliminates this risk through its precision signal conditioning design, making it a foundational component in any safety instrumented system (SIS) loop built around the 3500 platform.

Fail-Safe Reliability Table

Control Cabinet Protection Strategy

A robust 3500 Series control cabinet deployment extends well beyond the 126648-01 itself. In a typical critical machinery protection panel, the Keyphasor I/O Module works in concert with the Bently Nevada 3500/22M Transient Data Interface to capture high-resolution transient events during startup and shutdown — the periods of greatest mechanical stress and highest risk of rotor instability. Alongside it, the Bently Nevada 3500/42M Proximitor Seismic Monitor processes the radial vibration signals that the Keyphasor phase reference makes meaningful, enabling accurate 1X and 2X vector analysis for imbalance and misalignment detection.

Power supply integrity is equally critical. The Bently Nevada 3500/15 Power Supply Module provides the regulated, redundant DC power that the entire 3500 rack depends on. In environments with unstable utility power or frequent voltage sags — common in heavy industrial facilities — a redundant power supply configuration ensures that a single power event cannot interrupt the protection system. Surge events from nearby switching equipment are absorbed before they can propagate to sensitive I/O circuitry.

For facilities operating in dusty, humid, or chemically aggressive atmospheres — such as offshore platforms, water treatment plants, or fertilizer production — cabinet-level protection is reinforced through positive-pressure purging systems and IP54-rated enclosures. Within such enclosures, the Bently Nevada 3500/20 Rack Interface Module manages system-level communication and self-diagnostics, providing continuous health monitoring of every module in the rack, including the 126648-01. Any module fault or communication anomaly is immediately flagged, enabling maintenance teams to respond before a protection gap develops.

In high-vibration installations such as reciprocating compressors or large centrifugal pumps, the Bently Nevada 330180 Series Proximity Probes paired with the 126648-01 deliver the stable, low-noise Keyphasor signal that accurate speed and phase measurement requires. Proper probe mounting, cable routing away from power conductors, and use of Bently Nevada-specified extension cables are all part of a complete cabinet protection strategy that maximizes the reliability of the entire monitoring chain.

Critical Industrial Safety Applications

The Bently Nevada 126648-01 Keyphasor I/O Module is deployed across the most demanding industrial sectors where rotating machinery failure carries severe safety, environmental, and financial consequences.

In petrochemical and refining facilities, it provides the phase reference for compressor and turbine protection systems operating under API 670 machinery protection standards. Continuous monitoring of shaft speed and phase enables early detection of rotor instability, preventing catastrophic seal failures or bearing collapses that could trigger process shutdowns or safety system activations.

In power generation — including coal, gas, nuclear, and hydroelectric plants — the 126648-01 supports turbine overspeed protection and torsional vibration monitoring. The accuracy of the Keyphasor signal is directly linked to the reliability of the overspeed trip function, one of the most critical safety barriers in any power plant.

In mining and mineral processing, large ball mills, SAG mills, and crusher drives operate under extreme mechanical loads and high vibration. The 126648-01 enables continuous phase-referenced vibration trending that identifies developing mechanical faults weeks before failure, allowing planned maintenance rather than emergency repairs.

In water and wastewater treatment, pump and blower protection systems rely on the 126648-01 to maintain continuous monitoring even in high-humidity, chemically aggressive environments. Reliable Keyphasor signal conditioning prevents nuisance trips that would interrupt treatment processes and potentially cause regulatory compliance failures.

In metallurgy and steel production, rolling mill drives and continuous caster equipment operate in extreme thermal and vibration environments. The 126648-01’s robust design ensures stable performance even when cabinet ambient temperatures approach the upper operating limit, maintaining protection system availability during the most demanding production campaigns.

Safety and Quality FAQ

Q1: What support terms coverage does the 126648-01 carry?
All 126648-01 units supplied by KNMKS carry a support terms confirmed by quotation from the date of shipment. This covers functional failures under normal operating conditions. Our technical team provides replacement support and failure analysis documentation upon request, ensuring minimal disruption to your protection system.

Q2: What pre-shipment testing is performed on each unit?
Every 126648-01 undergoes full functional verification before dispatch. This includes signal conditioning performance checks, input/output continuity verification, and visual inspection for physical integrity. Test records are available upon request for quality-critical procurement processes.

Q3: Is the 126648-01 compatible with all 3500 Series rack configurations?
The 126648-01 is designed for use within the Bently Nevada 3500 Series machinery protection system. Compatibility depends on rack configuration, firmware revision, and the specific monitor modules installed. KNMKS technical staff can assist with compatibility verification based on your existing rack bill of materials before order placement.

Q4: Can KNMKS support long-term supply and emergency replacement requirements?
Yes. KNMKS maintains inventory of the 126648-01 and related 3500 Series components to support both planned maintenance schedules and emergency replacement scenarios. For critical facilities requiring guaranteed availability, we recommend discussing a consignment or priority supply agreement with our sales team to eliminate lead-time risk during unplanned outages.
