Bently Nevada 126632-01 Migration-Ready I/O Module for Legacy Control Systems

Overview

Bently Nevada 126632-01 Migration-Ready I/O Module for Legacy Control Systems

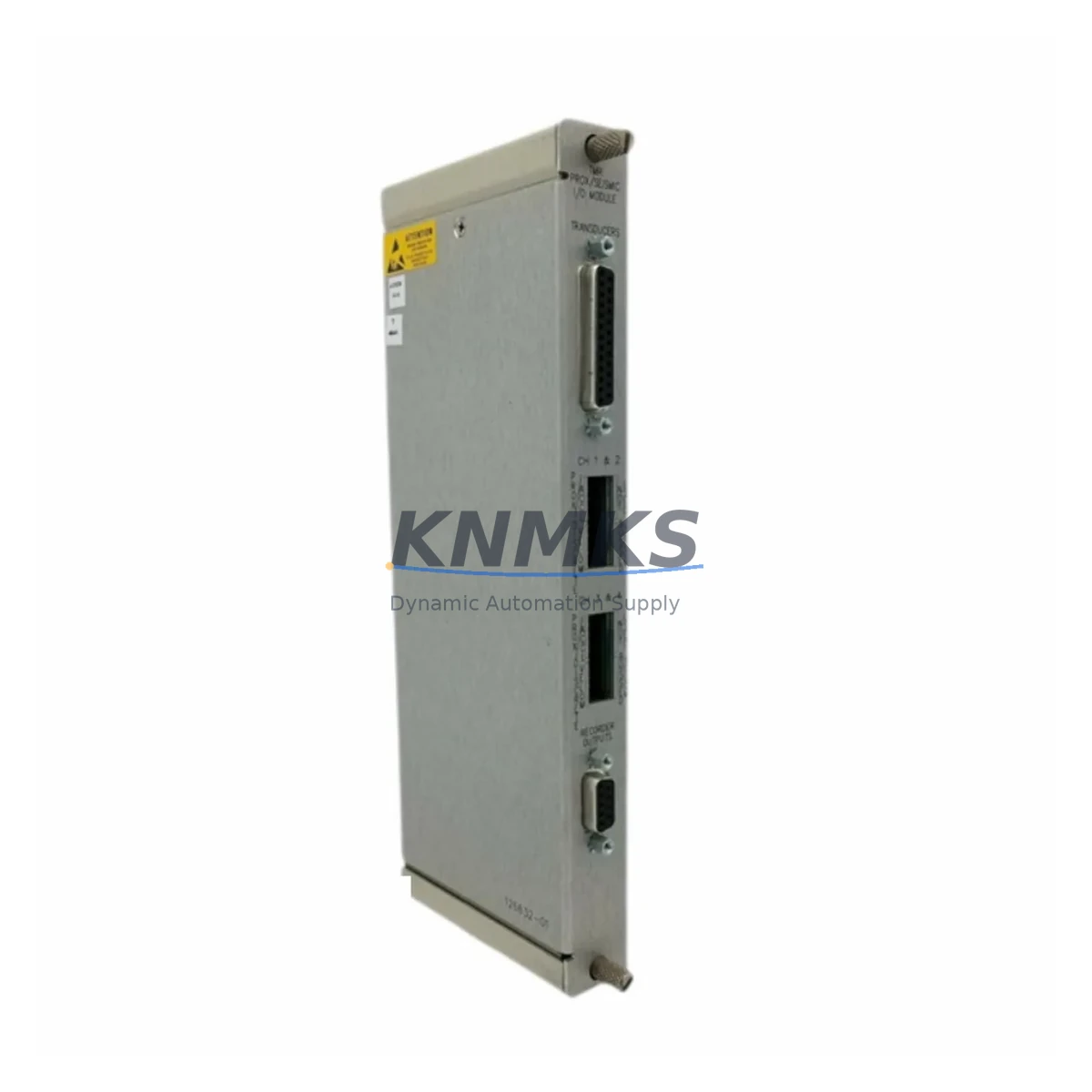

The Bently Nevada 126632-01 is a migration-ready I/O Interface Module engineered for the 3500 Series machinery protection platform. As legacy Bently Nevada installations approach end-of-support milestones, plant engineers and reliability teams face increasing pressure to source verified replacement modules that maintain signal integrity, rack compatibility, and program continuity without triggering a full system overhaul. The 126632-01 addresses this challenge directly — it is a drop-in-compatible I/O module designed to slot into existing 3500 Series racks, preserve original terminal wiring assignments, and resume monitoring functions with minimal reconfiguration.

For facilities operating aging 3500 Series frames, the 126632-01 serves as a critical bridge between legacy infrastructure and modern maintenance standards. Whether the objective is to extend the operational life of an existing control cabinet, replace a failed module during an unplanned outage, or stage a phased migration toward a newer platform, this module provides the verified compatibility and documented performance characteristics that industrial procurement teams require.

Each unit is pre-shipment tested against Bently Nevada 3500 Series interface specifications, covering signal channel response, power draw within rack budget, and backplane communication handshake. Units ship with a support terms confirmed by quotation covering manufacturing defects and functional performance under normal operating conditions.

Migration Compatibility Table

Retrofit Planning for Existing Automation Systems

Successful integration of the 126632-01 into a legacy 3500 Series installation requires a structured pre-migration assessment. Begin by auditing the existing rack configuration: confirm the total number of occupied slots, verify the 3500 Power Supply module’s available headroom, and document the current module address map to avoid address conflicts after the swap. In multi-rack installations, the 3500 Rack Interface Module (RIM) governs communication routing between the rack and the host system — ensure the RIM firmware is at a revision level that supports the 126632-01’s I/O interface protocol.

Terminal block wiring should be photographed and documented before any module is removed. The 126632-01 uses the standard 3500 Series I/O terminal assignment, which means field cables connected to the original module can typically be transferred directly to the replacement unit without modification. However, in installations where a 3500 I/O Module Termination Block has been used as an intermediate connection point, verify that the termination block’s pin mapping aligns with the replacement module’s channel order.

For facilities that have integrated the 3500 Series into a broader DCS or SCADA environment via a 3500 Communication Gateway Module, confirm that the gateway’s polling configuration references the correct module slot address after the replacement. If the host system uses System 1 software for condition monitoring, update the System 1 database to reflect the new module’s channel assignments and alarm thresholds before returning the rack to service.

In control cabinets where space is constrained, verify that adjacent modules — such as the 3500 Transient Data Interface (TDI) or proximity probe signal conditioning cards — are not obstructed during the swap procedure. Maintain at least the minimum clearance specified in the 3500 Series installation manual to ensure adequate airflow and prevent thermal issues after reinstallation.

Downtime Control During System Migration

Minimizing unplanned downtime during a 126632-01 replacement requires preparation that begins well before the maintenance window opens. The most effective approach is to pre-configure the replacement module offline — setting channel parameters, alarm limits, and module address assignments — so that the in-rack swap is limited to a physical exchange and a brief verification sequence rather than a full recommissioning cycle.

Where the 3500 Series rack supports hot-swap or online replacement procedures (depending on rack revision and firmware level), coordinate with the control room to place the affected channels in bypass or inhibit mode before removing the module. This prevents spurious alarms or protective trips from propagating to the safety system or DCS during the physical swap. Retain a copy of the original program logic and channel configuration export from System 1 or the rack configuration utility so that settings can be restored immediately if the replacement module requires a factory-default reset.

After installation, perform a point-to-point signal verification: apply a known reference signal to each input channel and confirm that the 3500 Series rack display and the host monitoring system both reflect the expected value. Check communication link status on the 3500 Rack Interface Module to confirm that the replaced I/O module is recognized and reporting correctly. Document the as-left configuration and update the site’s spare parts register to reflect the consumed inventory and trigger a reorder if buffer stock falls below the site’s minimum holding level.

Retrofit Support FAQ

Q: Is the 126632-01 a direct replacement for the original Bently Nevada module of the same part number?
A: Yes. The 126632-01 is supplied as a functionally equivalent replacement for the original Bently Nevada 126632-01 I/O Interface Module. It is compatible with the 3500 Series rack backplane and uses the same terminal wiring assignments as the original unit, supporting a direct swap without field wiring modifications in standard installations.

Q: What pre-installation checks are required before swapping the module?
A: Before installation, verify the rack’s total power budget to confirm the replacement module is within the 3500 Power Supply’s available capacity. Document the existing module address and channel configuration. Confirm the rack firmware revision is compatible. Place affected monitoring channels in inhibit mode if the rack does not support hot-swap, and back up the current rack configuration file.

Q: How is the module tested before shipment?
A: Each 126632-01 unit undergoes pre-shipment functional testing covering I/O channel response, backplane interface communication, and power consumption verification. Test records are retained. Units that do not meet Bently Nevada 3500 Series interface specifications are not shipped. A support terms confirmed by quotation is included from the date of shipment.

Q: What is the lead time and stock availability?
A: The 126632-01 is maintained availability confirmed by RFQ for immediate dispatch. Standard lead time for in-stock units is 1–3 business days for international shipments. For urgent requirements, expedited shipping options are available. Contact the sales team to confirm current inventory levels and delivery timelines for your region.
