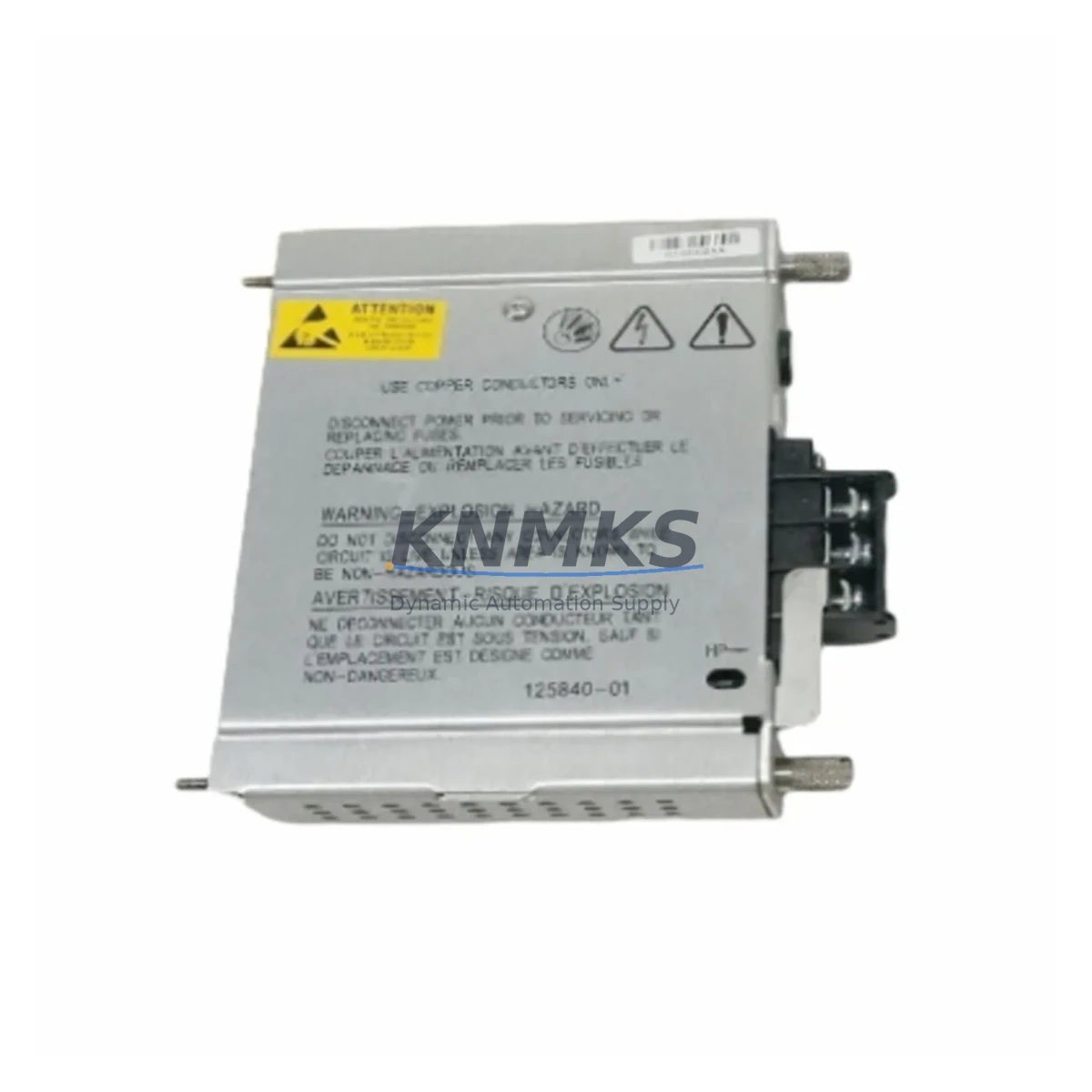

Bently Nevada 125840-01 Fail-Safe Power Input Module

Overview

Bently Nevada 125840-01 Fail-Safe Power Input Module: Reliable Power for Critical Vibration Monitoring Systems

The Bently Nevada 125840-01 is a dedicated Power Input Module engineered for the 3500 Series machinery protection rack — one of the most widely deployed vibration monitoring and machinery protection platforms in continuous process industries. In rotating equipment protection applications, power supply integrity is not a secondary concern: a momentary power interruption or voltage transient at the rack input can cause false trip events, suppress valid alarms, or force an unplanned shutdown of turbines, compressors, pumps, and generators that are central to production continuity.

The 125840-01 provides conditioned, regulated power to the 3500 rack backplane, isolating downstream monitoring modules from the voltage fluctuations, surge events, and EMI-coupled noise that are endemic to heavy industrial electrical environments. In facilities where large variable-frequency drives, arc furnaces, or high-power motor starters share the same electrical infrastructure as the control and monitoring systems, the power input module acts as the first line of defense against transient energy that could otherwise corrupt sensor signal processing or trigger nuisance trips in the machinery protection logic.

Its design supports the high-availability requirements of safety instrumented systems (SIS) and machinery protection loops where continuous, uninterrupted monitoring is mandatory. In turbomachinery protection applications — where the 3500 Series monitors shaft vibration, axial position, differential expansion, and speed — the power input module must maintain stable output under all foreseeable grid disturbance scenarios, including voltage sags during motor starts, harmonic distortion from power electronics, and transient overvoltages from switching operations.

Fail-Safe Reliability Table

Control Cabinet Protection Strategy

In a fully protected 3500 Series rack installation, the 125840-01 Power Input Module works in concert with several complementary components to ensure uninterrupted machinery protection coverage. For facilities with unstable grid power, installing an upstream isolation transformer or online UPS system ahead of the rack power input eliminates the risk of voltage sag-induced rack resets during large motor starts — a common failure mode in petrochemical and mining facilities where multi-megawatt drives share the same MCC bus as the monitoring system power feeds.

Within the 3500 rack itself, the power input module supplies conditioned power to critical monitoring cards including the Bently Nevada 3500/42M Proximitor Seismic Monitor for radial vibration and eccentricity measurement, and the 3500/45 Position Monitor for axial thrust and differential expansion monitoring on steam turbines and centrifugal compressors. These modules depend entirely on the power input module’s output stability for accurate, drift-free signal processing — any ripple or transient on the backplane power rail directly degrades measurement resolution and can cause false alarm activations.

For installations requiring dual-redundant power, a second Bently Nevada 125840-01 or compatible power input module can be installed in the rack’s secondary power slot, providing automatic failover without interrupting monitoring continuity. This configuration is standard practice in SIL-rated machinery protection applications where single points of failure in the power supply chain are not acceptable. Communication integrity between the 3500 rack and the plant DCS or safety system is maintained through the 3500/92 Communication Gateway Module, which relies on stable backplane power from the 125840-01 to sustain Modbus, Ethernet, or Profibus data exchange without packet loss or communication timeouts.

Critical Industrial Safety Applications

In oil and gas processing and LNG facilities, the Bently Nevada 125840-01 powers 3500 Series racks protecting gas turbine-driven compressor trains, where continuous vibration and position monitoring is mandatory under API 670 machinery protection standards. A power input module failure in this context would disable the entire rack’s protective functions, leaving rotating equipment unprotected against destructive vibration events such as rotor imbalance, bearing failure, or surge.

In power generation plants — including combined-cycle gas turbine (CCGT), steam turbine, and hydroelectric facilities — the 125840-01 sustains the monitoring rack that provides the primary vibration and axial position signals to the turbine control system. These signals feed directly into the turbine’s overspeed and vibration trip logic, making power input module reliability a direct factor in plant safety system integrity.

In petrochemical and refinery environments, the module powers racks monitoring critical rotating equipment including cracked gas compressors, charge pumps, and reactor circulation pumps. In these applications, unplanned shutdowns caused by monitoring system power failures can trigger process upsets with significant safety and environmental consequences, making the reliability of the power input module a process safety concern, not merely an availability concern.

In mining and mineral processing, 3500 Series racks powered by the 125840-01 monitor large SAG mill drives, slurry pumps, and ventilation fan trains. The harsh electrical environment of mining facilities — characterized by high harmonic distortion from large VFDs and frequent switching transients — places particular demands on the power input module’s surge suppression and EMI filtering capabilities.

In marine and offshore applications, the module supports 3500 Series installations on platform compressors, gas lift systems, and main propulsion machinery, where the combination of salt-laden atmosphere, vibration, and unstable generator power makes robust power conditioning essential for sustained monitoring system availability.

Safety and Quality FAQ

Q1: What does the support terms confirmed by quotation cover for the Bently Nevada 125840-01?
The support terms confirmed by quotation cover manufacturing defects and functional failures under normal operating conditions consistent with the Bently Nevada 3500 Series installation and operation manual. It includes unit replacement or repair at no additional cost. Failures resulting from incorrect installation, overvoltage beyond rated input limits, physical damage, or use outside specified environmental conditions are excluded. Pre-shipment test documentation is available upon request to support support terms and quality records.

Q2: What pre-shipment testing is performed before dispatch?
Every 125840-01 unit undergoes full functional verification prior to shipment, including power-on self-test, output voltage regulation check across the specified load range, surge protection circuit verification, and physical inspection for connector integrity and module housing condition. Test records are retained and available upon request for quality assurance documentation.

Q3: Is the 125840-01 compatible with all 3500 Series rack configurations?
The 125840-01 is designed for use with Bently Nevada 3500 Series rack frames including the 3500/05 Rack Interface Module frame and compatible 19-inch rack configurations. Compatibility with specific rack revisions and firmware versions should be confirmed against the Bently Nevada 3500 Series hardware compatibility matrix. Contact our technical team with your rack serial number and installed module list for confirmation before ordering.

Q4: Can long-term supply continuity be guaranteed for this module?
Stock of the 125840-01 is maintained to support both emergency replacement and planned maintenance schedules for 3500 Series installations. For facilities managing large fleets of 3500 racks across multiple sites, dedicated buffer stock allocation and forward supply agreements are available. Contact our sales team to discuss inventory reservation options that align with your planned maintenance intervals and critical spare parts strategy.
