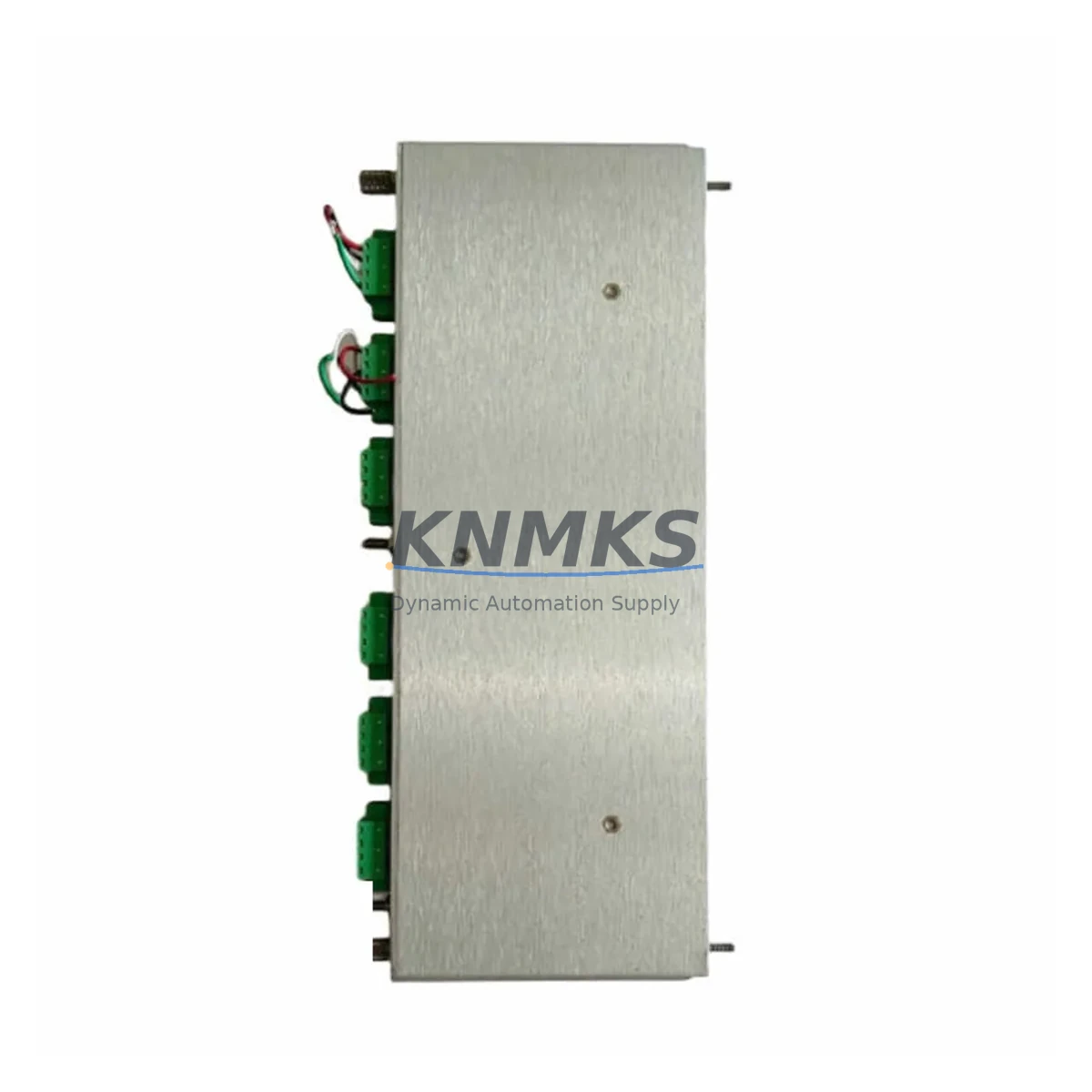

Bently Nevada 125800-01 Migration-Ready Keyphasor I/O for Legacy Control Systems

The Bently Nevada 125800-01 is a Keyphasor I/O Module engineered for the 3500 Series machinery protection platform. As legacy vibration monitoring systems approach end-of-life and OEM support windows close, the 125800-01 has become a critical retrofit component for facilities managing turbines, compressors, pumps, and rotating machinery across oil & gas, power generation, and petrochemical industries. This module provides the phase reference signal conditioning required for accurate speed measurement, vector filtering, and synchronous analysis — functions that remain indispensable even as control architectures evolve.

For engineers planning a phased migration from older 3300 Series or early 3500 rack configurations, the 125800-01 offers a verified drop-in path that avoids full-platform replacement. It slots into the standard 3500 rack backplane, preserves existing Keyphasor probe wiring, and maintains signal compatibility with downstream modules including the 3500/42M Proximitor/Seismic Monitor and the 3500/22M Transient Data Interface. This continuity is essential when the goal is to extend system life by 5–10 years without rewriting BPCS logic or retraining operations staff.

Migration Compatibility Table

Retrofit Planning for Existing Automation Systems

A successful retrofit begins well before the module arrives on-site. When integrating the 125800-01 into an existing 3500 rack, the first step is auditing the rack’s power capacity. The 3500/20 Power Supply Module must have sufficient headroom to support the Keyphasor I/O alongside other installed monitors. If the rack is near capacity, a second power supply or load redistribution across slots may be required before installation proceeds.

Terminal block wiring is the next critical checkpoint. The 125800-01 uses a standard I/O terminal block on the field wiring side. If the existing installation used a 3300 Series Keyphasor module, the probe cable routing and connector pinout must be verified against the 3500 wiring diagram. In most cases, existing Bently Nevada proximity probes — such as those in the 330180 or 330130 series — can be reused without recabling, provided the cable length and impedance fall within the 3500 module’s input specification.

For facilities running System 1 Evolution or the legacy System 1 Classic software platform, the 125800-01 must be recognized by the software’s rack configuration database. Engineers should confirm the System 1 version and module library before commissioning. In parallel, any HMI screens displaying Keyphasor-derived speed or phase data should be reviewed to ensure the tag mapping remains valid after the module swap. If the plant uses a DCS integration — for example, via a 3500/92 Communication Gateway — the Modbus or OPC tag list should be audited to confirm no address conflicts arise from the module replacement.

I/O expansion considerations are also relevant in modernization projects where additional Keyphasor reference points are being added to the monitoring system. The 125800-01 supports two independent Keyphasor channels, which is sufficient for most single-shaft or two-shaft machine trains. For more complex machinery with multiple reference planes, additional 125800-01 modules or coordination with the 3500/25 Enhanced Keyphasor Module may be appropriate depending on rack slot availability and system architecture.

Signal isolation is another factor in legacy environments where ground loops or electrical noise from variable frequency drives (VFDs) or high-voltage switchgear can corrupt Keyphasor signals. In such cases, inline signal conditioners or isolators should be evaluated as part of the retrofit BOM, particularly if the probe cable runs exceed 30 meters or pass through electrically noisy cable trays.

Downtime Control During System Migration

Minimizing unplanned downtime is the primary operational constraint in any rotating machinery monitoring retrofit. For the 125800-01, the replacement procedure can typically be completed within a planned maintenance window of 2–4 hours, assuming pre-staging and pre-testing are completed in advance.

The recommended approach is to pre-configure the replacement module on the bench using System 1 software before the maintenance window opens. This includes loading the correct rack configuration file, verifying the module firmware revision, and confirming that the Keyphasor channel parameters — gap voltage, threshold levels, and hysteresis — match the values documented in the existing system configuration. Having a printed copy of the current configuration as a reference during the swap reduces the risk of parameter entry errors under time pressure.

During the physical swap, the existing field wiring terminal block can be disconnected from the old module and reconnected to the new 125800-01 without cutting or re-terminating field cables, provided the terminal block style is compatible. This preserves the original probe wiring and eliminates a common source of commissioning errors. After reinsertion into the rack, the module should be powered up and the Keyphasor signal verified at the System 1 workstation before the machine is returned to service.

For facilities that cannot tolerate any monitoring gap during the swap, a temporary portable vibration analyzer can be connected to the probe outputs to maintain continuous speed and phase monitoring while the rack module is being replaced. This approach is particularly valuable in critical service applications such as steam turbine-generators or high-speed centrifugal compressors where API 670 continuous monitoring requirements apply.

All units supplied by KNMKS undergo pre-shipment functional testing to verify signal conditioning performance, output levels, and backplane interface integrity. This reduces the risk of receiving a non-functional module and eliminates the need for incoming inspection testing at the customer’s facility, further compressing the retrofit timeline.

Retrofit Support FAQ

Q1: Is the 125800-01 a direct replacement for the Bently Nevada 3300 Series Keyphasor module?
The 125800-01 is designed for the 3500 Series rack platform and is not a direct plug-in replacement for 3300 Series hardware, which uses a different rack backplane and form factor. However, it is the correct migration target when upgrading from a 3300-based system to a 3500 platform. The probe wiring and field cables from the 3300 installation can typically be reused after verifying impedance and cable length compatibility with the 3500 module specifications.

Q2: What commissioning steps are required after installing the 125800-01?
After physical installation, the module must be recognized by System 1 software and the rack configuration must be updated to include the new module. Keyphasor channel parameters — including gap voltage setpoint, threshold voltage, and hysteresis — must be configured to match the probe type and installation geometry. A functional verification should be performed by rotating the machine at a known speed and confirming that the Keyphasor pulse is detected correctly by the System 1 display and any downstream monitors such as the 3500/42M.

Q3: Does KNMKS provide pre-shipment testing for the 125800-01?
Yes. All 125800-01 units are functionally tested prior to shipment to verify signal conditioning performance and backplane interface integrity. A test report is available upon request. Units are shipped with protective packaging to prevent ESD damage and physical shock during transit. The support terms confirmed by quotation cover manufacturing defects and begins from the date of shipment.

Q4: What is the typical lead time and inventory availability?
KNMKS maintains stock inventory of the 125800-01 to support urgent retrofit and emergency replacement requirements. Standard orders ship within 3–5 business days. For large-quantity orders or projects requiring multiple units, please contact our sales team to confirm availability and arrange priority allocation. Emergency same-day dispatch may be available for critical plant situations — contact [email protected] or call +86 18359268345 for urgent inquiries.
