Bently Nevada 125736-01 Migration-Ready Gateway for Legacy Systems

Overview

Bently Nevada 125736-01 Migration-Ready Gateway for Legacy Control Systems

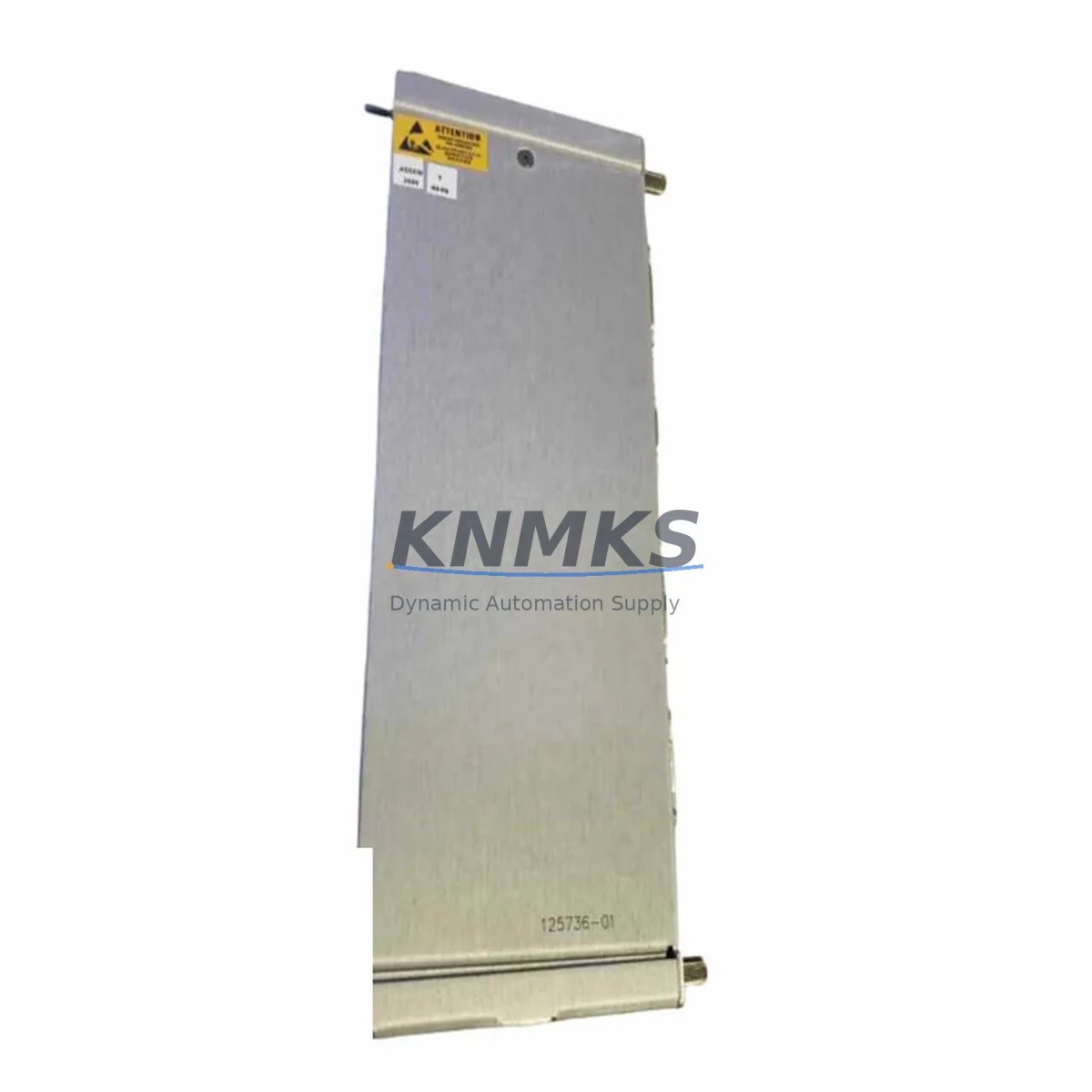

The Bently Nevada 125736-01 is a Communication Gateway Module designed for the 3500 Series machinery protection and condition monitoring platform. As legacy distributed control systems and vibration monitoring networks approach end-of-life, the 125736-01 serves as a critical migration bridge — enabling engineers to preserve existing rack infrastructure, retain original I/O wiring, and transition communication protocols without a full system teardown. Whether you are replacing a discontinued gateway, upgrading a 3500/22M rack communication interface, or integrating a legacy Bently Nevada system into a modern DCS or SCADA environment, the 125736-01 provides a verified, drop-in compatible solution with documented wiring equivalence and protocol support.

This module is stocked, pre-tested, and ships with a support terms confirmed by quotation. Each unit undergoes functional verification prior to dispatch, covering power-up diagnostics, communication link establishment, and signal integrity checks — reducing commissioning risk on the plant floor.

Migration Compatibility Table

Retrofit Planning for Existing Automation Systems

Successful integration of the 125736-01 into an existing control architecture requires a structured pre-retrofit assessment. Engineers should begin by auditing the current 3500 rack configuration — identifying occupied slots, verifying the 3500/20 power supply module capacity, and confirming that the rack’s total current draw remains within specification after adding the gateway module. The 3500/20 power supply is a common bottleneck in legacy rack upgrades; if the existing supply is already near its rated output, a parallel power supply or supply replacement should be planned before the gateway is installed.

Terminal wiring should be documented before any module is removed. The 125736-01 uses the same terminal block layout as the standard 3500/22M Communication Gateway, which simplifies direct replacement in most installations. However, if the existing system uses a 3500/25 Ethernet Interface Module for DCS connectivity, engineers must verify whether the replacement gateway supports the same Modbus TCP or OPC DA communication path used by the plant DCS — or whether a protocol converter will be required in the migration path.

For systems where the 3500 rack communicates with a Yokogawa CENTUM VP, Emerson DeltaV, or Honeywell Experion DCS, the communication link parameters — baud rate, parity, stop bits, and Modbus register map — must be re-confirmed after the gateway swap. HMI screens that reference vibration trend tags, alarm setpoints, or transducer health status should be validated against the new module’s register assignments before returning the machine train to service.

In installations where the 3500 rack monitors rotating equipment alongside a Bently Nevada 3300 Series proximitor system or a 3500/40M proximitor I/O module, the gateway replacement should be coordinated with a review of the overall I/O channel assignments. Signal isolators between the 3500 rack and the DCS analog input cards may need recalibration if the gateway change affects the signal conditioning path. A 3500/32 4-Channel Relay Module or 3500/42M Proximitor/Seismic Monitor in the same rack should be verified for continued communication integrity after the gateway is replaced.

Downtime Control During System Migration

Minimizing unplanned downtime during a gateway replacement on a live machinery protection system requires careful sequencing. The recommended approach is to perform the swap during a scheduled maintenance window, with the machine train taken offline and the 3500 rack placed in bypass mode — ensuring that vibration alarms do not trigger spurious shutdowns during the module exchange.

Before removing the existing gateway, export the current rack configuration using Bently Nevada System 1 software or the rack’s configuration backup utility. This preserves all channel assignments, alarm setpoints, transducer scaling factors, and communication parameters. The exported configuration file can be loaded directly into the replacement 125736-01 after installation, significantly reducing manual re-entry time and the risk of parameter transcription errors.

Once the 125736-01 is seated in the backplane and powered, verify the communication link status LED before reconnecting the DCS or SCADA communication cable. Confirm that the module address matches the original gateway’s address assignment — a mismatch will cause the DCS to lose the rack’s data points and may trigger process alarms at the control room level. After communication is confirmed, restore the rack from bypass mode and verify that all vibration channels, gap voltages, and alarm states are correctly reflected in the HMI before releasing the machine train to operations.

For sites where continuous monitoring is contractually required, a temporary portable vibration monitoring system can be deployed on the machine train during the gateway swap window, maintaining data continuity and satisfying any regulatory or insurance monitoring requirements during the brief offline period.

Retrofit Support FAQ

Q1: Is the 125736-01 a direct drop-in replacement for the existing 3500/22M Communication Gateway?
In most standard 3500 rack installations, yes. The 125736-01 uses the same backplane slot interface and terminal block pinout as the 3500/22M. However, you should verify the firmware revision of your host rack and confirm that the communication protocol configuration — Modbus RTU address, baud rate, and register map — matches your DCS or SCADA system’s expectations before finalizing the replacement.

Q2: How is the module tested before shipment?
Each 125736-01 unit is functionally tested prior to dispatch. Testing covers power-up self-diagnostics, backplane communication verification, and serial/Ethernet link establishment where applicable. A test report is available upon request. The module ships with a support terms confirmed by quotation covering manufacturing defects and functional failure under normal operating conditions.

Q3: What should I check regarding wiring and terminal connections before installation?
Document all existing terminal wiring before removing the old gateway. Photograph or sketch the terminal block connections, noting wire labels, shield grounding points, and any jumper configurations. The 125736-01 terminal layout is compatible with standard 3500/22M wiring, but if your installation has been modified from the original factory configuration, verify each connection against the 3500 rack wiring diagram before powering up the replacement module.

Q4: Do you hold stock, and what is the lead time?
Yes, the 125736-01 is held availability confirmed by RFQ and available for immediate shipment. Standard lead time is 3–7 business days depending on destination. For urgent plant breakdown situations, expedited shipping options are available — contact our sales team directly to confirm current inventory and arrange priority dispatch.

© 2026 KNMKS. All rights reserved.
Original Source: https://knmks.com
Contact: [email protected] | +86 18359268345

Product Identification

Brand / Ecosystem

Bently Nevada
Bently Nevada

Model / Series

125736-01
3500 Series

Product Family

PLCs & Controllers

Availability Status

Available on request after model and quantity confirmation

Inquiry Type

B2B RFQ, replacement inquiry and project spare-part request

Pre-Quote Check

Exact SKU, brand, series, quantity, nameplate photos and destination country are checked before quotation

Specification & Inquiry Focus

Control platform

PLC, PAC and modular controllers

Common needs

CPU, rack, power and I/O expansion

Project support

Replacement, cabinet build and maintenance

Inquiry Support

• Model cross-checking before quotation
• CPU, power, rack and expansion module matching
• Support for replacement and project inquiry

What to Send Us

• Brand and exact model number: Bently Nevada 125736-01
• Quantity and required delivery time
• Application, replacement requirement or nameplate photo
• Destination country and shipping preference
