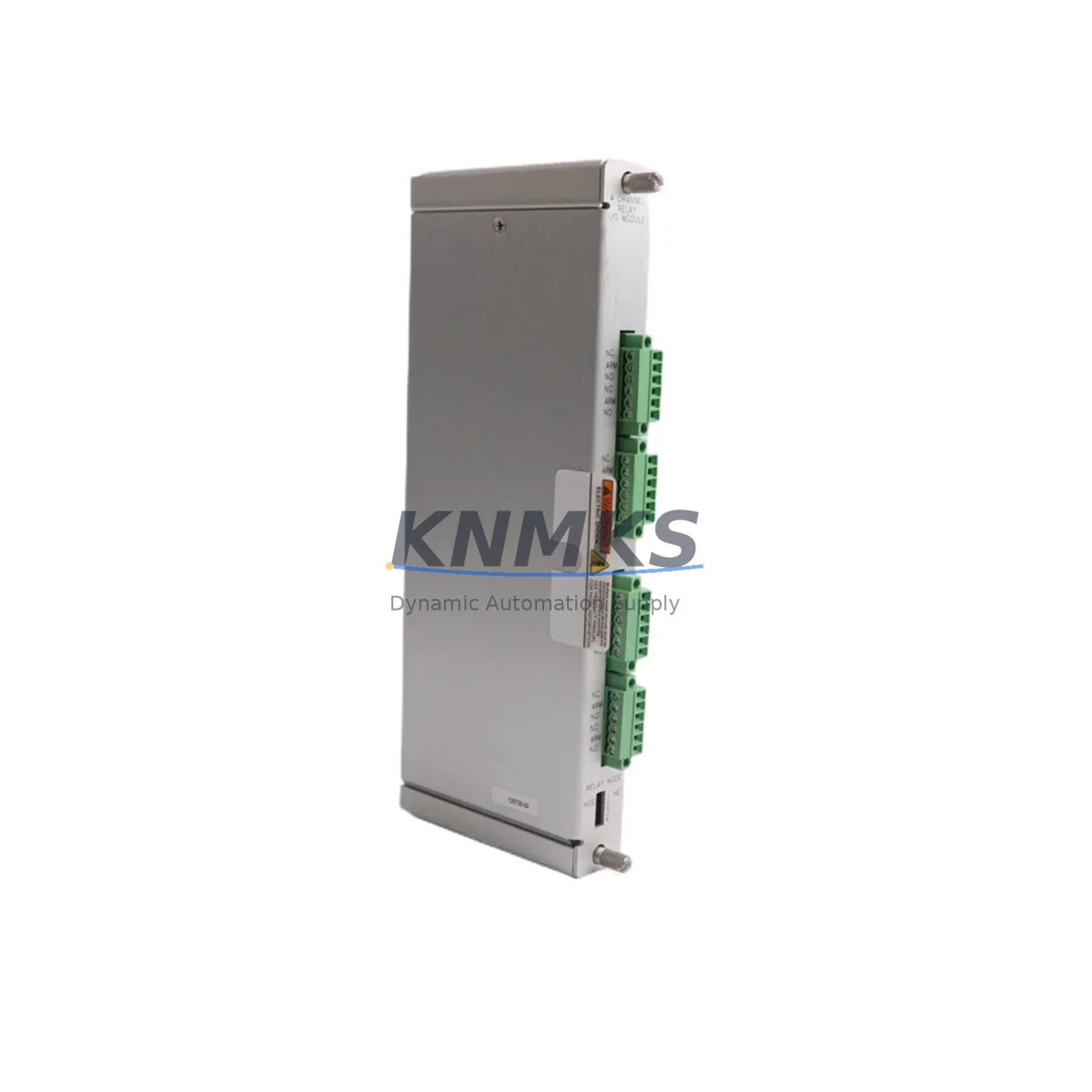

Bently Nevada 125720-02 Maintenance-Proven Spare Part for Factory Uptime

Overview

Bently Nevada 125720-02 Maintenance-Proven Spare Part for Factory Uptime

The Bently Nevada 125720-02 is an output module designed for the 3500 Series Machinery Protection System — one of the most widely deployed vibration monitoring and machinery protection platforms in rotating equipment environments worldwide. Whether you are managing a planned annual shutdown, responding to an unscheduled trip, or building a strategic spare parts inventory for a critical compressor train or turbine protection cabinet, the 125720-02 is a high-priority line item that directly impacts your plant’s ability to maintain continuous, safe operation.

At KNMKS, every 125720-02 unit is sourced, inspected, and dispatched with full traceability. We supply original Bently Nevada spare parts to maintenance engineers and procurement teams across petrochemical, power generation, oil & gas, and heavy industrial sectors. Each unit ships with a support terms confirmed by quotation and undergoes pre-shipment functional verification to reduce your on-site commissioning risk.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

The 125720-02 output module sits at the intersection of monitoring and action within the 3500 system — it translates processed vibration, position, and process data into relay-driven alarm and trip outputs that protect your machinery. When this module is flagged during a routine control cabinet inspection or fails during operation, the consequences extend beyond the module itself. A disciplined maintenance engineer will treat a 125720-02 replacement as an opportunity to audit the entire protection loop.

Begin with the 3500/20 Rack Interface Module, which governs communication between the rack backplane and the host system. A degraded rack interface can cause intermittent output behavior that mimics a faulty output module — confirm its status before condemning the 125720-02. Next, inspect the 3500/15 Power Supply Module: output relay modules are sensitive to supply voltage ripple and dropout events, and an aging power supply is a common root cause of nuisance trips or relay chatter.

Review the terminal block wiring and I/O field connections on the output side. Corroded terminals, loose ferrules, or undersized conductors can introduce resistance that affects relay pull-in voltage and contact reliability. If your plant uses signal isolators between the 3500 output and the DCS or safety PLC, verify isolator loop integrity — a failed isolator can mask a healthy output module or prevent trip signals from reaching the final element.

For sites running the 3500 system alongside a Bently Nevada 3500/22M Transient Data Interface or a 3500/60 Process Variable Monitor, confirm that the rack configuration file and monitor setpoints remain consistent after module replacement. Configuration drift between the physical module and the System 1 or Rack Configuration Software database is a leading cause of post-maintenance false trips.

Finally, check the 3500 rack backplane for signs of oxidation on the module connector pins. Backplane connector degradation is a long-term reliability risk in high-humidity or coastal environments and should be documented in your predictive maintenance log. Keeping a 3500/01 Rack or a populated spare rack in your critical spares inventory — alongside the 125720-02 — significantly reduces mean time to repair (MTTR) for your most critical rotating equipment.

Site Replacement Workflow

Step 1 — Verify compatibility: Confirm the replacement 125720-02 matches the firmware revision and relay configuration of the installed unit. Cross-reference the Bently Nevada 3500 Rack Configuration Software to validate output channel assignments and relay logic before physical swap.

Step 2 — Isolate and de-energize: Follow your site LOTO procedure. Inhibit the affected monitor channel in System 1 or the rack configuration tool to prevent spurious trips during the swap. Document the pre-removal relay state and any active alarms.

Step 3 — Remove and inspect: Extract the 125720-02 from the rack slot. Inspect the backplane connector and adjacent module slots for contamination, moisture ingress, or mechanical damage. Clean connector pins with approved contact cleaner if required.

Step 4 — Install and configure: Seat the replacement module firmly. Restore the rack configuration from your validated backup file. Verify that all output channel assignments, relay setpoints, and OK relay logic are correctly loaded.

Step 5 — Functional test: With the machinery in a safe state, perform a relay output test from the rack configuration software. Confirm that alarm and trip relay contacts operate correctly at the field terminal block. Remove the channel inhibit and return the system to normal monitoring mode.

Step 6 — Document: Record the replacement in your CMMS with the new module serial number, installation date, and post-replacement test results. Update your spare parts inventory to trigger replenishment of the consumed 125720-02 unit.

Spare Parts Support FAQ

Q1: Is the 125720-02 supplied by KNMKS an original Bently Nevada part?
Yes. KNMKS supplies original Bently Nevada 125720-02 output modules sourced through verified industrial channels. Each unit is individually inspected and functionally tested prior to shipment. A support terms confirmed by quotation is included with every order.

Q2: How do I confirm compatibility with my existing 3500 rack before ordering?
Provide your rack model number, current firmware revision, and System 1 software version when contacting our sales team. We will cross-reference the Bently Nevada compatibility matrix and confirm suitability before dispatch. For most standard 3500 rack configurations, the 125720-02 is a direct replacement without firmware modification.

Q3: What is the recommended spare parts holding strategy for the 125720-02?
For critical rotating equipment — compressors, turbines, pumps — we recommend holding a minimum of one 125720-02 per protection rack as a cold spare, with a second unit in regional warehouse stock for multi-train facilities. Given the lead time risk for legacy Bently Nevada modules, a 12–24 month forward stock position is prudent for plants with long-term operational commitments.

Q4: Can KNMKS support long-term supply of the 125720-02 for multi-year maintenance contracts?
Yes. KNMKS supports blanket order arrangements and long-term supply agreements for the 125720-02 and related 3500 Series components. Contact our team at [email protected] to discuss volume pricing, reserved stock allocation, and scheduled delivery programs aligned to your annual maintenance calendar.

© 2026 KNMKS. All rights reserved.
Original Source: https://knmks.com
Contact: [email protected] | +86 18359268345

Product Identification

Brand / Ecosystem

Bently Nevada
Bently Nevada

Model / Series

125720-02
3500 Series

Product Family

PLCs & Controllers

Availability Status

Available on request after model and quantity confirmation

Inquiry Type

B2B RFQ, replacement inquiry and project spare-part request

Pre-Quote Check

Exact SKU, brand, series, quantity, nameplate photos and destination country are checked before quotation

Specification & Inquiry Focus

Control platform

PLC, PAC and modular controllers

Common needs

CPU, rack, power and I/O expansion

Project support

Replacement, cabinet build and maintenance

Inquiry Support

• Model cross-checking before quotation
• CPU, power, rack and expansion module matching
• Support for replacement and project inquiry

What to Send Us

• Brand and exact model number: Bently Nevada 125720-02
• Quantity and required delivery time
• Application, replacement requirement or nameplate photo
• Destination country and shipping preference
