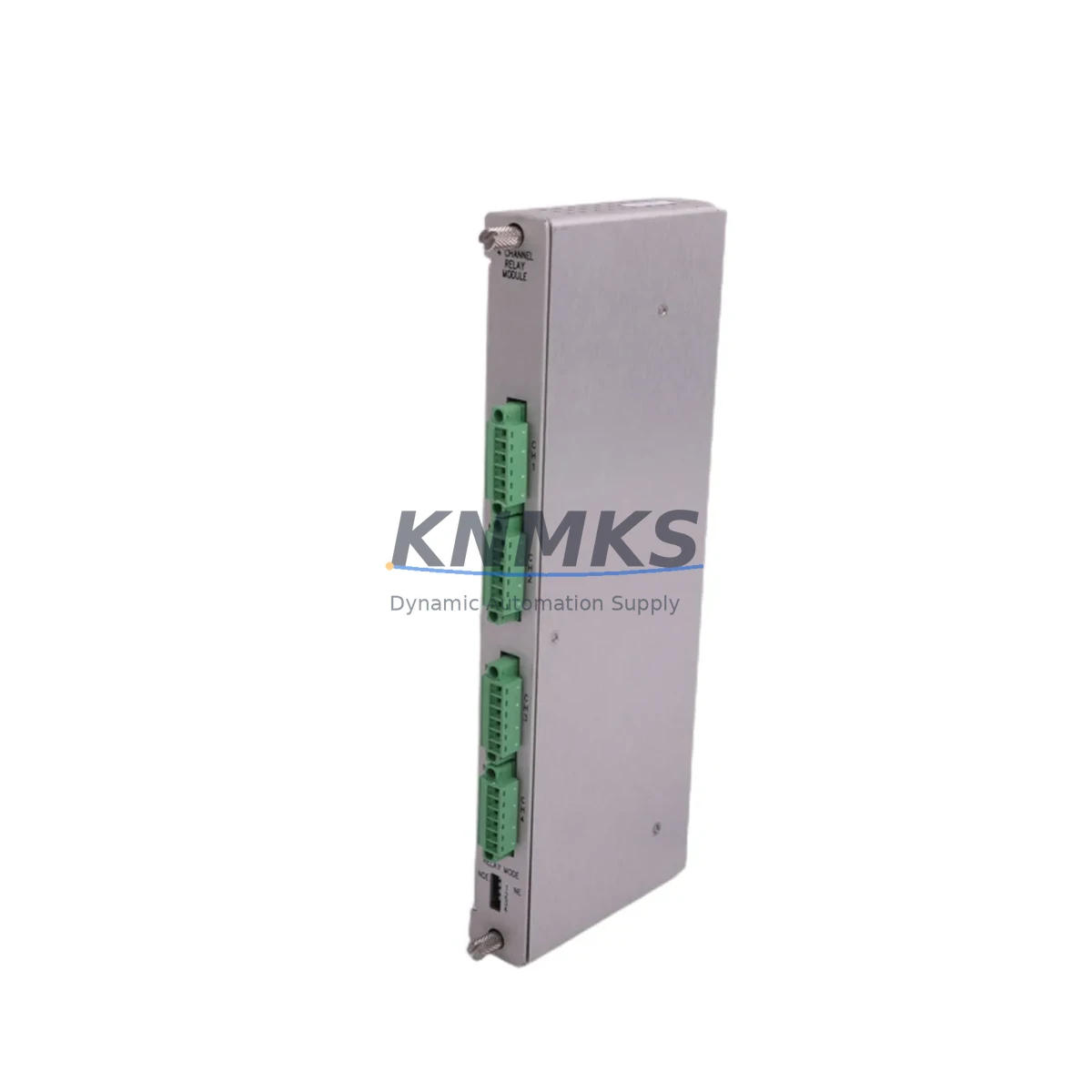

Bently Nevada 125720-01 Fail-Safe Relay I/O Module

Overview

Bently Nevada 125720-01 Fail-Safe Relay I/O Module: Fault Protection and Critical Industrial Field Reliability

The Bently Nevada 125720-01 is a 4-channel Relay I/O Module engineered for the Bently Nevada 3500 Series machinery protection system — one of the most trusted continuous monitoring platforms in heavy industry. Designed to operate at the intersection of machine safety and process reliability, this module delivers deterministic relay output control in environments where control interruption, spurious trips, or signal drift can result in catastrophic equipment damage or unplanned production shutdowns.

In critical industrial facilities — from petrochemical compressor trains to power generation turbines — the relay output stage is the final barrier between a protection system’s decision and a physical machine response. The 125720-01 is built to ensure that barrier never fails silently. Its fail-safe relay architecture guarantees that any loss of power, communication fault, or internal module failure drives outputs to a known safe state, preventing dangerous coasting, uncontrolled rundown, or delayed trip response in high-inertia rotating machinery.

Each of the four relay channels is independently configurable for normally energized or normally de-energized operation, allowing system integrators to match the module’s behavior to the specific safety logic of the installation — whether that means energize-to-trip or de-energize-to-trip topologies. This flexibility is essential when integrating the 3500 rack into safety instrumented systems (SIS) that must comply with IEC 61511 or IEC 61508 functional safety standards.

The 125720-01 is rated for continuous operation in harsh industrial environments. Its relay contacts are designed to handle inductive loads from solenoid valves, motor contactors, and alarm annunciators without contact welding or premature wear. In control cabinets subject to high electromagnetic interference — such as those located near variable frequency drives, large motor starters, or high-current bus bars — the module’s EMI-hardened design maintains signal integrity and prevents false relay actuation. This is particularly important in mining, metallurgy, and offshore platform applications where cabinet environments are electrically noisy and physically demanding.

Within a fully configured 3500 Series rack, the 125720-01 works in close coordination with other protection and monitoring modules. The Bently Nevada 3500/22M Transient Data Interface captures high-speed vibration transients and feeds alarm states that drive relay outputs through this module. The 3500/42M Proximitor/Seismic Monitor provides continuous shaft displacement and velocity measurements whose alarm thresholds directly govern relay channel states. For power supply redundancy — a non-negotiable requirement in SIL-rated loops — the 3500/15 Power Supply Module provides dual-redundant 24 VDC rails that keep relay coils energized even during primary supply faults. Communication integrity between the rack and the plant DCS is maintained by the 3500/92 Communication Gateway Module, which supports Modbus TCP and OPC-DA protocols and ensures that relay status is always visible to the control room operator. In installations requiring hardwired safety logic, the relay outputs from the 125720-01 are typically wired into a Pilz PNOZ or Rockwell Allen-Bradley Safety Relay to form a certified SIL 2 or SIL 3 safety function, providing the final layer of independent verification before a machine trip command is executed.

The module is housed in a standard 3500 rack slot and requires no special tools for installation or replacement. Hot-swap capability — supported when the rack is configured with the appropriate firmware — allows field technicians to replace a suspect 125720-01 without de-energizing the entire protection rack, minimizing exposure time during maintenance windows in continuous-process facilities. All relay channel states, contact health, and module diagnostics are accessible via the 3500 rack’s front-panel display and remote communication interface, enabling predictive maintenance teams to identify degrading contacts before they cause a nuisance trip or, worse, a failure to trip.

KNMKS maintains verified stock of the Bently Nevada 125720-01 sourced from authorized distribution channels. Every unit undergoes pre-shipment functional verification including relay actuation testing, coil continuity checks, and contact resistance measurement. Units are shipped in anti-static, moisture-barrier packaging with full documentation. A support terms confirmed by quotation covers all units against manufacturing defects and functional failures under normal operating conditions. Long-term supply continuity is supported through our established Bently Nevada spare parts inventory program, ensuring availability for both planned maintenance cycles and emergency replacement scenarios.

Fail-Safe Reliability Table

Control Cabinet Protection Strategy

A robust machinery protection cabinet built around the Bently Nevada 3500 Series demands more than a single module — it requires a coordinated architecture of monitoring, power, communication, and safety components. The 125720-01 Relay I/O Module sits at the output stage of this architecture, but its reliable operation depends on the integrity of every upstream component.

Vibration and position data from proximity probes connected to the Bently Nevada 3500/42M Proximitor/Seismic Monitor establish the alarm thresholds that govern relay channel states. Transient events — such as rotor rubs, blade passing frequencies, or sudden imbalance — are captured by the 3500/22M Transient Data Interface, which can trigger relay outputs within milliseconds of a threshold crossing. Power supply integrity is maintained by the Bently Nevada 3500/15 Dual-Redundant Power Supply, which ensures relay coils remain energized during primary supply faults, preventing spurious de-energization that could cause nuisance trips in energize-to-trip configurations.

For installations requiring hardwired interlock logic independent of the DCS, relay outputs from the 125720-01 are commonly wired into a dedicated safety relay module (such as a Pilz PNOZ X or equivalent SIL 2-certified device) to create a two-channel, cross-monitored safety function. This architecture ensures that a single point of failure in the relay output path cannot prevent a required machine trip. Communication of relay status and module health to the plant historian and alarm management system is handled by the 3500/92 Communication Gateway, providing operators with real-time visibility into protection system state without requiring physical access to the rack.

In cabinets subject to high ambient temperatures or poor ventilation — common in outdoor substations, tropical climates, or densely packed control rooms — supplementary thermal management components such as cabinet air conditioners or heat exchangers should be considered alongside the 125720-01 to maintain the module within its rated operating temperature envelope and prevent premature relay contact degradation.

Critical Industrial Safety Applications

The Bently Nevada 125720-01 is deployed across the full spectrum of heavy industrial sectors where rotating machinery protection is safety-critical:

Petrochemical and Refining: In compressor trains, reactor charge pumps, and cooling water systems, the 125720-01 provides the relay output stage for vibration-based trip logic. A spurious trip or failure to trip in these applications can result in process upsets, flare events, or catastrophic mechanical failure. The module’s fail-safe architecture and SIL compatibility make it the preferred choice for SIS-integrated machinery protection loops.

Power Generation: Steam turbines, gas turbines, and large synchronous generators rely on the 3500 Series for continuous shaft monitoring. The 125720-01 drives trip solenoids, alarm horns, and load-shedding contactors in response to overspeed, high vibration, or differential expansion alarms. Its hot-swap capability allows relay module replacement during scheduled outages without full rack de-energization.

Mining and Minerals Processing: Ball mills, SAG mills, and large slurry pumps operate in environments with extreme dust, moisture, and vibration. The 125720-01’s EMI-hardened design and sealed relay contacts maintain reliable operation in these conditions, where control cabinet ingress protection and signal integrity are constant challenges.

Water and Wastewater Treatment: High-service pumps, blowers, and centrifuges in water treatment facilities require continuous protection monitoring. The 125720-01 provides the relay output interface for vibration-based shutdown logic, ensuring that bearing failures or impeller imbalance are detected and acted upon before catastrophic pump failure contaminates the treatment process.

Metallurgy and Steel: Rolling mill drives, continuous casters, and blast furnace blowers operate under extreme thermal and mechanical stress. The 125720-01’s ability to handle inductive relay loads and its compatibility with SIL-rated safety loops makes it suitable for the demanding protection requirements of these assets.

Marine and Offshore: Shipboard propulsion systems, offshore platform compressors, and FPSO gas lift systems require machinery protection that can withstand salt air, humidity, and continuous vibration. The 125720-01’s environmental ratings and fail-safe design support reliable operation in these challenging offshore and marine environments.

Safety and Quality FAQ

Q: What support terms coverage is provided with the Bently Nevada 125720-01?
A: Every 125720-01 supplied by KNMKS carries a support terms confirmed by quotation covering manufacturing defects and functional failures under normal operating conditions. Support requests are processed with priority turnaround to minimize impact on production schedules.

Q: What pre-shipment testing is performed on each unit?
A: Each module undergoes relay actuation testing across all four channels, coil continuity verification, contact resistance measurement, and visual inspection for physical damage or contamination. Units that do not meet specification are quarantined and not shipped.

Q: Is the 125720-01 compatible with all Bently Nevada 3500 Series rack configurations?
A: Yes. The 125720-01 is designed for standard 3500 Series rack slots and is compatible with all current 3500 rack frame configurations. Hot-swap capability depends on the rack firmware version and system configuration — consult your 3500 system documentation or contact KNMKS technical support for compatibility confirmation specific to your installation.

Q: Can KNMKS support long-term supply for planned maintenance and emergency replacement?
A: Yes. KNMKS maintains ongoing inventory of the Bently Nevada 125720-01 to support both scheduled spare parts programs and emergency replacement requirements. We offer expedited shipping for critical breakdown situations and can provide advance purchase agreements for customers with high-volume or multi-site maintenance programs.
