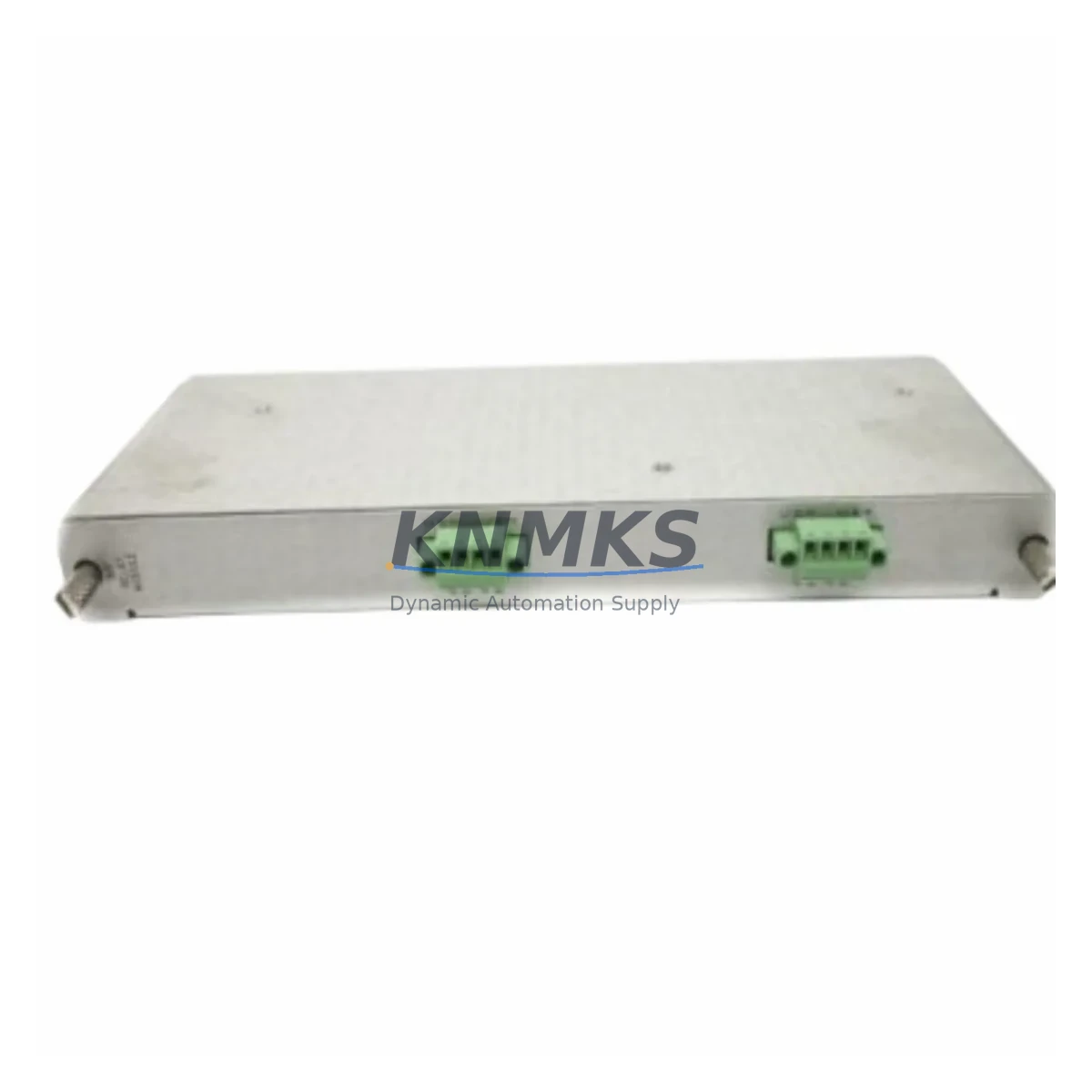

Bently Nevada 125704-01 Maintenance-Proven Spare Part for Factory Uptime

Overview

Bently Nevada 125704-01 Maintenance-Proven Spare Part for Factory Uptime

The Bently Nevada 125704-01 is a TMR (Triple Modular Redundancy) Relay Output Module designed for the Bently Nevada 3500 Series machinery protection system — one of the most widely deployed vibration monitoring and machinery protection platforms in rotating equipment facilities worldwide. For maintenance engineers and spare parts procurement teams managing turbines, compressors, pumps, and generators, keeping a verified 125704-01 availability confirmed by RFQ is a foundational element of any credible machinery protection maintenance strategy.

This module serves as the critical interface between the 3500 Series monitoring rack and plant-level shutdown or alarm relay circuits. When a vibration, position, or process variable exceeds a configured threshold, the 125704-01 executes the relay output action that triggers protective responses — emergency shutdowns, DCS alarms, or annunciator panels. A failed or degraded relay output module can silently compromise the entire protection loop, making periodic inspection and proactive spare stocking essential for any facility operating rotating machinery under continuous load.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When a maintenance team identifies a fault or degradation in the 125704-01 relay output module, the replacement workflow rarely ends with the module itself. A thorough site inspection should encompass the entire protection loop to prevent repeat failures and ensure the restored system meets original design intent.

Begin by inspecting the 3500/15 Power Supply Module that feeds the rack — relay output faults are sometimes caused by upstream power instability rather than the output module itself. Verify DC bus voltage is within specification before installing the replacement 125704-01. Next, check the 3500/92 Communication Gateway Module, which handles Modbus or Ethernet communication between the 3500 rack and the plant DCS or historian; a communication fault can mask relay status and delay fault diagnosis.

Inspect all terminal blocks and field wiring connected to the relay output terminals. Loose terminations, corroded contacts, or undersized conductors are common contributors to intermittent relay faults in high-vibration environments. If the facility uses signal isolators or signal conditioners between the 3500 rack and the DCS analog input cards, verify isolation integrity — degraded isolators can introduce ground loops that affect relay logic.

For TMR-configured racks, also inspect the 3500/20 Rack Interface Module (RIM) and the 3500/05 System Monitor Module, both of which participate in system-level health monitoring and voting logic. A degraded RIM can cause spurious relay trips even after a relay output module replacement. Additionally, review the condition of the 3500 Series I/O module associated with the monitored machine channel — vibration transducer signal integrity directly affects the relay output decision logic.

Finally, confirm that the plant’s annunciator panel or DCS alarm management system correctly reflects the restored relay status after module replacement. A functional loop test — from transducer input through to relay output and DCS acknowledgment — is the only reliable method to confirm end-to-end protection loop integrity before returning the machine to service.

Site Replacement Workflow

The 125704-01 is a direct replacement for the same part number across all standard and TMR 3500 Series rack configurations. No firmware re-flashing or rack reconfiguration is required for like-for-like replacement, which significantly reduces mean time to repair (MTTR) in emergency shutdown scenarios.

Step 1 — Isolation: Follow site LOTO (Lockout/Tagout) procedures. Confirm the affected machine is in a safe state before opening the protection cabinet. Do not bypass relay outputs during replacement unless a formal bypass authorization procedure is in place.

Step 2 — Module Removal: Note the slot position of the 125704-01 within the 3500 rack. Disconnect field wiring from the relay output terminal block. Remove the module using the front-panel ejector levers. Inspect the backplane connector for contamination or damage before installing the replacement.

Step 3 — Installation: Insert the replacement 125704-01 into the same rack slot. Reconnect field wiring per the original termination schedule. Verify torque on all terminal screws to manufacturer specification.

Step 4 — Functional Verification: Power the rack and confirm the module passes self-test (green OK LED). Perform a relay output functional test by simulating an alarm condition and verifying relay state change at the field device or DCS. Document test results in the site maintenance management system (CMMS).

Step 5 — Return to Service: Remove any bypasses, restore LOTO, and confirm with the control room that the protection loop is active and alarm-free before restarting the machine.

Maintaining a pre-tested 125704-01 on the shelf eliminates the lead time risk associated with OEM procurement channels, which can extend to weeks for legacy 3500 Series components. A verified spare from KNMKS ships with a functional test report and support terms confirmed by quotation, supporting both planned annual overhauls and unplanned emergency replacements.

Spare Parts Support FAQ

Q1: Is the 125704-01 compatible with both standard and TMR 3500 Series racks?
Yes. The 125704-01 is designed for TMR relay output applications within the 3500 Series platform and is compatible with both standard and TMR rack configurations. Always verify the rack slot assignment and wiring schedule against the original system documentation before installation.

Q2: What testing is performed before shipment?
Each 125704-01 unit undergoes a functional test prior to dispatch, verifying relay output operation, backplane connector integrity, and module self-test status. A test record is available upon request. Units are packaged in anti-static, shock-protected packaging to maintain condition during international transit.

Q3: How should the 125704-01 be stored as a long-term spare?
Store in a climate-controlled environment (10–40°C, <85% RH non-condensing), in the original anti-static packaging, away from strong electromagnetic fields. Inspect annually for connector oxidation. For facilities with extended storage requirements beyond 24 months, a pre-installation functional test is recommended before deployment.

Q4: What is the support terms coverage and long-term supply commitment?
KNMKS provides a support terms confirmed by quotation from the date of shipment covering manufacturing defects and functional failures under normal operating conditions. We maintain ongoing inventory of 3500 Series spare modules to support long-term maintenance contracts and annual overhaul schedules. Contact our team for volume pricing and reserved stock arrangements.

© 2026 KNMKS. All rights reserved.
Original Source: https://knmks.com
Contact: [email protected] | +86 18359268345

Product Identification

Brand / Ecosystem

Bently Nevada
Bently Nevada

Model / Series

125704-01
3500 Series

Product Family

PLCs & Controllers

Availability Status

Available on request after model and quantity confirmation

Inquiry Type

B2B RFQ, replacement inquiry and project spare-part request

Pre-Quote Check

Exact SKU, brand, series, quantity, nameplate photos and destination country are checked before quotation

Specification & Inquiry Focus

Control platform

PLC, PAC and modular controllers

Common needs

CPU, rack, power and I/O expansion

Project support

Replacement, cabinet build and maintenance

Inquiry Support

• Model cross-checking before quotation
• CPU, power, rack and expansion module matching
• Support for replacement and project inquiry

What to Send Us

• Brand and exact model number: Bently Nevada 125704-01
• Quantity and required delivery time
• Application, replacement requirement or nameplate photo
• Destination country and shipping preference
