Bently Nevada 125388-01 Maintenance Spare | 3500 Rack Chassis

Overview

Bently Nevada 125388-01 Maintenance Spare | 3500 Rack Chassis

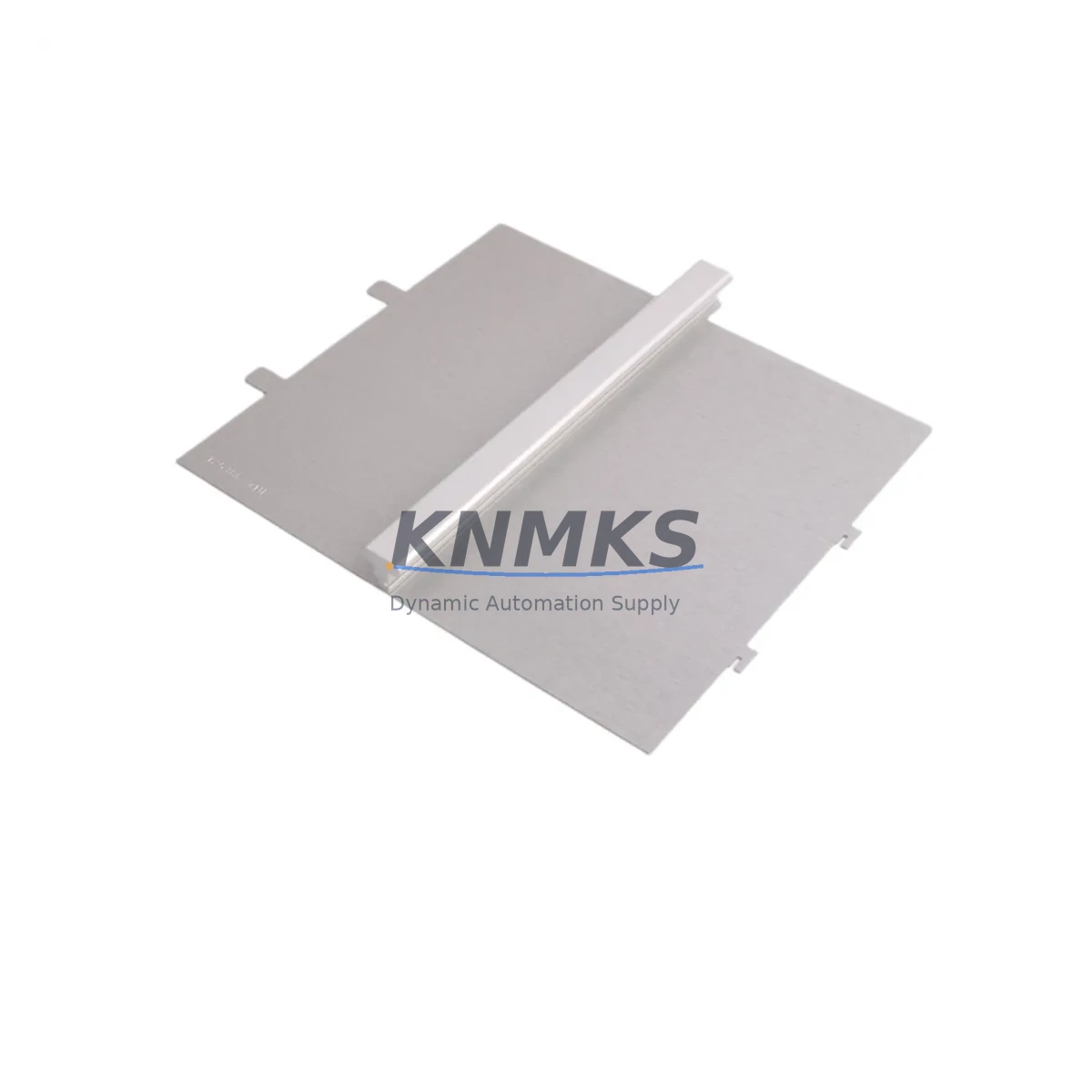

The Bently Nevada 125388-01 (also catalogued as 125388-01H) is the original rack chassis designed for the 3500 Series machinery protection and condition monitoring system. As the structural and electrical backbone of the 3500 rack assembly, this chassis provides the backplane power distribution, module slot alignment, and inter-module communication bus that every I/O card, power supply module, and communication gateway in the system depends on. For maintenance engineers managing rotating machinery protection on turbines, compressors, pumps, and generators, keeping a verified spare chassis availability confirmed by RFQ is a non-negotiable element of any serious uptime strategy.

At KNMKS, every 125388-01 unit is sourced from authorized supply channels, individually inspected, and function-tested prior to shipment. Each unit ships with a support terms confirmed by quotation and full traceability documentation, giving procurement engineers the confidence to approve the purchase without extended qualification cycles.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When a 3500 Series rack chassis reaches end-of-life or sustains physical damage during a panel incident, the entire protection system goes offline until the chassis is replaced. This makes the 125388-01 one of the highest-priority spares in any rotating machinery protection inventory. A structured maintenance plan should treat the chassis replacement as a complete rack rebuild event — not simply a module swap.

Before installing a replacement 125388-01 chassis, maintenance engineers should systematically verify the condition of every component that interfaces with the backplane. The 3500/15 Power Supply Module should be bench-tested for output voltage stability before reinsertion, as a failing power supply can damage a new chassis backplane within hours of commissioning. The 3500/20 Rack Interface I/O Module should be inspected for bent connector pins and firmware version compatibility with the replacement chassis revision.

Communication continuity is equally critical. The 3500/92 Communication Gateway or 3500/93 Data Manager — whichever is installed in the rack — should have its Ethernet or Modbus configuration backed up before the chassis swap and verified post-installation. Signal integrity on the keyphasor inputs should be confirmed using the 3500/25 Keyphasor Module diagnostic LEDs after power-up.

On the field wiring side, terminal blocks and I/O wiring harnesses connected to the rack should be inspected for insulation degradation, loose ferrules, and correct labeling before reconnection. Fuse ratings on the incoming power circuit feeding the rack should be verified against the 3500 system power budget — undersized fuses are a common cause of nuisance trips during post-maintenance commissioning. If the installation includes a 3500/05 System Rack with a dedicated barrier or signal isolator panel, those isolators should be tested for correct input/output scaling before the protection system is returned to service.

For sites running extended 3500 Series installations with multiple racks, it is advisable to maintain at least one spare 125388-01 chassis per four operational racks. This ratio balances inventory carrying cost against the risk of extended lead times on a part that is increasingly difficult to source as the 3500 platform ages. KNMKS maintains standing stock of the 125388-01 and can support emergency same-day dispatch for critical plant shutdowns.

Site Replacement Workflow

Step 1 — Pre-Replacement Documentation: Before powering down the rack, capture a full screenshot or printout of the System 1 or Rack Configuration Software (RCS) configuration. Record all module slot assignments, channel configurations, alarm setpoints, and communication parameters. This documentation is essential for restoring the system to its pre-fault state after chassis replacement.

Step 2 — Controlled Shutdown: Notify the control room and obtain a permit-to-work. Inhibit all alarms and trips associated with the affected rack in the DCS or safety system before removing power. Failure to inhibit trips before chassis removal can trigger spurious shutdowns on connected machinery.

Step 3 — Module Extraction and Labeling: Remove all modules from the chassis in sequence, labeling each with its slot number. Inspect each module’s backplane connector for damage. Modules with bent or corroded pins should be set aside for repair or replacement rather than reinstalled in the new chassis.

Step 4 — Chassis Installation: Mount the replacement 125388-01 chassis in the panel. Verify rack grounding continuity before inserting any modules. Torque all mounting hardware to specification.

Step 5 — Module Reinsertion and Configuration Restore: Reinsert modules in their original slot positions. Power up the rack and use RCS to verify that all modules are recognized and that configuration data matches the pre-replacement backup. Confirm that all channel OK and System OK LEDs are illuminated.

Step 6 — Functional Verification: Apply test signals to each I/O channel and verify correct alarm and trip response before releasing the system from inhibit. Document the completed replacement in the plant maintenance management system (CMMS).

This workflow minimizes downtime, preserves system configuration integrity, and ensures that the replacement chassis is fully validated before the protection system is returned to service. KNMKS technical support is available to assist with configuration questions during the replacement process.

Spare Parts Support FAQ

Q1: Is the 125388-01H a direct replacement for the 125388-01?
Yes. The “H” suffix on the 125388-01H denotes a hardware revision that is fully backward-compatible with all standard 3500 Series modules and configurations. Both part numbers are interchangeable in the field without any firmware or configuration changes.

Q2: How do I verify compatibility before ordering?
Confirm your existing rack’s slot count, power supply model (3500/15 or equivalent), and the firmware versions of your installed I/O modules. KNMKS can cross-reference your existing rack serial number or configuration file against our inventory to confirm compatibility before shipment. Contact [email protected] with your system details.

Q3: What testing is performed before shipment?
Every 125388-01 unit undergoes visual inspection of all backplane connector pins, mechanical slot guide integrity check, and power bus continuity verification. Units that do not pass all checks are quarantined and not shipped. A test report is available upon request for quality-critical procurement processes.

Q4: Can KNMKS support long-term supply for multi-year maintenance contracts?
Yes. KNMKS maintains standing inventory of the 125388-01 and can support blanket purchase orders, consignment stock arrangements, and annual supply agreements for facilities with multiple 3500 Series installations. All units supplied under long-term contracts carry the same support terms confirmed by quotation from date of shipment. Contact our sales team to discuss volume pricing and supply continuity terms.
