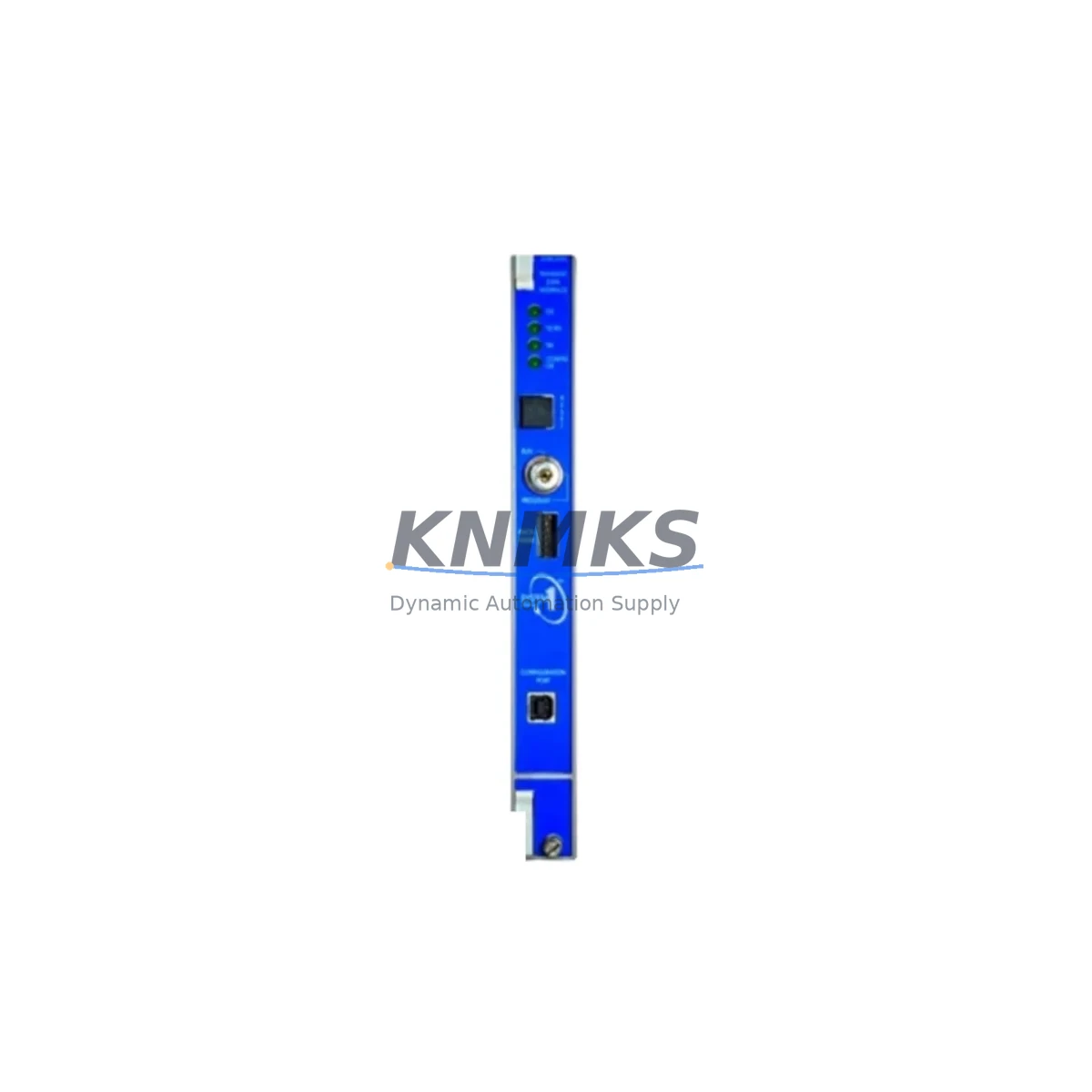

Bently Nevada 114M5335-01 Maintenance-Proven Spare Part for Factory Uptime

Overview

Bently Nevada 114M5335-01 Maintenance-Proven Spare Part for Factory Uptime

The Bently Nevada 114M5335-01 is the original power supply module for the 3500/15 rack within the Bently Nevada 3500 Series Machinery Protection System. Designed for continuous industrial operation in rotating machinery monitoring environments — including turbines, compressors, pumps, and generators — this module is a critical component in any preventive maintenance and spare parts inventory strategy.

For maintenance engineers managing aging 3500 Series racks, sourcing a verified 114M5335-01 spare is essential to avoiding unplanned downtime. Power supply failures in machinery protection systems can cascade into full rack shutdowns, disabling vibration, axial position, and speed monitoring across an entire train. Keeping a tested, ready-to-deploy spare on the shelf is the most effective insurance against extended outages.

Procurement engineers will find that the 114M5335-01 is increasingly difficult to source through OEM channels as the 3500/15 platform matures. KNMKS maintains verified stock with full functional testing, support terms confirmed by quotation coverage, and documented traceability — reducing procurement risk for long-lifecycle installations where system continuity is non-negotiable.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When replacing or inspecting the 114M5335-01 power supply module, a thorough site assessment of the surrounding 3500 rack infrastructure is strongly recommended. Power supply failures rarely occur in isolation — related components should be evaluated concurrently to prevent repeat outages.

Begin with the 3500/05 Rack Interface Module, which manages communication between the rack and the host DCS or control system. A degraded rack interface can mask power anomalies or generate false trip signals after a power supply swap. Similarly, inspect the 3500/20 Keyphasor Module if the protected machine uses speed-referenced monitoring — phase reference integrity depends on stable rack power.

For installations with redundant power configurations, verify the secondary power supply module (where fitted) is also within its service life. Redundant power pairs should be replaced in coordinated cycles to avoid asymmetric aging. Check the 3500/22M Transient Data Interface for any buffered alarm states that may have been triggered during the power event.

At the field wiring level, inspect terminal blocks and cable shields connected to 3500/40M Proximitor/Seismic Monitor or 3500/42M Proximitor/Seismic Monitor input channels. Power disturbances can induce ground loops or degrade signal isolation on proximity probe circuits. Confirm that all Bently Nevada extension cables and armored coaxial assemblies show no insulation breakdown or connector corrosion.

For sites running integrated safety or emergency shutdown logic, verify that the 3500/32 Relay Module output states are correctly restored after power restoration. Relay modules in latched-trip configurations may require manual reset following a rack power interruption. Finally, review the rack’s internal fuse condition — the 3500/15 power supply incorporates internal protection, but upstream panel fuses and MCBs should be inspected and load-tested as part of the same maintenance window.

Site Replacement Workflow

Step 1 – Pre-Replacement Verification: Confirm the failed module part number against the rack configuration drawing. Verify that the replacement 114M5335-01 matches the installed firmware revision where applicable. Document all active alarm and trip states before de-energizing.

Step 2 – Safe Isolation: Follow site LOTO (Lockout/Tagout) procedures. For non-redundant power configurations, notify the control room that the 3500 rack will be temporarily offline. For redundant configurations, transfer monitoring load to the secondary supply before removal.

Step 3 – Module Swap: Remove the failed 114M5335-01 by releasing the front-panel locking mechanism. Seat the replacement module firmly into the rack slot, ensuring backplane connector engagement. Restore power and observe the module’s status LED sequence for normal startup indication.

Step 4 – Post-Replacement Functional Check: Confirm all monitor channels return to active status. Verify that vibration, position, and speed readings are within expected baseline ranges. Clear any latched alarms only after confirming machine and system health. Update the maintenance log with the replacement date, new module serial number, and support terms start date.

Step 5 – Spare Inventory Update: Replenish the replaced spare immediately. For critical rotating machinery protection systems, a minimum of one tested spare per rack type is the recommended inventory posture. Contact KNMKS to arrange restocking under the same verified supply chain.

Spare Parts Support FAQ

Q1: Is the 114M5335-01 compatible with all 3500 Series rack configurations?
The 114M5335-01 is the standard power supply module for the 3500/15 rack. It is compatible with the full range of 3500 Series monitor modules including vibration, position, speed, and relay outputs. For dual-supply rack configurations, two units are required. Always verify rack slot assignment against the site configuration drawing before installation.

Q2: What testing is performed before shipment?
Each 114M5335-01 unit supplied by KNMKS undergoes functional power-on testing, output voltage verification, and visual inspection for connector and board integrity. A test record is available upon request. Units are shipped in anti-static packaging with protective end caps to prevent transit damage.

Q3: What is the support terms coverage and what does it include?
All units carry a support terms confirmed by quotation from the date of shipment. The support terms covers functional failure under normal operating conditions and excludes damage caused by incorrect installation, overvoltage events, or unauthorized modification. Support requests are processed with return authorization and replacement dispatch within agreed lead times.

Q4: Can KNMKS support long-term supply for multi-site maintenance programs?
Yes. KNMKS maintains ongoing stock of 3500 Series spare modules to support multi-site and multi-year maintenance contracts. Procurement engineers can request reserved stock allocation, scheduled delivery programs, or blanket order arrangements to ensure supply continuity for long-lifecycle installations. Contact [email protected] to discuss program terms.

© 2026 KNMKS. All rights reserved.
Original Source: https://knmks.com
Contact: [email protected] | +86 18359268345

Product Identification

Brand / Ecosystem

Bently Nevada
Bently Nevada

Model / Series

114M5335-01
3500 Series

Product Family

PLCs & Controllers

Availability Status

Available on request after model and quantity confirmation

Inquiry Type

B2B RFQ, replacement inquiry and project spare-part request

Pre-Quote Check

Exact SKU, brand, series, quantity, nameplate photos and destination country are checked before quotation

Specification & Inquiry Focus

Control platform

PLC, PAC and modular controllers

Common needs

CPU, rack, power and I/O expansion

Project support

Replacement, cabinet build and maintenance

Inquiry Support

• Model cross-checking before quotation
• CPU, power, rack and expansion module matching
• Support for replacement and project inquiry

What to Send Us

• Brand and exact model number: Bently Nevada 114M5335-01
• Quantity and required delivery time
• Application, replacement requirement or nameplate photo
• Destination country and shipping preference
