Bently Nevada 107540-01A Migration-Ready Proximity Transformer

Overview

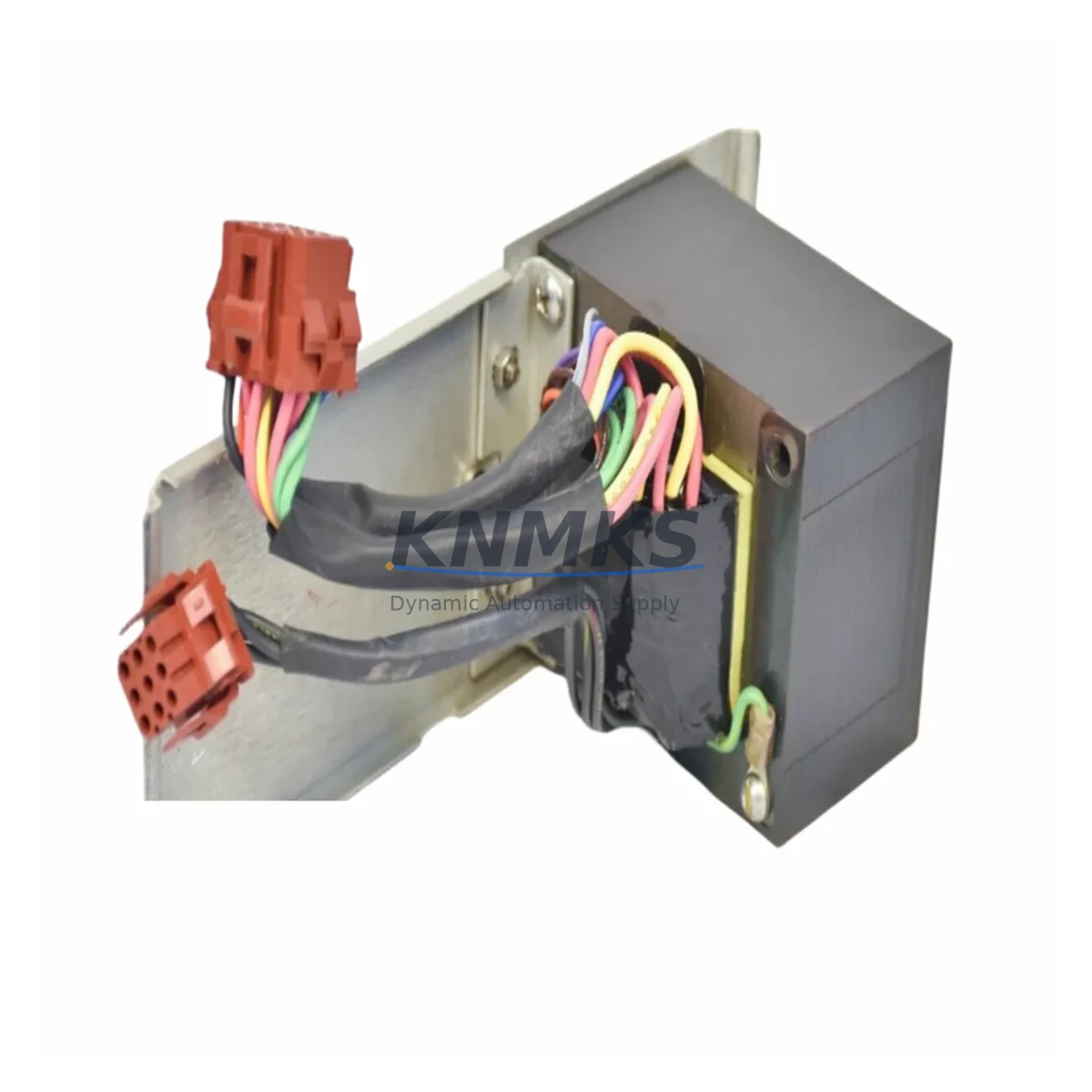

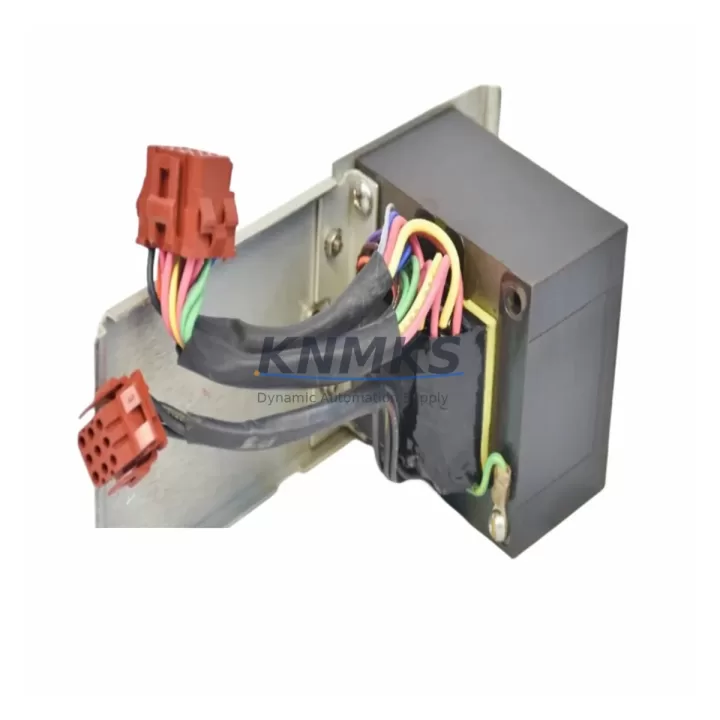

Bently Nevada 107540-01A Migration-Ready Proximity Transformer for Legacy Control Systems

The Bently Nevada 107540-01A is a precision proximity system transformer engineered for direct integration into 3300 Series and 3500 Series vibration monitoring platforms. As legacy machinery protection systems approach end-of-life or face discontinued spare parts availability, the 107540-01A serves as a validated, migration-ready replacement that preserves existing signal chains, minimizes rewiring effort, and eliminates the need for full system overhauls. Whether you are executing a planned retrofit of an aging turbine protection panel or responding to an unplanned failure of a discontinued proximity transformer, this module delivers the electrical and mechanical compatibility required to restore system integrity with minimal downtime.

Designed for use in rotating machinery protection applications — including steam turbines, gas compressors, centrifugal pumps, and large induction motors — the 107540-01A interfaces directly with Bently Nevada eddy-current proximity probes and extension cables to condition raw displacement signals into calibrated outputs suitable for the 3300 XL 8mm or 3500/42M proximity monitor modules. Engineers replacing obsolete transformers in existing control cabinets will find that the 107540-01A maintains the same terminal pinout and housing footprint as earlier-generation units, reducing installation space concerns and simplifying field wiring verification during commissioning.

Migration Compatibility Table

Retrofit Planning for Existing Automation Systems

Successful integration of the 107540-01A into an existing machinery protection system requires a structured pre-installation audit. Begin by documenting the current probe gap voltage using a digital voltmeter at the monitor input terminals — this baseline reading confirms probe and extension cable health before the transformer is swapped. If the existing 3300 XL 8mm proximity probe shows gap voltage drift beyond ±0.5 VDC from the nominal -10 VDC setpoint, the probe itself may require replacement alongside the transformer to restore full system accuracy.

For panels housing multiple 3500 Series rack modules — such as the 3500/20 rack interface module, 3500/15 power supply module, or 3500/42M proximity monitor — verify that the rack backplane power budget accommodates the 107540-01A without exceeding the 3500/15’s rated output. In high-density installations where multiple proximity channels are being retrofitted simultaneously, a load calculation across all active slots is essential before energizing the upgraded rack. The 3500/22M transient data interface module, if present, should also be checked for channel mapping consistency after the transformer replacement to ensure that System 1 software continues to receive correctly labeled vibration data streams.

Where the control system includes a Bently Nevada 3500/92 communication gateway or a TDIX interface for integration with a DCS or SCADA platform, confirm that the analog signal path from the 107540-01A through the monitor to the gateway remains within the expected voltage range. Any deviation in the bias voltage output of the replacement transformer will propagate as a false alarm or a masked fault condition at the DCS level, making post-installation signal verification a non-negotiable commissioning step. For sites using Modbus RTU or FOUNDATION Fieldbus integration via the 3500/92, no protocol reconfiguration is required — the 107540-01A operates entirely within the analog front end of the monitor and does not affect the digital communication layer.

In retrofit scenarios where the original proximity transformer has been physically damaged or has failed open-circuit, technicians should also inspect the associated Bently Nevada 330130 extension cable for insulation breakdown or connector corrosion before reusing it with the replacement 107540-01A. A compromised extension cable will introduce measurement error that cannot be corrected at the monitor level, leading to false vibration readings and potential nuisance trips during post-retrofit commissioning.

Downtime Control During System Migration

Minimizing unplanned downtime during a proximity transformer replacement requires pre-staging all replacement components — including the 107540-01A, spare terminal ferrules, and a calibrated gap-setting tool — before the maintenance window begins. Where the machinery protection system supports channel bypass or inhibit functions via the 3500/20 rack interface module, activate the bypass on the affected channel prior to removing the legacy transformer. This prevents nuisance trips from propagating to the DCS or triggering an emergency shutdown sequence while the channel is open.

Document the existing terminal wiring with photographs and a written wire log before disconnecting any conductors. The 107540-01A uses the same screw-terminal layout as its predecessors, but field-applied wire labels degrade over time in high-temperature cabinet environments — relying on visual identification alone during a time-pressured swap introduces reconnection errors that are difficult to diagnose after the panel is re-energized. Once the replacement transformer is installed and wired, perform a static gap voltage check at the monitor input before releasing the channel bypass. Confirm that the bias voltage falls within the OEM-specified window before returning the channel to active protection status.

For sites where the 3500 rack is integrated with a System 1 condition monitoring platform, verify that the channel tag, engineering unit scaling, and alarm setpoints remain unchanged in the software configuration after the hardware swap. A transformer replacement does not alter the monitor’s internal configuration, but a System 1 database backup taken immediately before the maintenance window provides a recovery point if any configuration discrepancy is discovered during post-retrofit verification. This practice also supports audit trail requirements for facilities operating under ISO 55000 asset management or API 670 machinery protection standards.

Retrofit Support FAQ

Q1: Is the 107540-01A a direct replacement for all legacy Bently Nevada proximity transformers in the 3300/3500 Series?
The 107540-01A is a validated replacement for units sharing the same part number. For adjacent SKUs within the 3300 or 3500 proximity system family, cross-reference the probe system configuration (probe model, extension cable length, and monitor slot assignment) to confirm electrical compatibility before installation. Our technical team can assist with cross-reference verification prior to shipment.

Q2: What pre-shipment testing is performed on the 107540-01A?
Each unit undergoes functional output voltage verification and insulation resistance testing before dispatch. A test certificate is included with every shipment. Units are packaged in anti-static, moisture-resistant packaging suitable for long-distance freight and warehouse storage.

Q3: Can the 107540-01A be installed without reconfiguring the 3500 monitor or System 1 software?
Yes. The 107540-01A is a passive analog component that does not require firmware updates, software reconfiguration, or changes to the monitor’s channel setup. Post-installation commissioning is limited to gap voltage verification and alarm setpoint confirmation at the monitor front panel.

Q4: What does the support terms confirmed by quotation cover, and what is the lead time for replacement units?
The support terms confirmed by quotation cover manufacturing defects and functional failures under normal operating conditions from the date of shipment. In-stock units are available for same-week dispatch. For bulk orders or long-term spare parts agreements, contact our sales team to discuss stocking arrangements and extended supply commitments.

© 2026 KNMKS. All rights reserved.
Original Source: https://knmks.com
Contact: [email protected] | +86 18359268345

Product Identification

Brand / Ecosystem

Bently Nevada
Bently Nevada

Model / Series

107540-01A
3500 Series

Product Family

PLCs & Controllers

Availability Status

Available on request after model and quantity confirmation

Inquiry Type

B2B RFQ, replacement inquiry and project spare-part request

Pre-Quote Check

Exact SKU, brand, series, quantity, nameplate photos and destination country are checked before quotation

Specification & Inquiry Focus

Control platform

PLC, PAC and modular controllers

Common needs

CPU, rack, power and I/O expansion

Project support

Replacement, cabinet build and maintenance

Inquiry Support

• Model cross-checking before quotation
• CPU, power, rack and expansion module matching
• Support for replacement and project inquiry

What to Send Us

• Brand and exact model number: Bently Nevada 107540-01A
• Quantity and required delivery time
• Application, replacement requirement or nameplate photo
• Destination country and shipping preference
