Bently Nevada 106M2686-01 Maintenance-Proven Spare Part for Factory Uptime

Overview

Bently Nevada 106M2686-01 Maintenance-Proven Spare Part for Factory Uptime

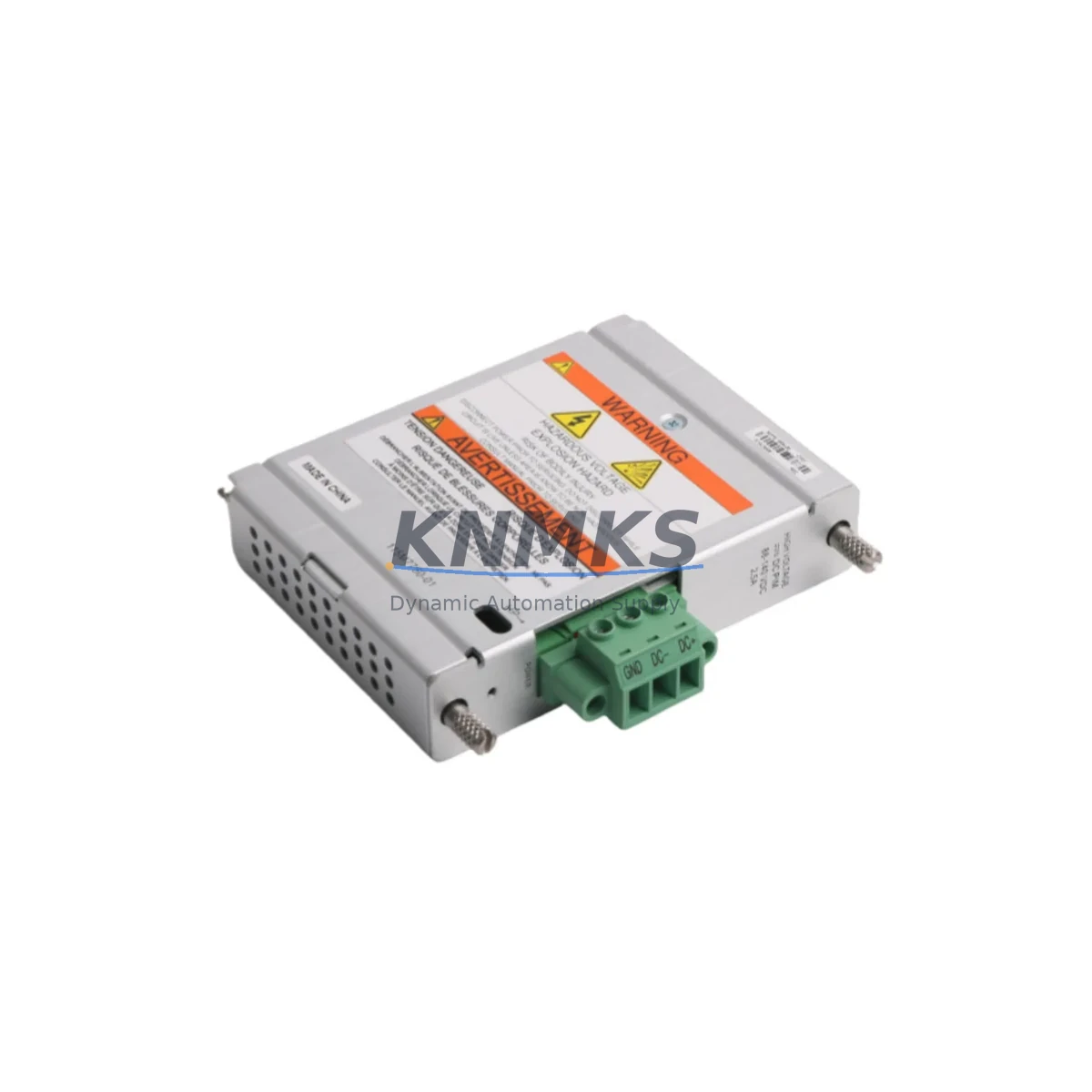

The Bently Nevada 106M2686-01 is an original power supply module engineered for the 3500 Series machinery protection system — one of the most widely deployed continuous monitoring platforms in rotating equipment applications across oil & gas, power generation, petrochemical, and heavy industrial facilities. Stocked and dispatched from multi-region inventory, this spare is pre-shipment tested, covered by a support terms confirmed by quotation, and ready to support rapid site replacement with zero compromise on system integrity.

For maintenance engineers managing turbine trains, compressor strings, or pump monitoring panels, the 106M2686-01 (cross-reference: 115M7750-01) is a critical uptime asset. Power supply failures in the 3500 rack are among the most time-sensitive fault events — a failed module can take an entire monitoring channel offline, triggering protective shutdowns or masking vibration alarms. Holding a verified spare on-site eliminates the lead-time risk associated with OEM procurement cycles, which can extend to 8–16 weeks for legacy 3500 Series components.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When replacing the 106M2686-01 power supply module, a disciplined maintenance engineer will not stop at the module itself. The 3500 Series rack is an integrated system — power quality, signal integrity, and communication health are interdependent. A power supply fault often masks or causes secondary issues in adjacent components that must be verified before returning the system to service.

Begin with the 3500/15 Power Supply slot configuration and confirm that the replacement module seats correctly into the backplane. Inspect the 3500 Series rack backplane for bent pins, corrosion, or thermal discoloration — a degraded backplane can cause recurring power supply failures regardless of module condition. Next, verify the 3500/20 Rack Interface Module (RIM) or equivalent communication gateway is operating normally; power interruptions frequently corrupt RIM configuration registers, requiring a re-download of the monitoring configuration.

Check all 3500/40M Proximitor/Seismic Monitor or 3500/42M I/O modules for alarm status after power restoration — vibration monitor modules may latch fault states that require manual reset. Inspect the terminal input module (TIM) wiring blocks for loose connections that may have been disturbed during the power event. If the rack is integrated with a DCS or safety system via Modbus or 4–20 mA analog outputs, confirm signal continuity at the marshalling panel before releasing the equipment to operations.

For sites running redundant power supply configurations, test the standby power supply module switchover function under controlled conditions. Also inspect the AC/DC distribution panel feeding the 3500 rack — upstream fuse condition, breaker trip history, and UPS battery health are common root causes of repeated power supply module failures. Maintaining a spare 3500 Series power supply fuse kit and a set of backplane connector cleaning tools alongside the 106M2686-01 is recommended best practice for sites with annual inspection cycles.

Site Replacement Workflow

Step 1 — Isolation & Documentation: Before removal, document all active alarm states, output voltage readings, and system configuration from the 3500 rack display or System 1 software. Photograph the existing module label and slot position.

Step 2 — Safe Removal: If the rack supports hot-swap on the power supply slot, follow the OEM hot-swap procedure. For non-redundant configurations, coordinate with operations for a controlled shutdown window. Remove the module using the ejector handles — do not force extraction.

Step 3 — Inspection & Cleaning: Inspect the vacated slot for debris, oxidation, or thermal damage. Clean backplane contacts with approved contact cleaner before inserting the replacement 106M2686-01.

Step 4 — Installation & Verification: Insert the replacement module firmly until the ejector handles latch. Verify output LED status indicators. Confirm rack power-up sequence completes without fault codes. Re-check all monitor module alarm states.

Step 5 — System Handover: Restore DCS/safety system communication. Confirm vibration trend data is being logged correctly. Update the maintenance log with part number, serial number, installation date, and technician ID. File the replaced module for failure analysis if required.

This workflow supports a target replacement time of under 30 minutes for prepared maintenance teams, minimizing unplanned downtime and protecting production continuity.

Spare Parts Support FAQ

Q1: Is the 106M2686-01 compatible with all 3500 Series rack configurations?
The 106M2686-01 is designed for the Bently Nevada 3500 Series platform. Compatibility depends on the specific rack model and slot assignment. Cross-reference with your rack’s configuration drawing or contact our technical team with your rack model number for confirmation before ordering.

Q2: What does the support terms confirmed by quotation cover?
The support terms confirmed by quotation cover manufacturing defects and functional failures under normal operating conditions from the date of shipment. Each unit undergoes pre-shipment functional testing. Support requests are supported with replacement dispatch — contact [email protected] with your order reference and fault description.

Q3: How do you verify the module is genuine and not a counterfeit?
All units are sourced through verified supply channels. Each module is inspected for OEM labeling, date codes, and physical condition prior to dispatch. Pre-shipment functional testing provides an additional layer of quality assurance. Documentation including test records is available upon request.

Q4: Can you support long-term or blanket purchase orders for 3500 Series spares?
Yes. For facilities managing multiple 3500 Series racks or planning annual shutdown spare kits, we support long-term supply agreements, forward stock reservations, and scheduled dispatch programs. Contact [email protected] or +86 18359268345 to discuss volume pricing and supply continuity arrangements.
