Bently Nevada 106765-4 Migration-Ready Rack Cable

Overview

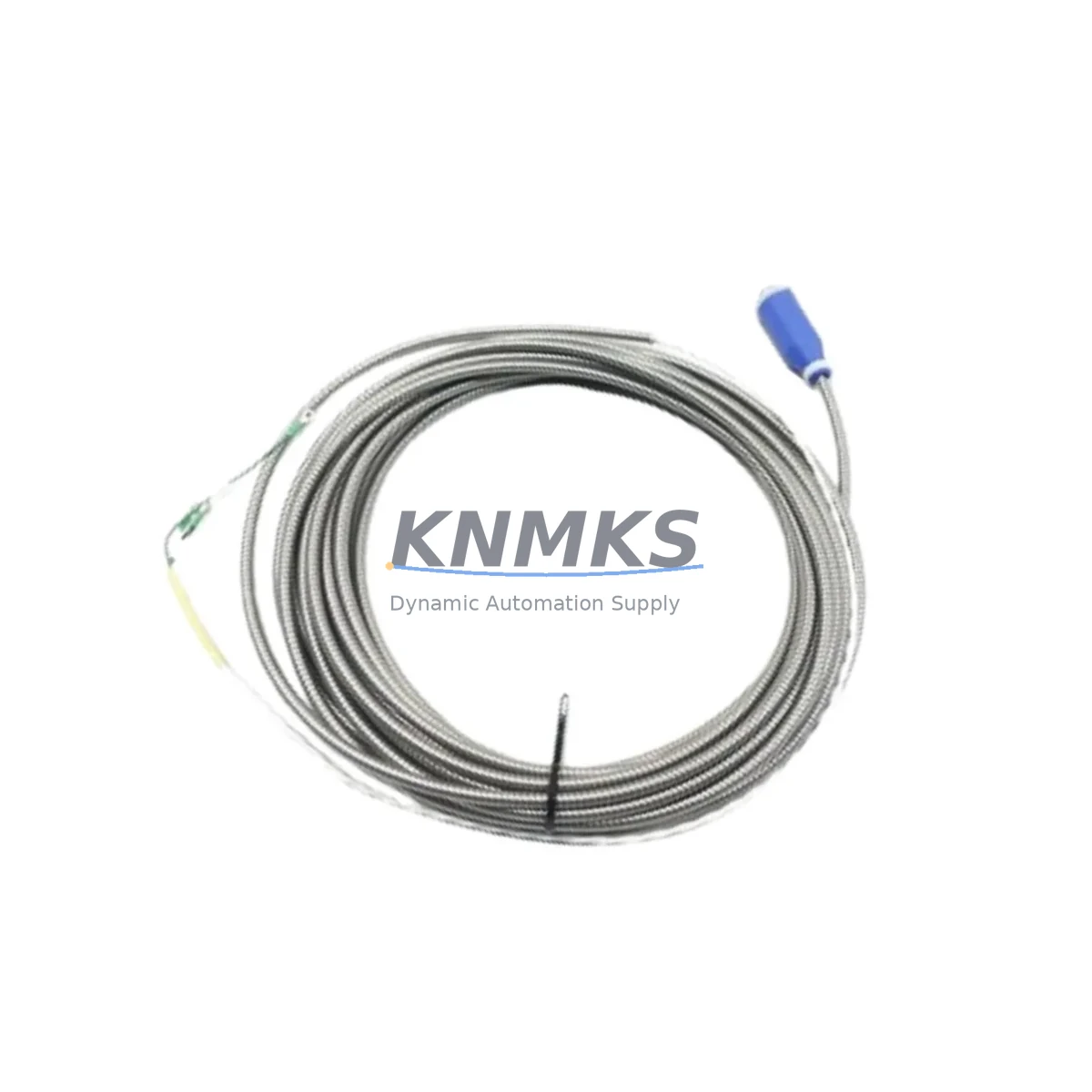

Bently Nevada 106765-4 Migration-Ready Rack Cable: Legacy System Retrofit & Compatibility Upgrade

The Bently Nevada 106765-4 is a rack interconnect cable engineered for the Bently Nevada 3500 Series machinery protection platform. As industrial facilities accelerate the retirement of aging DCS and vibration monitoring infrastructure, the 106765-4 has become a critical component in retrofit projects where maintaining signal integrity between rack-mounted modules is non-negotiable. Whether you are replacing a failed cable in an operating plant or pre-staging spares for a scheduled turnaround, this cable delivers verified compatibility with the 3500 rack backplane architecture.

In legacy control environments, the interconnect cable is often the last component to be evaluated during a system audit — yet it is frequently the root cause of intermittent faults, communication dropouts, and module addressing errors. The 106765-4 is a direct, pin-compatible replacement for the original factory cable, eliminating the need for custom wiring adapters or terminal block modifications during installation.

Migration Compatibility Table

Retrofit Planning for Existing Automation Systems

A successful retrofit of the Bently Nevada 106765-4 begins well before the cable is physically installed. Engineers responsible for legacy system modernization must first audit the existing rack configuration to confirm the number of occupied slots, the position of the 3500/20 Rack Interface Module, and whether the system is running a single-rack or multi-rack topology. In multi-rack deployments, the 106765-4 serves as the physical link between the primary rack and expansion frames, making cable condition directly relevant to the integrity of the entire monitoring network.

During pre-retrofit planning, the power supply capacity of the existing 3500/15 Power Supply Module should be recalculated against the updated module load, particularly if I/O expansion cards such as the 3500/40 Proximitor/Seismic Monitor or 3500/42 Proximitor/Seismic Monitor are being added to the rack. Undersized power supply headroom is a common cause of post-retrofit instability that is frequently misattributed to the cable or backplane.

Terminal wiring at the I/O module level must also be reviewed. If the retrofit involves replacing a 3500/25 Enhanced Keyphasor Module alongside the interconnect cable, the field wiring termination points and shield grounding scheme should be documented before any disconnection occurs. This documentation becomes the baseline for post-installation verification and significantly reduces commissioning time.

For facilities migrating from older Bently Nevada 3300 Series hardware to the 3500 platform, the 106765-4 is part of a broader cable and backplane upgrade that typically also involves the 3500/22 Transient Data Interface and updated communication drivers on the host DCS or SCADA system. Confirming that the plant historian and HMI tag database reflect the new module addresses before go-live prevents alarm mapping errors that can delay production restart.

Where the control cabinet layout is constrained, the physical routing of the 106765-4 should be planned to avoid proximity to high-voltage conductors and variable frequency drive output cables. Maintaining adequate separation preserves signal quality and reduces the risk of induced noise on the vibration monitoring channels.

Downtime Control During System Migration

Minimizing unplanned downtime during a rack cable replacement requires a structured approach to pre-staging, verification, and rollback planning. Before the maintenance window opens, the replacement 106765-4 should be bench-tested against a known-good rack frame to confirm connector seating, continuity, and absence of shield faults. Units supplied by KNMKS are tested prior to shipment, but a secondary site acceptance test is recommended for critical machinery protection applications.

The original program logic stored in the 3500/20 Rack Interface Module and associated monitor modules does not reside in the cable itself, so program integrity is preserved during a cable swap. However, the system should be placed in bypass mode and all connected machinery brought to a safe state before disconnecting the existing cable. This prevents spurious trip signals from propagating to the DCS during the brief period when the rack communication link is interrupted.

After the 106765-4 is installed, the recommended commissioning sequence is: restore rack power, confirm module self-test LEDs, verify communication link status on the rack interface module, check channel OK status for all monitor modules, and finally restore the system from bypass. This sequence typically takes less than 30 minutes for a single-rack installation when the pre-staging work has been completed correctly.

For multi-rack systems, the commissioning sequence should be performed rack by rack, with the primary rack restored first. HMI screens should be monitored throughout the process to confirm that all channel values return to expected ranges and that no latent alarms are present before the bypass is lifted on the final rack.

Maintaining a spare 106765-4 in the plant storeroom as a critical spare is strongly recommended for facilities operating rotating machinery where continuous vibration monitoring is a regulatory or insurance requirement. KNMKS maintains stock of the 106765-4 and can support emergency same-day dispatch for qualifying orders.

Retrofit Support FAQ

Q1: Is the 106765-4 a direct replacement for the original Bently Nevada factory cable in all 3500 Series rack configurations?
A: The 106765-4 is designed as a direct, pin-compatible replacement for the standard rack interconnect cable used in the Bently Nevada 3500 Series platform. It is compatible with the 3500/20, 3500/22, 3500/25, 3500/40, 3500/42, and 3500/45 module frames. For non-standard or custom rack configurations, please contact our technical team with your rack layout drawing before ordering.

Q2: What pre-installation checks are required before replacing the rack cable?
A: Before installation, confirm that the replacement cable part number matches the existing cable label, document all module slot assignments and communication link settings, place the system in bypass mode, and de-energize the rack. After installation, verify connector seating, restore power, and confirm module self-test and communication link status before removing bypass.

Q3: Will replacing the 106765-4 affect the existing program logic or alarm setpoints stored in the monitor modules?
A: No. Program logic, alarm setpoints, and configuration data are stored in the non-volatile memory of the individual monitor modules, not in the interconnect cable. A cable replacement does not alter any stored configuration. However, a full channel verification is recommended after any rack cable change to confirm that all channels are reading correctly.

Q4: What support terms and testing does KNMKS provide for the 106765-4?
A: All 106765-4 cables supplied by KNMKS are tested prior to shipment for continuity, connector integrity, and shield isolation. Each unit is covered by a support terms confirmed by quotation from the date of shipment. KNMKS maintains ongoing inventory of the 106765-4 to support both planned retrofit projects and emergency spare requirements. For stock availability and lead time, contact [email protected] or call +86 18359268345.
