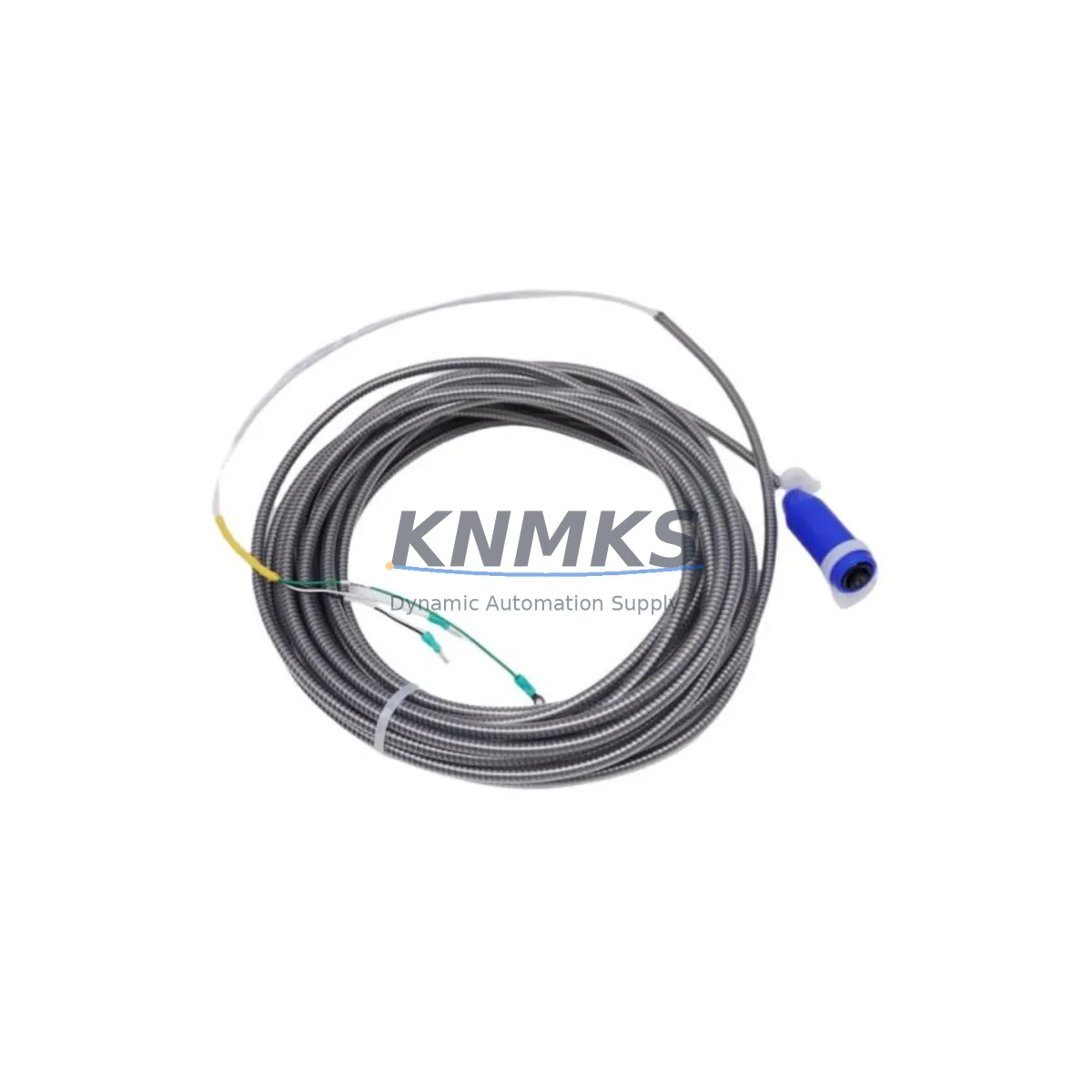

Bently Nevada 106765-16 Migration-Ready Cable for Legacy Systems

Overview

Bently Nevada 106765-16 Migration-Ready Cable for Legacy Control Systems

The Bently Nevada 106765-16 is a migration-ready interconnect cable engineered for direct integration into the Bently Nevada 3500 Series machinery protection and condition monitoring platform. As legacy control architectures age out of manufacturer support cycles, the 106765-16 serves as a critical link in retrofit projects — enabling engineers to preserve existing rack infrastructure, maintain signal integrity, and avoid costly full-system replacements. Whether you are replacing a failed cable in an operating plant or executing a planned upgrade of an aging 3500 rack, the 106765-16 provides the dimensional, electrical, and protocol compatibility required for a reliable, low-risk transition.

In industrial environments where the Bently Nevada 3500 Series monitors rotating machinery such as turbines, compressors, and pumps, the interconnect cable between the transducer and the monitoring module is a life-safety-critical component. The 106765-16 maintains the original signal path geometry, shielding specification, and connector pinout, ensuring that replacement does not require re-engineering of the transducer wiring harness or modification of the 3500/20 rack power module wiring. Engineers performing a like-for-like swap can complete the replacement without altering the existing Keyphasor module configuration or recalibrating the 3500/40M proximitor monitor.

For facilities executing broader modernization programs — such as migrating from a standalone 3500 rack to an integrated System 1 condition monitoring architecture — the 106765-16 remains compatible throughout the transition period. It supports phased migration strategies where individual monitoring channels are upgraded incrementally, allowing the plant to maintain continuous protection on critical assets while new hardware is commissioned. During this phase, engineers should verify that the cable routing does not conflict with newly installed 3500/92 communication gateway modules or additional I/O expansion frames added to the rack.

Migration Compatibility Table

Retrofit Planning for Existing Automation Systems

A successful retrofit using the Bently Nevada 106765-16 begins with a thorough audit of the existing 3500 rack configuration. Engineers should document the current slot assignments of all installed modules — including the 3500/20 power module, 3500/40M proximitor monitor, 3500/42M velocity and acceleration monitor, and any 3500/60 temperature monitor cards — before disconnecting any wiring. This documentation becomes the baseline for verifying that the replacement cable restores the original signal path without introducing ground loops or impedance mismatches.

When the 106765-16 is being installed as part of a broader control cabinet upgrade, the project scope often extends beyond the cable itself. Facilities frequently combine this replacement with an upgrade of the 3500/20 rack power supply to address aging capacitors and voltage regulation drift. In parallel, the 3500/92 communication gateway module may be reconfigured to support Modbus/TCP or OPC-DA connectivity to a new distributed control system (DCS) or SCADA platform, replacing older RS-232 or RS-485 serial links that are no longer supported by modern historian software.

I/O mapping must be re-verified after cable replacement, particularly in installations where the 3500 rack feeds alarm and trip signals to a legacy PLC or safety instrumented system (SIS). The terminal block wiring on the 3500/20 power module should be photographed and labeled before removal. If the facility is simultaneously upgrading the HMI — for example, migrating from a legacy operator panel to a modern touchscreen running FactoryTalk or WinCC — the alarm tag database should be exported and validated against the new cable’s signal assignments before the HMI goes live.

For installations where the 106765-16 connects a proximity probe to a 3500/40M proximitor monitor, engineers should confirm that the extension cable total length (field cable plus extension cable) does not exceed the system design specification. Exceeding the specified total cable length can affect the proximitor’s output voltage and introduce measurement error. A signal verification test using a Bently Nevada TK-3 portable calibrator or equivalent instrument is recommended after installation to confirm that the gap voltage, sensitivity, and scale factor are within specification before returning the machine to service.

Downtime Control During System Migration

Minimizing unplanned downtime during a cable replacement or rack retrofit is the primary operational concern for maintenance teams. The 106765-16 is stocked and ships from available inventory, eliminating the lead-time risk that is common with OEM-sourced spare parts for aging 3500 Series components. Having the replacement cable on-site before the maintenance window opens is the single most effective downtime reduction measure available to the planning team.

Before the maintenance window begins, the original program logic in any associated PLC or safety controller should be backed up and stored offline. If the 3500 rack communicates with a Rockwell Automation ControlLogix or CompactLogix controller via the 3500/92 gateway, the Add-On Instruction (AOI) configuration and tag mapping should be exported and archived. This ensures that if a communication fault occurs during the cable swap, the control program can be restored to its pre-maintenance state without requiring a full re-commissioning of the monitoring system.

During the physical cable replacement, the machine should be in a confirmed safe state with all energy isolation procedures (lockout/tagout) completed and verified. The 3500 rack should remain powered if the installation allows hot-swap of the cable connector — consult the Bently Nevada 3500 Series installation manual for the specific module to confirm whether hot-swap is supported. After the 106765-16 is installed and the rack is returned to service, a functional test of all alarm and trip setpoints should be performed before the machine is restarted. This test should include verification of the OK relay output, the danger relay output, and the buffered output signal at the rear of the 3500/40M module.

For facilities with redundant monitoring configurations, the migration can be executed on one channel at a time, maintaining protection on the redundant channel throughout the replacement process. This approach eliminates the need for a full machine shutdown in many cases and is the preferred method for critical rotating equipment that cannot be taken offline for extended periods.

Retrofit Support FAQ

Q: Is the Bently Nevada 106765-16 a direct replacement for the original OEM cable in the 3500 Series rack?
A: Yes. The 106765-16 is manufactured to OEM-equivalent specifications, including connector pinout, cable geometry, shielding, and electrical characteristics. It is a direct drop-in replacement that does not require modification of the existing rack wiring, module configuration, or monitoring software. No firmware changes are required on the 3500/40M or any other installed monitoring module.

Q: What commissioning steps are required after installing the 106765-16?
A: After installation, verify the gap voltage at the proximitor output using a calibrated voltmeter or the Bently Nevada System 1 software interface. Confirm that the OK status is active on the 3500/40M module front panel. Perform a functional test of the alarm and danger setpoints by simulating a transducer signal using a portable calibrator. Document the as-found and as-left readings in the maintenance record before returning the machine to service.

Q: Can the 106765-16 be used in installations where the 3500 rack is being migrated to a new DCS or SCADA system?
A: Yes. The 106765-16 is a passive cable assembly and is fully compatible with any migration path that retains the 3500 Series monitoring rack. Whether the facility is adding a 3500/92 Modbus/TCP gateway, upgrading to System 1 condition monitoring software, or integrating with a new DCS via hardwired I/O, the 106765-16 continues to function as the signal interconnect between the transducer and the monitoring module without modification.

Q: What support terms coverage is provided, and what does it include?
A: The Bently Nevada 106765-16 is covered by a support terms confirmed by quotation from the date of shipment. The support terms covers manufacturing defects in materials and workmanship. All units are functionally tested prior to shipment to verify connector integrity, continuity, and shielding effectiveness. In-stock units are available for immediate dispatch to support urgent maintenance requirements and minimize plant downtime.

© 2026 KNMKS. All rights reserved.
Original Source: https://knmks.com
Contact: [email protected] | +86 18359268345

Product Identification

Brand / Ecosystem

Bently Nevada
Bently Nevada

Model / Series

106765-16
3500 Series

Product Family

Cables & Connectors

Availability Status

Available on request after model and quantity confirmation

Inquiry Type

B2B RFQ, replacement inquiry and project spare-part request

Pre-Quote Check

Exact SKU, brand, series, quantity, nameplate photos and destination country are checked before quotation

Specification & Inquiry Focus

Cable range

Sensor, servo, network and circular connectors

Common needs

Length, pin count, shielding and plug type

Project support

Machine wiring and installation kits

Inquiry Support

• Cable length and connector type confirmation
• Servo, sensor and network cable inquiry
• Accessory kits for installation teams

What to Send Us

• Brand and exact model number: Bently Nevada 106765-16
• Quantity and required delivery time
• Application, replacement requirement or nameplate photo
• Destination country and shipping preference
