BENDER VMD420-D-2 Fail-Safe Voltage Monitor for Industrial Control Reliability

Overview

BENDER VMD420-D-2 Fail-Safe Voltage Monitor for Industrial Control Reliability

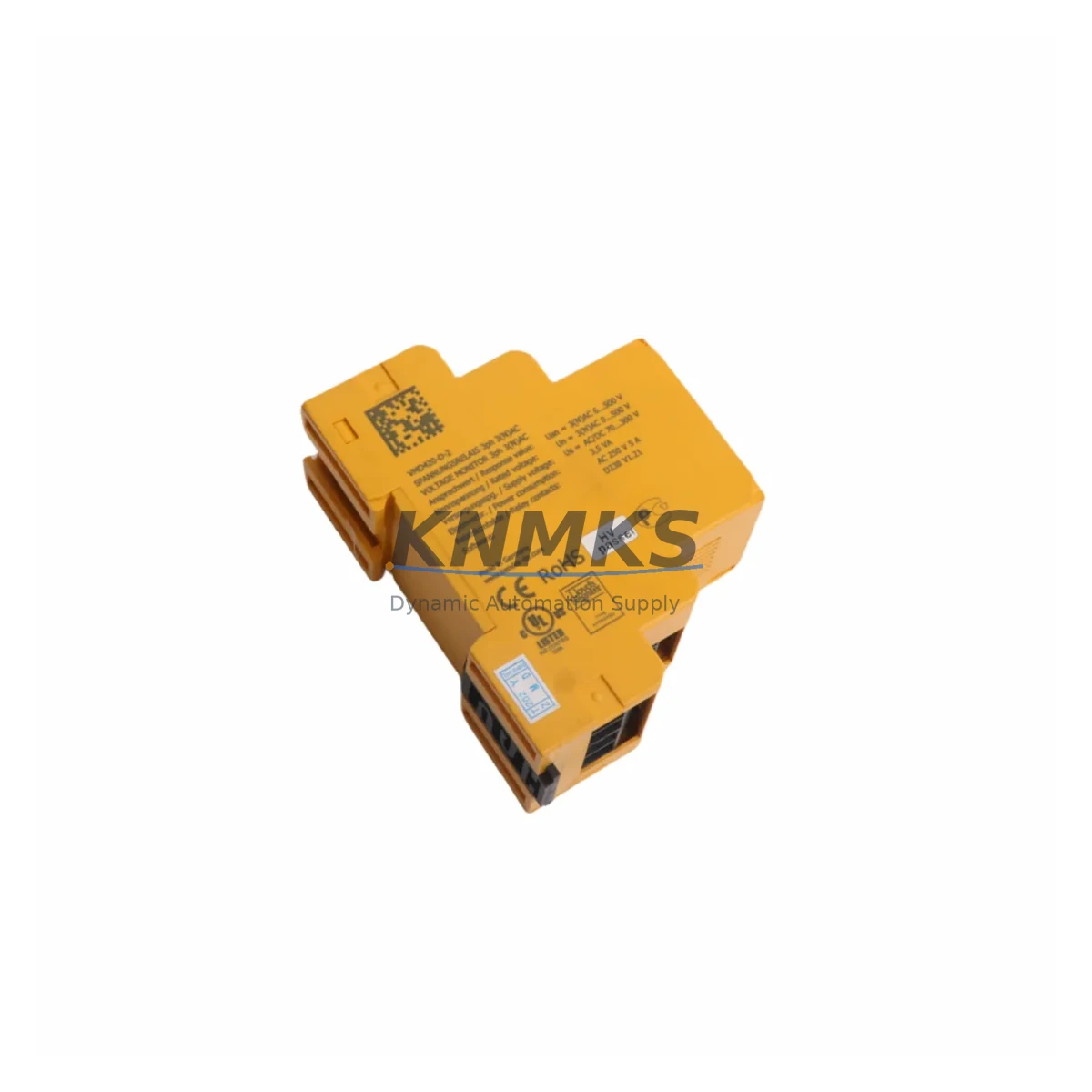

The BENDER VMD420-D-2 is a SIL-rated, three-phase voltage monitoring relay engineered for fail-safe operation in critical industrial control environments. Designed to detect overvoltage, undervoltage, phase loss, phase asymmetry, and phase sequence faults, the VMD420-D-2 provides continuous, real-time protection for motors, drives, and control circuits operating under demanding field conditions. Its dual relay output architecture ensures that protective actions are executed with deterministic response times, minimizing the risk of undetected faults propagating into downstream control loops.

In continuous production facilities — including petrochemical plants, power generation stations, metallurgical smelters, and water treatment infrastructure — voltage instability is one of the leading causes of unplanned downtime and equipment damage. The VMD420-D-2 addresses this directly by monitoring all three phases simultaneously and triggering a fail-safe relay response within milliseconds of detecting an out-of-tolerance condition. This rapid response capability is essential in applications where a delayed reaction could result in motor burnout, drive tripping, or cascading control cabinet failures.

The relay’s wide operating voltage range and adjustable threshold settings make it adaptable to diverse grid conditions across global installations. Its compact DIN-rail form factor integrates cleanly into standard control cabinets alongside complementary protection devices such as the BENDER ISOMETER IR155-3204 insulation monitoring relay and the BENDER RCMA420 residual current monitor, enabling a layered, defense-in-depth approach to electrical safety within a single enclosure. When paired with a BENDER COM465IP communication module, the VMD420-D-2 can transmit fault status data over Modbus TCP or Profibus DP, supporting remote diagnostics and predictive maintenance workflows without requiring personnel to enter hazardous areas.

In high electromagnetic interference environments — such as variable frequency drive (VFD) panels, arc furnace control rooms, and heavy crane control cabinets — the VMD420-D-2’s robust EMC design suppresses signal drift and false tripping caused by conducted and radiated interference. This makes it a reliable choice for installations where lesser relays would generate nuisance trips or fail to respond to genuine fault conditions. The device’s surge-proof input circuitry further protects against transient overvoltages introduced by switching operations, lightning coupling, or capacitor bank switching events common in industrial power distribution systems.

For applications in dusty, humid, or high-vibration environments — including mining headframes, port crane electrical rooms, and offshore platform control panels — the VMD420-D-2’s sealed terminal design and vibration-resistant construction maintain measurement accuracy and contact integrity over extended service intervals. When integrated into a safety instrumented system (SIS) alongside devices such as the PILZ PNOZ X3 safety relay or the Phoenix Contact PSR-SCP safety relay module, the VMD420-D-2 contributes to achieving the required Safety Integrity Level for the overall protective function, supporting IEC 61508 and IEC 61511 compliance documentation.

Every VMD420-D-2 unit supplied by KNMKS is sourced from authorized distribution channels, subjected to pre-shipment functional testing, and backed by a support terms confirmed by quotation. Multi-region stock is maintained to support both emergency replacement orders and scheduled outage windows, with fast global dispatch available for critical applications.

Fail-Safe Reliability Table

Control Cabinet Protection Strategy

A robust control cabinet protection strategy for critical industrial applications requires coordinated layers of electrical monitoring and safety switching. The BENDER VMD420-D-2 serves as the primary voltage integrity guardian, continuously verifying that all three supply phases remain within safe operating bands. Upstream of the relay, a BENDER ISOMETER IR155-3204 insulation monitoring device detects ground faults in IT power systems before they escalate into phase-to-earth short circuits that could damage connected equipment or create personnel safety hazards.

Residual current monitoring is handled by the BENDER RCMA420, which tracks leakage currents in AC/DC-sensitive circuits — a critical function in cabinets housing variable frequency drives or rectifier-fed DC bus systems. For cabinets requiring hardwired safety loop integration, the PILZ PNOZ X3 safety relay provides certified emergency stop and safety gate monitoring functions that complement the VMD420-D-2’s voltage protection role. Power supply stability within the cabinet is maintained by a Phoenix Contact QUINT-PS/3AC/24DC/20 redundant power supply unit, ensuring that the control logic and monitoring relays themselves remain energized during brief supply disturbances. Communication of fault status to the plant DCS or SCADA system is achieved via the BENDER COM465IP gateway, enabling operators to respond to voltage anomalies before they result in process trips or equipment damage.

Critical Industrial Safety Applications

The BENDER VMD420-D-2 is deployed across a broad spectrum of critical industrial environments where voltage integrity is directly linked to process safety and production continuity.

In petrochemical and refinery facilities, the relay protects motor control centers (MCCs) driving pumps, compressors, and agitators in classified hazardous areas. Phase loss or asymmetry in these applications can cause motor overheating and mechanical failure, with potential consequences for process containment and personnel safety.

In power generation and substation environments, the VMD420-D-2 monitors auxiliary supply circuits for protection relay panels, battery chargers, and UPS systems, ensuring that protection functions remain available during grid disturbances. Its fast response time is critical in preventing protection relay maloperation caused by supply voltage collapse.

In mining and mineral processing operations, the relay is installed in conveyor drive control panels, crusher motor starters, and ventilation fan MCCs operating in dusty, high-vibration environments. Its robust construction and wide temperature range support reliable operation in surface and underground installations.

In water and wastewater treatment plants, the VMD420-D-2 protects pump station motor starters and blower drive panels from the voltage fluctuations common in rural grid-connected facilities, reducing the risk of pump motor burnout and unplanned service interruptions.

In metallurgical and steel production facilities, the relay operates in arc furnace auxiliary panels and rolling mill drive cabinets, where high electromagnetic interference and frequent voltage transients demand a monitoring relay with proven EMC robustness and surge immunity.

In port and maritime applications, including shore power distribution panels and crane electrical rooms, the VMD420-D-2 provides phase sequence verification to prevent reverse-rotation damage to hoist motors and cargo handling equipment.

Safety and Quality FAQ

Q1: What support terms coverage is provided for the BENDER VMD420-D-2?
Every VMD420-D-2 unit supplied by KNMKS is covered by a support terms confirmed by quotation from the date of shipment. This support terms covers manufacturing defects and functional failures under normal operating conditions. KNMKS maintains replacement stock to support rapid support terms exchange for critical applications.

Q2: Is pre-shipment functional testing performed on each unit?
Yes. Each VMD420-D-2 undergoes a pre-shipment functional test that verifies relay output operation, threshold response, and phase monitoring accuracy before dispatch. Test records are available upon request for quality documentation purposes.

Q3: Is the VMD420-D-2 compatible with existing BENDER monitoring systems and third-party safety relays?
The VMD420-D-2 is designed for integration with BENDER’s broader monitoring ecosystem, including ISOMETER and RCMA series devices, via the COM465IP communication gateway. Its dry contact relay outputs are compatible with third-party safety relay modules and PLC digital input cards from major manufacturers, supporting flexible integration into existing safety instrumented systems.

Q4: Can KNMKS support long-term supply for scheduled maintenance and emergency replacement requirements?
Yes. KNMKS maintains multi-region stock of the VMD420-D-2 to support both planned maintenance schedules and emergency replacement orders. Long-term supply agreements are available for customers requiring guaranteed stock reservation and priority dispatch for critical infrastructure applications.
