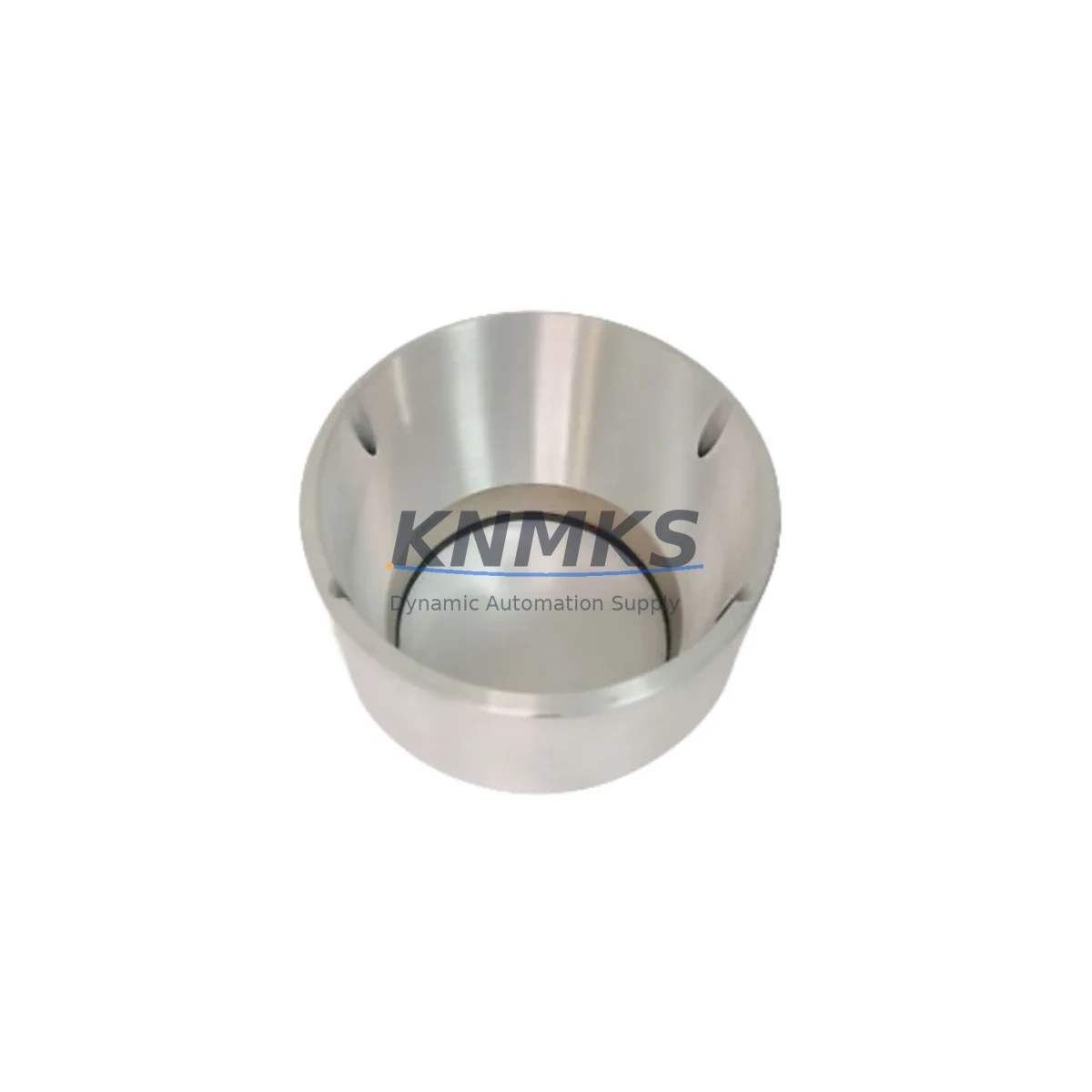

AXCELIS 17293090 Migration-Ready Disk Faraday Liner for Legacy Control Systems

The AXCELIS 17293090 Disk Faraday Liner is a precision-engineered, migration-ready replacement component designed for AXCELIS Optima and GSD series ion implantation systems. As semiconductor fabs worldwide face increasing pressure to extend the operational life of legacy implant platforms while managing obsolescence risk, the 17293090 Disk Faraday Liner provides a verified drop-in solution that eliminates the need for costly system-wide upgrades. Whether you are maintaining an aging Optima HD, transitioning from a GSD platform, or executing a controlled retrofit of your implant cell, this liner is a critical consumable that directly impacts beam uniformity, dose accuracy, and long-term process stability.

Procurement teams and process engineers managing end-of-life AXCELIS platforms frequently encounter extended OEM lead times, discontinued part numbers, and shrinking supplier networks. The 17293090 addresses these challenges with verified dimensional conformance, material traceability, and a support terms confirmed by quotation backed by pre-shipment functional inspection. Each unit is tested against original AXCELIS engineering specifications before dispatch, ensuring that your retrofit or maintenance event proceeds without unplanned downtime extensions.

Migration Compatibility Table

Retrofit Planning for Existing Automation Systems

Successful integration of the AXCELIS 17293090 Disk Faraday Liner into an ongoing retrofit or maintenance program requires careful coordination across multiple subsystems. Engineers planning a Optima or GSD platform overhaul should begin by auditing the end station assembly, including the Faraday cup housing, suppression electrode, and associated bias power supply connections. In many legacy installations, the suppression electrode insulator and the beam stop assembly show concurrent wear patterns with the Disk Faraday Liner, making it practical to address all three components within the same maintenance window.

For facilities executing a broader implant cell modernization — for example, migrating from a GSD II to an Optima XE or integrating a new SECS/GEM host communication interface — the liner replacement should be scheduled as part of the pre-qualification checklist rather than treated as an isolated consumable swap. The AXCELIS Optima platform’s end station control architecture relies on stable Faraday measurement signals to maintain closed-loop dose control; a worn or contaminated liner introduces measurement drift that can propagate through the dose control algorithm and affect wafer-level uniformity.

During retrofit planning, engineers should also verify the condition of the beam line vacuum integrity, including the analyzer magnet vacuum chamber seals and the resolving aperture assembly. If the facility is simultaneously upgrading the system’s PLC-based interlock logic — for instance, replacing a legacy Allen-Bradley SLC 500 I/O rack with a ControlLogix platform — the end station sensor wiring map must be re-validated against the new I/O module address assignments. Similarly, if the HMI is being migrated from a legacy PanelView 550 to a PanelView Plus 7, the Faraday current display tags and dose rate alarm setpoints must be re-mapped in the new FactoryTalk View project before the system is returned to production.

Facilities that operate multiple AXCELIS platforms in parallel — for example, a mixed fleet of Optima HD and GSD units — benefit from maintaining a standardized spare parts buffer that includes the 17293090 liner alongside the suppression electrode insulator, the beam stop graphite insert, and the end station cooling water manifold O-ring kit. This approach minimizes the number of unique part numbers managed under the site’s MRO inventory program and reduces the risk of a single-point stockout extending an unplanned downtime event.

Downtime Control During System Migration

Minimizing unplanned downtime during a Disk Faraday Liner replacement on an AXCELIS Optima or GSD platform requires advance preparation across logistics, engineering, and operations. The replacement procedure itself is typically completed within a standard 4–8 hour PM window, but delays most commonly arise from three sources: incorrect part identification, incomplete pre-staging of tooling and consumables, and insufficient pre-qualification of the replacement component against the current process recipe set.

To protect the original process program logic during the maintenance event, engineers should export and archive the current dose recipe library, beam tuning parameters, and end station calibration data before beginning disassembly. On Optima platforms running AXCELIS’s proprietary control software, this archive should include the Faraday calibration coefficients stored in the system database, as these values are specific to the installed liner geometry and will require re-verification after the new liner is seated.

For facilities operating under a continuous production schedule, it is advisable to pre-stage the replacement liner in the cleanroom anteroom at least 24 hours before the scheduled maintenance window, allowing sufficient time for particle inspection and dimensional verification. If the system is also undergoing a concurrent firmware update — for example, applying a new AXCELIS software patch to the end station control module — the firmware installation should be completed and verified before the liner swap begins, to avoid compounding variables during post-maintenance qualification.

Post-installation, the standard qualification sequence includes a beam-on test at reduced current, a full-wafer dose uniformity scan using a monitor wafer, and a review of the Faraday current signal stability over a minimum 30-minute soak period. Passing these checks before releasing the system to production is the most reliable method for confirming that the new liner is correctly seated, properly grounded, and performing within specification. All units supplied by KNMKS are pre-inspected and shipped with a dimensional conformance report to support your incoming inspection process and reduce qualification time on the factory floor.

Retrofit Support FAQ

Q1: Is the AXCELIS 17293090 a direct drop-in replacement for the OEM part, or are modifications required?
The 17293090 Disk Faraday Liner supplied by KNMKS is manufactured to OEM dimensional and material specifications and is designed as a direct drop-in replacement. No mechanical modification to the end station housing or Faraday cup assembly is required. We recommend verifying the suppression electrode gap setting after installation as part of standard commissioning practice.

Q2: What pre-shipment testing is performed, and what documentation is included?
Each unit undergoes dimensional inspection and material verification before shipment. A conformance report is included with every order. Units are packaged in cleanroom-compatible anti-static packaging suitable for direct transfer to a Class 10 or Class 100 environment. The support terms confirmed by quotation cover dimensional and material conformance from the date of shipment.

Q3: How do I confirm compatibility if my system has been modified from its original OEM configuration?
Please provide your system serial number, current software version, and a description of any end station modifications when placing your inquiry. Our technical team will cross-reference your configuration against our compatibility database and confirm suitability before order confirmation. For systems that have undergone significant end station modifications, we can arrange a pre-shipment dimensional review against your supplied drawings.

Q4: What is the typical lead time, and do you maintain stock for urgent requirements?
KNMKS maintains buffer stock of the AXCELIS 17293090 to support urgent maintenance and unplanned downtime events. Standard lead time for in-stock units is 3–7 business days for international shipments. For critical production situations, expedited shipping options are available. Contact our team directly to confirm current stock status and arrange priority dispatch.
