ASML 4022.436.7817 Maintenance-Proven Spare Part for Factory Uptime

Overview

ASML 4022.436.7817 Maintenance-Proven Spare Part for Factory Uptime

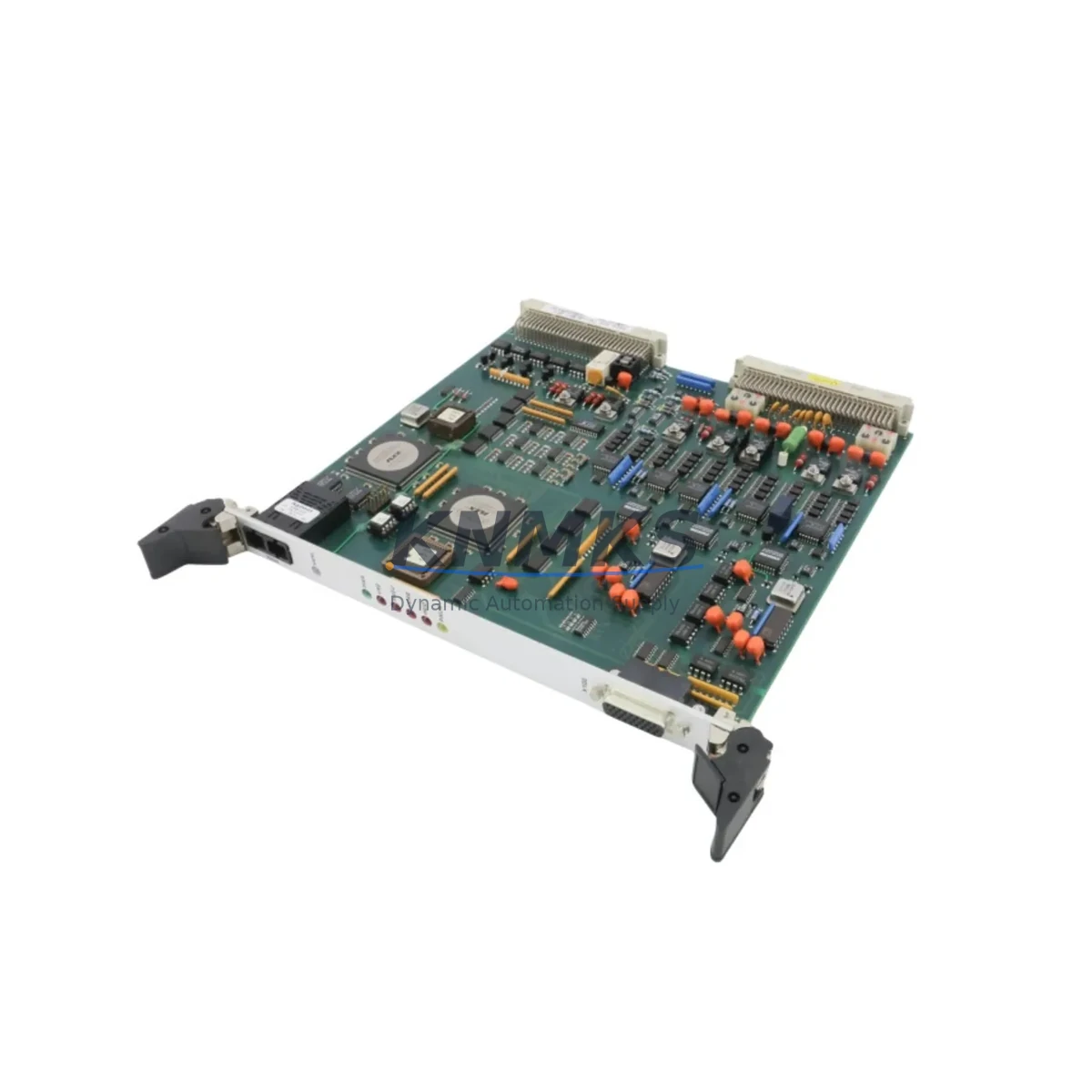

The ASML 4022.436.7817 (assembly reference: 2L81-050043-83) is a critical PCB Assembly designed for ASML TAB113 and TAB217 lithography systems operating at 300V. For semiconductor fabs and precision manufacturing facilities running ASML exposure tools, this board sits at the heart of motion control and signal processing subsystems — making it one of the highest-priority spare parts to maintain in any preventive maintenance inventory. Sourced as an original ASML component, each unit supplied by KNMKS is individually tested prior to dispatch and backed by a support terms confirmed by quotation.

Unplanned downtime on a lithography line carries severe production cost implications. Maintaining a verified, ready-to-install spare of the 4022.436.7817 is a proven strategy for reducing mean time to repair (MTTR) and protecting wafer output continuity. Whether you are managing a scheduled annual overhaul, responding to an in-process fault alarm, or building a resilient spare parts buffer for aging TAB-series tools, this PCB Assembly is a foundational line item in your maintenance BOM.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When replacing or inspecting the ASML 4022.436.7817 PCB Assembly, a disciplined maintenance engineer will not treat this as an isolated swap. The TAB113 and TAB217 modules are integrated into a broader electrical and control architecture, and a board-level fault often signals stress or degradation in adjacent components. The following areas should be systematically reviewed during the same maintenance window:

Power supply integrity is the first checkpoint. The 300V rail feeding this assembly must be verified for ripple, regulation tolerance, and connector condition. ASML system power distribution boards and associated DC/DC converter modules within the same cabinet should be inspected for signs of thermal stress or capacitor aging. A compromised power supply is a leading cause of PCB Assembly failures in long-running lithography tools.

I/O and signal wiring connected to the TAB113-1/I01-LF interface should be checked for pin corrosion, micro-fractures in ribbon cables, and connector seating. In high-cycle environments, connector fatigue is a silent failure mode that can cause intermittent faults misdiagnosed as board failures. Inspect the associated I/O terminal blocks and signal isolation modules in the same rack section.

Communication and backplane connections deserve equal attention. The TAB217-8/PC2-LF interface links this assembly to the broader PLC or motion controller network. Backplane connectors, communication bus terminators, and any interposing relay or optocoupler boards in the signal path should be cleaned and re-seated. If the system uses a dedicated communication module for the TAB217 subsystem, verify firmware version compatibility after board replacement.

Protection components — including fuses, varistors, and transient voltage suppressors on the same circuit — should be tested or replaced as a precaution. A board failure caused by a transient event may have damaged upstream protection components that, if left unchecked, will stress the replacement board immediately upon power-up.

HMI and diagnostic interface readouts should be cleared of any latched fault codes after installation. Confirm that the ASML system controller recognizes the replacement board and that all associated axis or process parameters are within specification before returning the tool to production.

Site Replacement Workflow

Step 1 — Fault Isolation: Use the ASML diagnostic interface to confirm the 4022.436.7817 as the root cause before removal. Log the fault code and timestamp for maintenance records.

Step 2 — Safe Shutdown: Follow ASML lockout/tagout procedures for the TAB113/TAB217 subsystem. Discharge the 300V bus and verify zero-energy state before opening the cabinet.

Step 3 — ESD Precautions: Use a grounded wrist strap and ESD-safe mat. Remove the faulty board and place it in an anti-static bag for return or failure analysis.

Step 4 — Installation: Seat the replacement 4022.436.7817 firmly into the backplane connector. Verify all edge connectors and ribbon cable attachments are fully engaged. Torque any retention screws to OEM specification.

Step 5 — Power-Up and Verification: Restore power in the correct sequence per ASML service documentation. Monitor the HMI for fault-free initialization. Run a functional check cycle before releasing the tool to production.

Step 6 — Documentation: Record the replacement in the equipment maintenance log, including the new board serial number, installation date, and technician ID. Update the spare parts inventory to trigger reorder of a replacement buffer unit.

Spare Parts Support FAQ

Q1: Is the ASML 4022.436.7817 compatible with both TAB113 and TAB217 module variants?
Yes. This PCB Assembly is specified for use with TAB113-1/I01-LF and TAB217-8/PC2-LF configurations. If your system uses a different TAB113 or TAB217 sub-variant, please share your full system configuration with our technical team at [email protected] for compatibility confirmation before ordering.

Q2: What does the support terms confirmed by quotation cover?
The support terms covers functional failure under normal operating conditions from the date of shipment. Each unit is function-tested prior to dispatch. In the event of a support terms claim, KNMKS will arrange replacement or repair. The support terms does not cover damage resulting from incorrect installation, overvoltage events, or physical mishandling.

Q3: How quickly can this part be shipped, and what packaging is used?
In-stock units are dispatched within 1–3 business days via international express courier. All PCB Assemblies are shipped in ESD-safe anti-static packaging with foam cushioning to prevent transit damage. A tracking number is provided upon dispatch.

Q4: Can KNMKS support long-term or recurring supply of this part for multi-site operations?
Yes. KNMKS maintains sourcing relationships to support ongoing supply of ASML spare parts including the 4022.436.7817 and related TAB-series components. For multi-site maintenance programs or annual blanket orders, contact our team to discuss volume pricing, reserved stock arrangements, and supply continuity agreements.
