ASML 4022.436.1723 Fail-Safe Laser Heater Assembly

Overview

ASML 4022.436.1723 Fail-Safe Laser Heater Assembly: Fault-Protected Thermal Control for Critical Industrial Environments

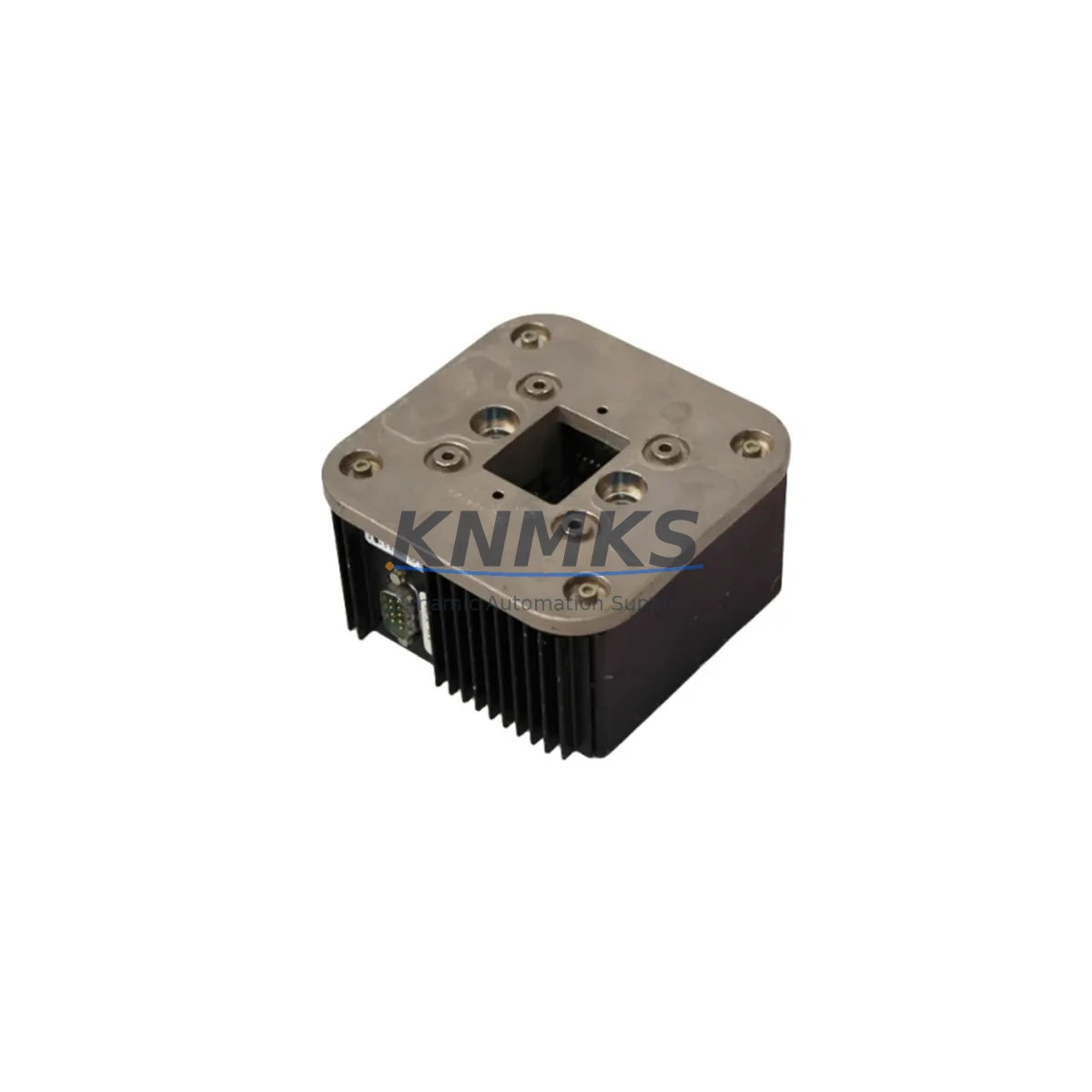

The ASML 4022.436.1723 (also referenced as 112052-8 HEATER TI-XZ / 0200-36543 / BLM-013468) is a precision-engineered Laser Heater Assembly designed for continuous, fail-safe thermal regulation within semiconductor fabrication equipment and high-precision industrial control systems. Built to ASML’s exacting standards for the TI-XZ platform, this heater assembly delivers stable, repeatable thermal output even under demanding electrical and environmental conditions — making it a critical component in any control cabinet where unplanned downtime is not an option.

In high-stakes production environments — including semiconductor fabs, precision optics manufacturing, and advanced automation lines — thermal instability is one of the leading causes of process deviation, equipment fault, and unplanned shutdown. The ASML 4022.436.1723 addresses this risk directly by maintaining tightly controlled heating cycles that protect laser optics, sensitive motion stages, and adjacent electronic assemblies from thermal shock, condensation ingress, and cold-start stress.

Fail-Safe Reliability Table

Control Cabinet Protection Strategy

In a fully integrated ASML TI-XZ control cabinet, the 4022.436.1723 Laser Heater Assembly does not operate in isolation. Its thermal management function is closely interdependent with the broader cabinet protection architecture. Reliable operation depends on stable DC power delivery — typically sourced from a dedicated ASML 24VDC regulated power supply module within the same cabinet rail, which must maintain output voltage within ±1% to prevent heater duty-cycle drift and false fault signals.

Signal integrity between the heater assembly and the laser control board is maintained through the ASML TI-XZ laser controller PCB, which monitors heater status, thermal feedback, and interlock conditions in real time. Any communication anomaly between these two components — whether caused by connector oxidation, cable fatigue, or EMI-induced signal noise — can trigger a protective shutdown of the entire laser subsystem. For this reason, periodic inspection of the ASML ribbon cable harness and I/O connector assembly associated with the TI-XZ platform is strongly recommended as part of any planned maintenance cycle.

Upstream power quality is equally critical. Installations in facilities with variable grid conditions — such as those near heavy motor loads, welding equipment, or large HVAC compressors — should incorporate a line filter and surge suppressor module rated for the cabinet’s full load current. This protects not only the 4022.436.1723 heater assembly but also co-located components such as the ASML motion controller board and ASML vacuum sensor interface module, both of which are sensitive to transient overvoltage events.

For cabinet environments subject to vibration — common in facilities with nearby press lines, compressors, or seismic activity — all mounting hardware associated with the heater assembly should be torqued to specification and re-verified at each scheduled maintenance interval. Vibration-induced connector loosening is a known root cause of intermittent heater faults in long-running TI-XZ installations.

Critical Industrial Safety Applications

The ASML 4022.436.1723 Laser Heater Assembly is deployed across a range of high-reliability industrial and advanced manufacturing environments where thermal control directly impacts process safety and equipment longevity:

Semiconductor Fabrication: In wafer lithography and inspection systems, precise thermal conditioning of laser sources is mandatory to maintain beam stability, focus accuracy, and exposure repeatability. The 4022.436.1723 ensures that laser assemblies reach and maintain operating temperature within specification before any exposure sequence begins, preventing thermal-drift-induced overlay errors and yield loss.

Precision Optics and Photonics Manufacturing: Optical alignment systems used in lens grinding, coating inspection, and interferometric measurement require laser sources that are thermally stable from cold start. The heater assembly eliminates warm-up variability, reducing measurement uncertainty and protecting sensitive optical surfaces from condensation during equipment startup in humidity-variable environments.

Advanced Electronics Assembly: In automated PCB inspection and laser soldering systems, thermal instability in the laser source can cause inconsistent solder joint quality or false defect detection. The 4022.436.1723 provides the thermal baseline stability required for repeatable, high-throughput production.

Research and Metrology Facilities: High-precision metrology tools — including coordinate measuring machines and laser interferometers — depend on thermally conditioned laser sources to achieve sub-micron measurement accuracy. Facilities operating in temperature-variable environments rely on heater assemblies like the 4022.436.1723 to maintain measurement traceability and instrument certification compliance.

Continuous Production Lines: Any facility running 24/7 production schedules cannot afford unplanned laser system downtime caused by thermal fault conditions. Maintaining a verified spare of the ASML 4022.436.1723 in the on-site critical spares inventory is a recognized best practice for minimizing mean time to repair (MTTR) and protecting production OEE targets.

Safety and Quality FAQ

Q1: What support terms coverage is provided with the ASML 4022.436.1723?
All units supplied by KNMKS carry a support terms confirmed by quotation from the date of shipment. This covers functional failure under normal operating conditions and includes technical support for installation and compatibility verification. Support requests are processed directly through our sales team at [email protected].

Q2: How is each unit tested before shipment?
Every ASML 4022.436.1723 Laser Heater Assembly undergoes a pre-shipment functional test to verify heater element continuity, thermal response, and connector integrity. Units that do not meet outgoing quality criteria are quarantined and not dispatched. Test records are available upon request for quality-critical procurement processes.

Q3: Is this heater assembly compatible with all ASML TI-XZ platform variants?
The 4022.436.1723 is designed for the ASML TI-XZ laser platform and is cross-referenced under part numbers 112052-8, 0200-36543, and BLM-013468. Compatibility with specific machine serial numbers or platform revisions should be confirmed against your equipment’s BOM or service documentation. Our technical team can assist with compatibility verification prior to order placement.

Q4: Can long-term supply continuity be guaranteed for this part?
KNMKS maintains dedicated stock buffers for critical ASML spare parts including the 4022.436.1723, specifically to support customers with long-lifecycle equipment and extended maintenance contracts. We actively source and qualify replacement inventory to protect against OEM obsolescence risk. Customers with ongoing requirements are encouraged to discuss blanket order or consignment stock arrangements with our sales team to secure supply continuity.
