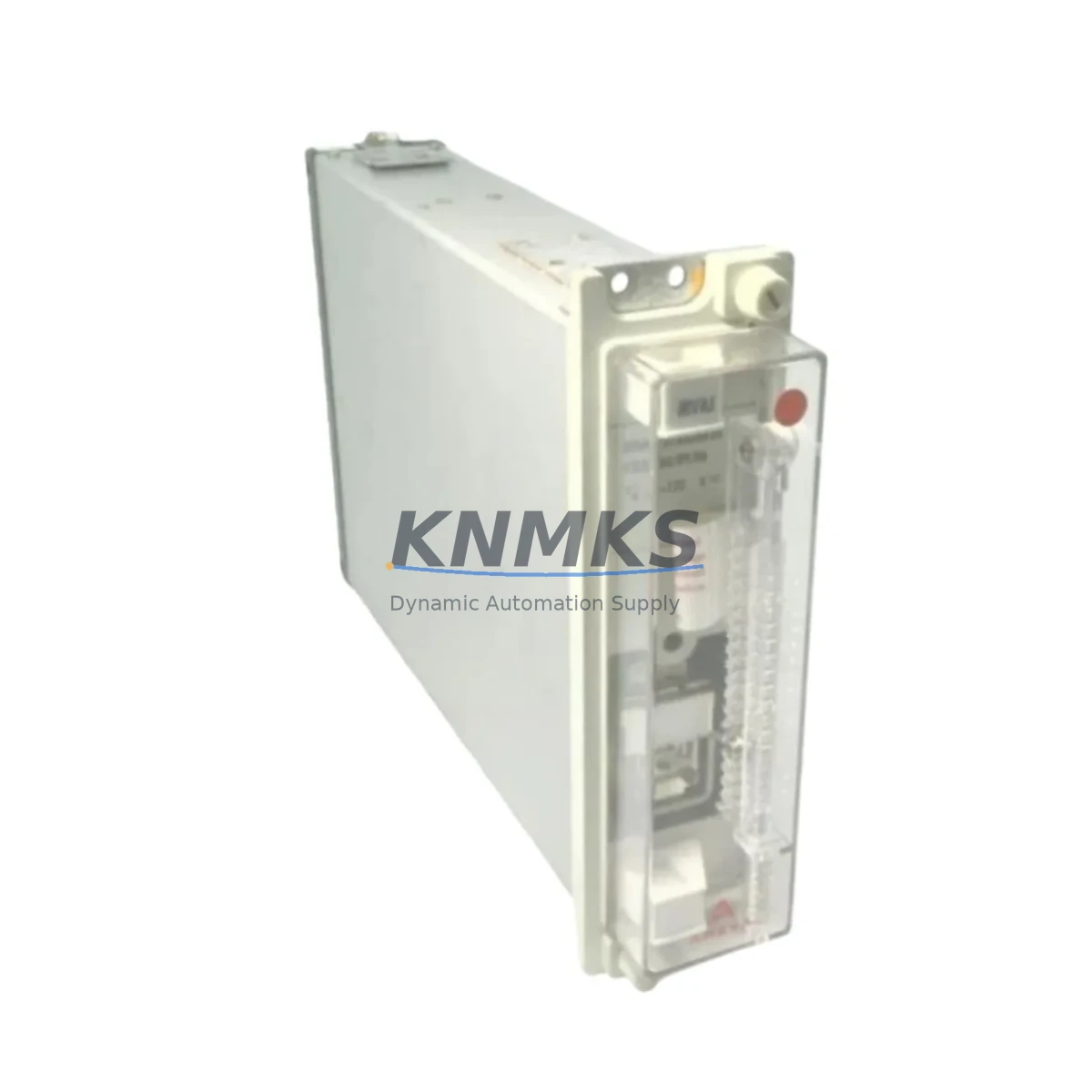

The AREVA MVAJ101RA0802A is an original auxiliary tripping relay from AREVA’s MVAJ Series, engineered for demanding industrial protection and control applications. Designed to interface directly with protection relays, circuit breakers, and trip coil circuits, the MVAJ101RA0802A delivers reliable multi-contact switching in substation automation, motor control centers, and distributed control system (DCS) panels. Stocking this unit as a verified spare ensures your maintenance team can execute rapid fault isolation and restore production continuity with minimal downtime.

For maintenance engineers managing aging protection panels or upgrading legacy relay logic, the MVAJ101RA0802A represents a direct, drop-in replacement that preserves original wiring topology and contact ratings. Procurement engineers benefit from a single-source supply with documented compatibility, tested shipment, and a support terms confirmed by quotation — eliminating the risk of sourcing unverified substitutes that may compromise protection coordination.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When the MVAJ101RA0802A is identified as a fault point during routine protection panel inspection or post-trip analysis, a structured replacement workflow prevents repeat failures and reduces mean time to repair (MTTR). Before pulling the relay, maintenance engineers should verify the integrity of the upstream DC supply feeding the trip bus — a failing AREVA MVAJ power supply module or a degraded battery charger can cause nuisance trips that mimic relay failure. Confirm bus voltage is within the rated coil operating range before condemning the unit.

Inspect the terminal block wiring and ferrule crimps on the relay’s input and output circuits. Loose connections on trip coil wiring are a common root cause of intermittent operation in auxiliary relay circuits. If the panel includes AREVA MiCOM P series protection relays (such as the P127 or P141) driving the MVAJ101RA0802A, verify that the binary output contacts on the MiCOM relay are within specification and that the output relay card has not developed contact welding from repeated fault clearing.

For panels with signal isolators between the protection relay and the trip circuit, check the isolator’s output voltage under load — a degraded isolator can reduce the effective coil voltage seen by the MVAJ101RA0802A, causing slow pickup or dropout. Similarly, inspect any miniature circuit breakers (MCBs) or fuses protecting the DC trip supply; a high-resistance fuse contact can cause voltage drop that prevents reliable relay operation without blowing the fuse outright.

If the control cabinet includes an AREVA MVAX or MFAC series auxiliary relay in the same trip chain, replace it as a set during planned outages to avoid a second unplanned shutdown shortly after restoring the primary relay. Annual inspection should also cover the panel backplane wiring harness and any AREVA K-Bus or IEC 61850 communication modules that supervise relay status — a communication fault can mask a relay failure until the next actual trip event.

Procurement engineers should maintain a minimum stock of two MVAJ101RA0802A units per substation or MCC lineup, particularly for facilities operating legacy AREVA protection schemes where OEM lead times may extend beyond acceptable outage windows. Pairing this spare with a documented spare parts bill of materials (BOM) that includes compatible trip coil assemblies, DC fuse links, and terminal block spares ensures a complete repair kit is available at the point of maintenance.

Site Replacement Workflow

1. Isolation and Permit: Obtain a Permit to Work (PTW) and isolate the protection panel from live circuits. Confirm DC trip supply is de-energized using an approved voltage tester before opening the relay compartment.

2. Documentation: Photograph existing wiring, terminal numbering, and relay position before removal. Cross-reference the panel wiring diagram to confirm the MVAJ101RA0802A variant matches the coil voltage and contact configuration required by the circuit.

3. Removal: Disconnect wiring in reverse terminal order, label each conductor, and extract the relay from its mounting. Inspect the relay socket or terminal block for signs of arcing, discoloration, or mechanical damage.

4. Installation: Insert the replacement MVAJ101RA0802A, reconnect wiring per the documented terminal schedule, and torque terminal screws to the manufacturer’s specification. Verify contact configuration matches the original (8-in/2-out).

5. Functional Test: Re-energize the DC supply and perform a secondary injection test or end-to-end trip test to confirm correct pickup, dropout, and contact operation. Record test results in the maintenance log.

6. Return to Service: Close the PTW, restore protection functions, and update the spare parts inventory to trigger replenishment of the consumed unit.

This workflow is compatible with both direct replacement of failed MVAJ101RA0802A units and planned swap-outs during scheduled outages, minimizing system exposure time and maintaining protection coordination integrity.

Spare Parts Support FAQ

Q1: Is the MVAJ101RA0802A still available as a new original part, or only as refurbished stock?
Both new original and refurbished-tested units are available depending on current inventory. All refurbished units undergo full functional testing — coil energization, contact resistance measurement, and insulation resistance — before shipment. Each unit ships with a test report and a support terms confirmed by quotation regardless of condition grade.

Q2: How do I confirm compatibility with my existing AREVA protection panel before ordering?
Provide your panel wiring diagram reference, the existing relay’s nameplate coil voltage, and contact configuration. Our technical team will cross-reference the MVAJ101RA0802A datasheet and confirm fit before shipment. For legacy GEC Alsthom or Alstom-branded panels, the MVAJ101RA0802A is typically a direct replacement — confirm the suffix code matches your coil voltage variant.

Q3: What is the lead time, and can you support emergency orders for unplanned outages?
Stocked units ship within 24–48 hours of order confirmation. For emergency outage recovery, contact our sales team directly at [email protected] or +86 18359268345 to arrange priority dispatch. We maintain buffer stock of high-demand MVAJ Series variants specifically to support unplanned maintenance events.

Q4: What does the support terms confirmed by quotation cover, and what is the claims process?
The support terms confirmed by quotation cover manufacturing defects and functional failure under normal operating conditions. If a unit fails within the confirmed support period, contact us with the order reference and a description of the failure mode. We will arrange a replacement shipment or credit, subject to inspection of the returned unit. Support terms does not cover damage caused by incorrect installation, overvoltage, or operation outside the rated specification.
