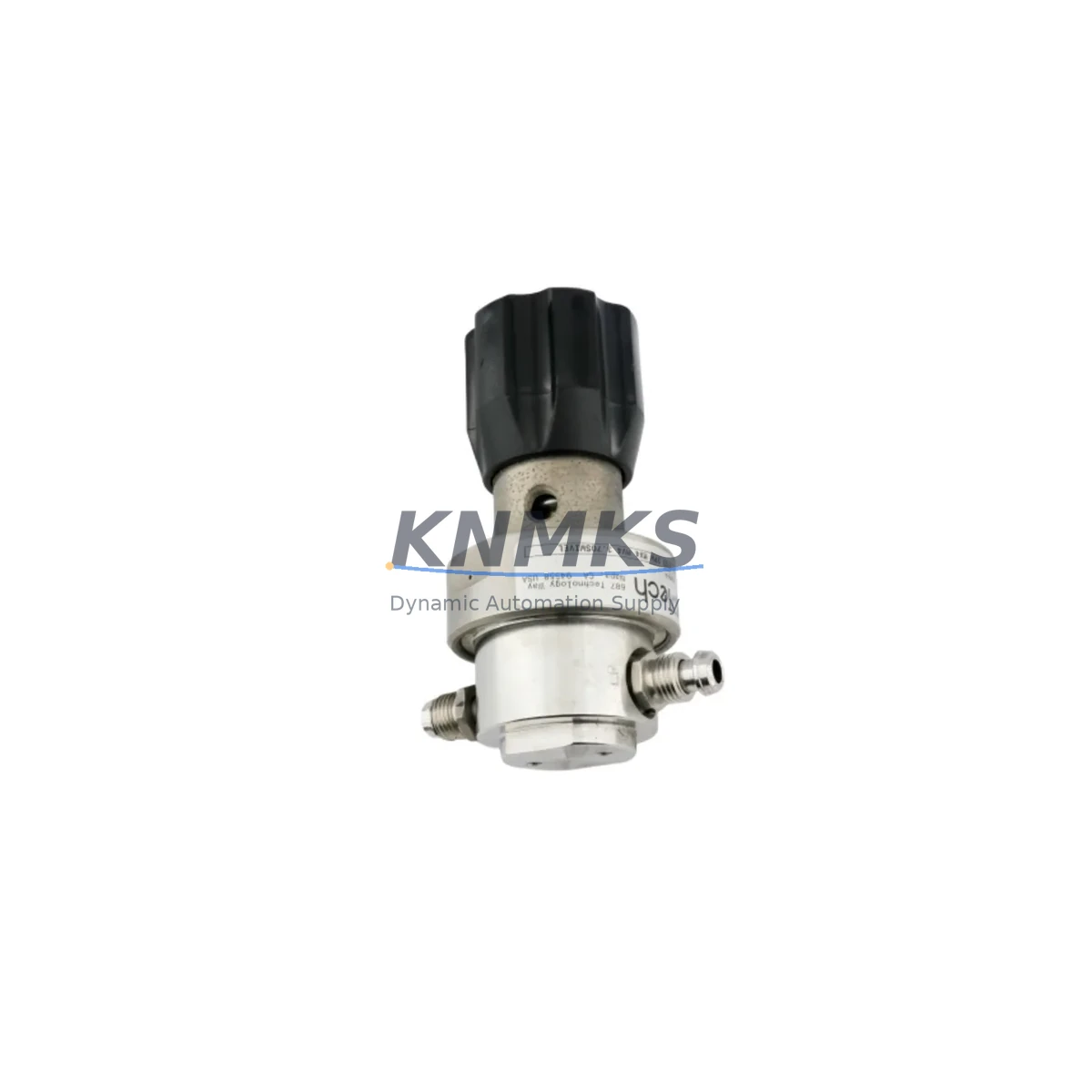

APTECH AP1510S 5PWCS MV4 Migration-Ready UHP Regulator

Overview

APTECH AP1510S 5PWCS MV4 Migration-Ready UHP Regulator: Legacy Gas Panel Retrofit & Upgrade

The APTECH AP1510S 5PWCS MV4 is a high-purity, migration-ready UHP (Ultra-High Purity) pressure regulator engineered for direct replacement and retrofit integration within legacy semiconductor gas delivery systems, specialty gas panels, and process control cabinets. Cross-referenced against OEM part numbers 02-007356D03 and 0050-26108, this regulator is a proven drop-in solution for facilities managing end-of-life gas panel components, obsolete valve manifold box (VMB) assemblies, and aging purge-and-vent circuits that no longer have active OEM support.

Designed to the APTECH AP1510S platform standard, the 5PWCS MV4 configuration integrates a 5-port welded body with a MV4 manual valve actuator arrangement and FV4 flow path geometry, making it directly compatible with existing stainless steel surface-mount tubing systems, VCR face-seal fittings, and W-seal compression connections commonly found in 200mm and 300mm fab environments. Whether you are replacing a failed regulator in a hydrogen, nitrogen, argon, or specialty corrosive gas line, or upgrading an entire gas stick to meet current process specifications, the AP1510S 5PWCS MV4 delivers the flow stability, leak integrity, and pressure control accuracy required for uninterrupted production.

Migration Compatibility Table

Retrofit Planning for Existing Automation Systems

Successful integration of the AP1510S 5PWCS MV4 into an existing gas delivery system requires a structured pre-installation review. Begin by auditing the gas panel’s current bill of materials against the regulator’s inlet pressure rating and outlet set-point range. In many legacy VMB assemblies, the AP1510S regulator is installed downstream of an APTECH AP3000 series high-pressure cylinder valve or an AP6000 series pneumatic shut-off valve, both of which must remain functional and properly sequenced during the changeover.

For panels that also incorporate an APTECH AP2000 series purge valve block or an AP4000 series check valve assembly, verify that the new regulator’s cracking pressure and back-pressure tolerance are compatible with the existing purge-and-vent logic. In systems where a mass flow controller (MFC) or thermal mass flow meter is installed downstream, confirm that the AP1510S outlet pressure stability meets the MFC’s inlet pressure specification — typically within ±0.5 psig — to avoid flow drift during process recipes.

If the gas panel includes a surface-mount filter or in-line particle trap upstream of the regulator position, inspect and replace the filter element as part of the retrofit to prevent contamination of the new regulator’s diaphragm and seat. For panels using a stainless steel gas stick rail with integrated mounting clamps, the AP1510S 5PWCS body dimensions are compatible with standard SEMI-compliant rail spacing, eliminating the need for custom brackets or adapter plates in most installations.

Where the legacy system includes a local pressure gauge or transducer tapped into the regulator outlet port, confirm that the gauge port thread specification (typically 1/4″ NPT or VCR) matches the AP1510S outlet configuration before finalizing the installation plan. Document all terminal wiring, tubing connections, and set-point values before beginning disassembly to support rapid recommissioning.

Downtime Control During System Migration

Minimizing production downtime during a UHP regulator replacement requires advance preparation and a disciplined changeover sequence. Before isolating the gas line, confirm that all upstream cylinder valves and pneumatic shut-off valves are closed and that the line has been fully depressurized and purged with an inert gas — typically nitrogen or argon — to a safe residual pressure level. Retain a copy of the original process recipe and pressure set-point log so that the replacement regulator can be configured to identical operating parameters without requiring a full process re-qualification.

For facilities operating continuous-flow processes, coordinate the regulator replacement during a scheduled preventive maintenance window or a planned recipe changeover to avoid impacting in-process wafers or active batch runs. If a parallel gas stick is available, consider routing process gas through the redundant path while the primary stick is serviced — this approach is particularly effective in N₂ purge, CDA, and inert carrier gas applications where the AP1510S is one of multiple parallel regulators feeding a common manifold.

After installing the AP1510S 5PWCS MV4, perform a helium leak test at 1.1× the maximum operating pressure before restoring gas flow. Verify the outlet set-point under no-flow and full-flow conditions, and confirm that the downstream MFC or process tool reports stable inlet pressure within specification. Log the installation date, serial number, and set-point values in the facility’s maintenance management system to support the support terms confirmed by quotation claim period and future spare parts planning.

Retrofit Support FAQ

Q1: Does the AP1510S 5PWCS MV4 directly replace OEM part numbers 02-007356D03 and 0050-26108?
Yes. The AP1510S 5PWCS MV4 is cross-referenced against both 02-007356D03 and 0050-26108 as a form-fit-function replacement. Confirm port orientation and outlet set-point range against your panel drawing before installation. All units are pre-tested prior to shipment.

Q2: What commissioning steps are required after installation?
Perform a helium leak test at operating pressure, purge the line with inert gas, and verify the outlet set-point under both no-flow and full-flow conditions. No PLC or DCS configuration changes are required for the MV4 manual actuator variant. Retain the original set-point log for recommissioning reference.

Q3: Are replacement diaphragms, seats, and repair kits available for long-term maintenance?
Yes. Spare diaphragm assemblies, seat kits, and O-ring sets compatible with the AP1510S platform are available to support long-term maintenance programs. Contact our technical team for a recommended spare parts list tailored to your gas service and annual maintenance cycle.

Q4: What support terms and stock availability does KNMKS provide?
All AP1510S 5PWCS MV4 units supplied by KNMKS carry a support terms confirmed by quotation from the date of shipment, covering manufacturing defects and functional performance. Stock is maintained across regional distribution hubs to support urgent replacement requirements with short lead times. Contact [email protected] for current inventory status and expedited shipping options.
