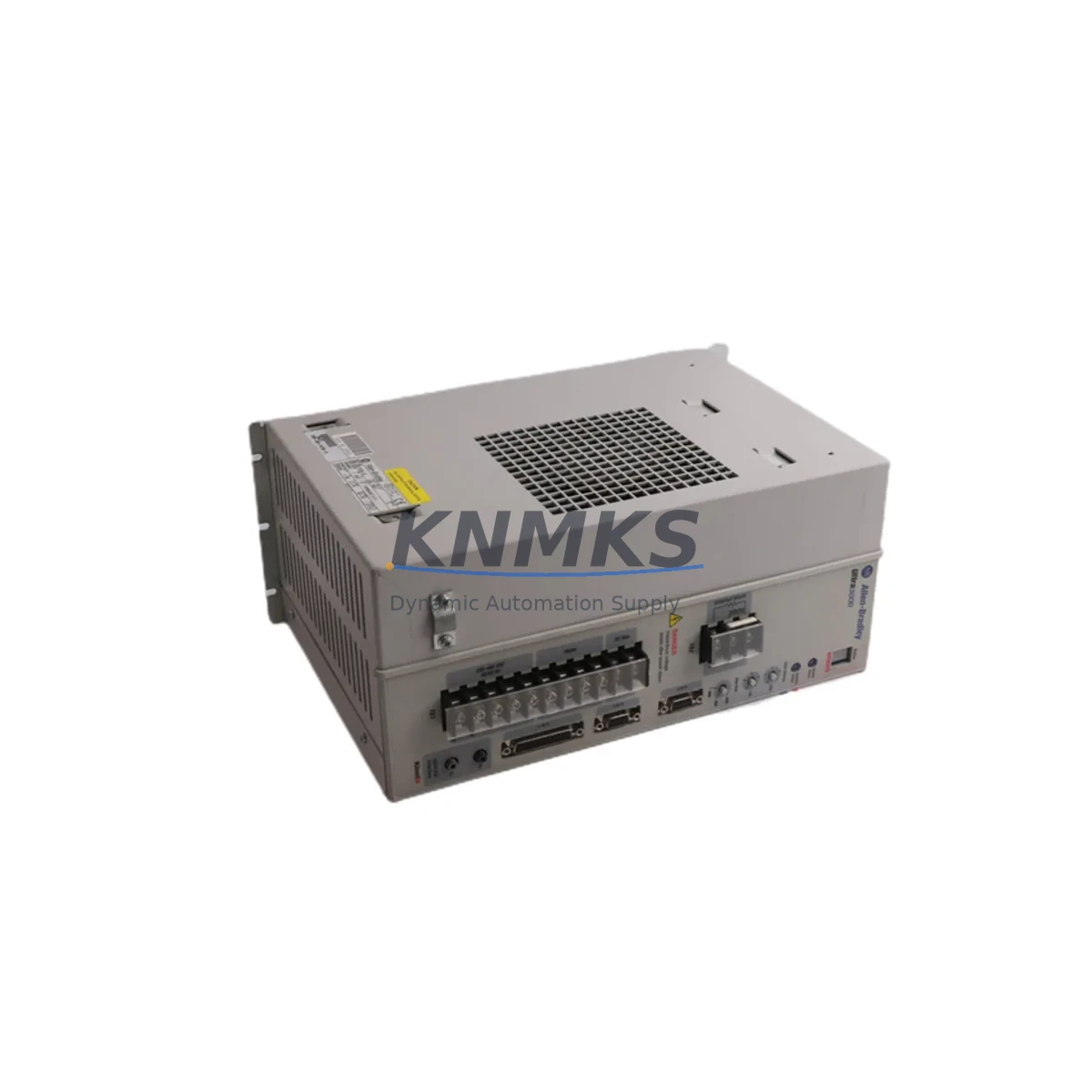

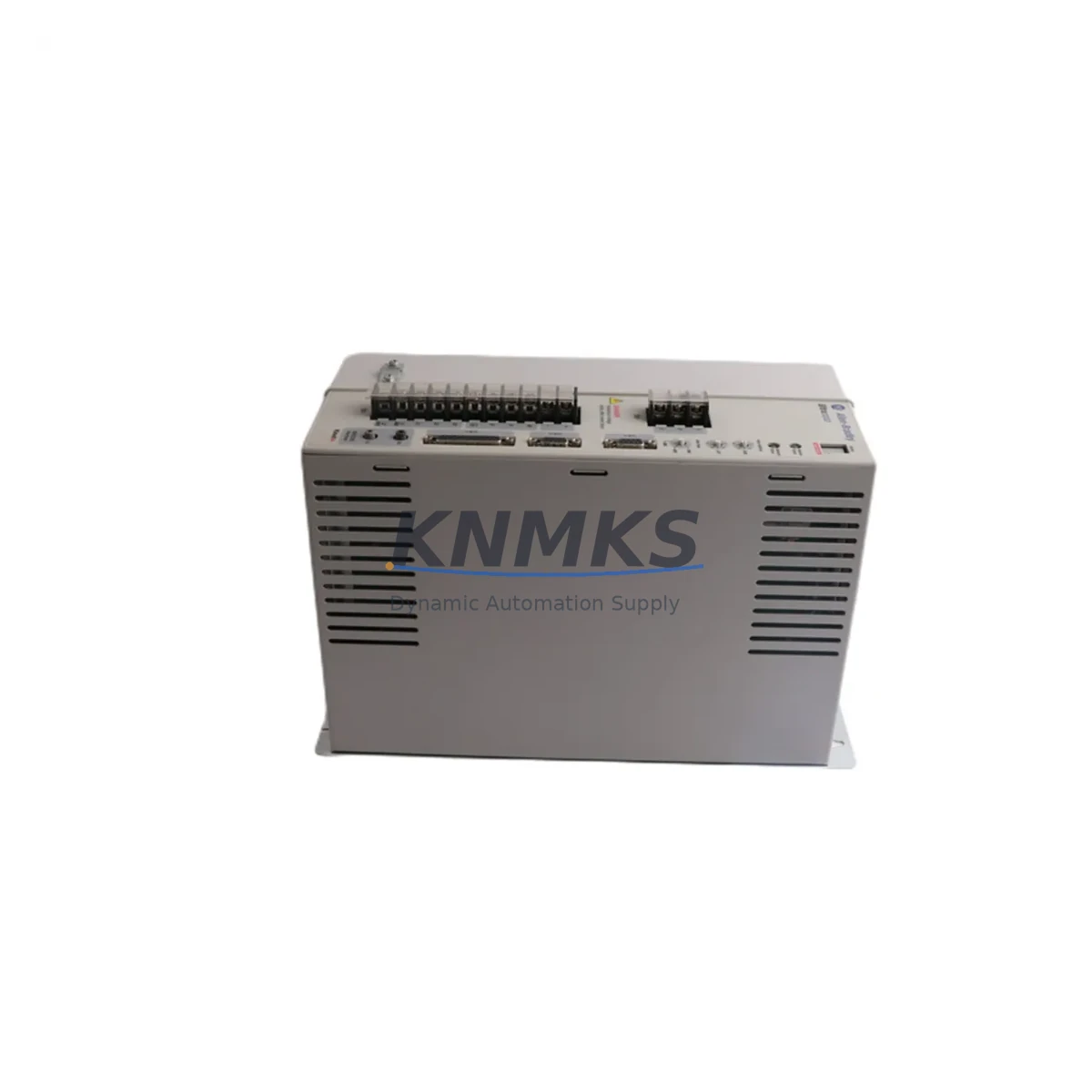

Allen-Bradley 2098-DSD-HV150-SE Fail-Safe Servo Drive

Overview

Allen-Bradley 2098-DSD-HV150-SE Fail-Safe Servo Drive: Critical Industrial Control Reliability

The Allen-Bradley 2098-DSD-HV150-SE is a high-voltage, safety-enhanced digital servo drive from Rockwell Automation’s Ultra3000 series, engineered for demanding industrial environments where control interruption, motion fault, or unplanned downtime carries serious operational and safety consequences. Rated at 150A continuous output and designed for SERCOS interface communication, this drive delivers deterministic, fail-safe servo motion control across the most challenging field conditions — from petrochemical processing lines and power generation facilities to heavy metallurgical plants and continuous manufacturing operations.

In critical industrial control cabinets, servo drives are among the most failure-sensitive components. The 2098-DSD-HV150-SE addresses this directly through its integrated safety architecture, which supports Safe Torque Off (STO) functionality in compliance with IEC 61800-5-2 safety requirements. This means that in the event of an emergency stop or safety relay activation, the drive can immediately remove torque from the motor without requiring a full system power-down — dramatically reducing the risk of uncontrolled motion, mechanical damage, or personnel hazard. When paired with a GuardLogix safety PLC or a 1756-L safety controller, the STO channel can be integrated directly into the machine safety circuit, enabling a coherent, auditable safety loop across the entire control architecture.

Signal integrity is a persistent challenge in high-power industrial environments. The 2098-DSD-HV150-SE is built to maintain stable SERCOS fiber-optic communication even in the presence of strong electromagnetic interference generated by variable frequency drives, large contactors, welding equipment, and high-current bus systems. Unlike copper-based fieldbus solutions, the SERCOS fiber ring eliminates ground loop issues and EMI-induced signal drift — a critical advantage in steel mills, port crane control systems, and mining hoists where cable runs are long and electrical noise is severe. The drive’s internal filtering and shielded power stage further suppress conducted and radiated emissions, protecting adjacent modules such as the 1756-IB16 digital input module or 1756-OB16E output module from interference-induced false triggering.

Thermal management is another key reliability factor in enclosed control cabinets. The 2098-DSD-HV150-SE incorporates internal thermal monitoring with configurable fault thresholds, allowing the control system to detect cabinet overheating conditions before they cause drive failure or insulation breakdown. In high-ambient or poorly ventilated enclosures — common in tropical processing plants, underground mining installations, and outdoor substations — this proactive thermal protection prevents the cascading failures that result from thermal runaway. Operators can configure warning and fault limits through RSLogix 5000 or Studio 5000 Logix Designer, integrating thermal status into the broader SCADA or DCS alarm management framework.

Power quality in industrial facilities is rarely ideal. Voltage sags, surges, and transient spikes caused by large motor starts, capacitor bank switching, or utility grid disturbances can destabilize servo drives and corrupt motion profiles. The 2098-DSD-HV150-SE is designed with robust DC bus capacitance and internal surge suppression to ride through short-duration voltage disturbances without faulting or losing position reference. When used alongside a 2094-BC04-M02-S Kinetix 6000 power rail or a dedicated line filter module, the drive’s immunity to power-line disturbances is further enhanced, ensuring that a momentary grid event does not translate into a production stoppage or a safety interlock reset sequence.

For facilities operating under IEC 62061 or ISO 13849 functional safety standards, the 2098-DSD-HV150-SE provides the documentation and safety data necessary for SIL 2 / PLd safety function validation. Its safety parameters — including STO response time, probability of dangerous failure per hour (PFHd), and proof test interval — are published in Rockwell Automation’s safety reference documentation, enabling safety engineers to complete SISTEMA calculations and functional safety assessments without ambiguity. This is particularly valuable in pharmaceutical batch processing, chemical reactor control, and automated press lines where regulatory compliance and machine safety certification are mandatory.

Fail-Safe Reliability Table

Control Cabinet Protection Strategy

A reliable servo control cabinet built around the 2098-DSD-HV150-SE requires a coordinated selection of protection, power, and communication components. The drive is typically powered through a 2094-BC04-M02-S Kinetix 6000 power rail, which provides a shared DC bus architecture that improves energy efficiency during regenerative braking and reduces the risk of individual drive power supply failure. Cabinet-level surge protection is best achieved by installing a 1492-SPM series surge protective device on the incoming AC feed, clamping transient overvoltages before they reach the drive’s rectifier stage.

On the safety circuit side, the STO input of the 2098-DSD-HV150-SE is typically wired through a 440R-N23132 GuardMaster safety relay or directly controlled by a 1756-L73S GuardLogix safety controller, which monitors E-stop buttons, light curtains, and interlocked gate switches. This creates a certified, redundant safety loop that satisfies PLd / SIL 2 requirements without additional external safety modules. For communication integrity across the SERCOS ring, the 1756-M08SE SERCOS motion module serves as the network master, coordinating position and velocity commands to the 2098-DSD-HV150-SE and other axes in the system with microsecond-level synchronization.

Cabinet thermal management is supported by integrating a 1492-CABLE series pre-wired I/O cable assembly for clean, low-resistance wiring that minimizes heat generation at termination points, combined with a properly sized cabinet cooling unit or heat exchanger. For facilities requiring remote diagnostics, the 1783-NATR NAT router enables secure remote access to the ControlLogix backplane, allowing maintenance engineers to monitor drive status, fault logs, and thermal data without physical cabinet access — a significant safety advantage in hazardous area installations.

Critical Industrial Safety Applications

Petrochemical and Refinery Plants: In continuous process environments where servo-driven valve actuators, extruder drives, and compressor control systems must operate without interruption, the 2098-DSD-HV150-SE’s STO function and SERCOS communication reliability ensure that a single component fault does not cascade into a process upset or safety system activation. The drive’s ability to maintain position hold during brief power disturbances is critical for reactor feed control and high-pressure pump management.

Power Generation and Substation Automation: Turbine governor control, cooling tower fan drives, and coal handling conveyor systems in power plants demand servo drives that can withstand high ambient temperatures, vibration from rotating machinery, and the electromagnetic environment of high-voltage switchgear. The 2098-DSD-HV150-SE’s robust construction and fiber-optic SERCOS interface make it a reliable choice for these applications.

Mining and Mineral Processing: Underground mining hoists, conveyor belt tensioning systems, and ore crusher drives operate in environments with extreme dust, moisture, vibration, and electrical noise. The drive’s internal protection features and compatibility with GuardLogix safety systems support the stringent safety requirements of mining regulations, including controlled deceleration and safe stop functions for personnel protection.

Water and Wastewater Treatment: Pump station control, sluice gate actuation, and aeration system drives in water treatment facilities require long-term reliability with minimal maintenance intervention. The 2098-DSD-HV150-SE’s diagnostic capabilities and support terms confirmed by quotation-backed quality assurance support the extended service intervals required in remote or unmanned pump stations.

Metallurgy and Steel Production: Rolling mill drives, ladle transfer cars, and continuous casting machine servo axes operate under extreme thermal and mechanical stress. The drive’s high continuous current rating of 150A and robust DC bus design make it suitable for the high-inertia, high-torque demands of heavy metal processing equipment.

Port and Marine Crane Systems: Container crane hoisting, trolley, and gantry drives require precise motion control with fail-safe stopping capability. The STO function of the 2098-DSD-HV150-SE ensures that in the event of a control system fault or operator emergency stop, crane motion is arrested safely without mechanical brake shock loading.

Safety and Quality FAQ

Q1: What does the support terms confirmed by quotation cover for the 2098-DSD-HV150-SE?
The support terms confirmed by quotation cover all manufacturing defects, component failures, and functional faults identified under normal operating conditions. Every unit undergoes pre-shipment functional testing, including power-on verification, SERCOS communication check, and STO channel validation, before dispatch. Support requests are supported with direct technical assistance and replacement unit provision.

Q2: How is the 2098-DSD-HV150-SE tested before shipment?
Each unit is subjected to a multi-point inspection protocol covering input/output power stage integrity, SERCOS fiber interface functionality, STO safety channel response, thermal sensor calibration, and firmware version verification. Test records are available upon request for quality-critical procurement processes.

Q3: Is the 2098-DSD-HV150-SE compatible with existing Ultra3000 and ControlLogix installations?
Yes. The 2098-DSD-HV150-SE is fully compatible with existing Ultra3000 series infrastructure, ControlLogix and GuardLogix backplane systems, and SERCOS motion modules including the 1756-M08SE. Firmware compatibility should be verified against the installed RSLogix 5000 / Studio 5000 version prior to installation, and Rockwell Automation’s product compatibility matrix is recommended for multi-axis system validation.

Q4: Can long-term supply and spare parts availability be guaranteed?
We maintain dedicated inventory of the 2098-DSD-HV150-SE to support ongoing spare parts programs, planned maintenance schedules, and emergency replacement requirements. For facilities with critical uptime requirements, we recommend establishing a consignment stock or scheduled replenishment agreement to ensure zero lead-time availability during unplanned outages.

© 2026 KNMKS. All rights reserved.
Original Source: https://knmks.com
Contact: admin@knmks.com | +86 18359268345

Product Identification

Brand / Ecosystem

Allen-Bradley
Allen-Bradley

Model / Series

2098-DSD-HV150-SE

Product Family

Servo Systems

Availability Status

Available on request after model and quantity confirmation

Inquiry Type

B2B RFQ, replacement inquiry and project spare-part request

Pre-Quote Check

Exact SKU, brand, series, quantity, nameplate photos and destination country are checked before quotation

Specification & Inquiry Focus

Motion range

Servo drives, motors and cable sets

Common needs

Power, encoder and brake confirmation

Project support

Motion upgrade and spare-part supply

Inquiry Support

• Motor, drive and cable set coordination
• Power rating and encoder type checking
• Motion control replacement support

What to Send Us

• Brand and exact model number: Allen-Bradley 2098-DSD-HV150-SE
• Quantity and required delivery time
• Application, replacement requirement or nameplate photo
• Destination country and shipping preference
