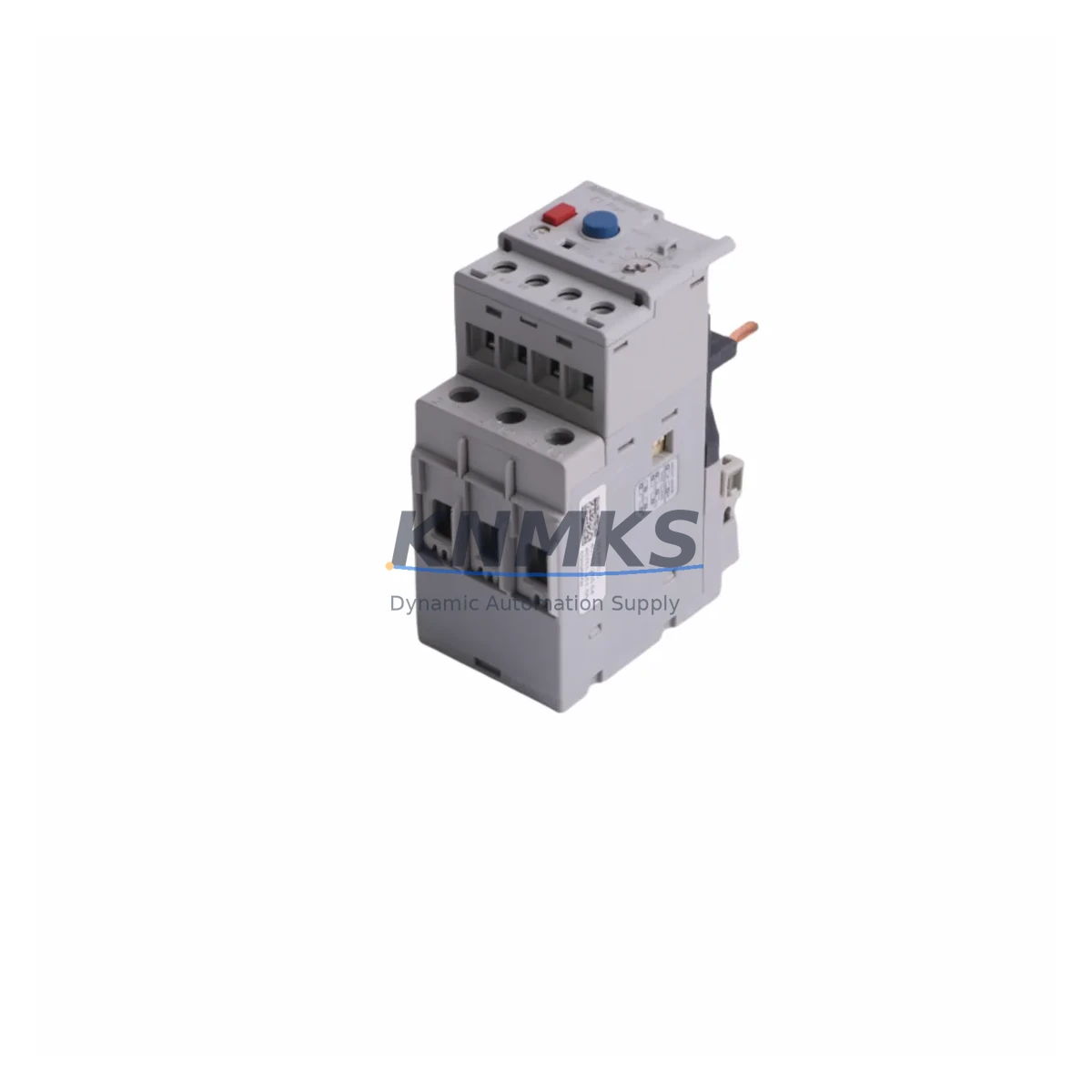

Allen-Bradley 193-EEFD Fail-Safe Electronic Overload Relay

Overview

Allen-Bradley 193-EEFD Fail-Safe Electronic Overload Relay: Fault Protection and Critical Industrial Field Reliability

The Allen-Bradley 193-EEFD is a high-performance electronic overload relay from the E3 Plus series, engineered to deliver fail-safe motor protection in the most demanding industrial control environments. Designed for integration with DeviceNet communication networks, this relay provides real-time diagnostics, precise current monitoring, and deterministic trip response — all critical capabilities for continuous production lines, safety interlocks, and heavy-duty motor control centers where unplanned downtime carries severe operational and safety consequences.

In industrial facilities where motors drive compressors, conveyors, pumps, fans, and agitators around the clock, the 193-EEFD acts as the last line of defense against overload-induced motor failure. Its solid-state sensing technology eliminates the thermal memory drift and mechanical wear associated with traditional bimetallic relays, ensuring consistent trip accuracy across wide ambient temperature ranges — from cold storage environments to high-temperature process areas near furnaces or steam lines. Whether installed in a petrochemical control cabinet, a water treatment motor control center (MCC), or a mining hoist panel, the 193-EEFD maintains reliable protection without nuisance tripping or delayed fault response.

The relay’s DeviceNet interface enables seamless integration with Allen-Bradley PLC platforms such as the ControlLogix and CompactLogix families, allowing plant engineers to monitor motor current, trip history, and fault codes directly from the HMI or SCADA system. This connectivity eliminates the need for manual panel inspections and supports predictive maintenance strategies — reducing the risk of undetected overloads, phase imbalance, ground faults, and stall conditions that could otherwise escalate into catastrophic motor burnout or process shutdown.

In high electromagnetic interference (EMI) environments — such as those near variable frequency drives (VFDs), large transformer banks, or arc furnaces — the 193-EEFD’s robust shielded design and noise-immune DeviceNet communication maintain signal integrity and trip accuracy. When paired with Allen-Bradley 100-C series contactors and 140M motor protection circuit breakers, the complete motor starter assembly provides coordinated protection across the full fault current range, from locked rotor to short circuit. The addition of a 1492-CABLE DeviceNet drop cable and a 1606-XLP power supply ensures clean, stable bus power to the relay and associated I/O modules, further reducing the risk of spurious trips caused by power rail noise or voltage sag.

For facilities operating in dusty, humid, or chemically aggressive atmospheres — including cement plants, fertilizer production, offshore platforms, and pulp and paper mills — the 193-EEFD’s sealed electronics and conformal-coated PCB provide reliable insulation resistance and corrosion protection. Its wide operating temperature range and vibration tolerance make it equally suitable for mobile equipment, ship engine rooms, and port crane control panels where mechanical shock and thermal cycling are constant challenges.

From a supply chain and maintenance perspective, the 193-EEFD is a stocked, ready-to-ship spare part available for emergency replacement with same-day dispatch. Each unit undergoes pre-shipment functional testing — including trip current verification, communication handshake validation, and insulation resistance checks — before leaving our facility. A support terms confirmed by quotation cover all units against manufacturing defects and premature failure, giving maintenance engineers and procurement teams the confidence to hold this relay as a critical spare without risk of shelf degradation.

Fail-Safe Reliability Table

Control Cabinet Protection Strategy

A robust motor control cabinet built around the 193-EEFD relies on a coordinated assembly of protection, control, and communication components. The Allen-Bradley 100-C series contactor provides the primary switching element, rated for millions of operations and designed for direct mechanical coupling with the E3 Plus relay — eliminating the need for separate mounting adapters and reducing cabinet footprint. Upstream, the 140M motor protection circuit breaker delivers short-circuit and manual isolation capability, forming a fully coordinated Type 2 protection assembly that meets IEC 60947-4-1 requirements for fault current withstand.

Power quality within the cabinet is maintained by the 1606-XLP series power supply, which delivers regulated 24 VDC to the DeviceNet bus and associated I/O modules with active power factor correction and wide-range AC input tolerance — critical in facilities where incoming voltage fluctuates due to large motor starts or grid instability. The DeviceNet trunk and drop cabling, including 1492-CABLE assemblies, must be properly terminated and shielded to prevent bus reflections and communication errors that could mask a genuine fault condition or trigger false trips in the 193-EEFD.

For safety interlock circuits, the 193-EEFD’s auxiliary contact outputs can be wired into a safety relay module or a GuardLogix safety PLC to ensure that a motor trip event is immediately reflected in the safety logic layer — preventing automatic restart without operator acknowledgment. This architecture is particularly important in applications such as conveyor systems, hoists, and rotating machinery where unexpected motor restart after a fault could endanger personnel or damage equipment. The combination of the 193-EEFD with a 440C-CR30 safety relay or a 1791DS safety I/O module creates a complete, IEC 62061-compliant safety function for motor control.

Critical Industrial Safety Applications

The Allen-Bradley 193-EEFD is deployed across a wide range of critical industrial sectors where motor protection directly impacts process safety and production continuity. In petrochemical and refinery environments, it protects the motors driving boiler feed pumps, cooling water pumps, and compressor trains — where a single undetected overload can trigger a process upset, emergency shutdown, or fire and gas alarm. The relay’s ground fault detection capability is particularly valuable in these environments, where insulation degradation in motor windings due to heat, moisture, or chemical exposure is a leading cause of motor failure.

In electric power generation and transmission facilities, the 193-EEFD protects auxiliary motors on turbine lube oil systems, cooling fans, and excitation equipment. Its fast trip response and phase loss detection prevent the cascading failures that can occur when a single-phase condition goes undetected in a three-phase motor — a scenario that can destroy a motor winding within minutes and force an unplanned unit outage lasting days or weeks.

Mining and mineral processing operations rely on the 193-EEFD to protect the high-inertia motors driving ball mills, crushers, and conveyor drives. In these applications, the relay’s programmable trip class and jam detection function allow engineers to fine-tune protection settings to match the specific load profile of each motor — avoiding nuisance trips during normal high-inertia starts while ensuring rapid response to genuine locked-rotor or mechanical jam conditions.

Water and wastewater treatment plants use the 193-EEFD in pump motor control centers, where reliable overload protection prevents pump motor burnout during low-flow or dry-run conditions. Port and terminal operations deploy it in crane and hoist motor control panels, where the relay’s vibration tolerance and wide temperature range ensure reliable operation in outdoor, marine-influenced environments. Metallurgical and steel plants integrate it into rolling mill and furnace fan drives, where high ambient temperatures and heavy electromagnetic interference from induction furnaces demand a relay with proven EMI immunity and thermal stability.

Safety and Quality FAQ

Q: What does the support terms confirmed by quotation cover for the 193-EEFD?
A: The support terms confirmed by quotation cover all manufacturing defects, component failures, and premature functional degradation under normal operating conditions. It applies from the date of shipment and includes replacement or repair at no additional cost. Support requests are processed promptly to minimize downtime impact on your facility.

Q: What pre-shipment tests are performed on each 193-EEFD unit?
A: Every unit undergoes a multi-point pre-shipment inspection that includes trip current accuracy verification across all programmed trip classes, DeviceNet communication handshake and node address confirmation, insulation resistance measurement between power terminals and ground, and visual inspection for physical damage or connector integrity. Test records are available upon request.

Q: Is the 193-EEFD compatible with my existing Allen-Bradley motor starter assembly?
A: The 193-EEFD is designed for direct mounting on Allen-Bradley 100-C series IEC contactors and integrates with ControlLogix and CompactLogix PLC platforms via DeviceNet. Compatibility with specific contactor frame sizes and DeviceNet scanner modules should be verified against the E3 Plus selection guide. Our technical team can assist with compatibility confirmation before shipment.

Q: Can you guarantee long-term supply availability for the 193-EEFD as a critical spare?
A: Yes. The 193-EEFD is maintained as a stocked item with multi-region inventory to support emergency replacement and planned maintenance programs. We support long-term supply agreements for facilities that require guaranteed availability of critical motor protection spares, with lead time commitments and priority dispatch for emergency orders.

© 2026 KNMKS. All rights reserved.
Original Source: https://knmks.com
Contact: admin@knmks.com | +86 18359268345

Product Identification

Brand / Ecosystem

Allen-Bradley
Allen-Bradley

Model / Series

193-EEFD

Product Family

Servo Systems

Availability Status

Available on request after model and quantity confirmation

Inquiry Type

B2B RFQ, replacement inquiry and project spare-part request

Pre-Quote Check

Exact SKU, brand, series, quantity, nameplate photos and destination country are checked before quotation

Specification & Inquiry Focus

Motion range

Servo drives, motors and cable sets

Common needs

Power, encoder and brake confirmation

Project support

Motion upgrade and spare-part supply

Inquiry Support

• Motor, drive and cable set coordination
• Power rating and encoder type checking
• Motion control replacement support

What to Send Us

• Brand and exact model number: Allen-Bradley 193-EEFD
• Quantity and required delivery time
• Application, replacement requirement or nameplate photo
• Destination country and shipping preference
