Allen-Bradley 1492-ACABLE010TB Migration-Ready Cable

Overview

Allen-Bradley 1492-ACABLE010TB Migration-Ready Cable: Legacy System Retrofit & Compatibility Upgrade

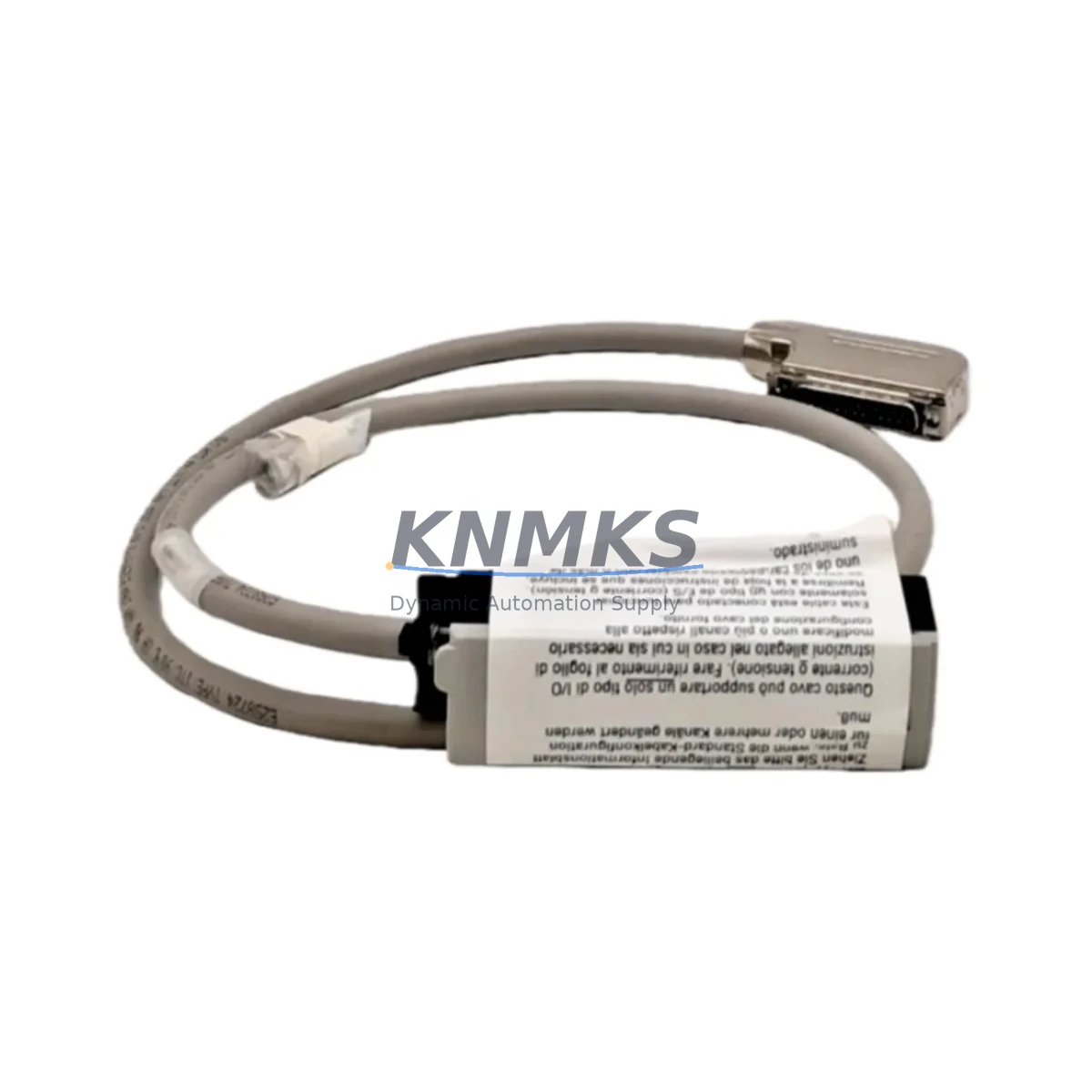

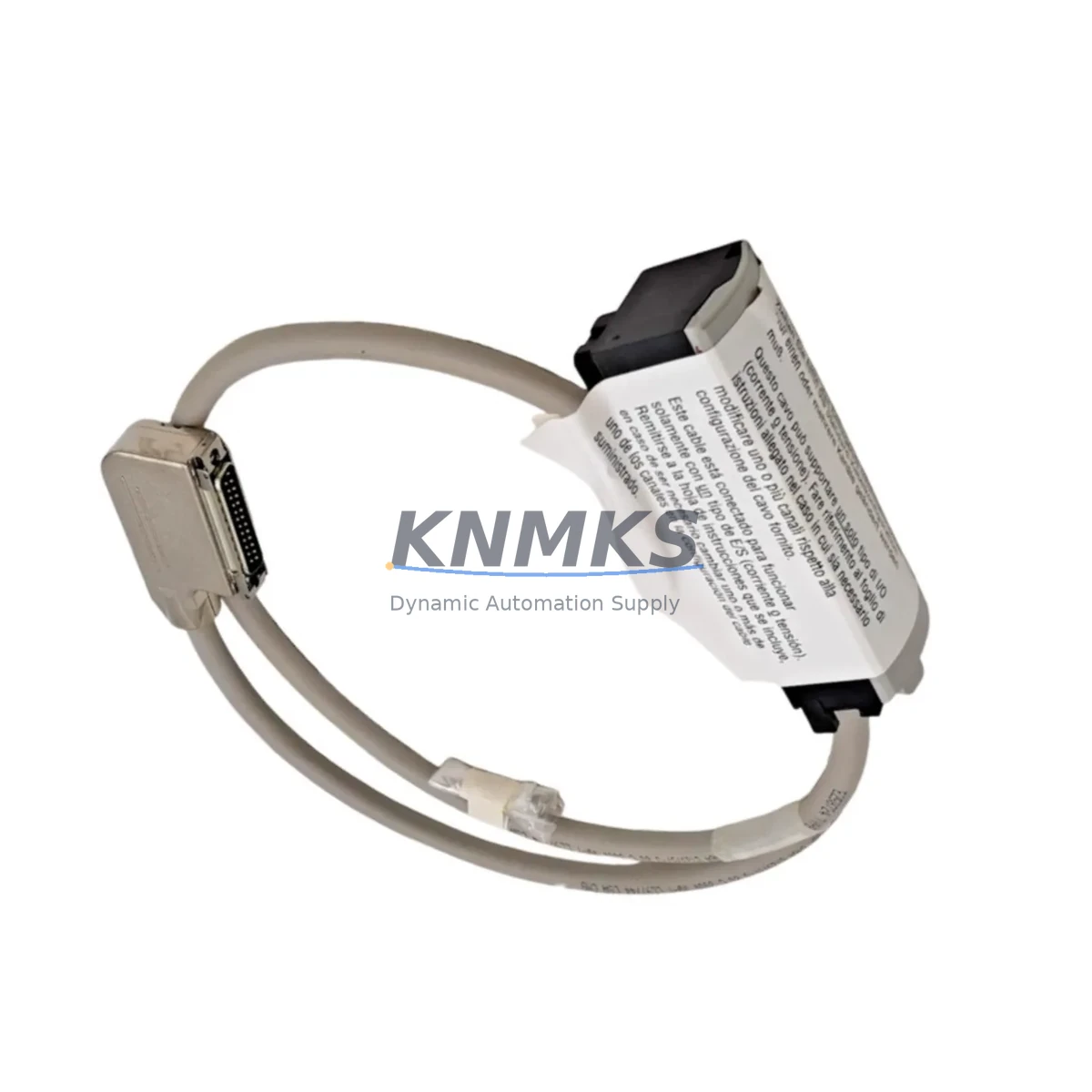

The Allen-Bradley 1492-ACABLE010TB is a 1.0-meter analog pre-wired cable assembly engineered for direct integration with the 1492 Series I/O wiring system. Designed as a migration-ready solution, this cable enables engineers to replace discontinued wiring harnesses, upgrade aging control cabinets, and restore signal integrity in legacy ControlLogix and CompactLogix automation platforms without redesigning terminal block layouts or rewriting I/O address maps. Whether you are executing a planned system modernization or responding to an unplanned component failure, the 1492-ACABLE010TB provides a verified drop-in replacement path that minimizes engineering rework and reduces commissioning time on the plant floor.

In legacy system retrofit projects, the 1492-ACABLE010TB is commonly deployed alongside the 1492-AIFM8-F-5 analog interface module and the 1492-AIFM8F-3 field-side wiring module, which together form a complete analog signal conditioning and termination assembly. When upgrading from older 1771 PLC-5 platforms to current ControlLogix 1756 chassis, engineers frequently pair this cable with the 1756-IF8 analog input module and the 1756-OF8 analog output module to maintain channel-for-channel signal mapping. For installations requiring extended cable runs or signal isolation between field instruments and the control rack, the 1492-ACABLE010TB is also used in conjunction with signal isolators and loop-powered transmitter barriers mounted within the same control cabinet.

Migration Compatibility Table

Retrofit Planning for Existing Automation Systems

Successful integration of the 1492-ACABLE010TB into an existing control system requires a structured pre-installation review. Before removing the legacy cable assembly, engineers should document the existing terminal block wiring diagram, confirm the analog channel address assignments in the Logix Designer project file, and verify that the replacement cable’s conductor color coding matches the field instrument wiring convention used at the site. In multi-rack ControlLogix systems, the 1756-IF8 analog input module slot assignment must be confirmed against the I/O tree in the controller project to prevent address conflicts after the cable swap.

For control cabinets that house both the 1492 AIFM interface module and field-side terminal blocks, the physical cable routing path should be measured before ordering to confirm that the 1.0-meter length of the 1492-ACABLE010TB is sufficient. In installations where the AIFM module is mounted on a separate DIN rail section from the I/O chassis, a longer cable variant may be required. Engineers should also inspect the backplane connector on the 1756 chassis for signs of oxidation or mechanical wear before installing the new cable, as backplane contact integrity directly affects analog signal accuracy.

When the retrofit involves migrating from a 1771 PLC-5 analog I/O rack to a ControlLogix 1756 platform, the 1492-ACABLE010TB is typically installed as part of a broader I/O migration kit that includes the 1756-IF8 input module, the 1756-OF8 output module, and the corresponding AIFM interface modules. In these projects, the programming team must remap all analog scaling blocks in the new Logix 5000 project to match the engineering unit ranges previously configured in the PLC-5 program. HMI screen tag bindings referencing legacy analog addresses must also be updated in the FactoryTalk View or PanelView application before the system is returned to automatic control.

Downtime Control During System Migration

Minimizing unplanned downtime during a cable replacement or I/O migration project requires careful sequencing of mechanical, electrical, and software tasks. For the 1492-ACABLE010TB installation, the recommended approach is to complete all pre-wiring verification steps — including terminal continuity checks and shield isolation tests — before the scheduled maintenance window begins. This allows the physical cable swap to be completed within a single shift, reducing the risk of extended production interruption.

Where process continuity is critical, engineers should consider placing the affected analog input channels in manual override mode within the DCS or PLC program before disconnecting the legacy cable. This preserves the last known process value in the controller memory and prevents nuisance alarms or spurious control actions during the wiring transition. After the 1492-ACABLE010TB is installed and terminal connections are torqued to specification, a channel-by-channel signal verification test should be performed using a calibrated loop calibrator before returning the I/O module to automatic scan. Firmware version compatibility between the 1756-IF8 module and the ControlLogix controller should also be confirmed in the Rockwell Automation Product Compatibility and Download Center prior to the maintenance window to avoid unexpected module faults during startup.

All replacement cables supplied by KNMKS undergo pre-shipment continuity and insulation resistance testing. Each unit is shipped with a test record confirming that the cable assembly meets the original Allen-Bradley specification for the 1492 Series wiring system, supporting a faster and more confident commissioning process on site.

Retrofit Support FAQ

Q1: Is the 1492-ACABLE010TB a direct replacement for the discontinued 1492-ACABLE010T?
Yes. The 1492-ACABLE010TB is the current production replacement for the 1492-ACABLE010T. The connector interface, conductor count, and terminal block compatibility are identical. No wiring modifications are required for a direct swap in existing 1492 AIFM installations.

Q2: What commissioning steps are required after installing the 1492-ACABLE010TB?
After installation, verify terminal polarity at both the AIFM module end and the field instrument end. Perform a loop calibration check on each analog channel using a calibrated signal source. Confirm that the analog input values displayed in Logix Designer match the expected engineering unit range before returning the module to automatic control.

Q3: Can this cable be used in a 1769 CompactLogix system?
Yes, provided the system uses a compatible 1492 AIFM interface module matched to the CompactLogix analog I/O module in use. Verify the specific AIFM part number against the CompactLogix analog module catalog number before ordering to confirm cable-to-module compatibility.

Q4: What is the support terms coverage and lead time for the 1492-ACABLE010TB?
All units supplied by KNMKS carry a support terms confirmed by quotation covering manufacturing defects and signal integrity. Stock is maintained for immediate dispatch. Orders placed before the daily cut-off time are typically shipped the same business day. Contact admin@knmks.com or call +86 18359268345 to confirm current inventory availability and lead time for your project.

© 2026 KNMKS. All rights reserved.
Original Source: https://knmks.com
Contact: admin@knmks.com | +86 18359268345

Product Identification

Brand / Ecosystem

Allen-Bradley
Allen-Bradley

Model / Series

1492-ACABLE010TB
ControlLogix Series

Product Family

Cables & Connectors

Availability Status

Available on request after model and quantity confirmation

Inquiry Type

B2B RFQ, replacement inquiry and project spare-part request

Pre-Quote Check

Exact SKU, brand, series, quantity, nameplate photos and destination country are checked before quotation

Specification & Inquiry Focus

Cable range

Sensor, servo, network and circular connectors

Common needs

Length, pin count, shielding and plug type

Project support

Machine wiring and installation kits

Inquiry Support

• Cable length and connector type confirmation
• Servo, sensor and network cable inquiry
• Accessory kits for installation teams

What to Send Us

• Brand and exact model number: Allen-Bradley 1492-ACABLE010TB
• Quantity and required delivery time
• Application, replacement requirement or nameplate photo
• Destination country and shipping preference
