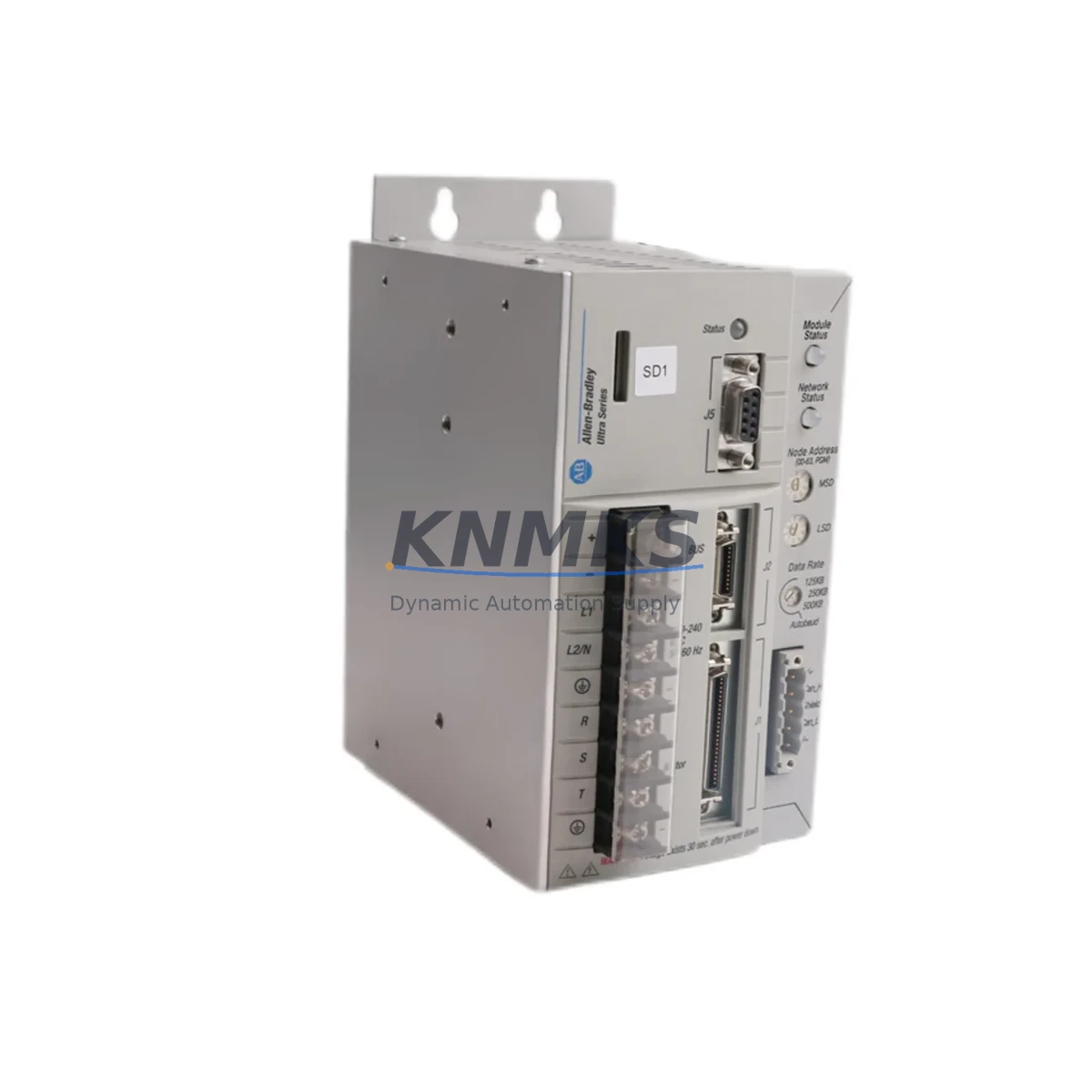

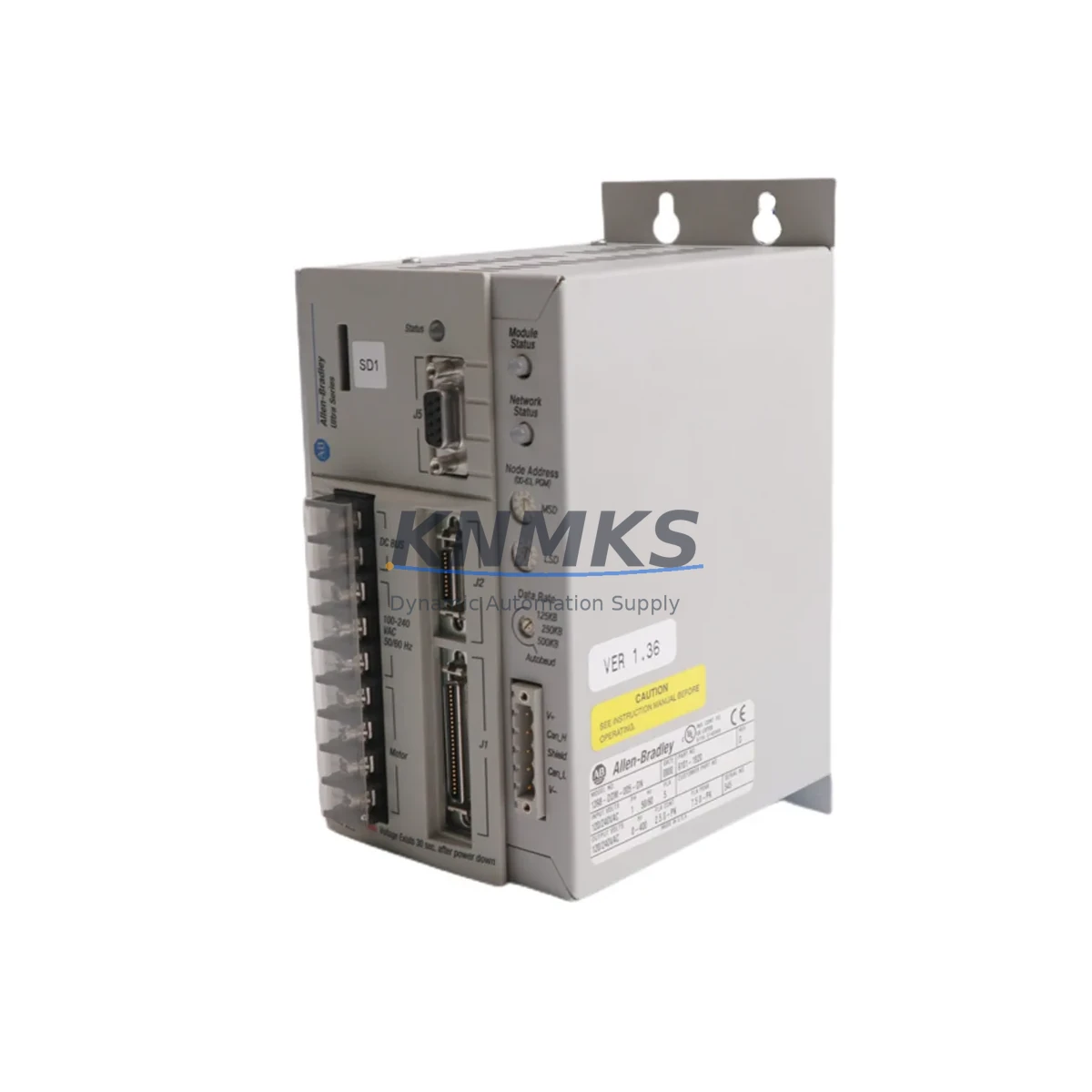

Allen-Bradley 1398-DDM-005-DN Fail-Safe Servo Drive

Overview

Allen-Bradley 1398-DDM-005-DN Fail-Safe Servo Drive: Fault-Protected Reliability for Critical Industrial Control

The Allen-Bradley 1398-DDM-005-DN is a 5-Amp DeviceNet-enabled servo drive from the renowned ULTRA Series platform, engineered specifically for demanding industrial automation environments where control interruption, signal drift, and unplanned downtime carry serious operational and safety consequences. Designed to meet the rigorous requirements of continuous production lines, critical interlock circuits, and high-load control cabinets, this drive delivers fail-safe servo motion control with robust fault detection, EMI immunity, and stable closed-loop performance across a wide range of hazardous field conditions.

In petrochemical, power generation, mining, water treatment, metallurgical, and port logistics applications, servo drives are the last line of defense against uncontrolled actuator movement. The 1398-DDM-005-DN integrates hardware-level fault protection that immediately halts axis motion upon detection of overcurrent, overvoltage, encoder loss, or communication timeout — preventing equipment damage and protecting personnel in safety-critical zones. Its DeviceNet fieldbus interface ensures deterministic, real-time command and feedback exchange within the control architecture, minimizing latency-induced positioning errors that could compromise process integrity.

The drive’s internal EMI filtering and shielded signal architecture make it particularly well-suited for high-electromagnetic-interference environments such as variable-frequency drive (VFD) cabinets, arc welding cells, and high-power motor control centers. When deployed alongside the Allen-Bradley 1398-DDM-010-DN (10A variant) or the 1398-DDM-019-DN (19A variant) in multi-axis gantry or coordinated motion systems, the 1398-DDM-005-DN maintains synchronization integrity even under transient surge conditions — a critical requirement in continuous casting lines and precision assembly stations.

For control cabinet protection, the 1398-DDM-005-DN is commonly paired with the Allen-Bradley 1398-PDM-075 power distribution module, which provides regulated DC bus power and surge suppression to the drive rack. Upstream, a 1606-XLP power supply or equivalent industrial-grade 24VDC source ensures stable logic-level voltage, preventing nuisance faults caused by power rail fluctuation during motor acceleration or regenerative braking events. In DeviceNet network topologies, the drive operates reliably alongside 1769-SDN Scanner modules and 1747-SDN DeviceNet Scanner cards, enabling centralized diagnostics and fault logging through the ControlLogix or SLC 500 controller platform.

In dusty, humid, or high-vibration environments — such as cement plants, offshore platforms, or underground mining conveyors — the drive’s sealed connector interface and conformal-coated PCB assembly resist moisture ingress and particulate contamination that would otherwise cause intermittent faults or premature component failure. The thermal management design supports continuous operation at elevated ambient temperatures, reducing the risk of cabinet overheating that frequently leads to unplanned shutdowns in poorly ventilated enclosures.

Replacement and spare-parts logistics are fully supported. Each unit shipped by KNMKS undergoes pre-delivery functional testing including axis enable verification, DeviceNet node commissioning, and fault code clearance — ensuring the drive is field-ready upon arrival. With 12 months of support terms coverage and guaranteed long-term stock availability, the 1398-DDM-005-DN is a dependable choice for both new installations and legacy ULTRA Series system maintenance.

Fail-Safe Reliability Table

Control Cabinet Protection Strategy

A robust control cabinet built around the 1398-DDM-005-DN begins with a stable, well-regulated power architecture. The Allen-Bradley 1398-PDM-075 Power Distribution Module serves as the DC bus backbone, delivering conditioned power to the drive while absorbing regenerative energy spikes that would otherwise stress upstream components. Paired with a 1606-XLP Series 24VDC power supply, the logic circuits remain stable even during motor start-stop transients or momentary grid disturbances — a common failure trigger in older cabinet designs.

On the network side, the drive integrates seamlessly with 1769-SDN CompactLogix DeviceNet Scanner modules, enabling real-time fault status reporting and parameter monitoring without interrupting the motion task. For safety interlock circuits, the drive’s hardware enable input can be wired directly into a GuardLogix safety controller or a dedicated safety relay module, ensuring that E-stop and light curtain signals result in immediate, controlled axis deceleration rather than uncontrolled coasting — a critical distinction in high-inertia load applications. Surge protection at the cabinet entry point, using DIN-rail-mounted SPD modules, further shields the 1398-DDM-005-DN from transient overvoltages caused by nearby switching equipment or lightning-induced surges on field cabling.

Critical Industrial Safety Applications

The 1398-DDM-005-DN is deployed across a broad spectrum of safety-critical industrial environments. In petrochemical and refinery facilities, it controls precision valve actuators and pump drives where uncontrolled motion could trigger process upsets or hazardous material releases. In electric power generation plants, it drives positioning systems for turbine blade pitch control and cooling system dampers, where response accuracy and fault-safe shutdown are non-negotiable. Mining and mineral processing operations rely on it for conveyor tensioning drives and crusher feed control, where high vibration and dust ingress are constant challenges.

In water and wastewater treatment facilities, the drive manages pump and mixer servo axes in corrosive, high-humidity environments, where its conformal coating provides essential protection. Metallurgical and steel mill applications leverage its high-EMI immunity in rolling mill drive cabinets, where large motor switching generates significant electromagnetic noise. Port and shipyard automation systems use it in crane hoist and trolley positioning drives, where precise load control and fail-safe braking are essential for personnel safety. Across all these sectors, the 1398-DDM-005-DN’s combination of DeviceNet connectivity, hardware fault protection, and environmental resilience makes it a trusted component in safety-rated motion control architectures.

Safety and Quality FAQ

Q1: What does the support terms confirmed by quotation cover for the 1398-DDM-005-DN?
The support terms confirmed by quotation cover all manufacturing defects and functional failures under normal operating conditions. If the unit fails to perform its specified servo drive functions within the confirmed support period, KNMKS will provide repair or replacement at no additional cost. Support requests are supported by our technical team at admin@knmks.com.

Q2: What pre-shipment testing is performed on each unit?
Every 1398-DDM-005-DN undergoes a structured pre-delivery inspection including axis enable circuit verification, DeviceNet node address commissioning, fault code register clearance, and output current continuity checks. This ensures the drive is fully functional and field-ready upon delivery, reducing commissioning time and the risk of installation-phase failures.

Q3: Is the 1398-DDM-005-DN compatible with my existing ControlLogix or SLC 500 system?
Yes. The 1398-DDM-005-DN communicates via DeviceNet and is compatible with ControlLogix platforms using 1756-DNB or 1769-SDN scanner modules, as well as SLC 500 systems using 1747-SDN scanner cards. It is fully interoperable with existing ULTRA Series multi-axis configurations and supports standard EDS file-based configuration through RSNetWorx for DeviceNet.

Q4: Can KNMKS guarantee long-term supply for ongoing maintenance and spare-parts programs?
Yes. KNMKS maintains dedicated stock of the 1398-DDM-005-DN and related ULTRA Series components to support both emergency replacement and planned maintenance programs. For facilities operating legacy Allen-Bradley servo systems, we offer procurement consultation and cross-reference support to identify compatible replacement options when original part numbers are discontinued. Contact us at admin@knmks.com or +86 18359268345 for availability and lead time confirmation.

© 2026 KNMKS. All rights reserved.
Original Source: https://knmks.com
Contact: admin@knmks.com | +86 18359268345

Product Identification

Brand / Ecosystem

Allen-Bradley
Allen-Bradley

Model / Series

1398-DDM-005-DN

Product Family

Servo Systems

Availability Status

Available on request after model and quantity confirmation

Inquiry Type

B2B RFQ, replacement inquiry and project spare-part request

Pre-Quote Check

Exact SKU, brand, series, quantity, nameplate photos and destination country are checked before quotation

Specification & Inquiry Focus

Motion range

Servo drives, motors and cable sets

Common needs

Power, encoder and brake confirmation

Project support

Motion upgrade and spare-part supply

Inquiry Support

• Motor, drive and cable set coordination
• Power rating and encoder type checking
• Motion control replacement support

What to Send Us

• Brand and exact model number: Allen-Bradley 1398-DDM-005-DN
• Quantity and required delivery time
• Application, replacement requirement or nameplate photo
• Destination country and shipping preference
