Allen-Bradley 1336T-MCB-SP1B Maintenance-Proven Spare Part

Overview

Allen-Bradley 1336T-MCB-SP1B Maintenance-Proven Spare Part for Factory Uptime

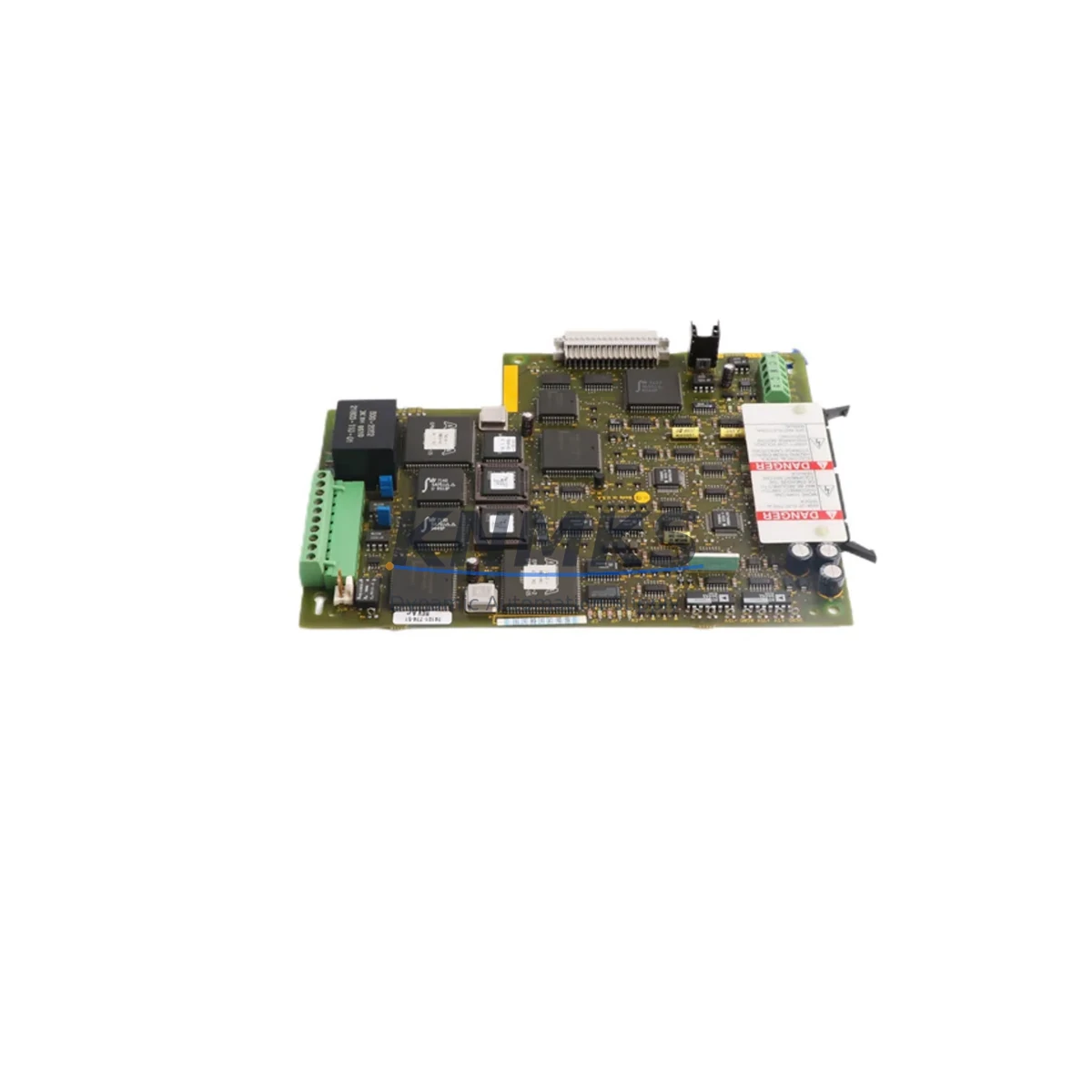

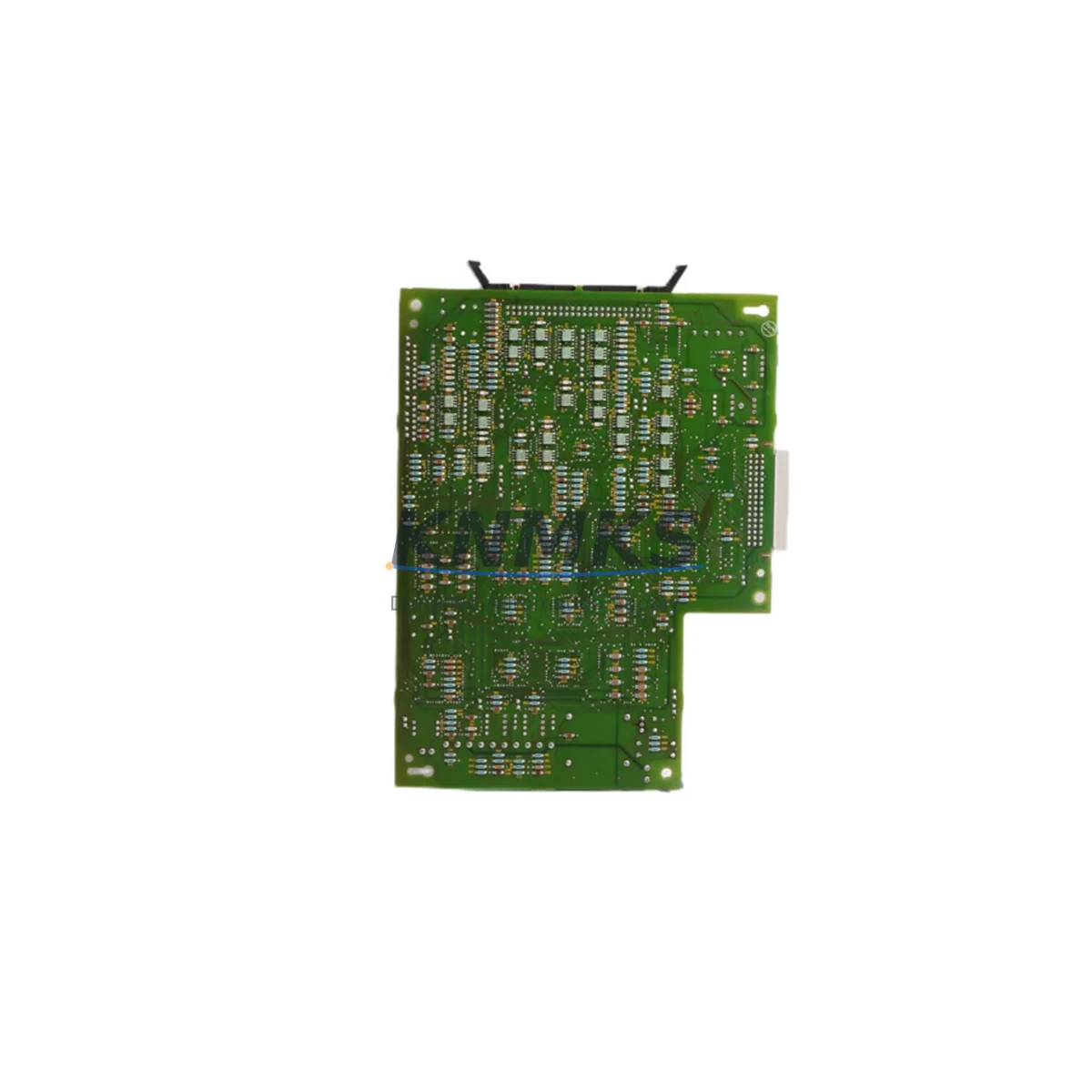

The Allen-Bradley 1336T-MCB-SP1B (part reference 74101-774-51) is the original main control board designed for the 1336 PLUS series AC variable frequency drives. For maintenance engineers managing aging drive systems on continuous production lines, this board is a critical spare that directly governs drive logic, speed reference processing, fault diagnostics, and I/O coordination. Sourced as an OEM replacement component, it is tested prior to shipment and backed by a support terms confirmed by quotation, ensuring your facility can restore drive operation with confidence and minimal downtime.

Whether you are responding to an unplanned drive fault, executing a scheduled annual overhaul, or building a strategic spare parts inventory for your control room, the 1336T-MCB-SP1B is the correct replacement to maintain full system compatibility with your existing 1336 PLUS drive chassis, firmware, and parameter configuration. Procurement engineers will appreciate the long-term supply commitment and pre-shipment functional verification that eliminates the risk of receiving untested or counterfeit boards.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When a 1336 PLUS drive trips on a control board fault — typically presenting as a fault code related to logic power, communication loss, or I/O failure — the 1336T-MCB-SP1B is the primary replacement target. However, experienced maintenance engineers know that a control board failure rarely occurs in isolation. A thorough site assessment should accompany any board swap to prevent repeat failures and ensure the restored drive operates reliably.

Begin by inspecting the 1336 PLUS power supply board and internal DC bus capacitors, as voltage irregularities or capacitor degradation are common root causes of control board stress. Check the 1336-MOD-L2 or equivalent I/O expansion module for any signs of communication errors or damaged terminals that may have contributed to the fault condition. The drive’s gate driver board should also be evaluated, since IGBT switching anomalies can back-feed noise into the control logic layer.

On the field wiring side, inspect all 24VDC control power wiring and terminal blocks feeding the drive’s logic supply. Loose or corroded terminals on the control terminal strip are a frequent but overlooked cause of intermittent board faults. If the drive is integrated into a PLC-controlled system — such as a ControlLogix or SLC 500 rack — verify that the communication adapter (e.g., a 1336-GM1 DeviceNet adapter or 1336-BRD-SP1 interface board) is seated correctly and that network cabling is intact.

For drives operating in dusty or high-humidity environments, inspect the drive enclosure’s cooling fans and air filters. Thermal stress is a leading cause of premature control board failure, and ensuring adequate airflow extends the service life of the replacement board significantly. If the facility uses a remote HMI or PanelView terminal for drive parameter access, confirm that the communication link is re-established after board replacement and that all drive parameters are reloaded from a saved configuration file.

Procurement engineers building a comprehensive spare parts kit for 1336 PLUS drive systems should consider stocking the control board alongside input line fuses, MOV surge suppressors, and a set of control terminal block connectors to support rapid, complete drive restoration without waiting for multiple separate deliveries.

Site Replacement Workflow

Step 1 — Isolate and de-energize: Follow your facility’s LOTO procedure. Confirm DC bus voltage has discharged to safe levels before opening the drive enclosure (typically wait 5 minutes after power removal).

Step 2 — Document existing configuration: If the existing control board is still partially functional, use DriveExplorer or DriveExecutive software to upload and save all drive parameters before removal. This eliminates manual re-entry and reduces commissioning time after replacement.

Step 3 — Remove the faulty board: Disconnect all ribbon cables, I/O connectors, and the logic power harness from the existing 1336T-MCB-SP1B. Note connector positions and cable routing for reassembly reference.

Step 4 — Install the replacement board: Seat the new 1336T-MCB-SP1B into the drive chassis, reconnect all cables in the documented sequence, and verify that all connectors are fully engaged.

Step 5 — Restore parameters and test: Download the saved parameter file to the replacement board. Apply power and perform a no-load test run, verifying speed reference response, fault relay operation, and I/O signal integrity before returning the drive to production service.

This structured workflow minimizes the risk of secondary faults, reduces total downtime to under two hours for a prepared maintenance team, and ensures the replacement board is validated in-system before production restart.

Spare Parts Support FAQ

Q1: Is the 1336T-MCB-SP1B compatible with all 1336 PLUS drive frame sizes?
The 1336T-MCB-SP1B is the designated main control board for the 1336 PLUS series. Compatibility should be confirmed against your specific drive’s catalog number and firmware revision. Contact our technical team with your full drive nameplate data for verification before ordering.

Q2: How is the board tested before shipment?
Each unit undergoes functional verification prior to dispatch, confirming logic power operation, I/O interface integrity, and communication port functionality. A test report is available upon request for quality-controlled procurement processes.

Q3: What does the support terms confirmed by quotation cover?
The support terms covers manufacturing defects and functional failures under normal operating conditions for 12 months from the date of shipment. It does not cover damage resulting from incorrect installation, overvoltage events, or environmental contamination beyond the board’s rated operating conditions.

Q4: Can you support long-term or blanket purchase orders for ongoing maintenance programs?
Yes. We maintain committed stock of the 1336T-MCB-SP1B to support annual maintenance contracts, multi-site spare parts programs, and emergency replenishment orders. Contact admin@knmks.com or +86 18359268345 to discuss volume pricing and reserved inventory arrangements.

© 2026 KNMKS. All rights reserved. Original Source: https://knmks.com | Contact: admin@knmks.com | +86 18359268345

Product Identification

Brand / Ecosystem

Allen-Bradley
Allen-Bradley

Model / Series

1336T-MCB-SP1B 74101-774-51

Product Family

Variable Frequency Drives

Availability Status

Available on request after model and quantity confirmation

Inquiry Type

B2B RFQ, replacement inquiry and project spare-part request

Pre-Quote Check

Exact SKU, brand, series, quantity, nameplate photos and destination country are checked before quotation

Specification & Inquiry Focus

Drive range

AC drives, VFDs and accessories

Common needs

Voltage, kW/HP and load type

Project support

Motor control, energy saving and spares

Inquiry Support

• Input/output voltage and kW/HP confirmation
• Energy-saving motor control inquiry
• Accessory and spare-unit support

What to Send Us

• Brand and exact model number: Allen-Bradley 1336T-MCB-SP1B 74101-774-51
• Quantity and required delivery time
• Application, replacement requirement or nameplate photo
• Destination country and shipping preference
