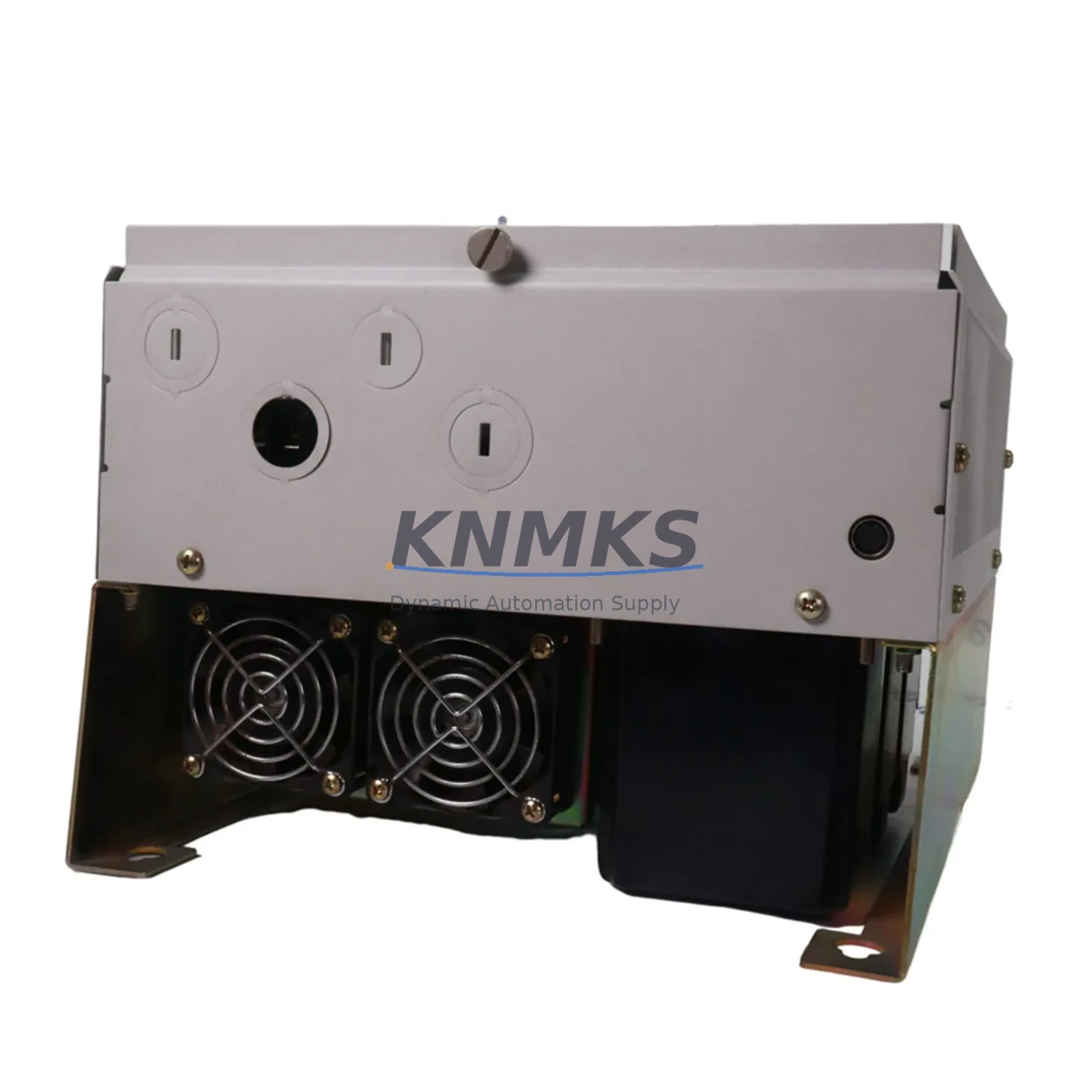

Allen-Bradley 1336F-BRF10-AA-EN Fail-Safe VFD Drive

Overview

Allen-Bradley 1336F-BRF10-AA-EN Fail-Safe VFD Drive: Fault-Protected Reliability for Critical Industrial Sites

The Allen-Bradley 1336F-BRF10-AA-EN is a 1HP, 240V AC FLEX Series Variable Frequency Drive engineered for demanding industrial control environments where unplanned downtime, signal drift, and control interruption carry serious operational and safety consequences. Designed and manufactured under Rockwell Automation’s rigorous quality standards, this drive delivers fail-safe motor speed regulation across continuous production lines, critical interlock circuits, and high-load control cabinets where reliability is non-negotiable.

In industrial facilities ranging from petrochemical processing and power generation to mining, water treatment, metallurgy, and port logistics, the 1336F-BRF10-AA-EN provides stable, repeatable drive performance even under adverse conditions including high electromagnetic interference (EMI), voltage fluctuation, ambient dust, humidity, elevated temperature, and mechanical vibration. Its robust internal architecture minimizes the risk of nuisance trips, output instability, and communication faults that can cascade into broader system failures in safety-critical control loops.

The drive’s built-in surge suppression and EMI filtering capabilities protect sensitive control circuitry from transient voltage spikes and conducted interference — common threats in heavy industrial switchgear rooms and motor control centers (MCCs). When deployed alongside Allen-Bradley 1492 terminal block assemblies and 1606 power supply modules, the 1336F-BRF10-AA-EN forms a tightly integrated, fault-tolerant drive system that maintains signal integrity from the PLC output card through to the motor terminals.

For facilities running Rockwell Automation ControlLogix or CompactLogix platforms, the 1336F-BRF10-AA-EN integrates cleanly into existing DeviceNet or hardwired control architectures, enabling centralized fault monitoring, parameter adjustment, and drive status feedback without additional protocol conversion hardware. This reduces wiring complexity in the control cabinet and lowers the risk of communication anomalies that could trigger unintended motor starts or stops in safety-sensitive applications.

In high-vibration environments such as mining conveyors, ship-board pump systems, or steel mill auxiliary drives, the drive’s compact FLEX form factor and conformal-coated PCB options provide additional protection against mechanical stress and condensation ingress. When paired with Allen-Bradley 1336-MOD-D2 option modules or compatible dynamic braking resistors, the system can handle regenerative load conditions safely, preventing DC bus overvoltage faults that would otherwise force an emergency shutdown.

Every 1336F-BRF10-AA-EN unit supplied by KNMKS undergoes pre-shipment functional testing covering power-on self-diagnostics, output voltage symmetry verification, and fault code clearance confirmation. Units are sourced from authorized distribution channels and stored under controlled conditions to preserve component integrity. A support terms confirmed by quotation covers all supplied units against manufacturing defects and premature failure under normal operating conditions, with technical support available for installation, parameter configuration, and fault diagnosis.

Long-term spare parts availability is a core commitment. For facilities maintaining preventive maintenance schedules or managing critical spare inventories, KNMKS maintains consistent stock of the 1336F-BRF10-AA-EN alongside compatible Allen-Bradley 1336-BRF and 1336-PLUS II series drives, enabling like-for-like replacement without control system reprogramming or mechanical re-engineering. This continuity of supply is especially valuable for aging plant infrastructure where original drive models are no longer in active production but remain essential to operational continuity.

Fail-Safe Reliability Table

Control Cabinet Protection Strategy

A reliable control cabinet is built on layered protection — no single component operates in isolation. The 1336F-BRF10-AA-EN is most effective when integrated into a coordinated cabinet architecture that addresses power quality, signal integrity, thermal management, and fault isolation simultaneously.

On the power input side, pairing the drive with an Allen-Bradley 1606-XLP power supply ensures stable 24VDC control voltage to the drive’s logic board and I/O interfaces, even during upstream voltage sags or brief supply interruptions. This prevents false fault trips caused by control power instability — a common source of nuisance shutdowns in facilities with fluctuating grid quality.

For motor branch circuit protection, Allen-Bradley 140M Motor Protection Circuit Breakers provide coordinated overload and short-circuit protection upstream of the drive, ensuring that a motor winding fault does not propagate back into the drive’s output stage. This coordination is essential in multi-drive cabinets where a single fault must be isolated without affecting adjacent drive circuits.

Signal wiring integrity is maintained through proper use of Allen-Bradley 1492-CABLE pre-wired interface cables and shielded analog signal cables, which reduce the risk of reference signal drift on the drive’s speed command input — particularly important in high-EMI environments near large transformers, VFD banks, or welding equipment.

For applications requiring safe torque-off (STO) or emergency stop integration, the 1336F-BRF10-AA-EN can be combined with Allen-Bradley 440R Guardmaster safety relays to implement a hardwired safety circuit that de-energizes the drive’s enable input upon E-stop activation, meeting IEC 62061 and ISO 13849 safety integrity requirements without relying solely on software-based stop commands.

Cabinet thermal management is addressed by ensuring adequate spacing between drives and using Allen-Bradley 1336-MOD-FA2 fan/thermostat option kits where ambient temperatures approach the drive’s upper operating limit. Overheating remains one of the leading causes of premature drive failure in enclosed control panels, and proactive thermal design extends mean time between failures (MTBF) significantly.

Critical Industrial Safety Applications

Petrochemical & Refinery Plants: In continuous process environments, the 1336F-BRF10-AA-EN controls pump and fan motors in hazardous area control loops where unplanned stops can trigger pressure upsets or safety system activations. Its fault logging and DeviceNet status reporting enable remote condition monitoring from the DCS or SCADA layer without requiring personnel to enter hazardous zones for drive inspection.

Power Generation & Utilities: Auxiliary motor drives in power stations — cooling water pumps, forced draft fans, and fuel handling conveyors — demand drives that tolerate voltage fluctuations from generator switching events. The 1336F-BRF10-AA-EN’s undervoltage ride-through capability and auto-restart parameters can be configured to maintain motor control continuity during brief supply disturbances, reducing the risk of auxiliary system trips during grid transients.

Mining & Mineral Processing: Conveyor drives, crusher auxiliaries, and slurry pump motors in mining operations are subject to extreme vibration, dust ingress, and wide ambient temperature swings. The FLEX series drive’s compact, panel-mount design allows installation in sealed, climate-controlled enclosures, while its robust fault protection prevents motor damage from the frequent load spikes characteristic of bulk material handling.

Water & Wastewater Treatment: Municipal and industrial water treatment facilities rely on variable-speed pump drives for precise flow control in filtration, dosing, and aeration systems. The 1336F-BRF10-AA-EN’s PID reference capability and analog input flexibility support direct integration with flow transmitters and level sensors, enabling closed-loop process control without an external PLC analog output module.

Metallurgy & Steel Mills: In rolling mill auxiliary drives and furnace atmosphere control systems, the drive’s overtemperature protection and thermal memory functions prevent motor burnout during extended high-load cycles, while its parameter lock feature prevents unauthorized adjustment of critical speed and torque limits by non-authorized personnel.

Port & Marine Applications: Ship-board HVAC drives, ballast pump motors, and cargo handling auxiliaries require drives that maintain stable operation under the combined stresses of salt air, vibration, and variable generator frequency. The 1336F-BRF10-AA-EN’s wide input frequency tolerance and robust insulation system make it a dependable choice for marine auxiliary motor control in both new installations and retrofit projects.

Safety and Quality FAQ

Q1: What does the support terms confirmed by quotation cover for the 1336F-BRF10-AA-EN?
The support terms confirmed by quotation cover manufacturing defects, component failures, and premature functional failure under normal operating conditions as specified in the Allen-Bradley 1336F product documentation. It does not cover damage resulting from incorrect installation, overvoltage beyond rated input limits, or physical mishandling. KNMKS provides technical support for fault diagnosis and, where applicable, unit replacement or repair coordination within the confirmed support period.

Q2: What pre-shipment testing is performed before the drive is dispatched?
Each unit undergoes a structured pre-shipment inspection that includes power-on self-diagnostic verification, output phase voltage symmetry check across all three output terminals, fault code history clearance, and visual inspection of terminal blocks, connectors, and enclosure integrity. Units that do not pass all test criteria are quarantined and not dispatched. Test records are retained and available upon request for quality-critical procurement processes.

Q3: Is the 1336F-BRF10-AA-EN compatible with existing Allen-Bradley PLC and DeviceNet installations?
Yes. The EN suffix designates the integrated DeviceNet communication option, which allows the drive to be addressed directly on a DeviceNet network managed by a ControlLogix, CompactLogix, or SLC 500 controller using standard RSNetWorx for DeviceNet configuration software. No additional communication gateway or protocol converter is required. Hardwired analog and digital I/O interfaces remain fully functional in parallel with the DeviceNet connection, supporting hybrid control architectures.

Q4: Can KNMKS guarantee long-term supply for ongoing maintenance and spare parts programs?
KNMKS maintains dedicated inventory of the 1336F-BRF10-AA-EN and compatible FLEX series drives to support customers with planned maintenance schedules, critical spare inventories, and emergency replacement requirements. For facilities managing multi-year maintenance contracts or large installed bases of Allen-Bradley FLEX drives, KNMKS can discuss volume reservation arrangements to ensure supply continuity independent of broader market availability fluctuations.

© 2026 KNMKS. All rights reserved.
Original Source: https://knmks.com
Contact: admin@knmks.com | +86 18359268345

Product Identification

Brand / Ecosystem

Allen-Bradley
Allen-Bradley

Model / Series

1336F-BRF10-AA-EN

Product Family

Variable Frequency Drives

Availability Status

Available on request after model and quantity confirmation

Inquiry Type

B2B RFQ, replacement inquiry and project spare-part request

Pre-Quote Check

Exact SKU, brand, series, quantity, nameplate photos and destination country are checked before quotation

Specification & Inquiry Focus

Drive range

AC drives, VFDs and accessories

Common needs

Voltage, kW/HP and load type

Project support

Motor control, energy saving and spares

Inquiry Support

• Input/output voltage and kW/HP confirmation
• Energy-saving motor control inquiry
• Accessory and spare-unit support

What to Send Us

• Brand and exact model number: Allen-Bradley 1336F-BRF10-AA-EN
• Quantity and required delivery time
• Application, replacement requirement or nameplate photo
• Destination country and shipping preference
