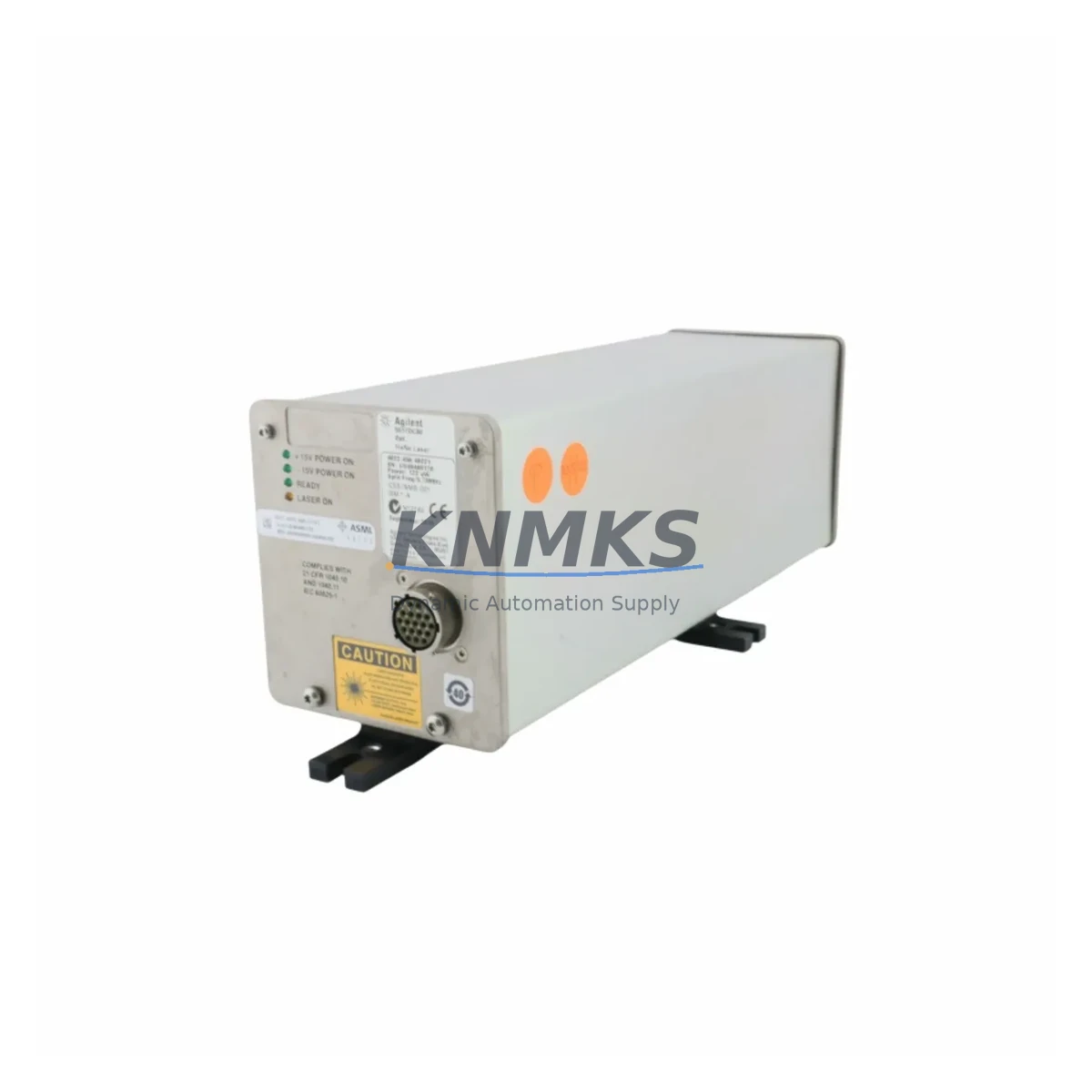

Agilent 5517DC30 Fail-Safe HeNe Laser Head: Industrial Control Reliability

The Agilent (Keysight) 5517DC30 — also referenced under part numbers 4022.456.48221, 4022.454.71615, 5517D-C19, and 4022.454.71616 — is a precision HeNe laser interferometer head engineered for fail-safe, continuous-duty operation in demanding industrial measurement and control environments. Designed as a core component of the Agilent 5517D laser head series, this unit delivers exceptional frequency stability, low noise output, and robust immunity to electromagnetic interference — critical attributes for any high-stakes metrology or motion control application where measurement error or signal interruption carries significant operational risk.

In continuous production environments such as semiconductor fabrication, precision machining, and automated assembly lines, even a momentary lapse in laser signal integrity can cascade into costly misalignment, rejected product batches, or unplanned downtime. The 5517DC30 addresses these risks through its thermally stabilized cavity design, which maintains consistent output frequency across wide ambient temperature fluctuations — a common challenge in control cabinets subject to cyclic heating from adjacent drives, servo amplifiers, and power conditioning units. Its ruggedized housing provides reliable protection against vibration and mechanical shock, ensuring stable interferometric feedback even in environments where floor-mounted machinery or overhead cranes introduce persistent structural vibration.

Signal integrity is further reinforced by the 5517DC30’s inherent resistance to electromagnetic interference. In control cabinets housing variable frequency drives, high-current contactors, and switching power supplies — such as the Agilent 10766A linear interferometer or systems paired with Keysight 10780F receiver electronics — stray EMI can corrupt position feedback signals and trigger false fault conditions. The 5517DC30’s shielded optical and electrical architecture minimizes susceptibility to such interference, preserving measurement accuracy and preventing spurious control loop interruptions that could compromise safety interlocks or cause uncontrolled axis motion.

For applications requiring integration with Agilent 10717A wavelength trackers or Keysight 10736A three-axis plane mirror interferometers, the 5517DC30 provides the stable, single-frequency reference beam essential for sub-nanometer position resolution. In lithography stages, wafer inspection systems, and precision coordinate measuring machines, this level of measurement fidelity directly supports process safety by ensuring that positioning errors remain within defined tolerance bands — preventing tool crashes, substrate damage, and out-of-specification product release.

Power supply stability is a frequently overlooked factor in laser head longevity and measurement reliability. Voltage transients, brownouts, and surge events — common in industrial facilities sharing power infrastructure with heavy motor loads — can destabilize the laser discharge and introduce frequency noise. When deployed alongside properly specified Agilent 5517D power supply units and surge-protected distribution panels, the 5517DC30 maintains consistent output power and frequency, reducing the risk of measurement drift that could go undetected until a critical quality checkpoint. This makes it a preferred choice for facilities operating under ISO 9001 or IATF 16949 quality management frameworks where measurement system reliability is subject to formal audit.

In harsh environments characterized by dust ingress, elevated humidity, or chemical vapor exposure — such as those found in mining instrumentation bays, offshore platform control rooms, or chemical plant analyzer shelters — the 5517DC30’s sealed optical cavity prevents contamination of the laser beam path. Contamination-induced output degradation is a leading cause of unplanned interferometer downtime; the 5517DC30’s design philosophy prioritizes long mean-time-between-failure (MTBF) to support 24/7 production schedules without requiring frequent preventive maintenance interventions. Compatibility with Keysight 10780C fiber-optic receivers further extends deployment flexibility to remote or hazardous measurement points where direct line-of-sight installation is impractical.

Every 5517DC30 unit supplied by KNMKS undergoes pre-shipment functional verification, including output power measurement, frequency stability assessment, and beam quality inspection, ensuring that the unit arriving on-site is ready for immediate integration without additional calibration delays. Stock availability is maintained to support both planned replacement cycles and emergency spare part requirements, with a support terms confirmed by quotation covering manufacturing defects and performance deviations from published specifications.

Fail-Safe Reliability Table

Control Cabinet Protection Strategy

Reliable interferometric measurement in industrial control cabinets demands a systems-level approach to protection. The 5517DC30 laser head functions as the optical reference source within a broader measurement chain that must be shielded from the electrical and thermal stresses inherent in production environments. When integrated with Keysight 10780F receiver electronics, the system benefits from differential signal processing that rejects common-mode noise introduced by nearby variable frequency drives and servo controllers. Pairing the laser head with a Keysight 10717A wavelength tracker adds real-time compensation for ambient air refractive index variations — a critical safeguard in facilities where HVAC cycling or process exhaust creates localized air turbulence that would otherwise introduce systematic measurement error.

For control cabinets subject to surge events from large motor starts or capacitor bank switching, installing the 5517DC30 on a dedicated, surge-protected power rail — separate from high-current actuator and drive circuits — prevents transient voltage spikes from disrupting the laser discharge. The Agilent 5517D power supply is specifically matched to the 5517DC30’s electrical requirements and provides the regulated, low-ripple DC supply necessary for stable frequency output. In multi-axis motion systems using Agilent 10736A three-axis interferometers, maintaining consistent laser head performance across all measurement axes is essential for coordinated motion safety — any axis-specific measurement degradation can trigger asymmetric position errors that defeat safety interlocks designed to prevent tool or workpiece collisions.

Thermal management within the control cabinet directly impacts laser head longevity. Positioning the 5517DC30 away from high-dissipation components such as drive modules and transformer assemblies, and ensuring adequate forced-air or liquid cooling, preserves the thermal equilibrium of the laser cavity. Where cabinet space constraints require proximity to heat sources, thermal isolation barriers and directed airflow from cabinet cooling fans mitigate the risk of cavity temperature excursions that would degrade frequency stability and shorten operational life.

Critical Industrial Safety Applications

The Agilent 5517DC30 HeNe laser interferometer head serves as a precision measurement backbone across a broad spectrum of safety-critical industrial applications. In semiconductor and flat panel display fabrication, it provides the nanometer-level position feedback required for lithography stage control, where measurement errors directly translate to device yield loss and potential process safety incidents from misaligned exposure or etch steps. In precision machining and aerospace component manufacturing, the 5517DC30 supports in-process dimensional verification on CNC machining centers and coordinate measuring machines, ensuring that critical structural components meet dimensional tolerances before release to assembly — preventing field failures with potentially severe safety consequences.

In power generation and heavy industrial facilities, laser interferometry is applied to turbine blade tip clearance measurement, large-scale alignment verification for rotating machinery, and structural deformation monitoring on pressure vessels and reactor components. The 5517DC30’s long-term frequency stability makes it suitable for extended measurement campaigns where recalibration interruptions would require costly production holds. In mining and mineral processing environments, where control rooms are subject to dust, vibration from blasting operations, and wide temperature swings, the ruggedized design of the 5517DC30 supports reliable operation of automated positioning and conveyor control systems that depend on accurate displacement measurement for safe load handling.

In water treatment and chemical processing plants, where continuous operation is mandated by environmental and public safety regulations, the 5517DC30 supports precision valve positioning verification and pump alignment monitoring — applications where measurement system failure could result in regulatory non-compliance or process safety incidents. Its compatibility with fiber-optic receiver systems such as the Keysight 10780C enables deployment in hazardous area zones where direct electrical connections must be minimized, supporting intrinsically safe measurement architectures in flammable or explosive atmospheres.

Safety and Quality FAQ

Q1: What does the support terms confirmed by quotation cover for the Agilent 5517DC30?
The support terms confirmed by quotation cover manufacturing defects and any performance deviations from the published Agilent 5517D series specifications, including output power, frequency stability, and beam quality parameters. Units that fail to meet specification during the confirmed support period are repaired or replaced at no charge, with priority processing to minimize measurement system downtime.

Q2: What pre-shipment testing is performed on each 5517DC30 unit?
Every unit undergoes 100% functional inspection prior to shipment, including output power measurement against the nominal 5517D series specification, frequency stability verification under controlled thermal conditions, and beam quality assessment. Test records are retained and available upon request for quality management system documentation purposes.

Q3: Is the 5517DC30 compatible with existing Agilent and Keysight interferometer systems?
Yes. The 5517DC30 is fully compatible with the Agilent/Keysight 5517D series ecosystem, including the 10766A linear interferometer, 10736A three-axis plane mirror interferometer, 10717A wavelength tracker, 10780F receiver electronics, and 10780C fiber-optic receiver. It is a direct replacement for units referenced under part numbers 4022.456.48221, 4022.454.71615, 5517D-C19, and 4022.454.71616.

Q4: Can long-term supply continuity be guaranteed for critical spare part programs?
KNMKS maintains dedicated stock of the 5517DC30 and related 5517D series components to support planned preventive maintenance programs and emergency replacement requirements. For facilities operating under critical spare part agreements or long-cycle maintenance schedules, we recommend contacting our sales team to discuss reserved stock arrangements and multi-unit procurement options that ensure supply continuity across your planned maintenance horizon.
