Advanced Energy 1305363-C Migration-Ready RF Control Board

Overview

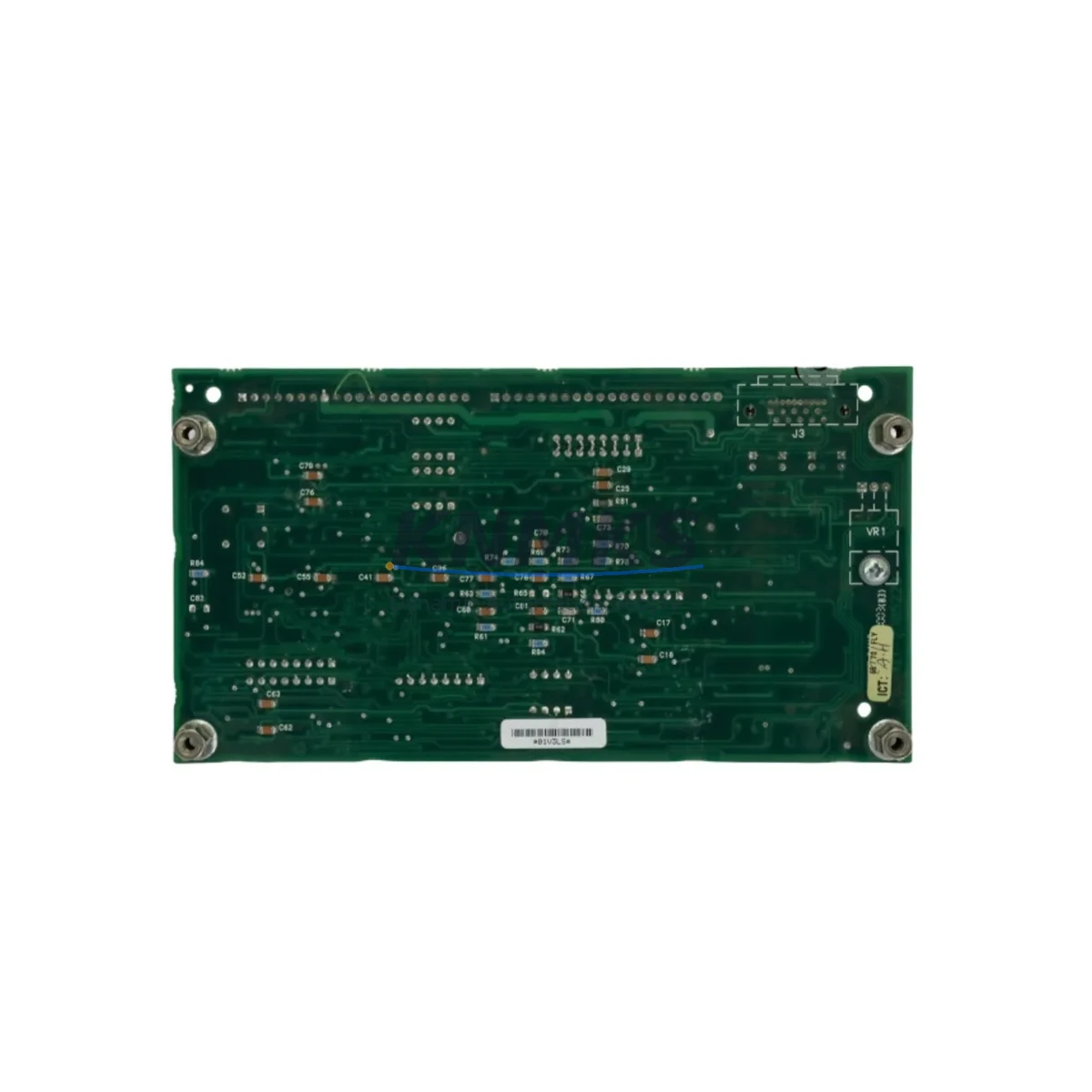

Advanced Energy 1305363-C Migration-Ready RF Control Board for Legacy Control Systems

The Advanced Energy 1305363-C is a migration-ready RF generator control board engineered for direct replacement in AET Series RF power delivery systems. Cross-referenced as AET-2305229, 2305625-A, E643 ASSY, and 0643-03-041, this board addresses the growing demand for reliable spare parts in aging plasma process and semiconductor fabrication environments where the original OEM supply chain has been discontinued or lead times have become unacceptably long.

Facilities running legacy AET RF generators face a critical challenge: the control board is the nerve center of the entire power delivery chain. When it fails, the entire process chamber goes offline. Sourcing a verified, tested replacement — one that maintains signal integrity, impedance matching response, and interlock logic — is essential to restoring production without rewriting process recipes or recalibrating the RF match network.

This 1305363-C board is supplied pre-tested against original AET electrical specifications, with firmware compatibility confirmed for the target generator platform. Each unit ships with a support terms confirmed by quotation and full traceability documentation to support your maintenance records and audit requirements.

Migration Compatibility Table

Retrofit Planning for Existing Automation Systems

A successful retrofit of the Advanced Energy 1305363-C control board requires a structured pre-installation review of the surrounding system architecture. Before removing the failed board, document the existing wiring harness routing, connector locking tab orientation, and any field-applied labels on the card-edge connector. Photograph the board in situ to preserve reference for reinstallation.

The RF generator’s internal DC power supply module should be load-tested prior to installing the replacement control board. A degraded PSU that was marginal with the original board may cause erratic behavior or premature failure of the new unit. If the system uses an Advanced Energy RF match network (such as an ATX or AMS series auto-match), confirm that the match controller firmware is compatible with the control board’s interlock output timing — mismatched handshake timing is a common source of arc fault trips during initial commissioning after a board swap.

For facilities using a PLC-based process controller (such as a Siemens S7-300 or Allen-Bradley ControlLogix) to issue setpoint commands via RS-485 to the RF generator, verify that the communication polling rate and register map remain unchanged after the board replacement. In some AET generator revisions, a control board update also changes the Modbus register offset for power setpoint and reflected power readback — this must be confirmed against the generator’s communication manual before resuming automated recipe execution.

If the process chamber uses a mass flow controller (MFC) interlock tied to the RF enable signal, test the interlock chain in manual mode before enabling automatic process sequencing. Similarly, if an HMI panel (such as a Siemens TP700 or Weintek cMT series) displays RF generator status, verify that the alarm tag addresses and status bit mappings still resolve correctly after the board swap — control board replacements occasionally shift internal status register assignments.

For systems where the RF generator is rack-mounted alongside a DC bias power supply and a process gas delivery manifold controller, confirm that the RF enable interlock is not shared across multiple chassis via a common backplane signal bus. In multi-zone plasma systems, an unintended interlock state on one zone’s control board can suppress RF output across adjacent zones, causing process non-uniformity that may not be immediately obvious from the HMI alarm log.

All replacement boards are supplied with a functional burn-in test certificate and are ready for immediate installation. Stock is maintained across regional distribution hubs to support urgent MRO requirements with short lead times.

Downtime Control During System Migration

Minimizing unplanned downtime during an RF control board replacement begins with preparation, not installation. Before the maintenance window opens, confirm that a verified replacement Advanced Energy 1305363-C board is on-site, that the generator’s process parameters (power setpoint, frequency offset, duty cycle limits, and interlock thresholds) are exported or documented, and that the RF match network’s tuning position is recorded.

During the swap, power down the generator through the proper shutdown sequence — do not simply cut mains power while the RF output is active, as this can corrupt the match network’s capacitor position memory and require a full re-tune from scratch. After installing the replacement board, restore power and perform a cold-start interlock check before enabling RF output. Confirm that the generator’s front-panel display (or the connected HMI) shows no latched fault codes before proceeding.

For facilities with a SCADA or DCS system monitoring the RF generator’s analog output signals (forward power, reflected power, load voltage), verify that the analog output scaling of the replacement board matches the original. A 0–10 V or 4–20 mA output that is offset by even a small percentage will cause the SCADA historian to log false process deviations and may trigger automated interlock shutdowns.

With proper preparation, a control board swap on an AET Series RF generator can typically be completed within a two-to-four hour planned maintenance window, preserving the original process recipe logic, match network calibration, and PLC program without modification. This approach protects process continuity and reduces the risk of introducing new variables into a validated production environment.

Retrofit Support FAQ

Q1: Is the 1305363-C a direct drop-in replacement for AET-2305229 and 2305625-A?
Yes. The 1305363-C is cross-referenced to AET-2305229, 2305625-A, E643 ASSY, and 0643-03-041. In standard AET Series generator configurations, it is a direct card-slot replacement. Confirm chassis revision and backplane connector variant before installation if your generator has been field-modified.

Q2: What commissioning steps are required after installation?
After seating the board and restoring power, perform an interlock chain verification, check RF output at a low power setpoint (typically 10–20% of rated power), re-tune the auto-match network if capacitor positions were lost during shutdown, and reset any latched HMI alarms. Document the post-installation RF output calibration values for your maintenance records.

Q3: How is the board tested before shipment?
Each Advanced Energy 1305363-C board undergoes a functional burn-in test against original AET electrical specifications prior to shipment. A test certificate is included with the unit. The support terms confirmed by quotation cover defects in materials and workmanship under normal operating conditions.

Q4: What is the typical lead time and do you maintain stock?
Stock is maintained across regional distribution hubs to support urgent MRO and planned maintenance requirements. Standard orders ship within 1–3 business days. For large-quantity or blanket orders supporting a multi-site spare parts program, contact our sales team to discuss inventory reservation and consignment options.
