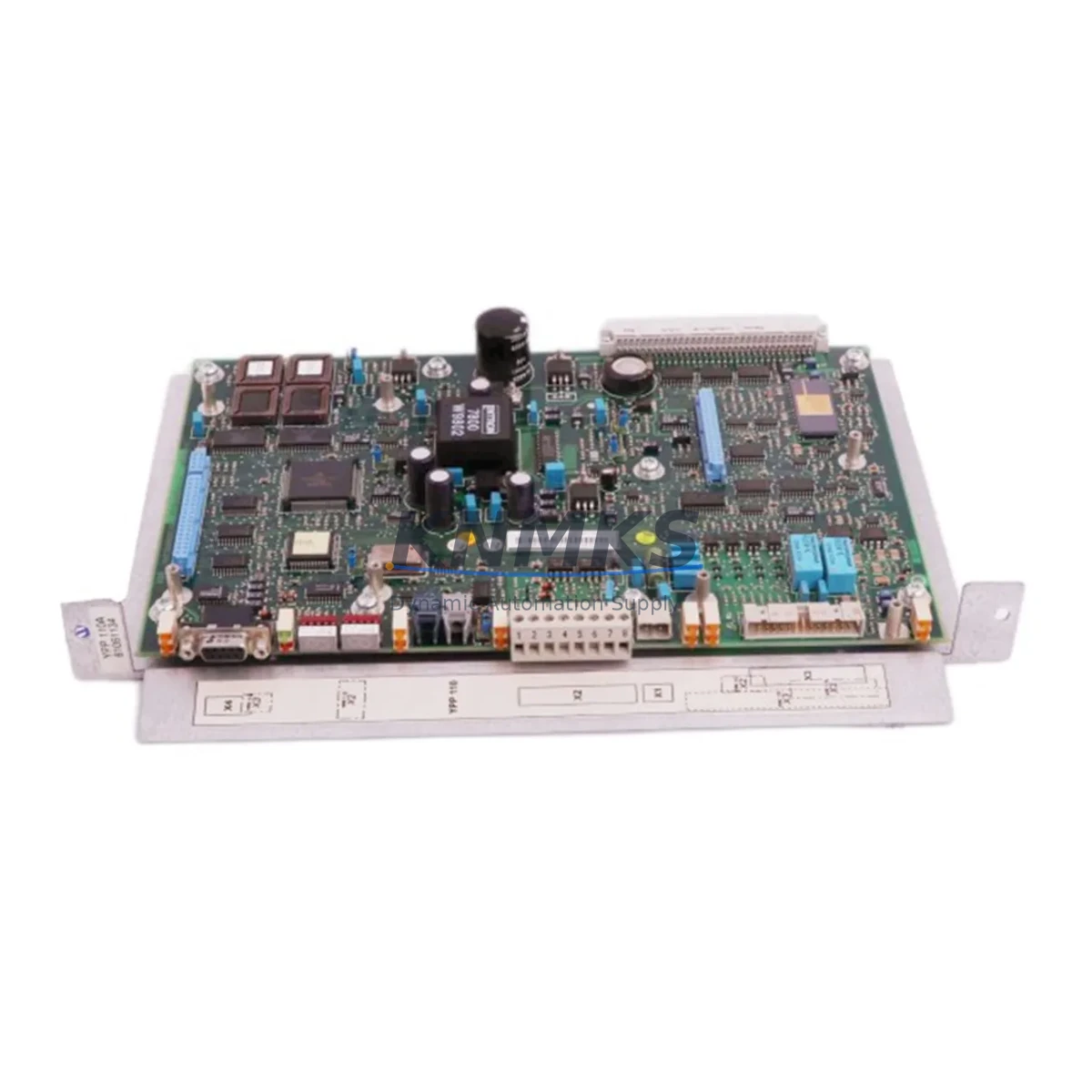

ABB YPP110A 3ASD573001A1 Migration-Ready Processor

Overview

ABB YPP110A 3ASD573001A1 Migration-Ready Processor for Legacy Control Systems

The ABB YPP110A (part number 3ASD573001A1) is the main control processor board used in ABB ACS800 and DCS800 series variable speed drives. As these drive platforms approach end-of-life and original ABB spare parts become increasingly scarce, the YPP110A has become one of the most sought-after retrofit components for industrial facilities managing aging automation infrastructure. Whether you are executing a planned control cabinet upgrade, responding to an unplanned drive failure, or building a long-term spare parts inventory for a multi-drive installation, the YPP110A 3ASD573001A1 provides a validated, drop-in compatible solution that preserves your existing control architecture without requiring a full drive replacement.

This processor module interfaces directly with the ACS800 drive’s RMIO board and RDCO communication option board, maintaining full compatibility with the drive’s existing DDCS fiber-optic communication links and fieldbus adapter modules such as the RPBA-01 PROFIBUS adapter or RCAN-01 CANopen module. Before installation, engineers should verify the firmware version loaded on the replacement YPP110A against the drive’s existing application software to ensure parameter set compatibility and avoid unexpected fault codes during commissioning. In most ACS800 installations, the parameter backup stored via the CDP312R control panel or DriveWindow Light software can be restored directly to the replacement processor, significantly reducing re-commissioning time and protecting the original control logic.

For DCS800 DC drive applications, the YPP110A retrofit process requires additional attention to the armature current feedback scaling, field excitation settings, and speed feedback encoder interface configuration. Technicians should confirm that the SDCS-CON-4 control board and SDCS-POW-4 power supply board remain functional before isolating the processor as the root cause of the fault. In many field cases, a failed YPP110A presents as a drive that powers up but fails to initialize, displays a persistent fault on the CDP312R panel, or loses communication with the supervisory SCADA or DCS system.

Migration Compatibility Table

Retrofit Planning for Existing Automation Systems

A successful YPP110A retrofit begins well before the replacement module arrives on site. The first step is a full audit of the drive’s current configuration: document all parameter groups using the CDP312R control panel’s parameter upload function or export the parameter file via DriveWindow Light to a PC. This backup is critical — it contains motor nameplate data, speed reference scaling, PID tuning values, and any application-specific macro settings that would otherwise need to be re-entered manually after the processor swap.

In installations where the ACS800 drive communicates with a Siemens S7-300 or S7-400 PLC via PROFIBUS-DP through the RPBA-01 adapter, the fieldbus node address and baud rate settings stored in the YPP110A must be re-confirmed after the swap. The PLC’s hardware configuration in STEP 7 or TIA Portal should be checked to ensure the GSD file and slot assignments still match the drive’s parameter group 51 settings. Similarly, in systems using the RDCO-02 DDCS communication board for master-follower drive configurations, the fiber-optic ring topology must be re-initialized after the processor replacement to restore synchronization between the master ACS800 and any follower drives on the same DDCS ring.

For control cabinets housing multiple drive frames alongside ABB ACSM1 motion control drives or ACS550 HVAC drives, the retrofit window should be coordinated with the facility’s planned maintenance shutdown to avoid cascading process interruptions. Engineers should also inspect the NIOC-01 I/O extension board and any RAIO-01 analog I/O option boards installed in the drive’s option slots, as these boards remain in place during the YPP110A swap and their wiring does not need to be disturbed. Confirming that the 24 VDC auxiliary power supply feeding the control electronics is within specification before powering up the replacement processor will prevent false fault indications during the initial startup sequence.

Downtime Control During System Migration

Minimizing unplanned downtime during a YPP110A replacement requires a structured pre-swap checklist and a clear rollback plan. Before de-energizing the drive, confirm that the process can be safely held in a controlled state — for conveyor, pump, or compressor applications, this means coordinating with the operations team to bring the driven load to a safe standstill and isolating the drive’s input contactor. The existing RMIO board, RDCO option board, and all fieldbus adapter modules should remain undisturbed in their slots; only the YPP110A processor board itself is removed and replaced.

Once the replacement YPP110A is seated and the drive is powered up, the CDP312R panel will display the drive’s firmware version and prompt for parameter initialization. Restoring the previously saved parameter backup at this stage — rather than manually re-entering parameters — is the single most effective way to reduce commissioning time and eliminate transcription errors. After parameter restore, verify the motor identification run results, check the speed feedback signal from the encoder or tachometer, and confirm that the fieldbus communication link has re-established by monitoring the drive’s status word in the PLC or SCADA system before releasing the drive back to automatic control.

For facilities operating continuous processes where even a brief interruption carries significant production cost, maintaining a pre-tested YPP110A 3ASD573001A1 as a cold standby spare — stored in its original anti-static packaging in a climate-controlled environment — is the most reliable strategy for keeping mean time to repair (MTTR) below four hours. Our pre-shipment functional verification process ensures that every YPP110A dispatched from stock has been powered up, initialized, and confirmed fault-free before packaging, so your team can proceed directly to installation without additional bench testing on arrival.

Retrofit Support FAQ

Q1: Is the YPP110A 3ASD573001A1 a direct drop-in replacement for the original ABB processor in my ACS800?
Yes. The YPP110A 3ASD573001A1 is the OEM processor board for the ACS800 and DCS800 drive series. It installs directly into the existing processor slot on the RMIO board assembly without any mechanical modification. After installation, restore your parameter backup via the CDP312R panel or DriveWindow Light to return the drive to its pre-fault configuration.

Q2: How do I confirm firmware compatibility before installing the replacement processor?
Record the firmware version displayed on the CDP312R panel or in DriveWindow Light before removing the faulty processor. Compare this version against the firmware loaded on the replacement YPP110A. If the versions differ, contact your ABB service representative or use DriveWindow Light to update the firmware on the replacement board before restoring parameters. Mismatched firmware versions can cause parameter incompatibility faults during the restore process.

Q3: What pre-shipment testing is performed on the YPP110A before dispatch?
Every YPP110A 3ASD573001A1 in our inventory undergoes a functional power-up test and initialization check before shipment. The board is verified to be free of fault codes and communication errors under controlled test conditions. This pre-shipment verification is included at no additional charge and is documented with each unit. All units are covered by a support terms confirmed by quotation from the date of dispatch.

Q4: Can you supply the YPP110A for urgent breakdown situations, and what is the typical lead time?
Yes. In-stock units are available for dispatch within 2 business days of order confirmation. For critical breakdown situations, expedited shipping options are available to most international destinations. Our inventory is maintained specifically to support unplanned outage scenarios where lead times from the OEM or standard distribution channels are unacceptable. Contact our team directly to confirm current stock availability and arrange priority dispatch.

© 2026 KNMKS. All rights reserved.
Original Source: https://knmks.com
Contact: [email protected] | +86 18359268345

Product Identification

Brand / Ecosystem

ABB
ABB

Model / Series

YPP110A 3ASD573001A1
S800 Series

Product Family

PLCs & Controllers

Availability Status

Available on request after model and quantity confirmation

Inquiry Type

B2B RFQ, replacement inquiry and project spare-part request

Pre-Quote Check

Exact SKU, brand, series, quantity, nameplate photos and destination country are checked before quotation

Specification & Inquiry Focus

Control platform

PLC, PAC and modular controllers

Common needs

CPU, rack, power and I/O expansion

Project support

Replacement, cabinet build and maintenance

Inquiry Support

• Model cross-checking before quotation
• CPU, power, rack and expansion module matching
• Support for replacement and project inquiry

What to Send Us

• Brand and exact model number: ABB YPP110A 3ASD573001A1
• Quantity and required delivery time
• Application, replacement requirement or nameplate photo
• Destination country and shipping preference
