ABB TZIDC-110 Maintenance-Proven Spare Part for Factory Uptime

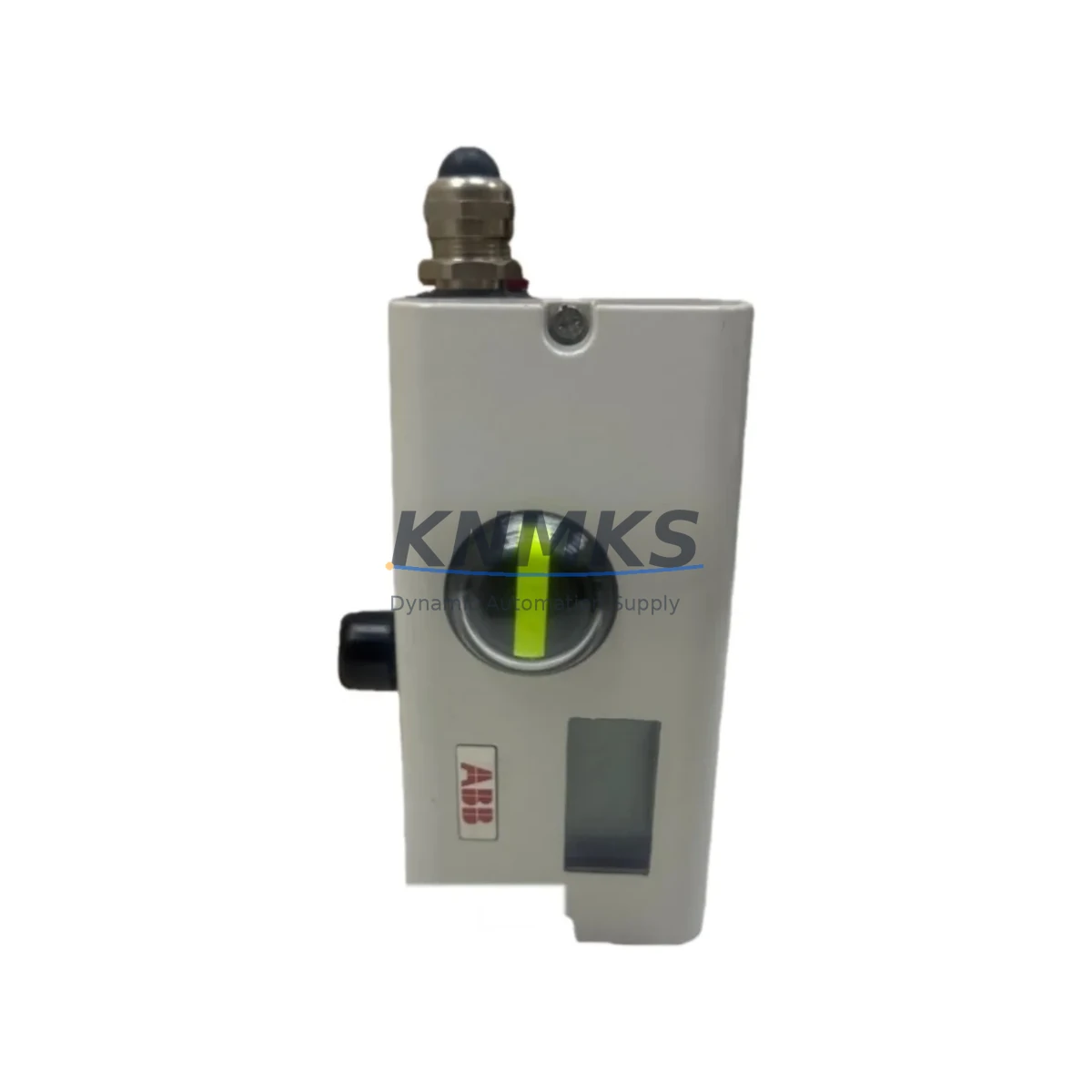

The ABB TZIDC-110 is a high-performance digital valve positioner engineered for demanding process control environments across oil & gas, petrochemical, power generation, water treatment, and continuous manufacturing plants. As a direct OEM-grade spare, the TZIDC-110 is designed to restore valve automation loops to full operational status with minimal downtime — a critical requirement for maintenance engineers managing aging DCS and PLC-driven control architectures.

Sourced from verified supply channels and tested prior to shipment, this spare part supports HART communication protocol, meets ATEX explosion-proof certification requirements, and carries an IP66 ingress protection rating — making it suitable for both indoor control cabinets and harsh outdoor field installations. Whether you are executing a planned annual shutdown, responding to an emergency valve failure, or building a strategic spare parts inventory for a critical process loop, the TZIDC-110 delivers the compatibility and reliability your maintenance team depends on.

At KNMKS, every unit undergoes pre-shipment functional verification. We support long-term supply commitments, offer support terms confirmed by quotation coverage, and maintain stock availability for rapid dispatch to global industrial sites.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When replacing the ABB TZIDC-110 in the field, a disciplined maintenance approach requires more than a one-for-one swap. Valve positioner failures rarely occur in isolation — they are frequently symptomatic of broader issues within the instrument air supply, signal loop, or control cabinet wiring. Maintenance engineers should treat a TZIDC-110 replacement as an opportunity to audit the surrounding system.

Begin by verifying the instrument air supply quality: moisture contamination and particulate ingress are leading causes of positioner failure in humid or coastal environments. Inspect the air filter-regulator assembly upstream of the positioner and replace filter elements if the maintenance interval has been exceeded. Next, check the 4–20 mA signal loop integrity from the DCS or PLC analog output card — confirm loop resistance is within specification and that the HART communicator can establish a clean connection without signal noise.

Inside the control cabinet, inspect the I/O terminal blocks and field wiring connected to the positioner loop. Corroded terminals or loose connections can introduce intermittent faults that mimic positioner failure. If the loop includes a signal isolator or loop-powered barrier (common in ATEX Zone 1 installations), verify that the barrier’s output voltage is within the positioner’s operating range. Zener barriers and galvanic isolators degrade over time and should be part of the same replacement cycle when a positioner is being serviced.

For installations where the TZIDC-110 is integrated into an ABB Freelance or System 800xA DCS, confirm that the HART device descriptor (DD) file loaded in the asset management system matches the firmware revision of the replacement unit. Mismatched DD files can prevent full digital communication and limit diagnostic visibility. Similarly, if the positioner feeds back to an ABB AC500 PLC or third-party controller via analog position feedback, re-verify the feedback scaling after installation.

Maintenance planners building annual shutdown kits for valve-intensive process units should also consider stocking the ABB TZIDC-200 (the enhanced successor model with extended diagnostics) alongside TZIDC-110 units, as well as compatible pneumatic actuator repair kits, positioner mounting bracket sets, and HART handheld communicators for on-site calibration. A well-structured spare parts list reduces mean time to repair (MTTR) and supports the plant’s overall equipment effectiveness (OEE) targets.

Site Replacement Workflow

Step 1 — Isolation & Safety: Place the control loop in manual mode at the DCS/PLC. Isolate the instrument air supply to the actuator. Follow site LOTO (Lockout/Tagout) procedures before disconnecting field wiring.

Step 2 — Documentation: Record the existing positioner’s configuration parameters using a HART communicator or the ABB DTM (Device Type Manager) before removal. Capture zero/span settings, action direction, and any custom characterization curves stored in the device.

Step 3 — Physical Removal: Disconnect the 4–20 mA signal wires and instrument air tubing. Remove the positioner from the actuator mounting bracket, noting the feedback linkage geometry for reinstallation reference.

Step 4 — Installation of TZIDC-110 Spare: Mount the replacement unit using the original bracket hardware. Reconnect the feedback linkage, instrument air supply, and signal wiring. Verify terminal polarity before energizing the loop.

Step 5 — Commissioning & Calibration: Restore instrument air supply and energize the signal loop. Use a HART communicator to perform auto-calibration (auto-adjust function). Verify full stroke travel, confirm split-range settings if applicable, and check for any active diagnostics or fault codes.

Step 6 — Return to Service: Transfer the loop back to automatic mode at the DCS/PLC. Monitor the control response for the first 15–30 minutes of operation. Document the replacement in the plant CMMS (Computerized Maintenance Management System) and update the spare parts inventory accordingly.

This workflow is compatible with direct replacement of legacy TZIDC-110 units and supports migration from older ABB positioner models where mounting interfaces are mechanically equivalent.

Spare Parts Support FAQ

Q1: Is the TZIDC-110 spare part tested before shipment?
Yes. Every TZIDC-110 unit supplied by KNMKS undergoes functional verification prior to dispatch. This includes signal loop response testing and communication integrity checks to ensure the unit is ready for immediate field installation upon arrival.

Q2: What support terms coverage is provided, and what does it include?
All TZIDC-110 spare parts carry a support terms confirmed by quotation from the date of shipment. The support terms covers manufacturing defects and functional failures under normal operating conditions. KNMKS provides replacement or repair support within the confirmed support period, subject to inspection of the returned unit.

Q3: Can KNMKS support long-term or blanket purchase orders for TZIDC-110 inventory?
Yes. KNMKS supports long-term supply agreements and blanket PO arrangements for maintenance teams managing multi-site or multi-unit installations. This ensures price stability, guaranteed stock allocation, and priority dispatch for critical spare requirements. Contact our sales team to discuss volume and scheduling terms.

Q4: How do I confirm compatibility before ordering if my existing positioner has a different firmware or hardware revision?
Provide your existing unit’s nameplate data (full part number, serial number, and firmware revision if available) to our technical team at [email protected]. We will cross-reference against our inventory and confirm compatibility before order confirmation. For HART-enabled installations, we can also advise on DD file compatibility with your asset management system.

—
