ABB TU921S 3KDE175111L9210 Fail-Safe Redundant Termination Unit

Overview

ABB TU921S 3KDE175111L9210 Fail-Safe Redundant Termination Unit: Fault Protection and Critical Industrial Field Reliability

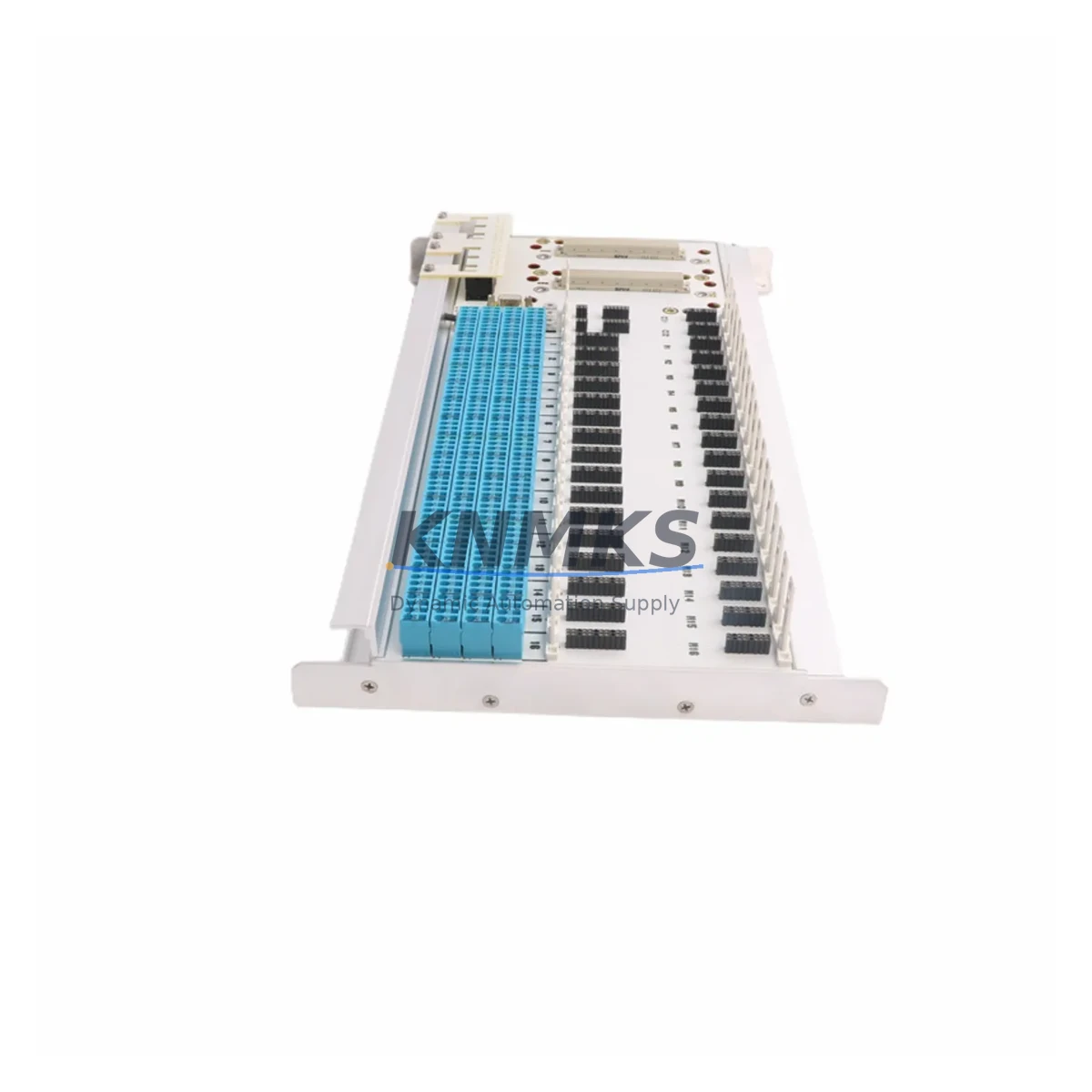

The ABB TU921S (3KDE175111L9210) is a safety-grade redundant termination unit engineered for the ABB AC 800M Distributed Control System (DCS) and S800 I/O series. Designed to sustain uninterrupted control loop integrity in the most demanding industrial environments, this termination unit delivers fail-safe signal routing, redundant I/O path switching, and robust protection against the electrical and mechanical stresses common to continuous-process facilities. Whether deployed in petrochemical refineries, power generation plants, metallurgical smelters, or water treatment infrastructure, the TU921S provides the structural backbone that keeps critical control circuits alive when field conditions deteriorate.

In high-stakes automation architectures, a single point of termination failure can cascade into unplanned shutdowns, process upsets, or safety interlock trips. The TU921S eliminates this vulnerability by providing a fully redundant signal path at the I/O termination layer — ensuring that even if one channel experiences a fault, the control system maintains continuous communication with field instruments, actuators, and safety devices. This is particularly critical in applications where the ABB PM866 or PM891 controller modules are managing time-sensitive interlock logic, where any signal interruption could trigger emergency shutdowns or compromise personnel safety.

The unit is rated for operation in harsh environments characterized by high electromagnetic interference (EMI), voltage transients, vibration, dust ingress, and elevated ambient temperatures — conditions routinely encountered inside heavy industrial control cabinets. Its surge-protected terminal architecture guards against transient overvoltages that can propagate from field cabling into the I/O backplane, protecting not only the TU921S itself but also adjacent modules such as the ABB AI810 analog input module and ABB DI810 digital input module that share the same S800 I/O rail. In facilities with long cable runs or proximity to high-voltage switchgear, this surge immunity is a non-negotiable reliability requirement.

Fail-Safe Reliability Table

Control Cabinet Protection Strategy

A reliable DCS control cabinet is a system — not a collection of individual modules. The TU921S is most effective when integrated as part of a coordinated protection strategy that addresses power quality, signal integrity, communication continuity, and thermal management simultaneously.

On the power supply side, pairing the TU921S with an ABB SD832 or SD833 redundant power supply module ensures that the I/O backplane maintains stable DC bus voltage even during mains fluctuations or single-supply failures. Power interruptions are one of the leading causes of spurious I/O state changes, and a redundant supply architecture directly reduces this risk. For communication continuity, the ABB CI854 PROFIBUS DP communication interface module provides the fieldbus backbone that links the AC 800M controller to distributed I/O stations — and its redundant configuration options complement the TU921S’s own redundancy capabilities to create a fully fault-tolerant signal chain from controller to field device.

In cabinets operating in high-vibration environments such as offshore platforms, mining headframes, or heavy press lines, the mechanical integrity of every termination point is critical. The TU921S’s robust terminal block design resists contact loosening under sustained vibration, reducing the risk of intermittent signal faults that are notoriously difficult to diagnose during live production. Alongside the TU921S, the ABB TB820V2 ModuleBus modem module and ABB FI830F fieldbus interface are commonly deployed in the same cabinet to complete the I/O communication architecture, and all benefit from the same cabinet-level EMI shielding and surge coordination strategy.

For thermal management, cabinets housing multiple S800 I/O modules and their associated termination units should be designed with adequate airflow and heat dissipation margins. The TU921S’s power dissipation characteristics are consistent with standard S800 I/O thermal budgets, allowing system integrators to plan cabinet layouts without derating concerns under normal operating conditions.

Critical Industrial Safety Applications

The TU921S is deployed across a wide range of safety-critical and continuous-process industries where control system availability is directly linked to operational safety and production economics.

In petrochemical and refining facilities, the TU921S supports emergency shutdown (ESD) and process safety interlock systems where redundant I/O termination is a fundamental SIL architecture requirement. Signal path integrity between field transmitters, final control elements, and the DCS must be maintained without interruption — even during partial maintenance activities or single-point hardware faults.

In power generation plants — including thermal, hydro, and combined-cycle facilities — the TU921S provides the termination reliability needed for turbine control, boiler management, and grid synchronization loops. These applications demand zero-tolerance for signal dropout, and the redundant termination architecture directly supports this requirement.

In mining and mineral processing operations, where control cabinets are exposed to heavy dust loading, mechanical vibration, and wide temperature swings, the TU921S’s environmental robustness ensures that I/O termination integrity is maintained across extended maintenance intervals. Its compatibility with the broader S800 I/O ecosystem allows seamless integration into existing ABB DCS installations without requiring controller-level reconfiguration.

In water and wastewater treatment infrastructure, where continuous pump, valve, and dosing control is essential for regulatory compliance and public safety, the TU921S supports the high-availability DCS architectures that operators depend on for 24/7 unattended operation.

In metallurgical and steel production environments, characterized by extreme EMI from arc furnaces and induction heating equipment, the TU921S’s surge-protected terminal design provides a critical layer of protection for analog and digital I/O signals that would otherwise be vulnerable to induced transients.

Safety and Quality FAQ

Q1: What support terms coverage does the TU921S carry?
All ABB TU921S units supplied by KNMKS carry a support terms confirmed by quotation from the date of shipment. This covers functional failures under normal operating conditions and includes technical support for installation and compatibility verification.

Q2: What pre-shipment testing is performed on each unit?
Every TU921S undergoes full functional verification prior to dispatch, including terminal continuity checks, redundancy path validation, and visual inspection for mechanical integrity. Units that do not pass testing are not shipped.

Q3: Is the TU921S compatible with existing AC 800M and S800 I/O installations?
Yes. The TU921S (3KDE175111L9210) is a factory-standard ABB component fully compatible with the AC 800M controller family and the S800 I/O module range, including AI810, DI810, AO810V2, and associated communication modules. No firmware changes or controller reconfiguration are required for direct replacement.

Q4: Can long-term supply continuity be guaranteed for ongoing maintenance programs?
KNMKS maintains stock of the TU921S and other critical S800 I/O components to support planned maintenance, emergency replacement, and multi-year spare parts programs. Customers with ongoing supply requirements are encouraged to contact our team to discuss scheduled procurement arrangements.
