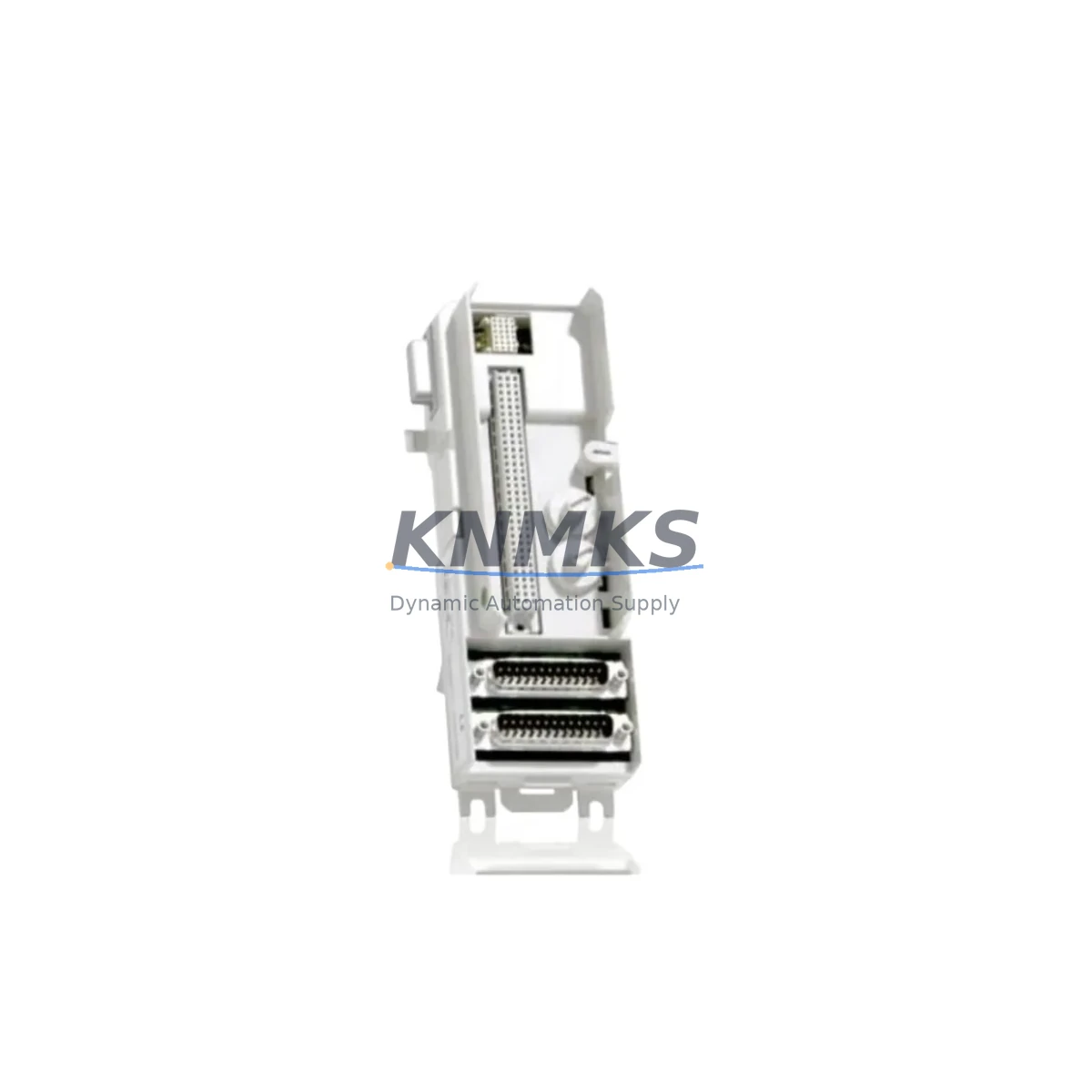

ABB TU852 Fail-Safe ModuleBus Termination for S800 I/O

Overview

ABB TU852 Fail-Safe ModuleBus Termination for S800 I/O: Fault Protection and Critical Industrial Reliability

The ABB TU852 is a ModuleBus Termination Unit designed for the ABB S800 I/O system, engineered to maintain signal integrity and bus stability in the most demanding industrial control environments. Whether deployed in continuous process plants, high-EMI switchgear rooms, or safety-critical interlock circuits, the TU852 provides the electrical termination necessary to prevent reflections, signal drift, and communication anomalies that can trigger unplanned shutdowns or control loop failures.

In modern distributed control architectures, the integrity of the ModuleBus backbone is fundamental to system reliability. The TU852 terminates the S800 I/O ModuleBus at the correct impedance, suppressing standing waves and noise-induced errors that become especially problematic in long cable runs, high-vibration environments, or cabinets subject to thermal cycling. Without proper termination, bus communication errors can cascade into I/O module faults, controller alarms, and ultimately process interruptions — outcomes that are unacceptable in safety-rated or continuous production facilities.

The TU852 is fully compatible with the ABB S800 I/O range, including AI810, AO810, DI810, and DO810 I/O modules, as well as the CI854 PROFIBUS DP communication interface module. In retrofit and upgrade projects, it is commonly installed alongside the TB820 ModuleBus Modem and TP830 Termination Panel to complete a fully terminated, noise-immune I/O segment. When replacing legacy termination arrangements or expanding existing S800 racks, the TU852 slots directly into the standard S800 baseplate without requiring additional hardware modifications, minimising installation time and reducing the risk of wiring errors during live system upgrades.

Fail-Safe Reliability Table

Control Cabinet Protection Strategy

Effective control cabinet design for S800-based systems requires more than correct I/O selection — it demands a coherent protection strategy across every layer of the signal chain. The TU852 anchors the ModuleBus termination layer, but its reliability is amplified when paired with complementary protection components. In high-load cabinets, the SD802F or SD803F power supply modules provide regulated, filtered DC power to the S800 I/O rail, ensuring that voltage fluctuations from heavy motor starts or welding equipment do not propagate into the control bus. Surge events on field wiring are best intercepted upstream using dedicated surge protection devices before signals reach the AI810 or DI810 input modules.

For cabinets operating in dusty, humid, or chemically aggressive environments — common in mining, water treatment, and petrochemical plants — the CI854 PROFIBUS DP communication interface module should be verified for firmware compatibility with the installed AC800M controller version before any termination unit replacement is performed. The TB820 ModuleBus Modem, where present, must also be checked for correct address configuration after any bus segment modification. Signal isolators installed between field transmitters and S800 analog input modules further reduce the risk of ground loop interference reaching the ModuleBus, protecting the TU852’s termination function from noise sources that originate outside the cabinet.

Thermal management is equally critical. Cabinets with high module density should be assessed for airflow adequacy before adding or replacing termination units, as even passive components contribute to the overall thermal load. Proper cable segregation — separating power cables from signal cables within the cabinet — reduces inductive coupling that can degrade ModuleBus signal quality over time.

Critical Industrial Safety Applications

The ABB TU852 is deployed across a wide range of safety-critical and continuous-process industries where control interruption carries significant operational or safety consequences. In petrochemical and refinery environments, S800 I/O systems manage burner management, compressor control, and emergency shutdown sequences. A degraded ModuleBus termination in these applications can introduce latency or communication errors into safety interlock loops, making the TU852’s role as a precision termination component directly relevant to functional safety compliance.

In electric power generation and grid substations, S800-based control systems monitor and actuate protection relays, transformer cooling systems, and auxiliary power circuits. The TU852 ensures that ModuleBus communication remains stable under the high electromagnetic interference levels characteristic of high-voltage switchgear environments. Similarly, in mining and mineral processing operations — where vibration, dust ingress, and wide temperature swings are routine — the TU852’s robust construction supports continuous operation without the signal degradation that can occur with inferior or improperly terminated bus segments.

Water and wastewater treatment facilities rely on S800 I/O for pump control, dosing systems, and SCADA integration. Port and maritime applications use ABB control platforms for crane automation, mooring winch control, and vessel power management, all of which demand uninterrupted I/O communication. In each of these environments, the TU852 contributes to the overall system mean time between failures by eliminating a common source of intermittent bus faults.

Safety and Quality FAQ

Q: Does the TU852 come with a support terms, and what does it cover?
A: Yes. Every TU852 unit supplied by KNMKS carries a support terms confirmed by quotation covering manufacturing defects and functional failures under normal operating conditions. All units undergo pre-shipment functional testing before dispatch to verify bus termination integrity and physical condition.

Q: How is the TU852 tested before shipment?
A: Each unit is inspected and functionally verified prior to shipping. Testing confirms correct impedance characteristics, physical connector integrity, and absence of damage. A test record is available on request for quality-critical procurement processes.

Q: Is the TU852 compatible with all S800 I/O baseplates and ModuleBus configurations?
A: The TU852 is designed for use with the ABB S800 I/O ModuleBus and is compatible with standard S800 baseplates. Compatibility with specific system configurations — including controller firmware versions and CI854 communication interface settings — should be verified against the installed AC800M system version. KNMKS technical support can assist with compatibility confirmation prior to order.

Q: Can KNMKS support long-term or repeat supply of the TU852?
A: Yes. KNMKS maintains stock of the TU852 and related S800 I/O components to support ongoing maintenance, planned replacements, and emergency spare part requirements. Long-term supply agreements are available for facilities managing multi-year maintenance schedules.

© 2026 KNMKS. All rights reserved.
Original Source: https://knmks.com
Contact: [email protected] | +86 18359268345

Product Identification

Brand / Ecosystem

ABB
ABB

Model / Series

TU852
S800 Series

Product Family

PLCs & Controllers

Availability Status

Available on request after model and quantity confirmation

Inquiry Type

B2B RFQ, replacement inquiry and project spare-part request

Pre-Quote Check

Exact SKU, brand, series, quantity, nameplate photos and destination country are checked before quotation

Specification & Inquiry Focus

Control platform

PLC, PAC and modular controllers

Common needs

CPU, rack, power and I/O expansion

Project support

Replacement, cabinet build and maintenance

Inquiry Support

• Model cross-checking before quotation
• CPU, power, rack and expansion module matching
• Support for replacement and project inquiry

What to Send Us

• Brand and exact model number: ABB TU852
• Quantity and required delivery time
• Application, replacement requirement or nameplate photo
• Destination country and shipping preference
