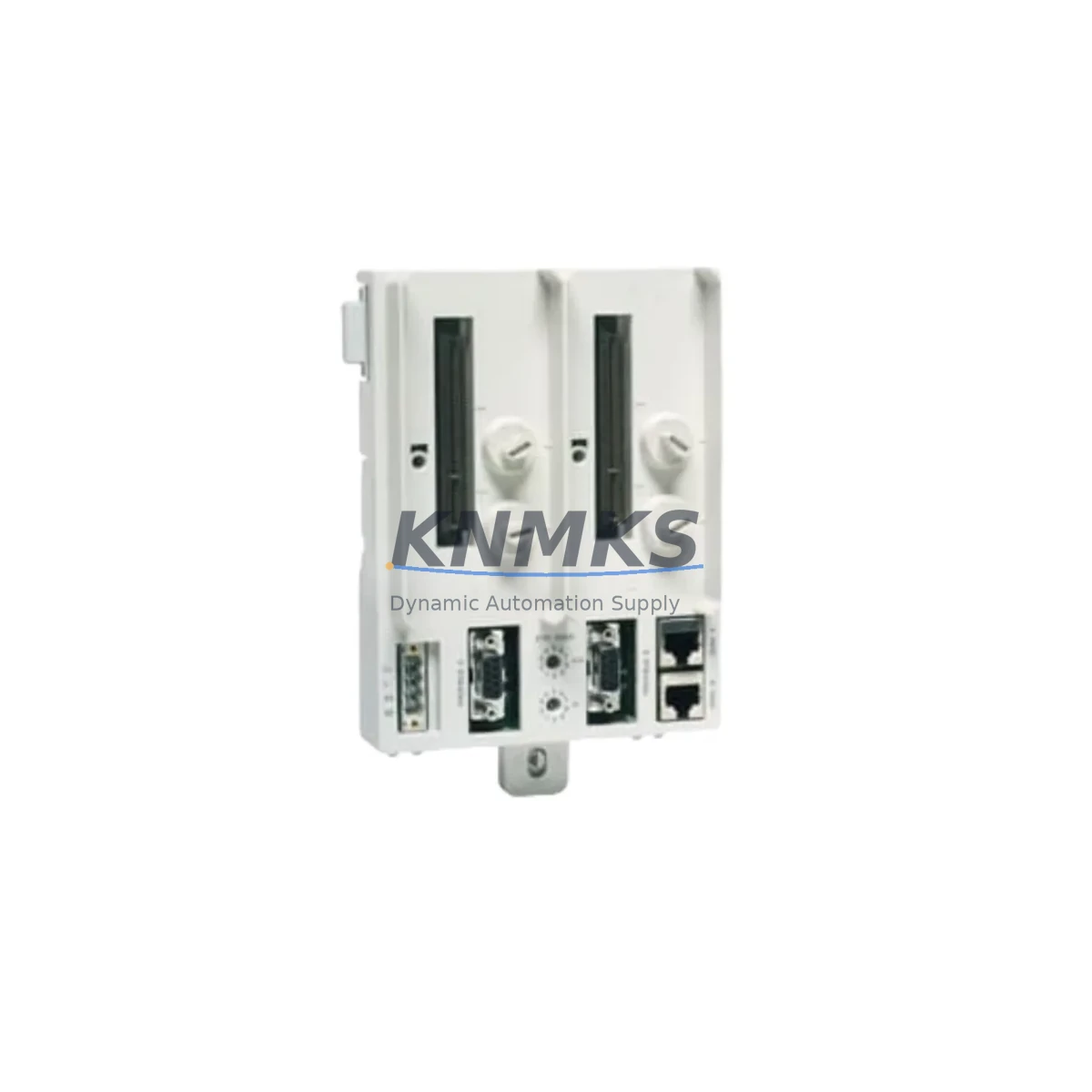

ABB TU847 Maintenance-Proven Spare Part for Factory Uptime

Overview

ABB TU847 Maintenance-Proven Spare Part for Factory Uptime

The ABB TU847 is a field-proven terminal unit designed for the S800 I/O series, widely deployed in ABB System 800xA DCS environments across process industries including oil & gas, power generation, pulp & paper, and chemical manufacturing. As a critical interface between field wiring and I/O modules, the TU847 enables non-intrusive module replacement without disturbing field cables — a key advantage during emergency shutdowns, scheduled turnarounds, and corrective maintenance windows. Maintaining a verified stock of TU847 units is a fundamental element of any robust spare parts strategy for facilities running ABB 800xA or Advant OCS control architectures.

When a TU847 fails or degrades in service, the consequences extend beyond a single I/O channel. Depending on the module configuration, an entire I/O cluster may go offline, triggering process alarms, forcing manual overrides, or initiating an unplanned shutdown. Procurement engineers and maintenance planners who stock at least one TU847 per critical I/O rack position significantly reduce mean time to repair (MTTR) and protect production continuity. Each unit supplied by KNMKS is sourced from verified channels, subjected to pre-shipment functional testing, and backed by a support terms confirmed by quotation covering manufacturing defects and operational failures under normal service conditions.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

Replacing a TU847 in the field is rarely an isolated task. Maintenance engineers conducting a corrective or preventive replacement should simultaneously inspect the associated I/O module — such as the AI810 analog input module or DI810 digital input module — for signs of channel drift, LED fault indication, or communication timeout errors logged in the 800xA event journal. The field wiring harness and terminal block integrity should be verified before re-seating any replacement module onto the TU847.

Within the same control cabinet, engineers should also check the TB820 ModuleBus Modem or TB840A communication interface, as a degraded bus connection can cause false I/O faults that mimic terminal unit failures. The SD821 or SD822 power supply modules feeding the I/O cluster should be load-tested; an undervoltage condition on the 24 VDC rail is a common root cause of intermittent TU847 communication loss. Fuse integrity on the power distribution rail and the condition of the TP830 termination panel should be documented as part of the same work order.

For facilities managing aging 800xA installations, a proactive spare parts list should include at minimum: TU847 terminal units, the associated I/O modules for each rack position, one spare TB820 or TB840A per cluster, and a set of replacement fuses rated for the local power distribution design. This approach ensures that any single-point failure in the I/O subsystem can be resolved within one maintenance shift without waiting for emergency procurement.

Site Replacement Workflow

The TU847 is designed to support hot-swap module replacement, meaning the I/O module can be removed and replaced without disconnecting field wiring — provided the terminal unit itself remains seated and undamaged. When the TU847 must also be replaced, the recommended workflow is as follows:

First, isolate the affected I/O channel in the 800xA control system using the engineering station, placing the channel in manual or forced mode to prevent spurious process actions. Document the current field wiring layout using the as-built drawings or a photograph before disconnecting any terminals. Remove the I/O module, then carefully extract the TU847 from the DIN rail or baseplate, noting the orientation and any labeling applied to field cables.

Install the replacement TU847, reconnect field wiring in the documented sequence, and re-seat the I/O module. Restore the channel from manual mode in the 800xA system and verify signal integrity through the faceplate display or operator station. Log the replacement in the site CMMS with the new unit’s serial number and the date of installation to support support terms tracking and future maintenance planning.

This workflow minimizes downtime to under 30 minutes for a trained technician and eliminates the risk of wiring errors that can cause process upsets or instrument damage. For legacy Advant OCS installations where the TU847 interfaces with older I/O racks, compatibility should be confirmed against the site’s hardware revision matrix before ordering.

Spare Parts Support FAQ

Q1: Is the TU847 compatible with all S800 I/O modules?
The TU847 is compatible with a broad range of S800 I/O modules including analog input, analog output, digital input, and digital output variants. Compatibility depends on the specific module type and hardware revision. KNMKS recommends confirming the target module part number against ABB’s S800 I/O hardware compatibility matrix or contacting our technical team at [email protected] before placing an order for critical applications.

Q2: What does the support terms confirmed by quotation cover?
The support terms confirmed by quotation cover manufacturing defects and operational failures occurring under normal service conditions from the date of shipment. It does not cover damage resulting from incorrect installation, overvoltage events, physical impact, or use outside the specified environmental ratings. Support requests are processed promptly with replacement units dispatched from stock where available.

Q3: How is the TU847 tested before shipment?
Each TU847 unit undergoes pre-shipment functional verification to confirm terminal integrity, mechanical condition, and electrical continuity. Units that do not meet inspection criteria are quarantined and not dispatched. Test records are retained internally and can be referenced in the event of a support terms claim.

Q4: Can KNMKS support long-term or blanket purchase orders for TU847?
Yes. KNMKS supports long-term supply agreements and forward stock programs for high-demand spare parts including the TU847. Facilities managing multiple 800xA installations or planning multi-year maintenance contracts are encouraged to contact our procurement team to discuss volume pricing, reserved inventory allocation, and scheduled delivery programs that align with annual maintenance budgets.

© 2026 KNMKS. All rights reserved.
Original Source: https://knmks.com
Contact: [email protected] | +86 18359268345

Product Identification

Brand / Ecosystem

ABB
ABB

Model / Series

TU847
S800 Series

Product Family

PLCs & Controllers

Availability Status

Available on request after model and quantity confirmation

Inquiry Type

B2B RFQ, replacement inquiry and project spare-part request

Pre-Quote Check

Exact SKU, brand, series, quantity, nameplate photos and destination country are checked before quotation

Specification & Inquiry Focus

Control platform

PLC, PAC and modular controllers

Common needs

CPU, rack, power and I/O expansion

Project support

Replacement, cabinet build and maintenance

Inquiry Support

• Model cross-checking before quotation
• CPU, power, rack and expansion module matching
• Support for replacement and project inquiry

What to Send Us

• Brand and exact model number: ABB TU847
• Quantity and required delivery time
• Application, replacement requirement or nameplate photo
• Destination country and shipping preference
