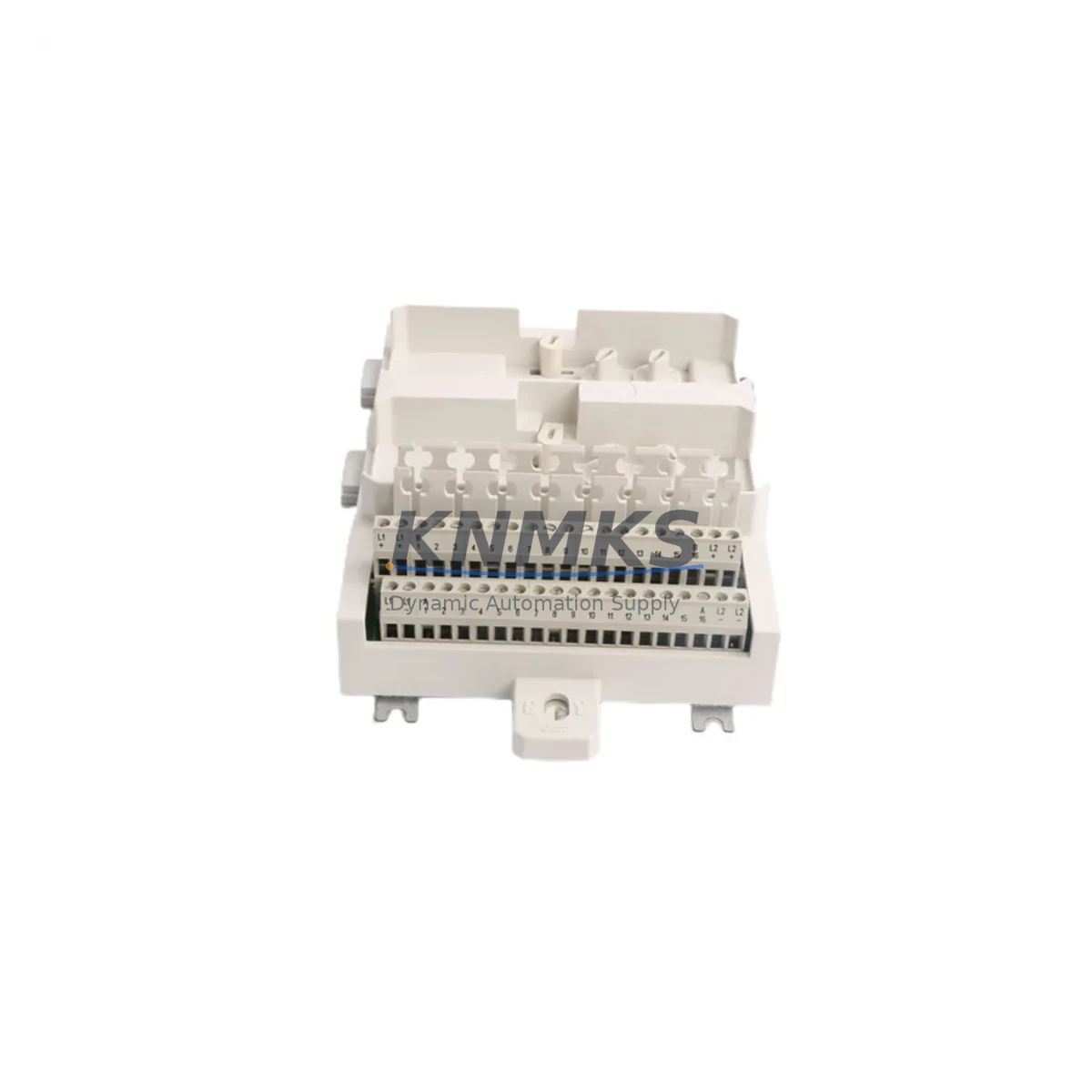

ABB TU845 3BSE021447R1 Maintenance-Proven Spare Part for Factory Uptime

Overview

ABB TU845 3BSE021447R1 Maintenance-Proven Spare Part for Factory Uptime

The ABB TU845 (3BSE021447R1) is an original S800 I/O Module Termination Unit designed for use within ABB’s AC 800M Distributed Control System (DCS) architecture. As a field-proven component in continuous process industries — including pulp and paper, oil and gas, power generation, and chemical manufacturing — the TU845 serves as the critical interface between S800 I/O modules and field wiring. Maintaining an adequate stock of TU845 units is a fundamental requirement for any maintenance team operating AC 800M-based control systems, where unplanned downtime carries significant operational and financial consequences.

For maintenance engineers and spare parts procurement teams, the TU845 represents a high-priority line item on any S800 system spare parts list. Its role in anchoring I/O modules to the cabinet backplane means that a failed or damaged termination unit can take an entire I/O channel group offline, triggering process shutdowns that are entirely avoidable with proper inventory management. This listing provides original ABB TU845 3BSE021447R1 units, sourced, inspected, and dispatched with a support terms confirmed by quotation to support your maintenance planning and emergency replacement requirements.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When replacing or inspecting the TU845 3BSE021447R1 in the field, a disciplined maintenance workflow requires more than a simple module swap. The termination unit sits at the intersection of field wiring and the S800 I/O module stack, meaning that any fault in adjacent components can be misdiagnosed as a TU845 failure — and vice versa.

Before or during a TU845 replacement, maintenance engineers should systematically verify the condition of the following associated components:

S800 I/O Modules: Confirm that the I/O module seated on the TU845 — such as an AI810 analog input module or DI810 digital input module — is functioning correctly. A damaged termination unit can cause intermittent I/O faults that appear as module failures. Always re-seat or bench-test the I/O module after installing a new TU845.

Power Supply Units: The S800 I/O rail draws power from dedicated supply modules. Inspect the SD821 or SD822 power distribution units for correct output voltage and load capacity. An undervoltage condition on the I/O rail can cause TU845-connected modules to report spurious faults, leading to unnecessary spare part replacements.

Communication Modules and Backplane: The CI854 PROFIBUS DP communication interface or equivalent fieldbus module governs data exchange between the AC 800M controller and the S800 I/O station. After a TU845 replacement, verify that the communication module correctly re-enumerates all I/O channels and that no address conflicts exist on the backplane.

Field Wiring and Terminal Integrity: Re-torque all field cable terminations to specification after installing the TU845. Inspect for insulation damage, moisture ingress, or corrosion on conductors — particularly in high-humidity or chemically aggressive environments. Use ferrules on stranded conductors to ensure long-term terminal contact reliability.

Signal Isolators and Fuse Protection: For analog signal loops connected through the TU845, verify that any inline signal isolators or loop-powered transmitter barriers are within calibration and that associated fuse elements in the marshalling panel are intact. A blown fuse on a 4–20 mA loop can simulate a TU845 or I/O module fault.

HMI and SCADA Alarm Verification: After completing the replacement, confirm with the control room that all previously faulted I/O points have returned to normal status on the AC 800M operator station or connected SCADA/HMI. Document the replacement event in the plant maintenance management system (CMMS) for traceability and future spare parts planning.

Maintaining a minimum stock of two TU845 units per S800 I/O station is a widely adopted practice in facilities with high-availability requirements. Combined with a structured annual inspection of terminal condition and module seating, this approach significantly reduces the risk of unplanned downtime caused by termination unit degradation.

Site Replacement Workflow

The TU845 3BSE021447R1 is a direct replacement for earlier S800 termination unit variants used in legacy AC 800M installations. Its standardized form factor and terminal layout ensure backward compatibility with existing field wiring, eliminating the need for rewiring during replacement — a critical advantage in time-sensitive maintenance windows.

Step 1 — Isolation: Place the affected I/O station in safe state via the AC 800M engineering tool (Control Builder M). Isolate field power to the relevant I/O channels per site safety procedures.

Step 2 — Documentation: Photograph or record all field wiring connections on the existing TU845 before disconnection. Cross-reference with the as-built wiring diagram to confirm terminal assignments.

Step 3 — Module Removal: Disengage the S800 I/O module from the TU845 by releasing the module locking mechanism. Remove field wiring from the termination unit terminals in sequence.

Step 4 — TU845 Replacement: Mount the new TU845 3BSE021447R1 on the DIN rail or backplane. Reconnect field wiring per the documented terminal assignments. Re-seat the S800 I/O module and confirm secure engagement.

Step 5 — Commissioning: Restore field power and release the I/O station from safe state in Control Builder M. Verify all I/O channel statuses in the AC 800M diagnostic view. Confirm process values are within expected range before returning the loop to automatic control.

This workflow minimizes exposure time during the maintenance window and ensures system compatibility is maintained without requiring firmware changes or controller reconfiguration.

Spare Parts Support FAQ

Q1: Is the TU845 3BSE021447R1 compatible with all S800 I/O modules?
The TU845 is designed for use with the standard S800 I/O module series, including analog input, analog output, digital input, and digital output variants. Compatibility should be confirmed against the specific I/O module type and the AC 800M system configuration. Contact our technical team with your module list for confirmation before ordering.

Q2: What support terms is provided, and what does it cover?
All TU845 3BSE021447R1 units supplied through this listing carry a support terms confirmed by quotation from the date of shipment. The support terms covers manufacturing defects and functional failures under normal operating conditions. Each unit is tested before dispatch to verify electrical integrity and mechanical condition.

Q3: Can you support long-term or blanket purchase orders for ongoing maintenance programs?
Yes. We support scheduled delivery agreements and blanket purchase orders for maintenance teams that require guaranteed stock availability over a 12–24 month horizon. Contact [email protected] to discuss volume pricing, lead times, and consignment stock arrangements.

Q4: How do you handle urgent or emergency spare part requirements?
Emergency orders are prioritized for same-day or next-business-day dispatch where stock is available. We maintain inventory of high-demand S800 series components to support unplanned outage recovery. Contact us directly at +86 18359268345 for urgent requirements and we will confirm availability and shipping options immediately.

© 2026 KNMKS. All rights reserved.
Original Source: https://knmks.com
Contact: [email protected] | +86 18359268345

Product Identification

Brand / Ecosystem

ABB
ABB

Model / Series

TU845 3BSE021447R1
S800 Series

Product Family

PLCs & Controllers

Availability Status

Available on request after model and quantity confirmation

Inquiry Type

B2B RFQ, replacement inquiry and project spare-part request

Pre-Quote Check

Exact SKU, brand, series, quantity, nameplate photos and destination country are checked before quotation

Specification & Inquiry Focus

Control platform

PLC, PAC and modular controllers

Common needs

CPU, rack, power and I/O expansion

Project support

Replacement, cabinet build and maintenance

Inquiry Support

• Model cross-checking before quotation
• CPU, power, rack and expansion module matching
• Support for replacement and project inquiry

What to Send Us

• Brand and exact model number: ABB TU845 3BSE021447R1
• Quantity and required delivery time
• Application, replacement requirement or nameplate photo
• Destination country and shipping preference
